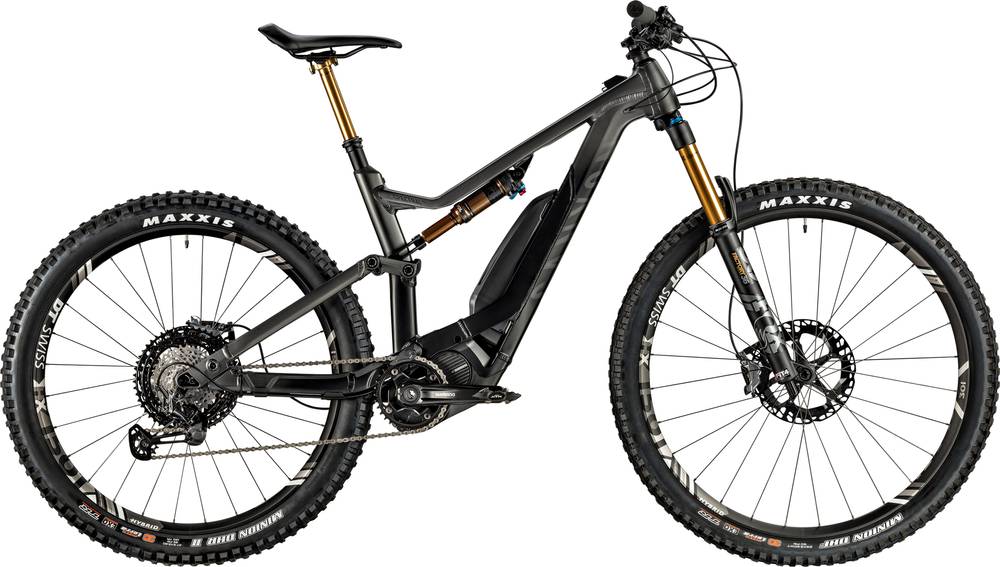

Canyon Spectral:ON 9.0 2019
2019 E-bike
Estimate price |
6,422$
Weight | 22.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XTR, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Steps E8010 504 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
173cm - 184cm
LG
182cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:On, Material: Aluminium 6061, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
FOX 36 Factory, Travel: 150 mm, Technology: FIT4, Axle Dimension: 15 x 110 mm
Rear Shock
FOX FLOAT DPS Factory, Length: 230 x 60 mm
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS
Shift Levers
Shimano XTR M9100 12s, Clamp: I-Spec EV
Cassette
Shimano XTR M9100 10-51 12s
Crank
Shimano E8000
Wheels
Rims
DT Swiss HX 1501 SH12, Rim Material: Aluminium, Inner Width: 35 mm, Freewheel: Ratchet, Weight: 1126 g
Tires
MAXXIS Minion DHR II 2.8'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready
Brakes
Brakes
Shimano XTR M9120
Cockpit
Stem
Race Face Aeffect R
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Grips
Canyon Lock-On
Seat
Saddle
Canyon SD:ON
Seatpost
FOX Transfer Factory
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Steps E8010 504 Wh
Remote
Shimano Steps E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.4 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 335 mm | 322 mm | 322 mm | 322 mm | 322 mm |
| Front Center | 722 mm | 733 mm | 755 mm | 780 mm | 805 mm |
| Rake | 51 mm | 52 mm | 52 mm | 52 mm | 53 mm |
| Trail | 102 mm | 96 mm | 96 mm | 96 mm | 95 mm |
| Stack | 608 mm | 621 mm | 625 mm | 637 mm | 647 mm |
| Reach | 408 mm | 428 mm | 448 mm | 468 mm | 488 mm |
| Top Tube Length | 585 mm | 600 mm | 619 mm | 641 mm | 663 mm |
| Seat Tube Angle | 73.3 ° | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 420 mm | 430 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66.8 ° | 66.8 ° | 66.8 ° | 66.8 ° |
| Head Tube Length | 100 mm | 95 mm | 100 mm | 113 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1154 mm | 1164 mm | 1186 mm | 1211 mm | 1236 mm |
| Bottom Bracket Drop | 20 mm | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 774 mm | 781 mm | 783 mm | 788 mm | 790 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Max Height | 167 cm | 175 cm | 184 cm | 192 cm | cm |
Model Overview
Spectral:ON 9.0 is part of the Canyon E Spectralon model. Canyon launched 37 e-bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Canyon Spectral:ON 6.0 2019 is the most affordable e-bike of this model and has a price of 3609$. On the other hand, Canyon Spectral:ON 9.0 2019, is the most expensive and costs 5945$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Spectral:ON 9.0 price was 5945$. In conclusion, this e-bike price is 24.24% higher than the price of the average Enduro e-bike.
Average weight for Enduro e-bikes
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Canyon Spectral:ON 9.0 it’s weighing 22.3 kg (49.16 lbs). At this weight, is a bit lighter than average. In short, the average Enduro e-bike weight is 5.02% higher than this one.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Spectral:ON 9.0 has a rear shock with a travel of 150mm. The model FOX FLOAT DPS Factory is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Spectral:ON 9.0 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Spectral:ON 9.0 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Canyon Spectral:ON 9.0 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
