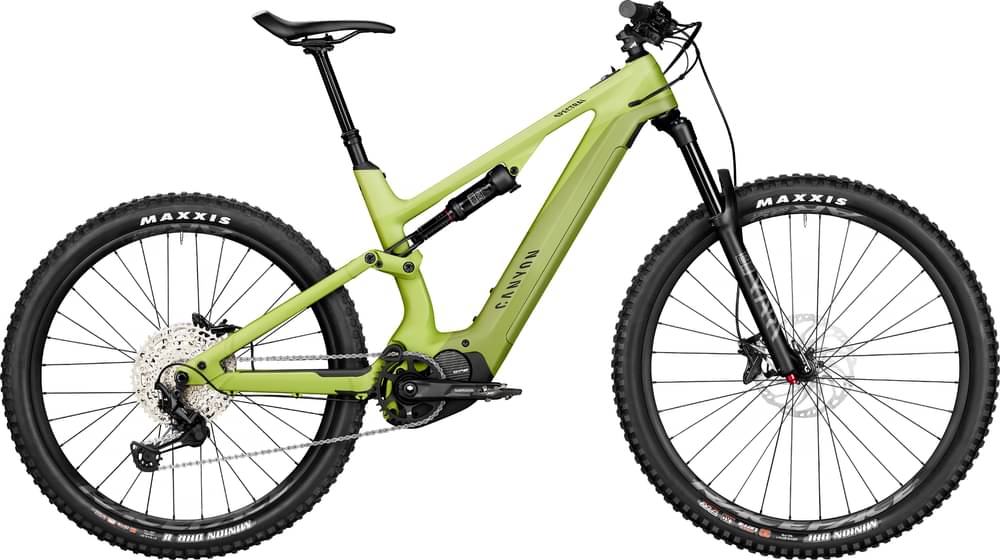

Canyon Spectral:ON CF 6 2022
2022 E-bike
Estimate price |
5,390$
Weight | 23.28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036 Akku 630WH -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:ON, Carbon front triangle, aluminium rear end, 150mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203mm)
Suspension Fork
RockShox Yari RC, 150mm, 150mm of front suspension, 29er fork, Boost 110 spacing, 35mm stanchions, Motion Control compression and rebound damping adjuster
Rear Shock
RockShox Deluxe Select, 230x60, 150mm of rear suspension. The Deluxe Select delivers proven damping performance in a lightweight package, highly tunable DebonAir™ spring, adjustable rebound damping.
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed, Precise 1x12 drivetrain.
Shift Levers
Shimano SLX, 12-speed, Precise 1x12 shifting system.
Cassette
Shimano Deore, 12-speed (10-51), Cassette packed with tricke-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 165mm crank arms
Bottom Bracket
STEPS, press-fit
Chain
Shimano M6100 12-speed, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Wheels
Rims
RaceFace AR30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width | RaceFace AR35 | Shimano MT510, Shimano MT510 rear hub with Boost 148 spacing, RaceFace AR35 aluminum rim, 35mm inner rim width
Tires
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Brakes
Brakes
Shimano Deore 4-piston, front brake, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads | Shimano Deore 4-piston, rear brake, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Disk Rotors
Shimano EM600 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal | Shimano SLX rotor, 203mm, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 50mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano BT-E8036 Akku 630WH
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 738 mm | 764 mm | 788 mm | 812 mm |
| Rake | 52 mm | 56 mm | 55 mm | 55 mm |
| Trail | 106 mm | 102 mm | 103 mm | 103 mm |
| Stack | 616 mm | 621 mm | 631 mm | 641 mm |
| Reach | 421 mm | 441 mm | 461 mm | 481 mm |
| Top Tube Length | 586 mm | 608 mm | 628 mm | 649 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1167 mm | 1193 mm | 1217 mm | 1241 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 780 mm | 784 mm | 788 mm | 802 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 173 cm | 184 cm | 195 cm | cm |
About this model
Spectral:ON CF 6 is part of the Canyon E Spectralon model. There are 37 e-bikes that carry this model name. You can easily view all of the Canyon E Spectralon e-bikes models from 2022, here.
Model range prices
Canyon Spectral:ON CF 6 WMN 2022 is the cheapest e-bike model and costs 4989$. Canyon Spectral:ON CFR LTD 2022 is the most expensive one and costs 11679$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 4989$. In conclusion, this e-bike price is 4.26% more expensive than the price of the average Enduro e-bike.
Average weight for Enduro e-bikes
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 23.28 kg (51.32 lbs), Canyon e-bike is slightly lighter than average. In other words, this model is 0.6% lighter than the average Enduro e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Spectral:ON CF 6 components
Fork
This e-bike has the RockShox Yari RC fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Canyon Spectral:ON CF 6 e-bike has the RockShox Deluxe Select model installed, and has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Spectral:ON CF 6 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
