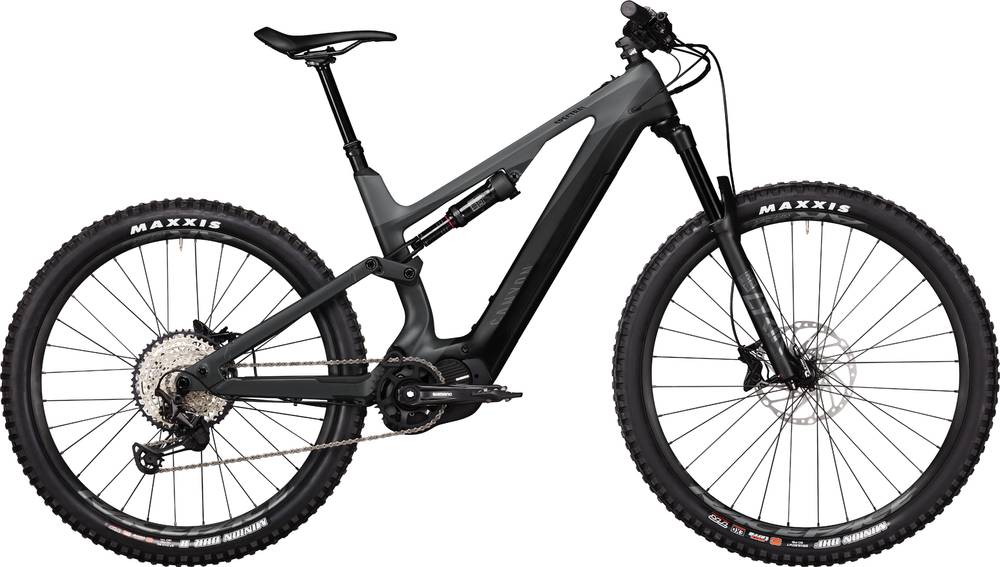

Canyon Spectral:ON CF 7.0 2020
2020 E-bike
Estimate price |
4,999$
Weight | 22.15 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:On, Material: Carbon, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 203
Suspension Fork
RockShox Lyrik Select
Rear Shock
RockShox Deluxe Select, 230x60, 150mm of rear suspension. The Deluxe Select delivers proven damping performance in a lightweight package, highly tunable DebonAir™ spring, adjustable rebound damping.
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed, 12-speed, max cassette size: 51T. Weight: 282 g, Shadow RD+ chain stabilizing system
Shift Levers
Shimano SLX M7100 12s
Cassette
Shimano SLX, 12-speed (10-51), Primarily-steel cogs with aluminium 51T cog, Microspline interface, Gear range: 10-51T, weight: 533 g, Hyperglide+ technology provides better chain engagement.
Crank
Shimano E8000
Chain
SHIMANO M7100 12-speed
Wheels
Rims
RaceFace AR30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width | RaceFace AR35 | Shimano MT510, Shimano MT510 rear hub with Boost 148 spacing, RaceFace AR35 aluminum rim, 35mm inner rim width
Tires
Maxxis Minion DHF, 2.5", 29x2.5", EXO casing, Tubeless Ready design | Maxxis Minion DHR II, 2.6", 29x2.6" EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Brakes
Brakes
Shimano MT520
Disk Rotors
Shimano RT64, Disc Mount: Centerlock
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 50mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips, 29x2.6", Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version
Seat
Saddle
Canyon SD:ON
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter
Motor & Battery
Motor
Shimano Steps E8000, Max. power output: 250 W, Torque: 70 Nm, Weight: 2.8 kg
Battery
Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 322 mm | 322 mm | 322 mm | 322 mm |
| Front Center | 738 mm | 764 mm | 788 mm | 812 mm |
| Rake | 52 mm | 56 mm | 55 mm | 55 mm |
| Trail | 98 mm | 94 mm | 95 mm | 95 mm |
| Stack | 616 mm | 621 mm | 631 mm | 641 mm |
| Reach | 421 mm | 441 mm | 461 mm | 481 mm |
| Top Tube Length | 586 mm | 608 mm | 628 mm | 649 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1167 mm | 1193 mm | 1217 mm | 1241 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 780 mm | 784 mm | 788 mm | 802 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 173 cm | 184 cm | 195 cm | cm |
Model Overview
Spectral:ON CF 7.0 is a Canyon E Spectralon model. Canyon released 37 e-bikes variations of this model so far. Take a sneak peek at all Canyon E Spectralon e-bikes models from 2020, by clicking here.
Model range prices
Canyon Spectral:ON AL 7.0 2020 is the most economical model, with a starting price of 4565$. Canyon Spectral:ON CF 9.0 2020 on the other hand costs 7431$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Spectral:ON CF 7.0 price was 4999$. Comparing this to the average Enduro e-bike price, we see that the price is 4.47% higher.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Spectral:ON CF 7.0 weighs 22.15 kg (48.83 lbs) and is a bit lighter than the average. In conclusion, the average Enduro e-bike weighs 5.73% more than Spectral:ON CF 7.0.
Spectral:ON CF 7.0 components
Fork
The RockShox Lyrik Select is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Canyon Spectral:ON CF 7.0 e-bike has the RockShox Deluxe Select model installed, and has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Spectral:ON CF 7.0 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Spectral:ON CF 7.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Canyon Spectral:ON CF 7.0 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
