Canyon Spectral:ON CF 7 2023
2023 E-bike
Estimate price |
4,999$
Weight | 23.04 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 155mm -
Fork RockShox Lyrik Select
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano mid-drive -
Battery Canyon BT0003-01 720Wh, Equipped on all Size S models and standard on Spectral:ON CF 7 and Torque:ON CF 8. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CANYON Spectral:ON CF, Material: Carbon (CF)
Suspension Fork
Rock Shox Lyrik Select, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 42 mm, Weight: 2.34 kg

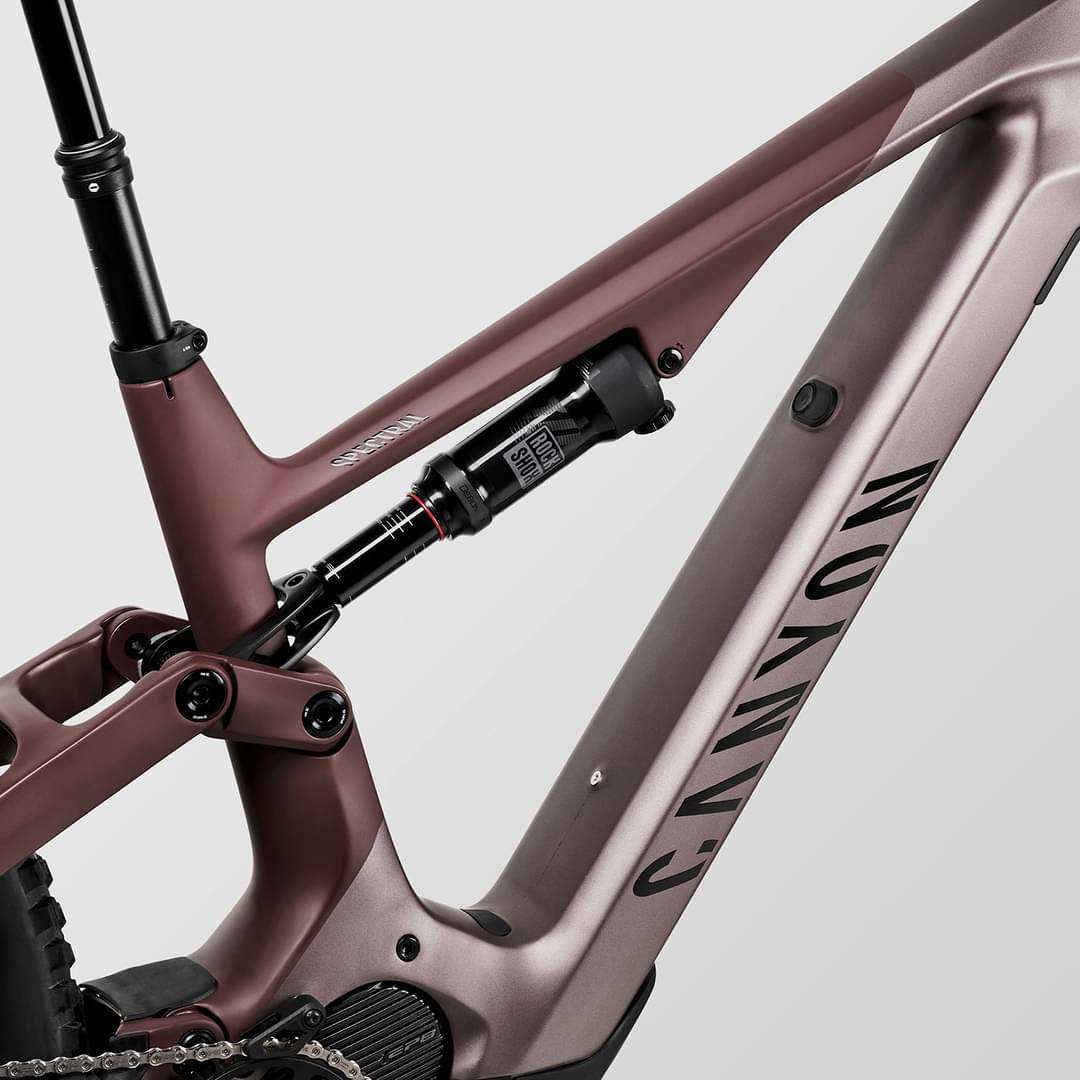

Rear Shock
Rockshox Deluxe Select R
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano DEORE M6100
Cassette
Shimano DEORE M6100, Number of sprockets: 12
Crank
Shimano STEPS
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-M6100
Chain Guide
Canyon Chainguide M091/M129
Wheels
Rims
RaceFace AR30 | Shimano MT400, Rotor mount: Center Lock, Weight: 1.19 kg | RaceFace AR35 | Shimano MT510, Rotor mount: Center Lock, Weight: 1.25 kg
Tires
Maxxis Assegai, Width: 2.5", Weight: 1.02 kg | Maxxis Minion DHR II 27,5" x 2.60 WT, Width: 2.6", Weight: 900 g
Brakes
Brakes
Shimano Deore
Cockpit
Stem
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Canyon:ON HB0057 Riser bar, Canyon-developed E-MTB handlebar for top control levels on the trail., Clamping diameter: 35,0 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon Lock-On
Seat
Saddle
Fizik Terra Aidon X5, Gender: Unisex, Weight: 262 g
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g
Motor & Battery

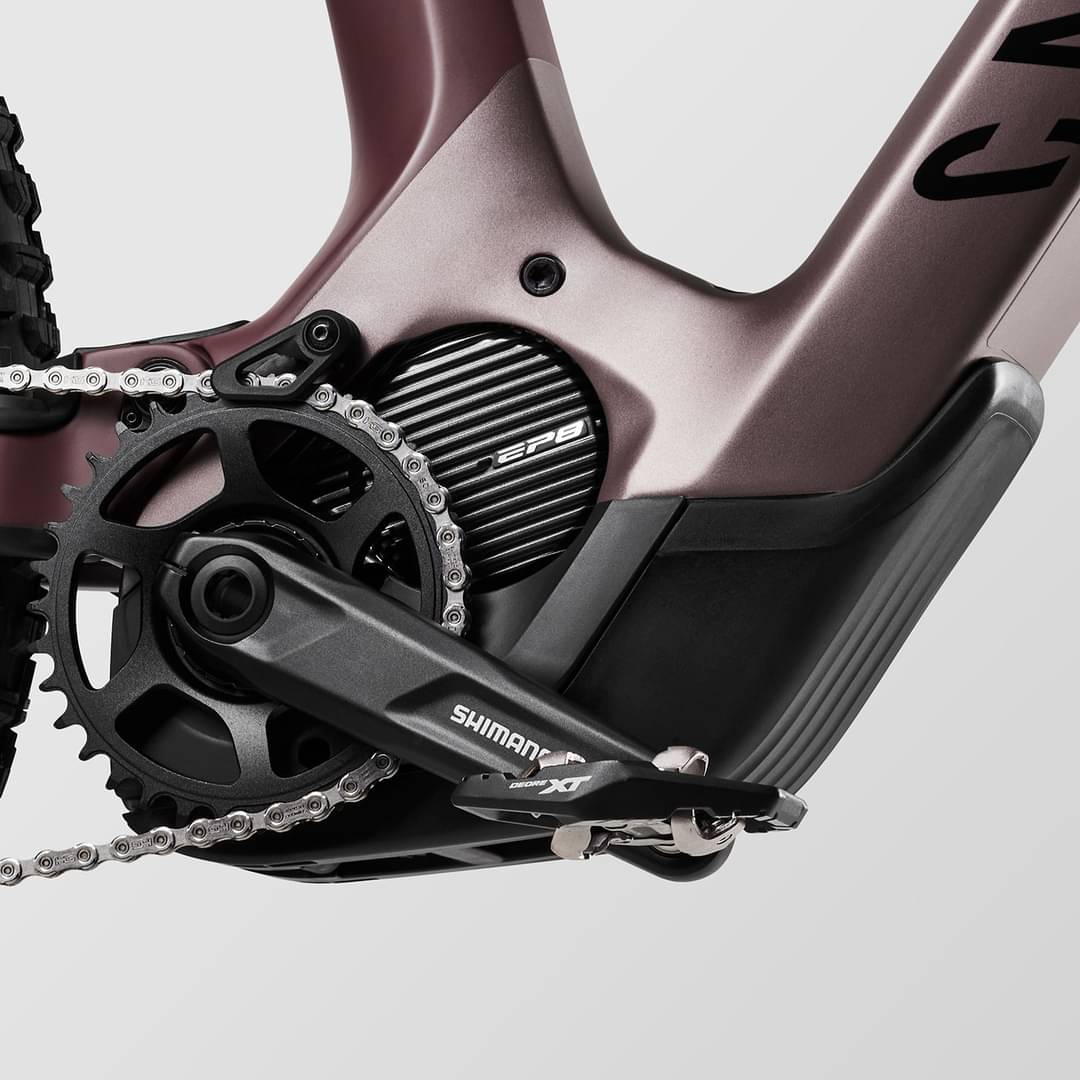

Motor
Shimano EP801
Battery
Canyon BT0003-01 720Wh, Equipped on all Size S models and standard on Spectral:ON CF 7 and Torque:ON CF 8.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.34 mm | 1.29 mm |
| Front Center | 756 mm | 785 mm | 814 mm | 843 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 122 mm | 122 mm | 123 mm | 123 mm |
| Stack | 637 mm | 646 mm | 655 mm | 664 mm |
| Reach | 438 mm | 463 mm | 488 mm | 513 mm |
| Top Tube Length | 592 mm | 616 mm | 640 mm | 666 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1197 mm | 1226 mm | 1255 mm | 1284 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 812 mm | 817 mm | 823 mm | 828 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 155 mm | 155 mm | 155 mm | 155 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Spectral:ON CF 7 belongs to the Canyon E Spectralon model. 37 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Spectral:ON CF 7 2023 is the most affordable e-bike of this model and has a price of 4999$. On the other hand, Canyon Spectral:ON CFR LTD 2023, is the most expensive and costs 12740$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Canyon released this model in 2023, its price was 4999$. If we compare this with the average Enduro e-bike cost we notice that the price is 4.47% more expensive.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 23.04 kg (50.79 lbs), Canyon e-bike is slightly lighter than average. In conclusion, the average Enduro e-bike weighs 1.65% more than Spectral:ON CF 7.
Spectral:ON CF 7 components
Fork
Canyon Spectral:ON CF 7 2023 e-bike is equipped with the RockShox Lyrik Select fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Rockshox Deluxe Select R rear shock model, which has a travel of 155mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Spectral:ON CF 7 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Canyon Spectral:ON CF 7 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
