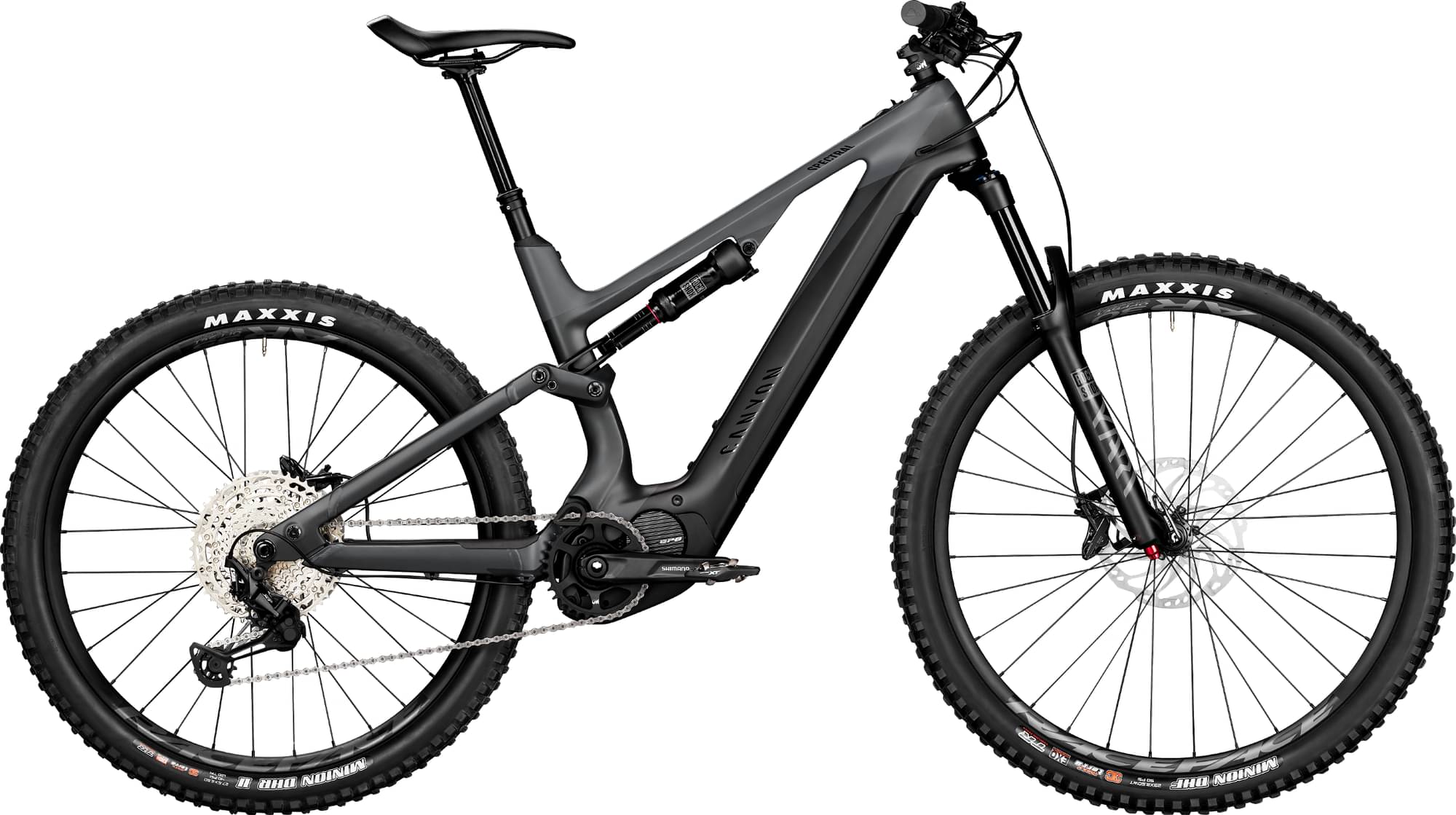

Canyon Spectral:ON CF 7 — US 2022
2022 E-bike
Estimate price |
6,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036 Battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:ON, Carbon front triangle, aluminium rear end, 150mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203mm)
Suspension Fork
RockShox Yari RC, 150mm, 150mm of front suspension, 29er fork, Boost 110 spacing, 35mm stanchions, Motion Control compression and rebound damping adjuster
Rear Shock
RockShox Deluxe Select, 230x60, 150mm of rear suspension. The Deluxe Select delivers proven damping performance in a lightweight package, highly tunable DebonAir™ spring, adjustable rebound damping.
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed, Precise 1x12 drivetrain.
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano Deore, 12-speed (10-51), Cassette packed with tricke-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 165mm crank arms
Bottom Bracket
STEPS, press-fit
Chain
Shimano M6100 12-speed, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Wheels
Rims
RaceFace AR30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width | RaceFace AR35 | Shimano MT510, Shimano MT510 rear hub with Boost 148 spacing, RaceFace AR35 aluminum rim, 35mm inner rim width
Tires
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Brakes
Brakes
Shimano Deore 4-piston, front brake, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads | Shimano Deore 4-piston, rear brake, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Disk Rotors
Shimano EM600 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal | Shimano SLX rotor, 203mm, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 50mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano BT-E8036 Battery
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.37 mm | 1.33 mm |
| Front Center | 738 mm | 764 mm | 788 mm | 812 mm |
| Rake | 52 mm | 56 mm | 55 mm | 55 mm |
| Trail | 106 mm | 102 mm | 103 mm | 103 mm |
| Stack | 616 mm | 621 mm | 631 mm | 641 mm |
| Reach | 421 mm | 441 mm | 461 mm | 481 mm |
| Top Tube Length | 586 mm | 608 mm | 628 mm | 649 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1167 mm | 1193 mm | 1217 mm | 1241 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 780 mm | 784 mm | 788 mm | 802 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 173 cm | 184 cm | 195 cm | cm |
Model Overview
Spectral:ON CF 7 — US belongs to the Canyon E Spectralon model. 37 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Canyon Spectral:ON CF 6 WMN 2022 has a starting price of 4989$. Canyon Spectral:ON CFR LTD 2022 on the other hand is the most expensive at 11679$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6299$. Doing a quick comparison, we notice that Spectral:ON CF 7 — US price is 31.64% more expensive than the average cost of an Enduro e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Spectral:ON CF 7 — US components
Fork
The RockShox Yari RC is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Spectral:ON CF 7 — US has a rear shock with a travel of 150mm. The model RockShox Deluxe Select is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Spectral:ON CF 7 — US 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Spectral:ON CF 7 — US is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
Canyon Spectral:ON CF 7 — US includes a dropper post. Therefore, climbing or descending will be a breeze.
