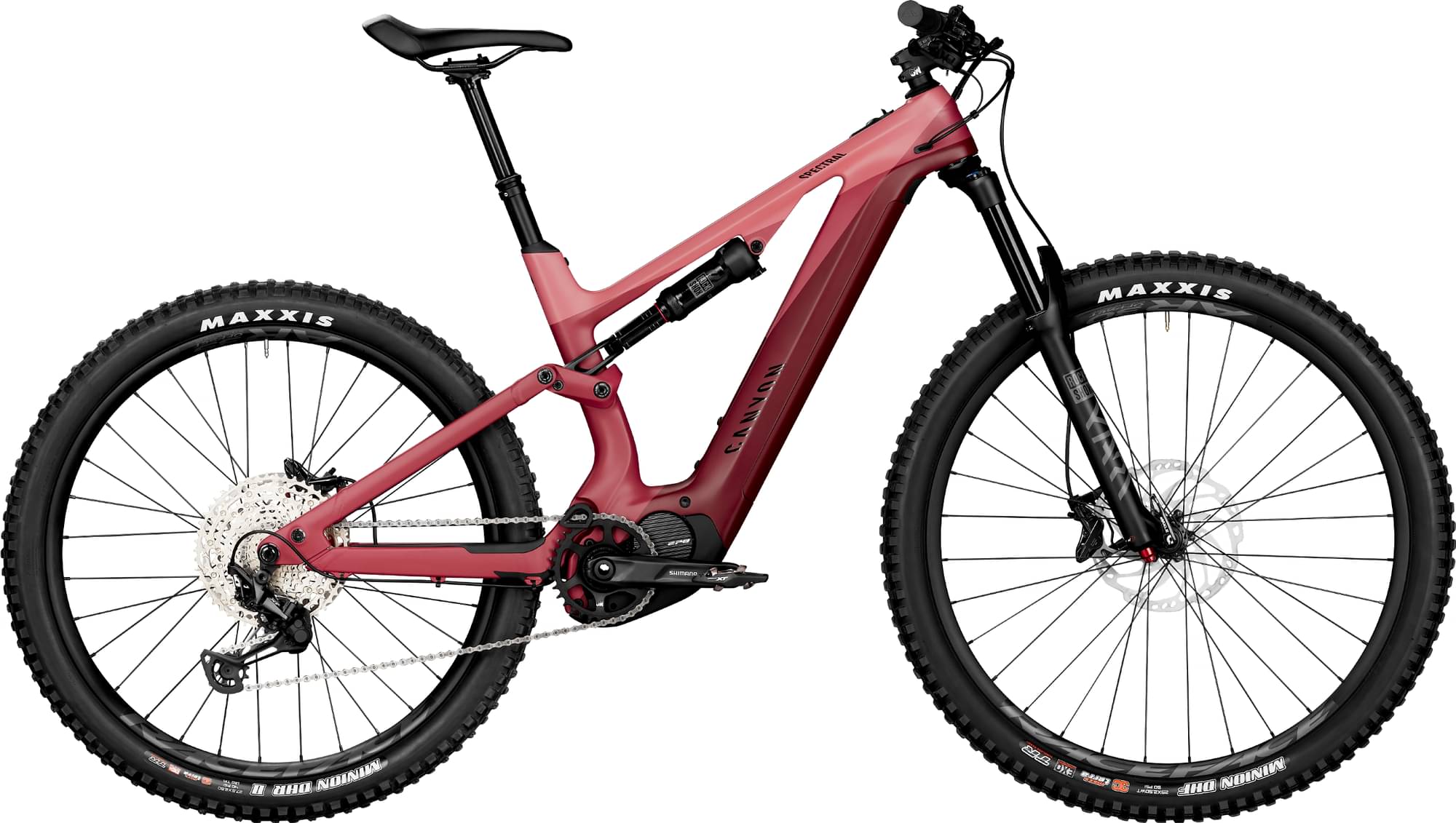

Canyon Spectral:ON CF 7 WMN — US 2022
2022 E-bike
Estimate price |
6,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:ON, Carbon front triangle, aluminium rear end, 150mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203mm)
Suspension Fork
RockShox Yari RC, 150mm, 150mm of front suspension, 29er fork, Boost 110 spacing, 35mm stanchions, Motion Control compression and rebound damping adjuster
Rear Shock
RockShox Deluxe Select, 230x60, 150mm of rear suspension. The Deluxe Select delivers proven damping performance in a lightweight package, highly tunable DebonAir™ spring, adjustable rebound damping.
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed, Precise 1x12 drivetrain.
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano Deore, 12-speed (10-51), Cassette packed with tricke-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 165mm crank arms
Bottom Bracket
STEPS, press-fit
Chain
Shimano M6100 12-speed, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Wheels
Rims
RaceFace AR30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width | RaceFace AR35 | Shimano MT510, Shimano MT510 rear hub with Boost 148 spacing, RaceFace AR35 aluminum rim, 35mm inner rim width
Tires
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Brakes
Brakes
Shimano Deore 4-piston, front brake, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads | Shimano Deore 4-piston, rear brake, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Disk Rotors
Shimano EM600 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal | Shimano SLX rotor, 203mm, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 50mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano BT-E8036
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm |
| Front Center | 738 mm | 764 mm |
| Rake | 52 mm | 56 mm |
| Trail | 106 mm | 102 mm |
| Stack | 616 mm | 621 mm |
| Reach | 421 mm | 441 mm |
| Top Tube Length | 586 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 440 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm |
| Wheelbase | 1167 mm | 1193 mm |
| Bottom Bracket Drop | 33 mm | 33 mm |
| Standover Height | 780 mm | 784 mm |
| Front Travel | 150 mm | 150 mm |
| Rear Travel | 150 mm | 150 mm |
| Wheels | 29" | 29" |
| Rider Max Height | 173 cm | cm |
Model Overview
Spectral:ON CF 7 WMN — US is a Canyon E Spectralon model. Canyon launched 37 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Canyon Spectral:ON CF 6 WMN 2022 is the cheapest e-bike model and costs 4989$. Canyon Spectral:ON CFR LTD 2022 is the most expensive one and costs 11679$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2022 and its price was 6299$. Comparing this to the average Enduro e-bike price, we see that the price is 31.64% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Spectral:ON CF 7 WMN — US comes factory-installed with the RockShox Yari RC fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select, with a travel distance of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Canyon Spectral:ON CF 7 WMN — US 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
The Canyon model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
