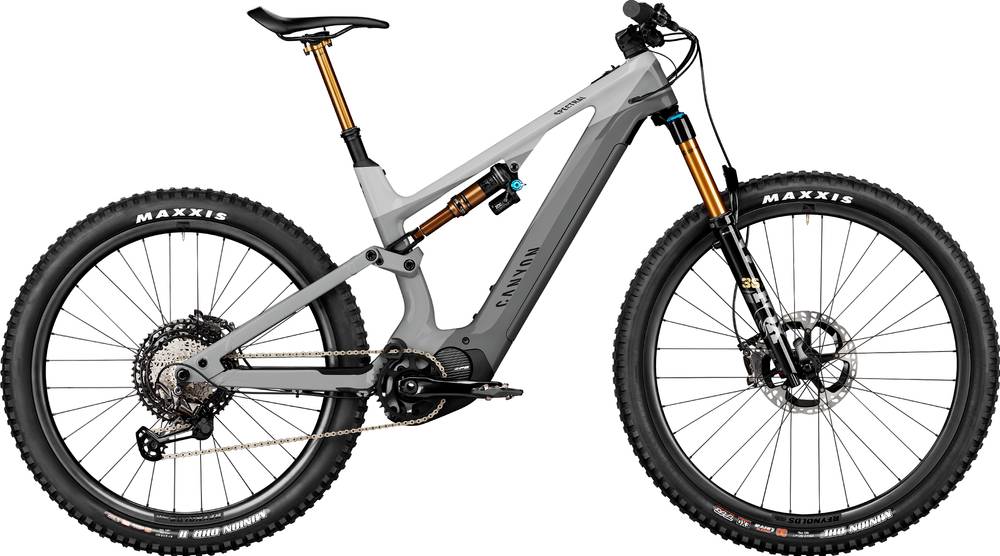

Canyon Spectral:ON CF 9 2021
2021 E-bike
Estimate price |
9,000$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XTR, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036 Akku 630WH -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:ON, Carbon front triangle, aluminium rear end, 150mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203mm)
Suspension Fork
Fox 36 Factory Grip2, 150mm, 150mm of front suspension, 29er fork, Boost 110 spacing, 36mm stanchions, Kashima coat, air bleeders, floating axle, EVOL Float air spring, Grip2 high and low-speed compression damping adjuster, rebound damping adjuster
Rear Shock
FOX FLOAT DPX2 Factory, 230x60, 150mm of rear suspension. Kashima coat, 3-setting switch (Open, Medium, Firm), low-speed compression adjuster, rebound adjuster, piggyback design resists overheating
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed, High-end 12-speed shifting system.
Shift Levers
Shimano XTR, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g
Cassette
Shimano XTR, 12-speed (10-51), Lightweight cassette with a 10-51 gear range.
Crank
Shimano STEPS HOLLOWTECH e-MTB crank arms, Designed for the rigors of E-MTB riding and featuring Shimano's Hollowtech crank arm design, 24mm spindle, 165mm crank arms
Bottom Bracket
STEPS, press-fit
Chain
Shimano M9100 XTR Chain, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Wheels
Rims
Reynolds TR 309 E, 29er, Front wheel made for the demands of E-MTBs. Features Reynolds Tre front hub, Boost 110 spacing, 32 Sapim E-Lite spokes, carbon TR rims, 30mm inner width | Reynolds TR 367 E, 27.5", Rear wheel made for the demands of E-MTBs. Features Reynolds Tre rear hub, Boost 148 spacing, 36 Sapim E-Lite spokes, carbon TR rims, 30mm inner width
Tires
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Brakes
Brakes
Shimano XTR 4-piston front brake, Shimano's premier 4-piston brake, 1-piece caliper for maximize rigidity, ceramic pistons, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 385 g | Shimano XTR 4-piston rear brake, Shimano's premier 4-piston brake, 1-piece caliper for maximize rigidity, ceramic pistons, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 385 g
Disk Rotors
Shimano XTR front rotor, 203mm, Shimano's top-end rotor, ICE TECH FREEZA design reduces heat build-up and brake fade, center lock mounting for quick installation/removal | Shimano XTR STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH FREEZA design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal
Cockpit
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
FOX Transfer Factory, FOX Transfer Factory dropper post provides 150 of seat heigh adjustability, Kashima coating for extra durability, 30.9mm diameter, 456mm length.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano BT-E8036 Akku 630WH
Remote
Shimano Steps SC-EM800 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 322 mm | 322 mm | 322 mm | 322 mm |
| Front Center | 738 mm | 764 mm | 788 mm | 812 mm |
| Rake | 52 mm | 56 mm | 55 mm | 55 mm |
| Trail | 98 mm | 94 mm | 95 mm | 95 mm |
| Stack | 616 mm | 621 mm | 631 mm | 641 mm |
| Reach | 421 mm | 441 mm | 461 mm | 481 mm |
| Top Tube Length | 586 mm | 608 mm | 628 mm | 649 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1167 mm | 1193 mm | 1217 mm | 1241 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 780 mm | 784 mm | 788 mm | 802 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 173 cm | 184 cm | 195 cm | cm |
About this model
Spectral:ON CF 9 is part of the Canyon E Spectralon model. 37 e-bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Spectral:ON CF 6 WMN 2021 has a starting price of 4989$. Canyon Spectral:ON CF 9 2021 on the other hand is the most expensive at 9000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2021 and its price was 9000$. Comparing this to the average Enduro e-bike price, we see that the price is 88.09% more expensive.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Spectral:ON CF 9 weighs 22.5 kg (49.6 lbs) and is slightly lighter than the average. In conclusion, the average Enduro e-bike weighs 4.09% more than Spectral:ON CF 9.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Canyon Spectral:ON CF 9 2021 e-bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX FLOAT DPX2 Factory rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Spectral:ON CF 9 are the 27.5″ carbon type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Spectral:ON CF 9 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
