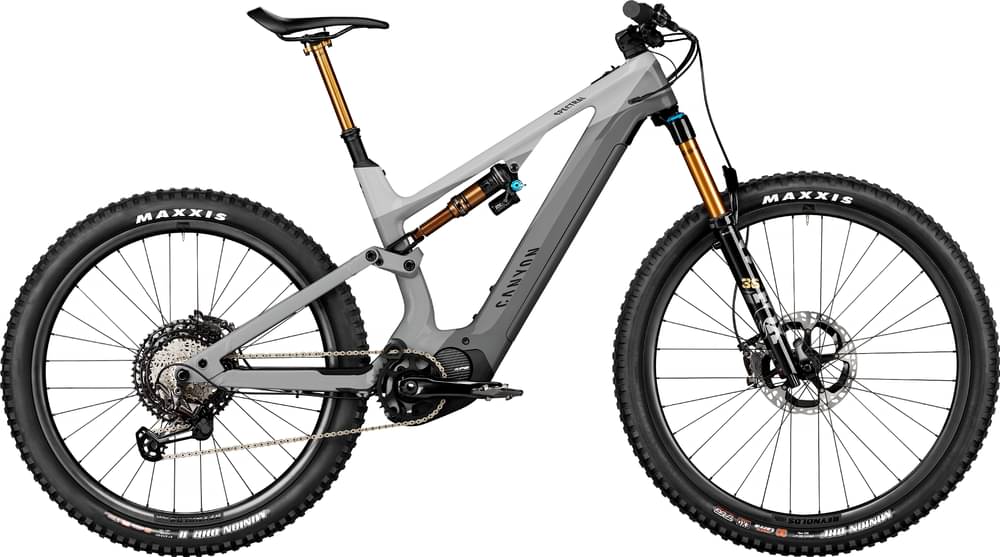

Canyon Spectral:ON CF 9 2022
2022 E-bike
Estimate price |
8,716$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XTR, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036 Akku 630WH -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:ON, Carbon front triangle, aluminium rear end, 150mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203mm)
Suspension Fork
Fox 36 Factory Grip2, 150mm, 150mm of front suspension, 29er fork, Boost 110 spacing, 36mm stanchions, Kashima coat, air bleeders, floating axle, EVOL Float air spring, Grip2 high and low-speed compression damping adjuster, rebound damping adjuster
Rear Shock
FOX FLOAT DPX2 Factory, 230x60, 150mm of rear suspension. Kashima coat, 3-setting switch (Open, Medium, Firm), low-speed compression adjuster, rebound adjuster, piggyback design resists overheating
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed, High-end 12-speed shifting system.
Shift Levers
Shimano XTR, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g
Cassette
Shimano XTR, 12-speed (10-51), Lightweight cassette with a 10-51 gear range.
Crank
Shimano STEPS HOLLOWTECH e-MTB crank arms, Designed for the rigors of E-MTB riding and featuring Shimano's Hollowtech crank arm design, 24mm spindle, 165mm crank arms
Bottom Bracket
STEPS, press-fit
Chain
Shimano M9100 XTR Chain, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Wheels
Rims
Reynolds TR 309 E, 29er, Front wheel made for the demands of E-MTBs. Features Reynolds Tre front hub, Boost 110 spacing, 32 Sapim E-Lite spokes, carbon TR rims, 30mm inner width | Reynolds TR 367 E, 27.5", Rear wheel made for the demands of E-MTBs. Features Reynolds Tre rear hub, Boost 148 spacing, 36 Sapim E-Lite spokes, carbon TR rims, 30mm inner width
Tires
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Brakes
Brakes
Shimano XTR 4-piston front brake, Shimano's premier 4-piston brake, 1-piece caliper for maximize rigidity, ceramic pistons, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 385 g | Shimano XTR 4-piston rear brake, Shimano's premier 4-piston brake, 1-piece caliper for maximize rigidity, ceramic pistons, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 385 g
Disk Rotors
Shimano XTR front rotor, 203mm, Shimano's top-end rotor, ICE TECH FREEZA design reduces heat build-up and brake fade, center lock mounting for quick installation/removal | Shimano XTR STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH FREEZA design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal
Cockpit
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
FOX Transfer Factory, FOX Transfer Factory dropper post provides 150 of seat heigh adjustability, Kashima coating for extra durability, 30.9mm diameter, 456mm length.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano BT-E8036 Akku 630WH
Remote
Shimano Steps SC-EM800 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 322 mm | 322 mm | 322 mm | 322 mm |
| Front Center | 738 mm | 764 mm | 788 mm | 812 mm |
| Rake | 52 mm | 56 mm | 55 mm | 55 mm |
| Trail | 98 mm | 94 mm | 95 mm | 95 mm |
| Stack | 616 mm | 621 mm | 631 mm | 641 mm |
| Reach | 421 mm | 441 mm | 461 mm | 481 mm |
| Top Tube Length | 586 mm | 608 mm | 628 mm | 649 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1167 mm | 1193 mm | 1217 mm | 1241 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 780 mm | 784 mm | 788 mm | 802 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 173 cm | 184 cm | 195 cm | cm |
Model Overview
Spectral:ON CF 9 is a Canyon E Spectralon model. Canyon launched 37 e-bikes of this model so far. Take a sneak peek at all Canyon E Spectralon e-bikes models from 2022, by clicking here.
Model range prices
Canyon Spectral:ON CF 6 WMN 2022 is the most economical model, with a starting price of 4989$. Canyon Spectral:ON CFR LTD 2022 on the other hand costs 11679$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2022, its price was 8069$. Comparing this to the average Enduro e-bike price, we see that the price is 68.63% more expensive.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, Spectral:ON CF 9 has a weight of 22.5 kg (49.6 lbs). In conclusion, the average Enduro e-bike weighs 4.09% more than Spectral:ON CF 9.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Spectral:ON CF 9 components
Fork
Canyon Spectral:ON CF 9 2022 e-bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Spectral:ON CF 9 has a rear shock with a travel of 150mm. The model FOX FLOAT DPX2 Factory is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Spectral:ON CF 9 2022 e-bike is equipped with 27.5″ carbon wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Spectral:ON CF 9 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Canyon Spectral:ON CF 9 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
