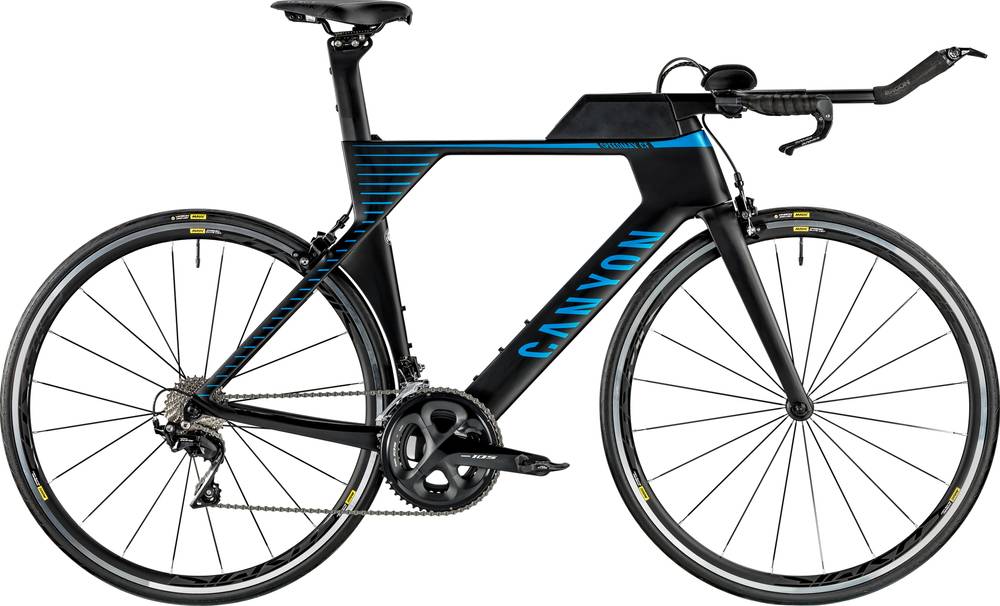

Canyon Speedmax CF 7.0 2019
2019 Road
Estimate price |
2,599$
Weight | 8.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
164cm - 176cm
MD
174cm - 186cm
LG
184cm - 196cm
XL
194cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Speedmax CF, Material: Carbon, Axle Dimension: 9 x 130 mm, Brake Mount: Direct Mount
Suspension Fork
Canyon F39 CF, Material: Carbon, Steerer: 1 1/8", Axle Dimension: 9 x 100 mm, Brake Mount: Rim Brake
Drivetrain
Rear Derailleur
Shimano 105 R7000 SS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano Dura-Ace 9000 TT 2x11s
Cassette
Shimano 105 R7000 11-28 11s
Crank
Shimano 105 R7000, 52/36
Bottom Bracket
Shimano Pressfit BB72
Chain
Shimano CN-HG600-11
Pedals
None included
Wheels
Rims
Mavic Cosmic Elite UST, Rim Material: Aluminium, Rim Height: 30 mm, Inner Width: 17 mm, Tire: Yksion Pro UST 25 mm, Weight (w/o Tire): 955 g | Mavic Cosmic Elite UST SH11, Rim Material: Aluminium, Rim Height: 30 mm, Inner Width: 17 mm, Tire: Yksion Pro UST 25 mm, Weight (w/o Tire): 815 g
Tires
Mavic Yksion Pro UST 25
Brakes
Brakes
Shimano 105 R7010
Brake Levers
Shimano Dura-Ace, 11s
Cockpit
Stem
Canyon V21
Handlebar
Canyon H30 Basebar Flat CF, Material: Carbon
Headset
Tange IS-22AE-SCT
Seat
Saddle
Fizik Mistica
Seatpost
Canyon S31 TRI CF, Material: Carbon, Setback: Adjustable, Technology: Fliphead, Interface: Canyon Bottle Cage Adapter Mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.21 mm | 1.26 mm | 1.25 mm | 1.27 mm | 1.28 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 571 mm | 584 mm | 610 mm | 627 mm | 656 mm |
| Rake | 38 mm | 39 mm | 38 mm | 38 mm | 39 mm |
| Trail | 66 mm | 62 mm | 63 mm | 63 mm | 62 mm |
| Stack | 487 mm | 516 mm | 539 mm | 561 mm | 588 mm |
| Reach | 403 mm | 411 mm | 431 mm | 441 mm | 461 mm |
| Top Tube Length | 483 mm | 496 mm | 520 mm | 534 mm | 558 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 491 mm | 520 mm | 543 mm | 565 mm | 593 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 75 mm | 104 mm | 128 mm | 151 mm | 179 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 987 mm | 1000 mm | 1026 mm | 1043 mm | 1072 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 164 cm | 174 cm | 184 cm | 194 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 196 cm | 195 cm |
About this model
Speedmax CF 7.0 completes the Canyon Speedmax model. 95 bikes variations carry this model name so far. Take a sneak peek at all Canyon Speedmax bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Canyon Speedmax WMN CF 7.0 2019 has a starting price of 2199$. Canyon Speedmax CF SLX 9.0 LTD 2019 on the other hand is the most expensive at 10500$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Triathlon bikes
According to our calculations, the average cost of a Triathlon bike that is reliable is 4177$. However, you could also get a good Triathlon bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Canyon released this model in 2019, its price was 2599$. Comparing this to the average Triathlon bike price, we see that the price is 60.72% smaller.
Average weight for Triathlon bikes
The average weight for Triathlon bikes is 8.9 kg (19.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Speedmax CF 7.0 it’s weighing 8.8 kg (19.4 lbs). At this weight, is slightly lighter than average. In other words, this model is 1.14% lighter than the average Triathlon bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Speedmax CF 7.0 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Speedmax CF 7.0 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
Speedmax CF 7.0 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
