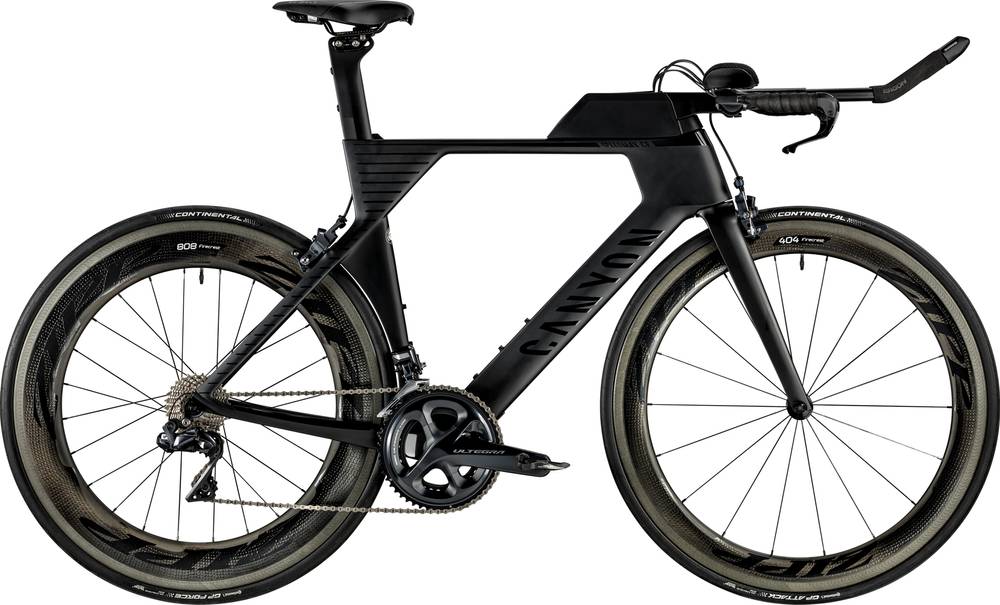

Canyon Speedmax CF 8.0 LTD 2019
2019 Road
Estimate price |
5,500$
Weight | 8.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
164cm - 176cm
MD
174cm - 186cm
LG
184cm - 196cm
XL
194cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Speedmax CF, Material: Carbon, Axle Dimension: 9 x 130 mm, Brake Mount: Direct Mount
Suspension Fork
Canyon F39 CF, Material: Carbon, Steerer: 1 1/8", Axle Dimension: 9 x 100 mm, Brake Mount: Rim Brake
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8050 SS, 11-speed, short cage design, max. cassette size: 30T, Shadow Shifting technology. Weight: 240 g
Front Derailleur
Shimano Ultegra Di2 R8050, 2x11-speed, with automatic trimming adjust, braze-on mount. Weight: 130g
Shift Levers
Shimano Di2 Remote TT right | Shimano Di2 Remote TT left | Shimano Ultegra Di2 R8060 TT 2s | Shimano Ultegra Di2 R8060 TT 11s
Cassette
Shimano Ultegra R8000, 11-speed, 11-28T, Advanced mix of aluminium, carbon and steel reduces weight and increases durability. Gear range: 11-28T. Weight: 251 g
Crank
Shimano Ultegra R8000 52/36
Bottom Bracket
Shimano Pressfit BB72, Pressfit BB86 road standard, compatible with 24 mm axles featuring Hollowtech 2 technology. Weight: 69 g
Chain
Shimano HG701 11-speed
Pedals
None included
Wheels
Rims
Zipp 404 Firecrest, Rim Material: Carbon, Rim Height: 58 mm, Inner Width: 16 mm, Weight: 710 g | Zipp 808 Firecrest SH11, Rim Material: Carbon, Rim Height: 82 mm, Inner Width: 17 mm, Weight: 1000 g
Tires
Continental Grand Prix Attack 23 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable | Continental Grand Prix 5000, 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II
Brakes
Brakes
Shimano Ultegra R8010
Brake Levers
Shimano Ultegra Di2, 11s, Shifting possible from various hand positions and under braking, Adjustable Reach, Neat cabling with duo-core E-Tube connections, ProgrammableMulti-Shift function, SH ST-8060
Cockpit
Stem
Canyon V21 Stem Medium, Material: Aluminum, Length: 80 mm, 1 x Canyon V21 medium stem, Install hardware
Handlebar
Canyon H30 Basebar Flat CF, Material: Carbon, Rise: 0 mm, 1 x Canyon H30 basebar, Installed Ergon basebar grips
Headset
Tange IS-22AE-SCT
Seat
Saddle
Fizik Mistica
Seatpost
Canyon S31 TRI CF, Material: Carbon, Setback: Adjustable, Technology: Fliphead, Interface: Canyon Bottle Cage Adapter Mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.21 mm | 1.26 mm | 1.25 mm | 1.27 mm | 1.28 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 571 mm | 584 mm | 610 mm | 627 mm | 656 mm |
| Rake | 38 mm | 39 mm | 38 mm | 38 mm | 39 mm |
| Trail | 66 mm | 62 mm | 63 mm | 63 mm | 62 mm |
| Stack | 487 mm | 516 mm | 539 mm | 561 mm | 588 mm |
| Reach | 403 mm | 411 mm | 431 mm | 441 mm | 461 mm |
| Top Tube Length | 483 mm | 496 mm | 520 mm | 534 mm | 558 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 491 mm | 520 mm | 543 mm | 565 mm | 593 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 75 mm | 104 mm | 128 mm | 151 mm | 179 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 987 mm | 1000 mm | 1026 mm | 1043 mm | 1072 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 164 cm | 174 cm | 184 cm | 194 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 196 cm | 195 cm |
Model Overview
Speedmax CF 8.0 LTD completes the Canyon Speedmax model. Canyon launched 95 bikes of this model so far. You can easily view all of the Canyon Speedmax bikes models from 2019, here.
Model range prices
Canyon Speedmax WMN CF 7.0 2019 is the cheapest bike model and costs 2199$. Canyon Speedmax CF SLX 9.0 LTD 2019 is the most expensive one and costs 10500$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Triathlon bikes average price
According to our math, the average price for a trustworthy Triathlon bike is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Canyon Speedmax CF 8.0 LTD price was 5500$. If we compare this with the average Triathlon bike cost we notice that the price is 31.67% higher.
Average weight for Triathlon bikes
Triathlon bikes have an average weight of 8.9 kg (19.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Canyon Speedmax CF 8.0 LTD it’s weighing 8.5 kg (18.74 lbs). At this weight, is slightly lighter than average. In conclusion, the average Triathlon bike weighs 4.71% more than Speedmax CF 8.0 LTD.
Speedmax CF 8.0 LTD components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Speedmax CF 8.0 LTD bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Speedmax CF 8.0 LTD has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
