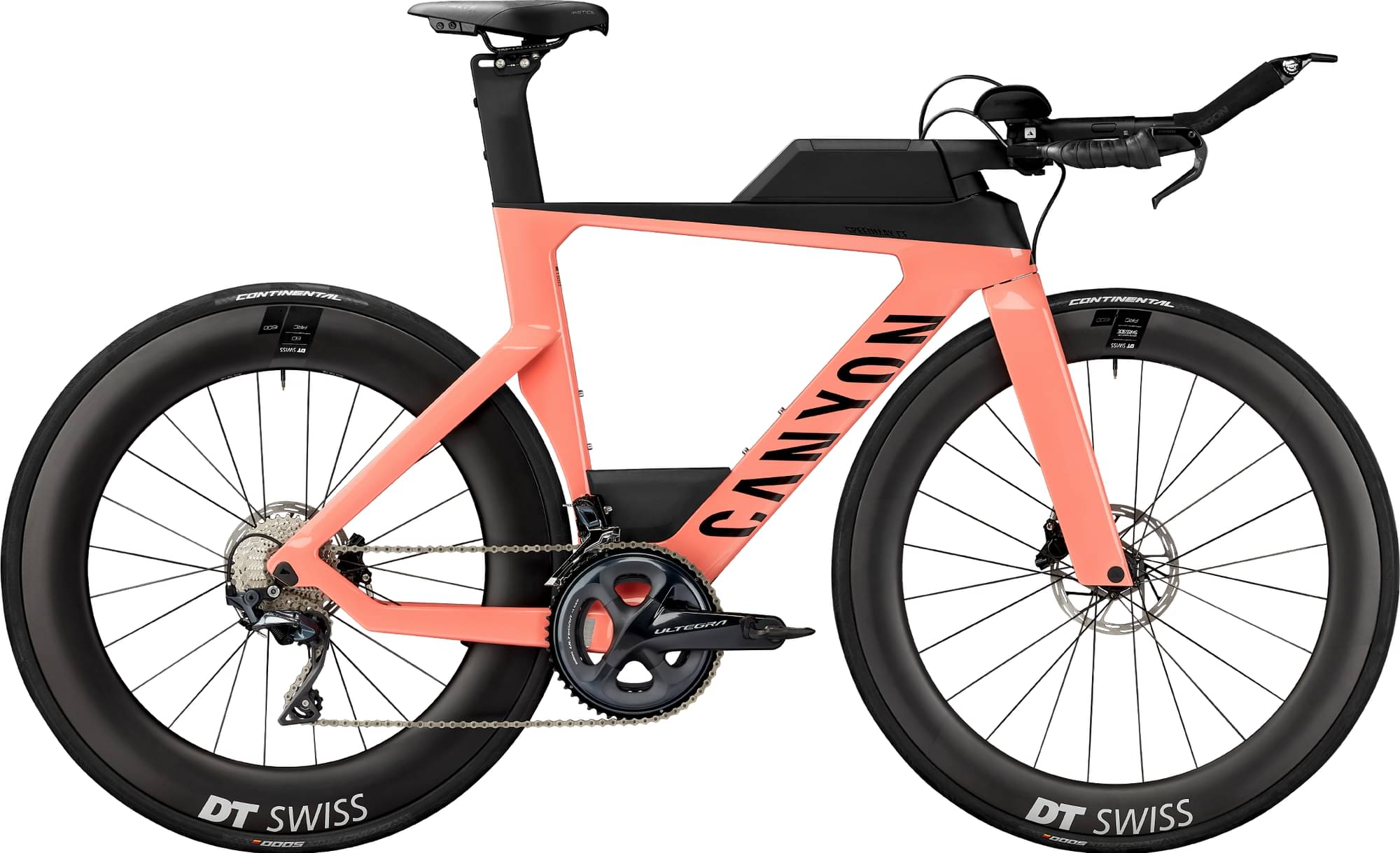

Canyon Speedmax CF 8 WMN Disc 2023
2023 Road
Estimate price |
4,816$
Weight | 9.22 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
173cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Speedmax CF DISC, Aero frame shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Internal cable routing, 12x142 mm through axle, flat-mount disc standard. Weight: 1380 g
Suspension Fork
Canyon FK0077 CF Disc, Aero-optimised deep-profile design, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 SGS, 11-speed, long cage design, max. cassette size: 34T, Shadow Shifting technology. Weight: 207g
Front Derailleur
Shimano Ultegra R8000, Front derailleur for 2x11 shifting systems., Mount: braze-on, Avg. weight: 92 g
Shift Levers
Shimano Dura-Ace 9000 TT 2x11s, 2x11 speed bar-end shift levers, aero design for triathlon and time trial bikes., Weight: 153 g
Cassette
Shimano Ultegra R8000 11-32 11s, Advanced mix of aluminium, carbon and steel reduces weight and increases durability., Gear range: 11-32T, Weight: 281 g | Shimano Ultegra CS-R8000 11-speed Cassette 11-32
Crank
Shimano Ultegra R8000, Gearing ratio: 52/36, with Hollowtech 2 technology for reduced weight. Weight: 690 g
Bottom Bracket
Shimano Pressfit BB72, Pressfit BB86 road standard, compatible with 24 mm axles featuring Hollowtech 2 technology., Weight: 69 g | Ceramicspeed BB86 Shimano PressFit Bottom Bracket | Shimano SM-BB72-41B II Press-Fit Bottom Bracket
Chain
Shimano HG701 11-speed, High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency. | Shimano CN-HG701 Ultegra 11-speed Chain
Pedals
None included
Wheels
Rims
DT Swiss ARC 1600, Front wheel with Aero+ technology for stability and low drag. Tubeless-ready., Rim depth: 62 mm, Inner width: 20 mm, Weight: 837 g | DT Swiss ARC 1600, Rear wheel with Aero+ technology for stability and low drag. Tubeless-ready. Rim depth: 80 mm, inner width: 20 mm, driver: Shimano 11-speed road, weight: 999 g
Tires
Continental Grand Prix 5000, 25 mm, High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection., Width: 25mm, TPI: 330, Weight: 225 g | Continental Grand Prix 5000, 28 mm, High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection., Width: 28mm, Weight: 240 g, TPI: 330 | Continental Grand Prix 5000 25-622 | Continental Grand Prix 5000 28-584 | Continental Grand Prix 5000 28-622 | Continental Grand Prix 5000 25-584
Brakes
Brakes
Hydraulic Disc
Brake Levers
SRAM S-900 Aero HRD, Aero design specifically for triathlon and time trial bikes. Profiled carbon brake lever for better finger grip. Adjustable reach., Weight: 300 g
Cockpit
Stem
Canyon V21, Exclusively designed for our Speedmax CF range., Angle: -17°, Clamping diameter: 31.8 mm,, Weight: 199 g
Handlebar
Canyon H30 Basebar Flat CF, Triathlon handlebar featuring the Subsonic Bracket Kit from Profile Design, Type: Flat, Basebar Rise: 0 mm
Seat
Saddle
Fizik Mistica, Triathlon-specific design with a stubby, noseless shape for comfort and performance in the aero tuck position. With extra-long rails for maximum adjustment. Channel design enables better weight distribution across sit bones while extra grippy cover material provides maximum riding stability. Compatible with integrated carriage kit. Width: 135 mm, nose width: 55 mm, rail material: alloy, weight: 265 g.
Seatpost
Canyon SP0048 TT CF, Speedmax time trial seatpost, deep profile, large adjustment range, UCI compliant, weight: 300 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.29 mm | 1.3 mm |
| Front Center | 552 mm | 579 mm | 605 mm |
| Rake | 34 mm | 34 mm | 34 mm |
| Trail | 67 mm | 67 mm | 67 mm |
| Stack | 477 mm | 514 mm | 539 mm |
| Reach | 369 mm | 397 mm | 415 mm |
| Top Tube Length | 449 mm | 484 mm | 506 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 480 mm | 518 mm | 543 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 113 mm | 115 mm | 140 mm |
| Chainstay Length | 405 mm | 415 mm | 415 mm |
| Wheelbase | 951 mm | 983 mm | 1009 mm |
| Bottom Bracket Drop | 52 mm | 72 mm | 72 mm |
| Wheels | 650 | 700 | 700 |
| Rider Max Height | 167 cm | 175 cm | 186 cm |
About this model
Speedmax CF 8 WMN Disc completes the Canyon Speedmax model. There are 95 bikes that carry this model name. You can easily view all of the Canyon Speedmax bikes models from 2023, here.
Model range prices
Canyon Speedmax CF 7 Disc 2023 is the most affordable bike of this model and has a price of 3299$. On the other hand, Canyon Speedmax CFR Moonshot 2023, is the most expensive and costs 13803$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Triathlon bikes average price
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Speedmax CF 8 WMN Disc price was 4458$. If we compare this with the average Triathlon bike cost we notice that the price is 6.73% higher.
Triathlon bikes average weight
If we make a quick analysis of the average weight of a Triathlon bike, we get 8.9 kg (19.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 9.22 kg (20.33 lbs), Canyon bike is slightly heavier than average. In conclusion, the average Triathlon bike weighs 3.6% less than Speedmax CF 8 WMN Disc.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Speedmax CF 8 WMN Disc components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Canyon Speedmax CF 8 WMN Disc 2023, has a carbon model. These wheels are less popular than 650b and 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
