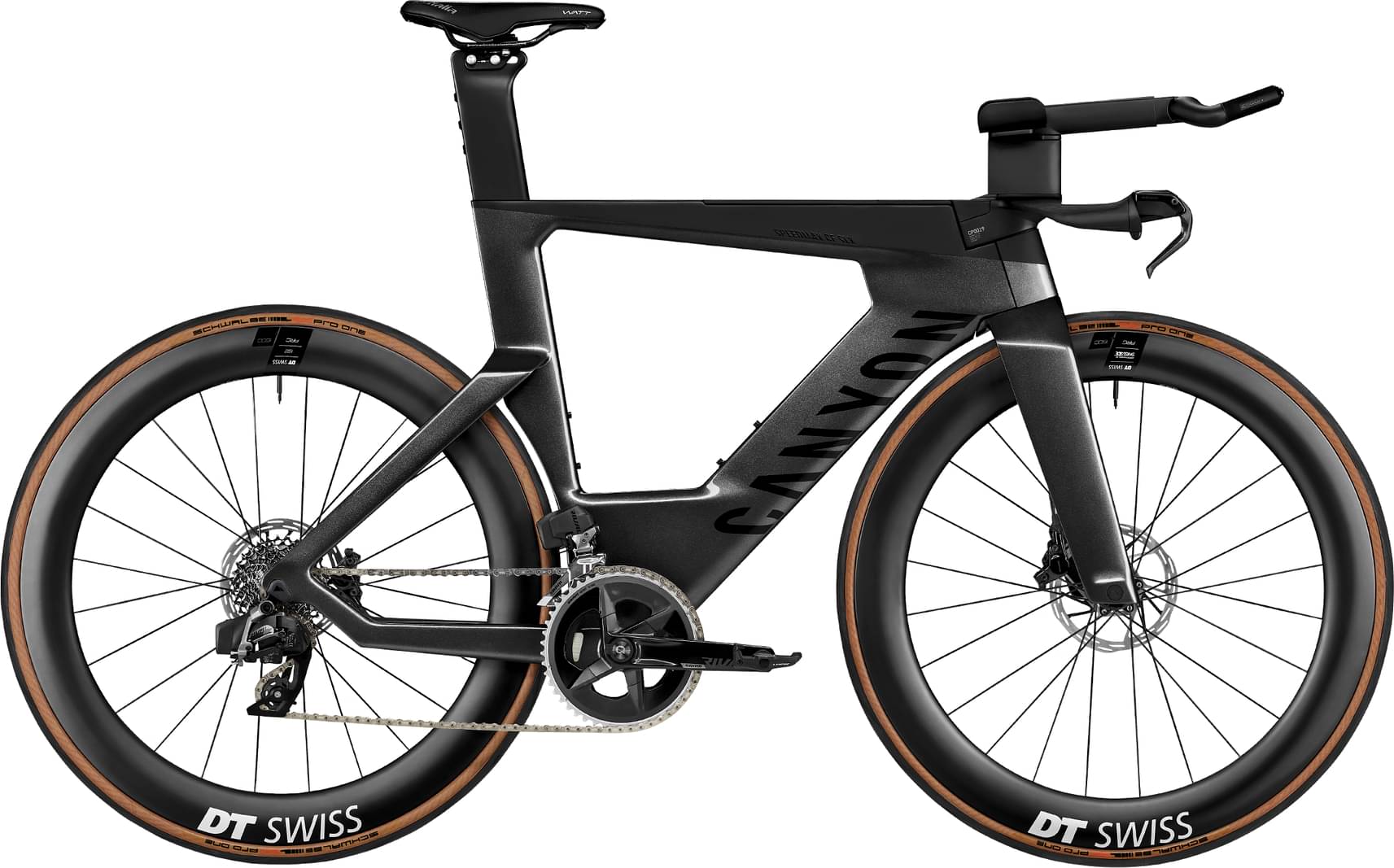

Canyon Speedmax CF SLX 7 Disc eTap 2023
2023 Road
Estimate price |
7,798$
Weight | 9.72 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival AXS, RED AXS -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
169cm - 179cm
MD
177cm - 187cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

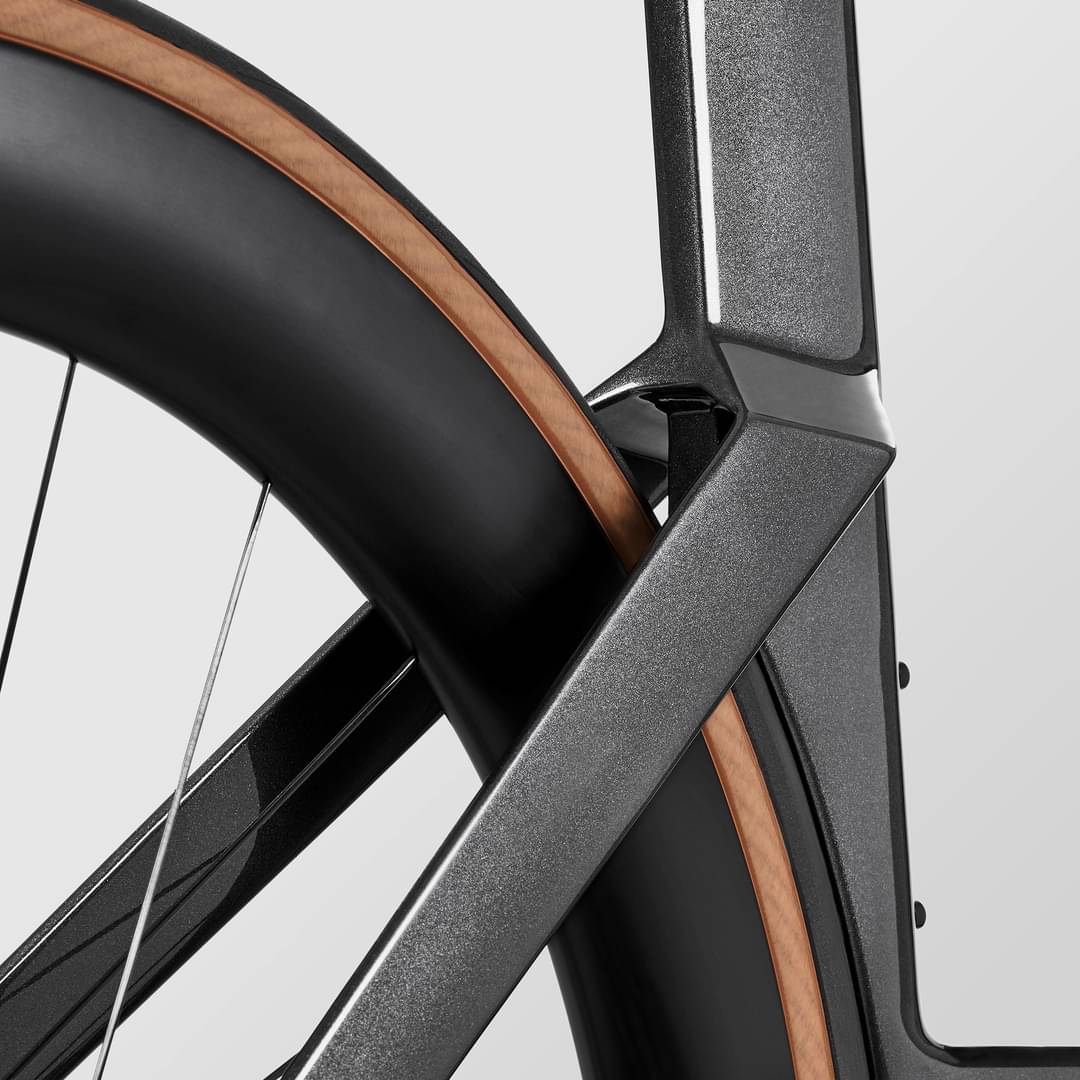

Canyon Speedmax CF SLX Disc, All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Weight: 1560 g, Axle dimension: 12x142 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0080 CF Disc, Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Material: Carbon (CF)
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS, Mounting type: braze-on
Shift Levers
SRAM eTap Clics
Cassette
SRAM Rival, 12-speed, 10-30T, Number of sprockets: 12 | SRAM Rival XG-1250 12-speed Cassette
Crank
SRAM Rival eTap AXS Powermeter, Number of chainrings: 2
Bottom Bracket
SRAM Pressfit RED DUB, Bottom bracket standard: PF 86,5
Chain
SRAM Rival D1 12s | SRAM Rival AXS 12-speed Chain 120 Links | SRAM RED AXS 12-speed Chain Lock
Pedals
None included
Wheels
Rims
DT Swiss ARC 1600, Rotor mount: Center Lock, Rim height: 62 mm | DT Swiss ARC 1600 Dicut, XDR, Rotor mount: Center Lock, Rim height: 62 mm
Tires
Schwalbe Pro One, 25mm, Width: 25mm | Schwalbe Pro One, 28mm, Width: 28mm | Continental GP 5000S TR TL 28" Road Tyre 25mm | Continental GP 5000S TR TL 28" Road Tyre 28mm | Continental GP 5000 27.5" & 28" Road Tyre | Continental GP 5000 27.5" & 28" Road Tyre
Brakes
Brakes
Hydraulic Disc
Brake Levers

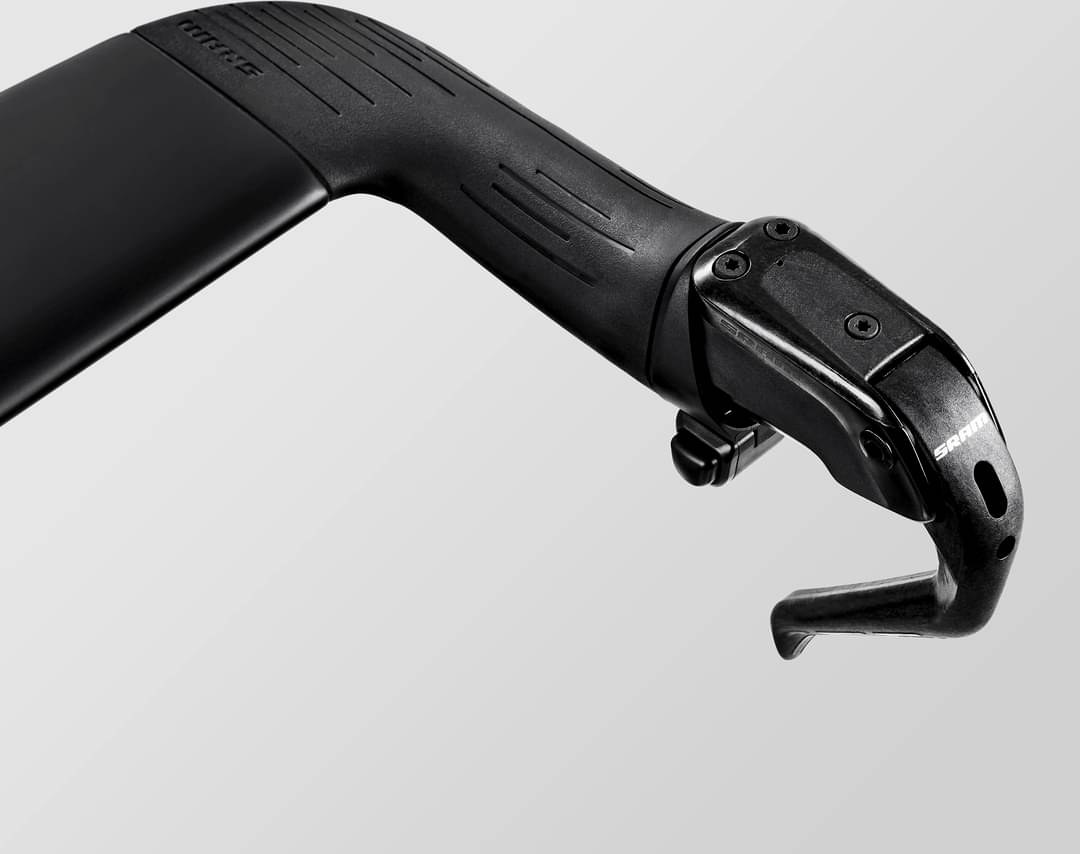

SRAM S-900 Aero HRD
Cockpit
Handlebar

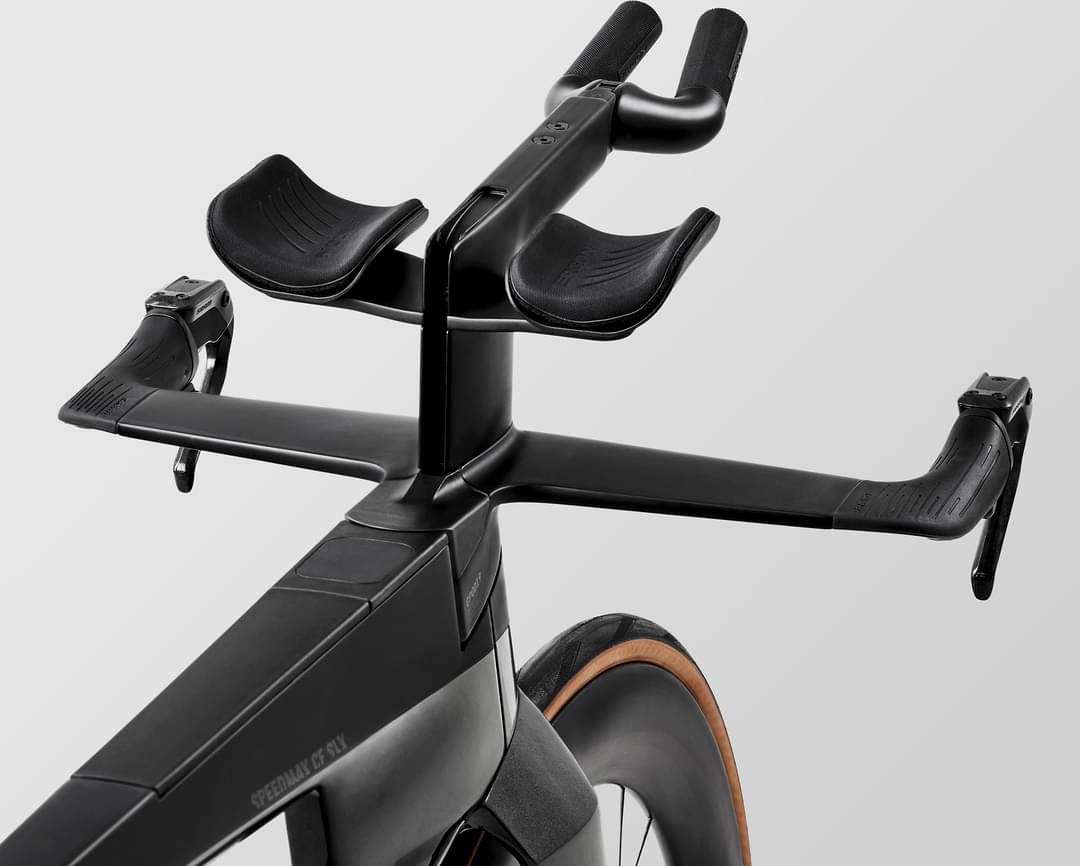

Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Seat
Saddle
Selle Italia Watt Superflow
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Weight: 295 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.11 mm | 1.13 mm | 1.12 mm | 1.15 mm | 1.14 mm |
| Front Center | 556 mm | 577 mm | 605 mm | 637 mm | 669 mm |
| Rake | 34 mm | 34 mm | 33 mm | 34 mm | 34 mm |
| Trail | 67 mm | 67 mm | 68 mm | 67 mm | 67 mm |
| Stack | 438 mm | 472 mm | 492 mm | 530 mm | 556 mm |
| Reach | 396 mm | 418 mm | 441 mm | 462 mm | 486 mm |
| Top Tube Length | 469 mm | 497 mm | 522 mm | 551 mm | 579 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 488 mm | 531 mm | 552 mm | 592 mm | 616 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 64 mm | 62 mm | 83 mm | 123 mm | 150 mm |
| Chainstay Length | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 963 mm | 989 mm | 1017 mm | 1050 mm | 1082 mm |
| Bottom Bracket Drop | 52 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 276 mm | 801 mm | 819 mm | 275 mm | 275 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 197 cm | cm |
Model Overview
Speedmax CF SLX 7 Disc eTap belongs to the Canyon Speedmax model. Canyon released 95 bikes variations of this model so far. Take a sneak peek at all Canyon Speedmax bikes models from 2023, by clicking here.
Model range prices
Canyon Speedmax CF 7 Disc 2023 is the cheapest bike model and costs 3299$. Canyon Speedmax CFR Moonshot 2023 is the most expensive one and costs 13803$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Triathlon bikes
According to our calculations, the average cost of a Triathlon bike that is reliable is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 7219$. If we compare this with the average Triathlon bike cost we notice that the price is 72.83% more expensive.
Average weight for Triathlon bikes
If we make a quick analysis of the average weight of a Triathlon bike, we get 8.9 kg (19.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Speedmax CF SLX 7 Disc eTap weighs 9.72 kg (21.43 lbs) and is a bit heavier than the average. To sum up, it’s 9.21% heavier than the average weight of Triathlon bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Speedmax CF SLX 7 Disc eTap bike is equipped with the carbon model. The 650c wheels are smaller in diameter than 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.

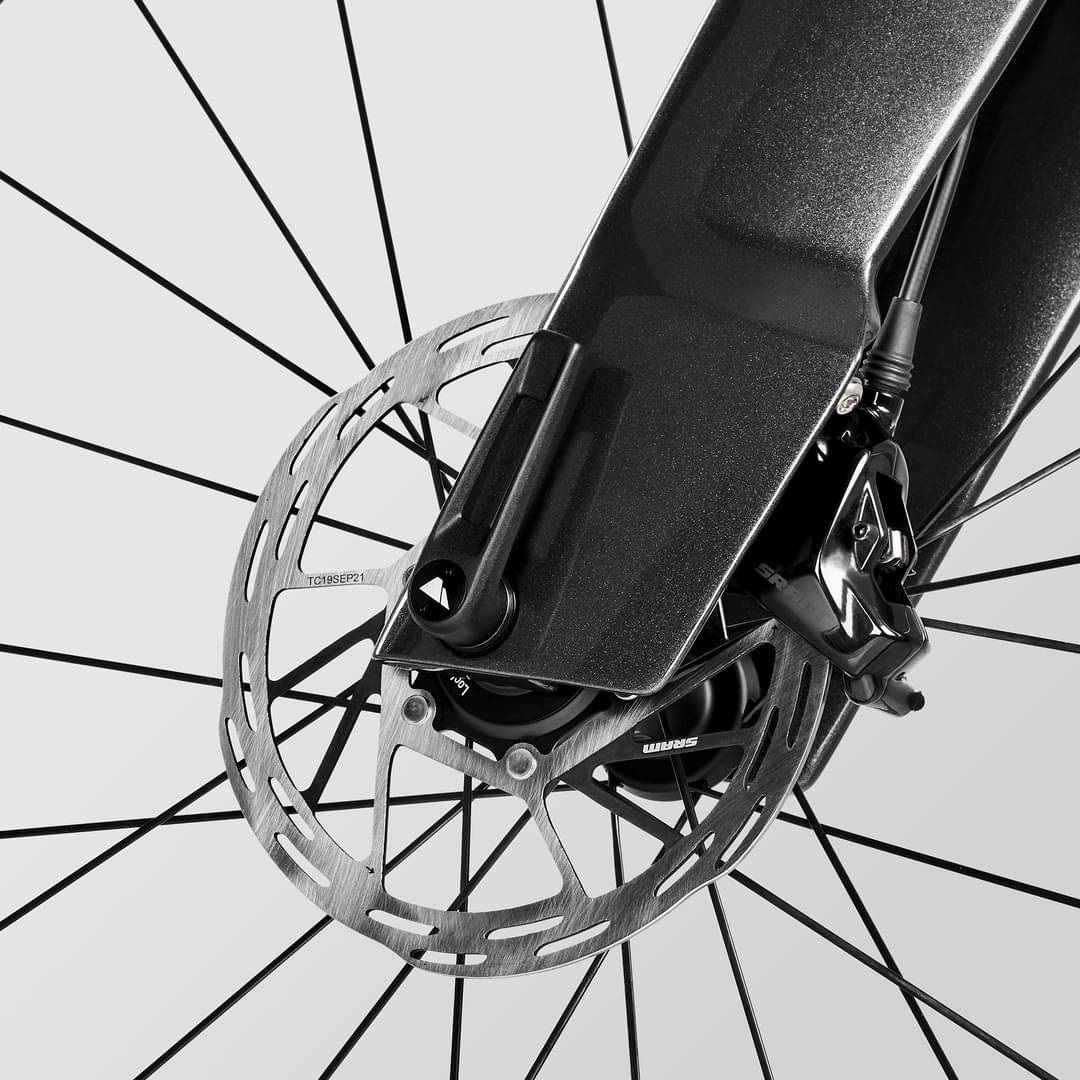

Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Speedmax CF SLX 7 Disc eTap has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
