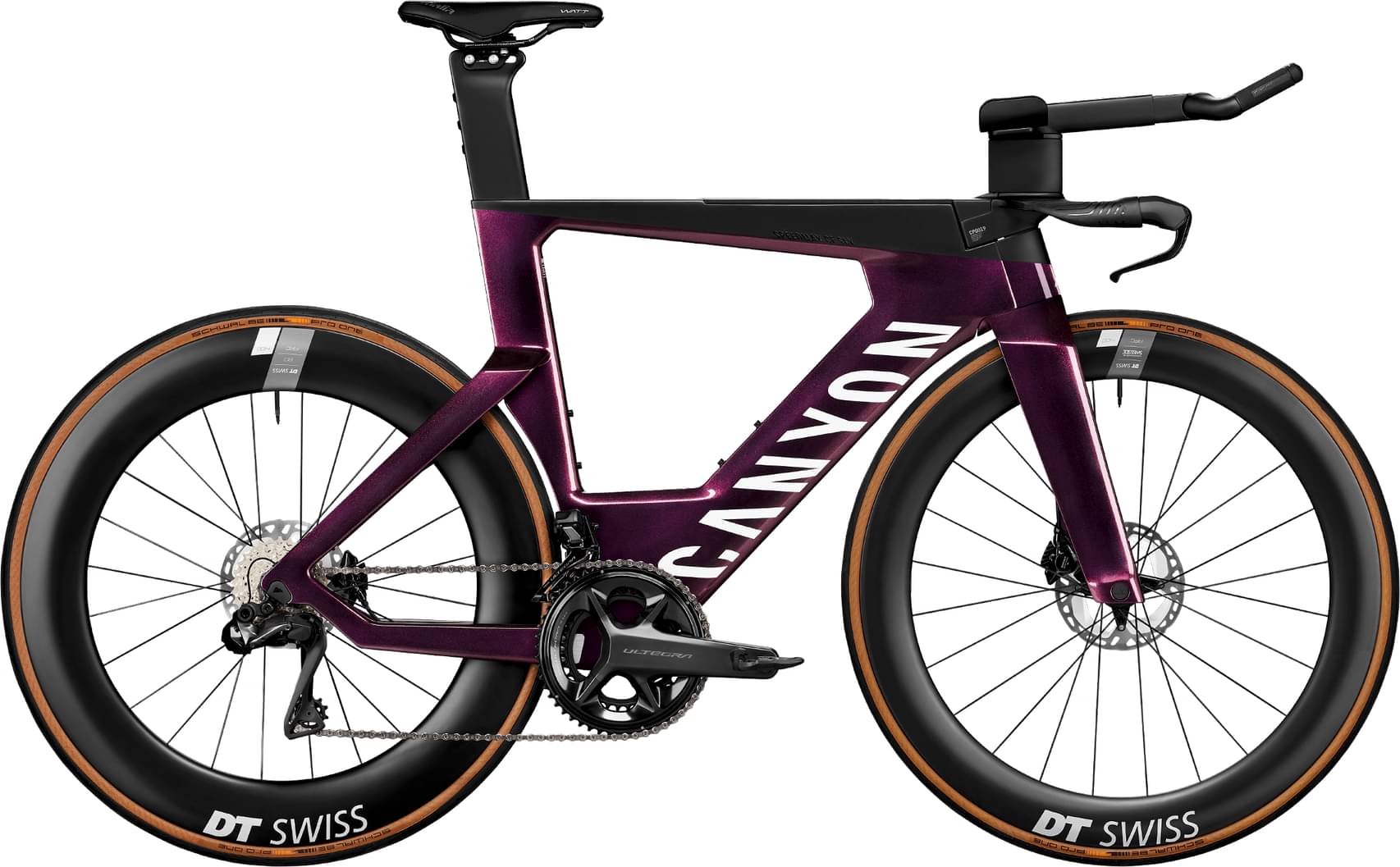

Canyon Speedmax CF SLX 8 Disc Di2 2023
2023 Road
Estimate price |
8,500$
Weight | 9.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra Di2, Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
169cm - 179cm
MD
177cm - 187cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components

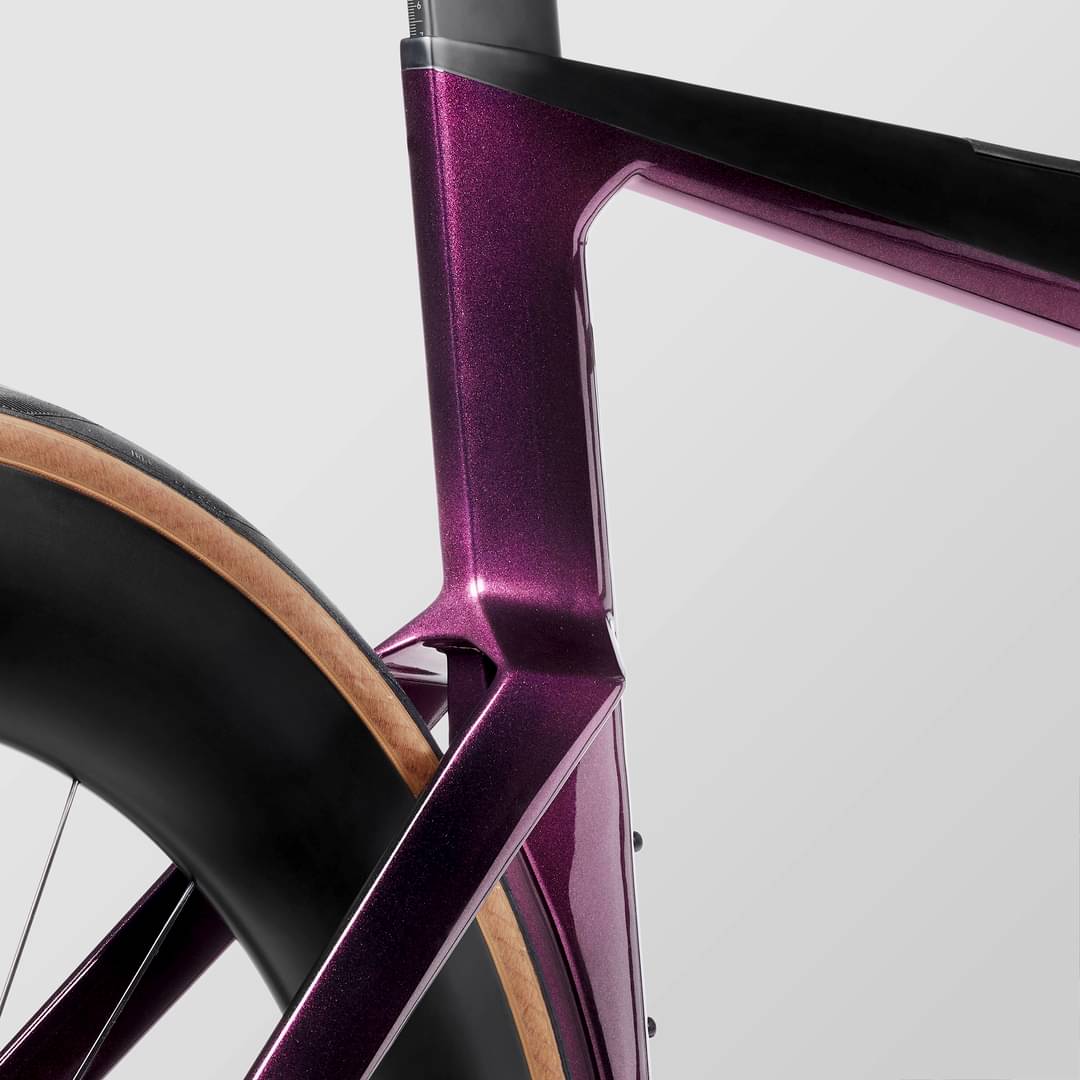

Frame
Frame
Canyon Speedmax CF SLX Disc, All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Weight: 1560 g, Axle dimension: 12x142 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0080 CF Disc, Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Front Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Shift Levers
Shimano Dura-Ace Di2 R9160 Remote TT
Cassette
Shimano Ultegra R8100,12-speed, 11-30T, Number of sprockets: 12
Crank
Shimano Ultegra R8100 4iiii Precision Powermeter, Number of chainrings: 2
Bottom Bracket
Shimano Pressfit BB72, Bottom bracket standard: PF 86,5, Weight: 40 g
Chain
Shimano CN-M8100 12s
Pedals
None included
Wheels
Rims
DT Swiss ARC 1400 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Weight: 817 g | DT Swiss ARC 1400 Dicut, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 80 mm, Weight: 978 g
Tires
Schwalbe Pro One, 25mm, Width: 25mm, Weight: 235 g | Schwalbe Pro One, 28mm, Width: 28mm, Weight: 250 g
Brakes
Brakes
Shimano Flat Mount Adapter +20mm

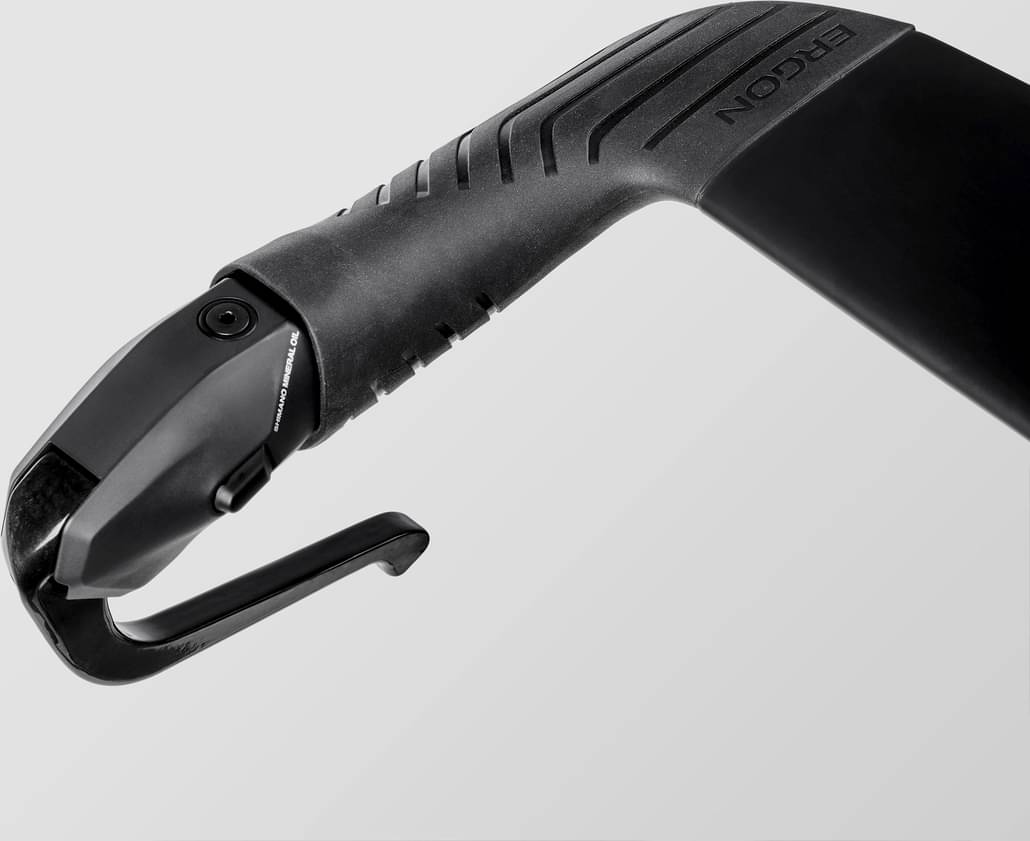

Brake Levers
Shimano Dura-Ace Di2 R9180

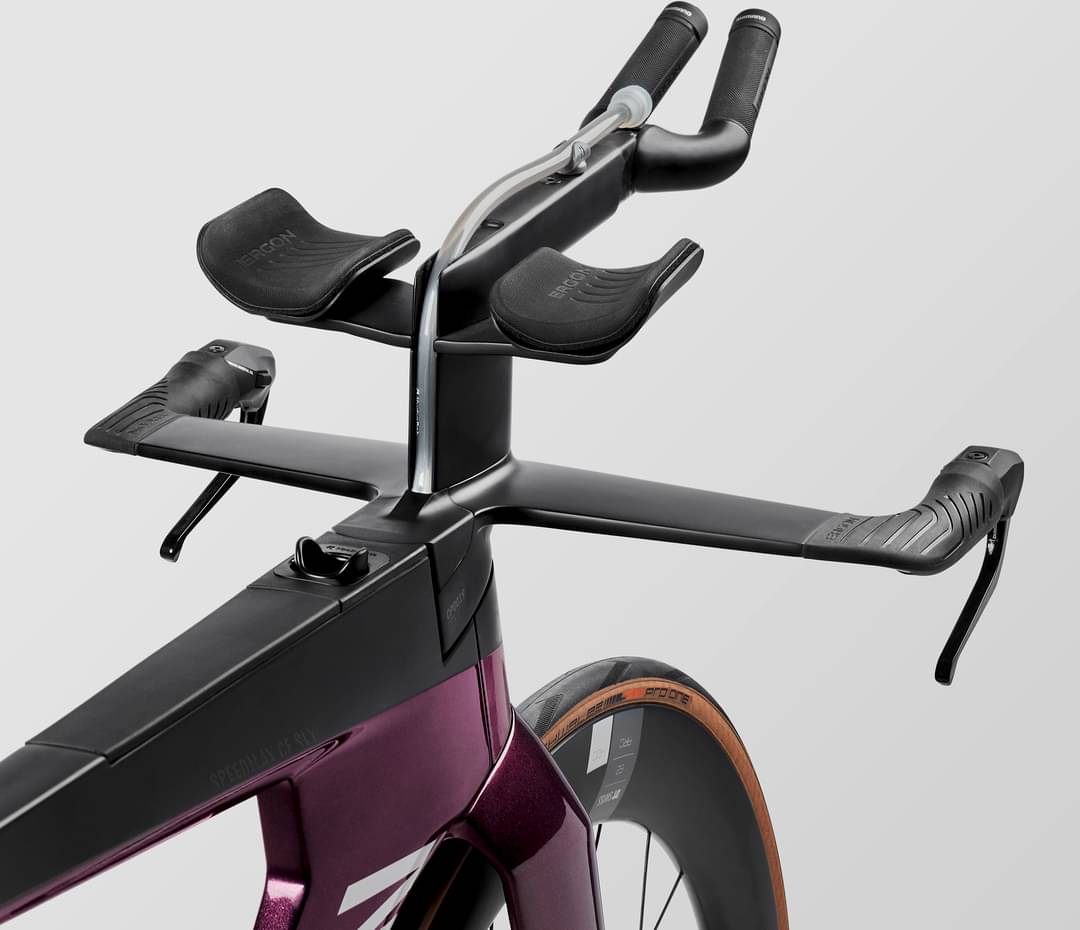

Cockpit
Handlebar
Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Seat
Saddle
Selle Italia Watt Superflow
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Weight: 295 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.11 mm | 1.13 mm | 1.12 mm | 1.15 mm | 1.14 mm |
| Front Center | 556 mm | 577 mm | 605 mm | 637 mm | 669 mm |
| Rake | 34 mm | 34 mm | 33 mm | 34 mm | 34 mm |
| Trail | 67 mm | 67 mm | 68 mm | 67 mm | 67 mm |
| Stack | 438 mm | 472 mm | 492 mm | 530 mm | 556 mm |
| Reach | 396 mm | 418 mm | 441 mm | 462 mm | 486 mm |
| Top Tube Length | 469 mm | 497 mm | 522 mm | 551 mm | 579 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 488 mm | 531 mm | 552 mm | 592 mm | 616 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 64 mm | 62 mm | 83 mm | 123 mm | 150 mm |
| Chainstay Length | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 963 mm | 989 mm | 1017 mm | 1050 mm | 1082 mm |
| Bottom Bracket Drop | 52 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 762 mm | 800 mm | 819 mm | 860 mm | 884 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 197 cm | cm |
Model Overview
Speedmax CF SLX 8 Disc Di2 is part of the Canyon Speedmax model. There are 95 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Speedmax CF 7 Disc 2023 is the most economical model, with a starting price of 3299$. Canyon Speedmax CFR Moonshot 2023 on the other hand costs 13803$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Triathlon bikes average price
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 8500$. Comparing this to the average Triathlon bike price, we see that the price is 103.5% higher.
Average weight for Triathlon bikes
The average weight for Triathlon bikes is 8.9 kg (19.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 9.34 kg (20.59 lbs), Canyon bike is slightly heavier than average. To sum up, it’s 4.94% heavier than the average weight of Triathlon bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Speedmax CF SLX 8 Disc Di2 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Speedmax CF SLX 8 Disc Di2 model has carbon wheels. These wheels are less popular than 650b and 700c. However, they are a little lighter than 700c wheels.

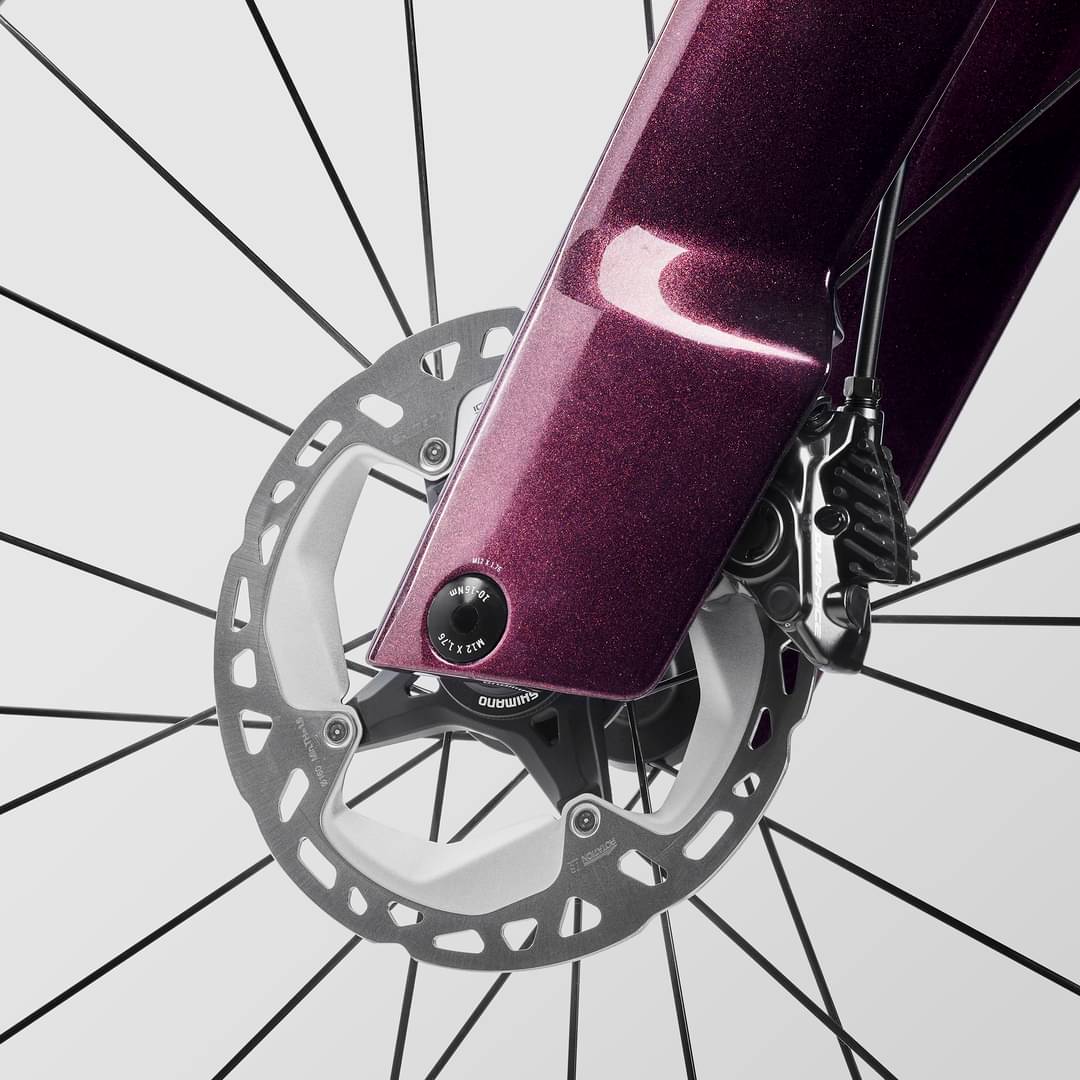

Brakes
When you want to stop the bike in time, the brakes are vital. The Speedmax CF SLX 8 Disc Di2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
