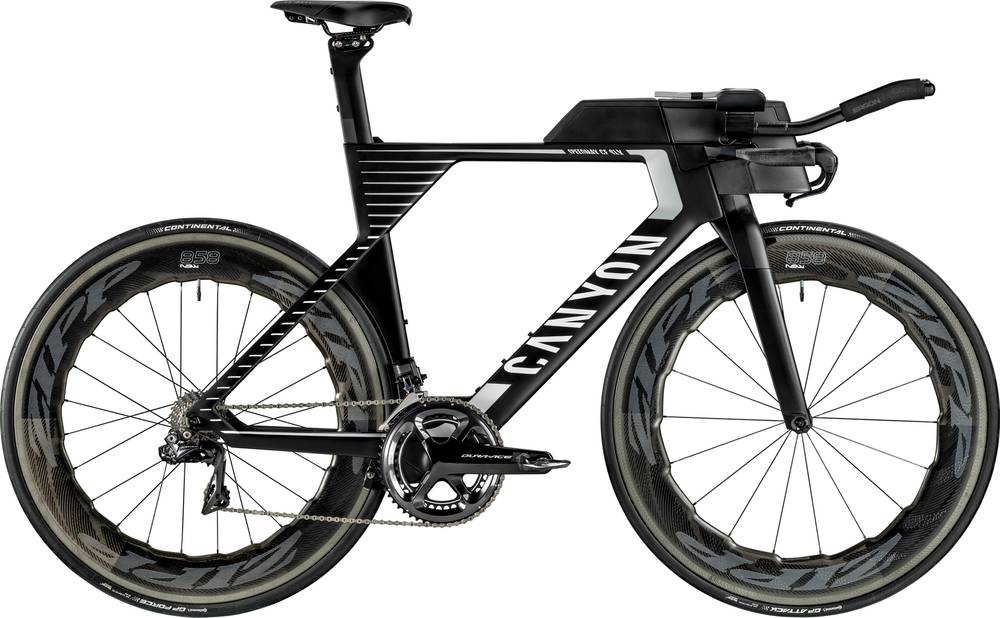

Canyon Speedmax CF SLX 9.0 LTD 2020
2020 Road
Estimate price |
10,500$
Weight | 8.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
MD
174cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Speedmax CF SLX, Material: Carbon, Axle Dimension: 9 x 130 mm, Brake Mount: Integrated
Suspension Fork
Canyon F32 CF, Material: Carbon, Steerer: Canyon Special, Axle Dimension: 9 x 100mm, Brake Mount: Canyon integrated
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9150 SS
Front Derailleur
Shimano Dura-Ace Di2 R9150
Shift Levers
Shimano Dura-Ace Di2 R9160 Remote TT | Shimano Dura-Ace Di2 R9160 TT 2s | Shimano Dura-Ace Di2 R9160 TT 11s
Cassette
Shimano Dura-Ace R9100 11-25 11s
Crank
Shimano Dura-Ace R9100, 53/39
Bottom Bracket
Shimano Pressfit BB92
Pedals
None included
Wheels
Rims
Zipp 858 NSW, Rim Material: Carbon, Rim Height: 77/82 mm, Inner Width: 17 mm, Weight: 808 g | Zipp 858 NSW SH11, Rim Material: Carbon, Rim Height: 77/82 mm, Inner Width: 17 mm, Weight: 942 g
Tires
Continental Grand Prix Attack 23 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable | Continental Grand Prix 5000 / Attack 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II
Brakes
Brakes
Canyon Speedmax CF SLX Front-Brake Kit B11, B11-16 Front-Brake Kit for R40 TT, 1 x upper brake arm front left EP0330-01, 1 x lower brake arm front left EP0331-01, 2 x front bushings EP0325-01, 2 x pully pin front EP0327-01, 2 x bearings, 2 x M10 headless screws, 1 x triangle front EP0321-01, 1 x base plate front EP0322-01, 1 x adjustment wheel front and rear EP0320-01, 1 x spring front EP0323-01, 1 x upper brake arm front right EP0324-01, 1 x upper brake arm front right EP0325-01, 2 x lock nut EP0329-01, 2 x safety screw brake arms EP0328-01, 4 x friction plate front EP0409-01, 2 x base plate screws EP0411-01, 1 x installation tool EP0412-01, 2 x brake pin front EP0347-01 | Canyon Speedmax CF SLX Rear-Brake Kit B12, B12-16 rear-brake kit for R40 TT, 1 x upper brake arm left EP0336-01, 1 x lower brake arm left EP0337-01, 2 x pully pin rear EP0339-01, 2 x SKF bearings, 2 x rear bushings EP0340-01, 2 x adjustment screws, 1 x base plate rear EP0332-01, 1 x cable stopper rear EP0333-01, 1 x adjustment wheel front and rear EP0320-01, 1 x triangle rear EP0480-01, 1 x upper brake arm right EP0341-01, 1 x lower brake arm right EP0342-01, 1 x spring right EP0343-01, 1 x spring left EP0338-01, 1 x spring hat left EP0334-01, 1 x spring hat right EP0335-01, 2 x safety brake screws EP0328-01, 2 x lock nut EP0329-01, 4 x friction plate rear EP0409-01, 3 x M4x6 DIN 7984 screws, 2 x M4x12 DIN 7991 screws base plate, 1 x installation key brake pin EP0481-01, 1 x installation tool EP0412-01, 2 x brake pin rear EP0298-01
Cockpit
Stem
Canyon V19 Stem Short, Material: Aluminum, Length: 65 mm, 1 x Canyon V19 short stem, Install hardware
Handlebar
Canyon HB0048 Basebar Flat, Material: Carbon, Rise: 0 mm, 1 x Canyon HB0048 basebar, Installed Ergon basebar grips
Seat
Saddle
Fizik Mistica
Seatpost
Canyon S31 TRI CF, Material: Carbon, Setback: Adjustable, Technology: Fliphead, Interface: Canyon Bottle Cage Adapter Mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.14 mm | 1.15 mm | 1.12 mm |
| Stack | 460 mm | 489 mm | 505 mm |
| Reach | 404 mm | 426 mm | 449 mm |
| Top Tube Length | 482 mm | 509 mm | 534 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 510 mm | 539 mm | 573 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 63 mm | 93 mm | 109 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm |
| Wheelbase | 976 mm | 1007 mm | 1042 mm |
| Wheels | 700 | 700 | 700 |
| Rider Max Height | 176 cm | 187 cm | cm |
About this model
Speedmax CF SLX 9.0 LTD completes the Canyon Speedmax model. Canyon released 95 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Canyon Speedmax WMN CF 7.0 2020 is the most economical model, with a starting price of 3099$. Canyon Speedmax CF SLX 9.0 LTD 2020 on the other hand costs 10500$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Triathlon bikes
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10500$. Comparing this to the average Triathlon bike price, we see that the price is 151.38% higher.
Triathlon bikes average weight
Triathlon bikes weigh an average of 8.9 kg (19.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 8.5 kg (18.74 lbs), the Speedmax CF SLX 9.0 LTD model is slightly lighter than average. To sum up, it’s 4.71% lighter than the average weight of Triathlon bikes.
Speedmax CF SLX 9.0 LTD components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Speedmax CF SLX 9.0 LTD 2020 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Speedmax CF SLX 9.0 LTD has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
