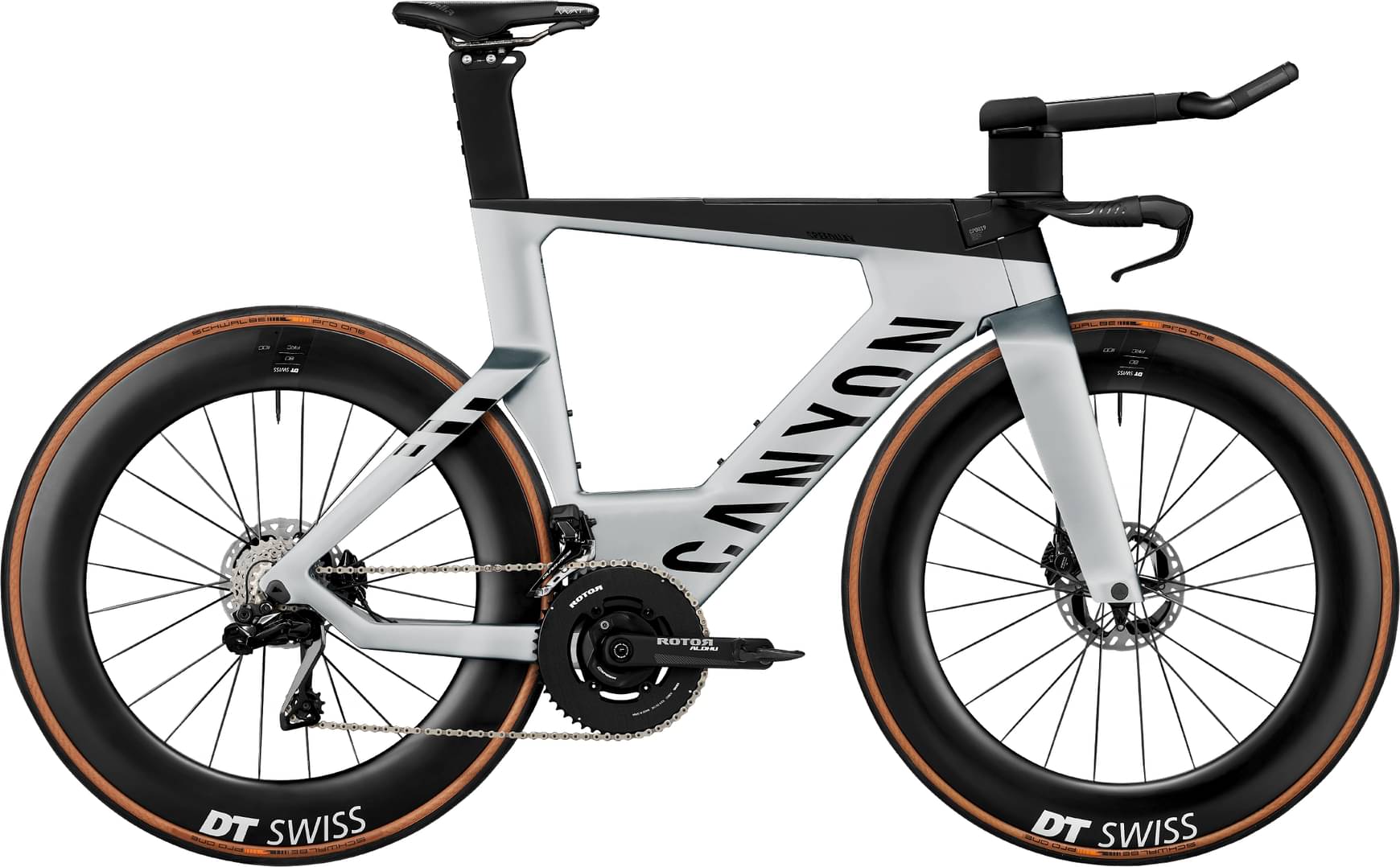

Canyon Speedmax CFR Disc Di2 2024
2024 Road
Estimate price |
2,799$
Weight | 9.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2, Rotor -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
169cm - 179cm
MD
177cm - 187cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Speedmax CFR DISC, Canyon Factory Racing triathlon carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Weight: 1480 g, Axle dimension: 12x142 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0080 CF Disc, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved., Axle dimension: 12x100 mm, Tyre Clearance: 30 mm, Material: Carbon (CF), Weight: 750 g
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250, 12-speed
Front Derailleur
Shimano Dura-Ace Di2 R9250
Shift Levers
Shimano Dura-Ace Di2 R9160 Remote TT
Cassette
Shimano Dura-Ace R9200, 12-speed, 11-30, Number of sprockets: 12
Crank
Rotor ALDHU24 Inspider Aero, Number of chainrings: 2
Bottom Bracket
Shimano Pressfit BB92, Bottom bracket standard: PF 86,5, Weight: 200 g
Chain
Shimano CN-M9100 12s
Pedals
None included
Wheels
Rims
DT Swiss ARC 1100 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 80 mm, Weight: 820 g | DT Swiss ARC 1100 Dicut, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 80 mm, Weight: 942 g
Tires
Schwalbe Pro One, 25mm, Width: 25mm, Weight: 235 g | Schwalbe Pro One, 28mm, Width: 28mm, Weight: 250 g
Brakes
Brakes
Shimano Flat Mount Adapter +20mm
Brake Levers
Shimano Dura-Ace Di2 R9180
Cockpit
Handlebar

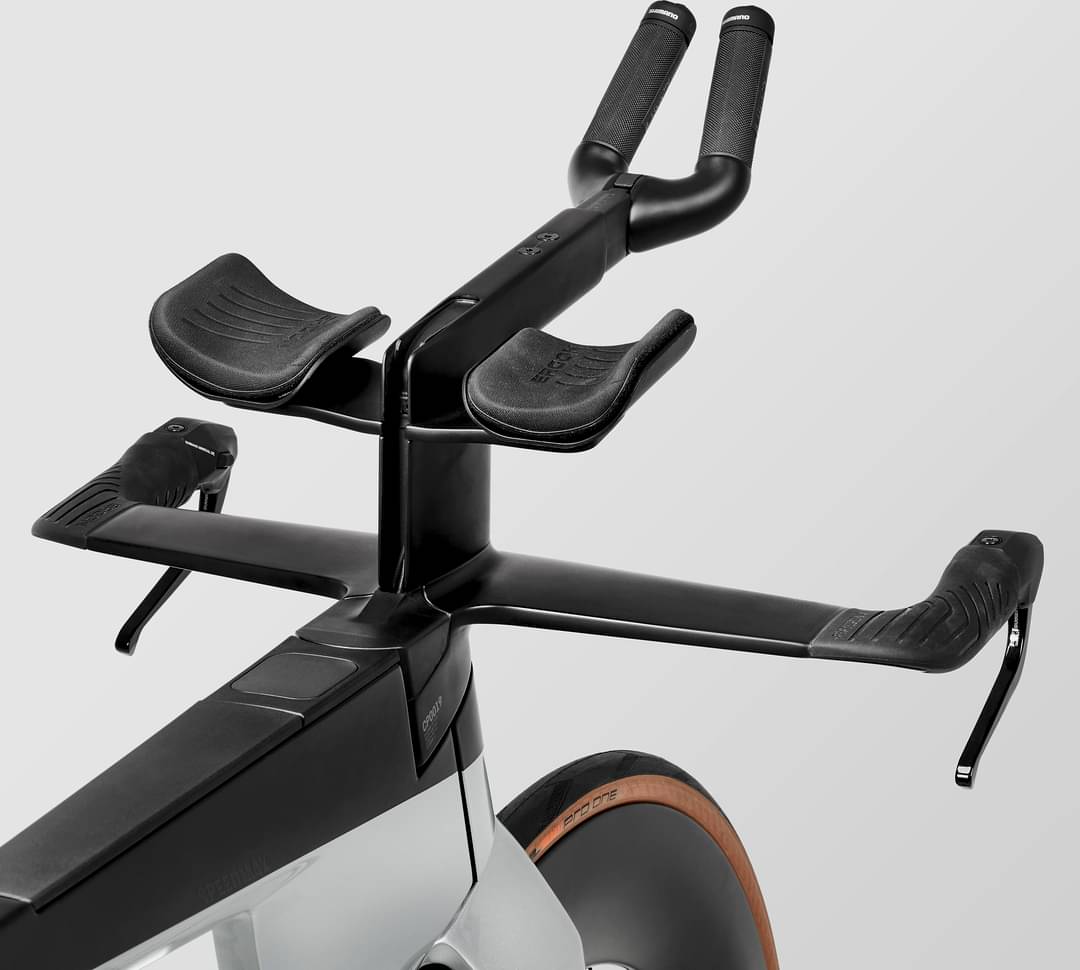

Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Seat
Saddle
Selle Italia Watt Kit Carbonio Superflow
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Weight: 295 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.107 mm | 1.13 mm | 1.116 mm | 1.148 mm | 1.145 mm |
| Front Center | 556 mm | 577 mm | 605 mm | 637 mm | 669 mm |
| Rake | 34 mm | 34 mm | 33 mm | 34 mm | 34 mm |
| Trail | 67 mm | 67 mm | 68 mm | 67 mm | 67 mm |
| Stack | 435 mm | 469 mm | 489 mm | 527 mm | 553 mm |
| Reach | 393 mm | 415 mm | 438 mm | 459 mm | 483 mm |
| Top Tube Length | 466 mm | 494 mm | 519 mm | 548 mm | 576 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 488 mm | 531 mm | 552 mm | 592 mm | 616 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 64 mm | 62 mm | 83 mm | 123 mm | 150 mm |
| Chainstay Length | 410 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 960 mm | 986 mm | 1014 mm | 1047 mm | 1079 mm |
| Bottom Bracket Drop | 52 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 759 mm | 797 mm | 817 mm | 857 mm | 881 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 197 cm | cm |
About this model
Speedmax CFR Disc Di2 is part of the Canyon Speedmax model. Canyon launched 106 bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Canyon Speedmax CFR Disc Di2 2024 is the cheapest bike model and costs 2799$. Canyon Speedmax CFR Moonshot 2024 is the most expensive one and costs 13766$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Triathlon bikes
According to our math, the average price for a trustworthy Triathlon bike is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2024, its price was 2799$. Comparing the average cost of a Triathlon bike to this one, you will see that Speedmax CFR Disc Di2 price is 49.23% smaller.
Average weight for Triathlon bikes
On a deeper look, we notice that the average weight of a Triathlon bike is 8.9 kg (19.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, Speedmax CFR Disc Di2 has a weight of 9.1 kg (20.06 lbs). To sum up, it’s 2.25% heavier than the average weight of Triathlon bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Speedmax CFR Disc Di2 2024 bike is equipped with carbon wheels when leaving the factory. These wheels are less popular than 650b and 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.

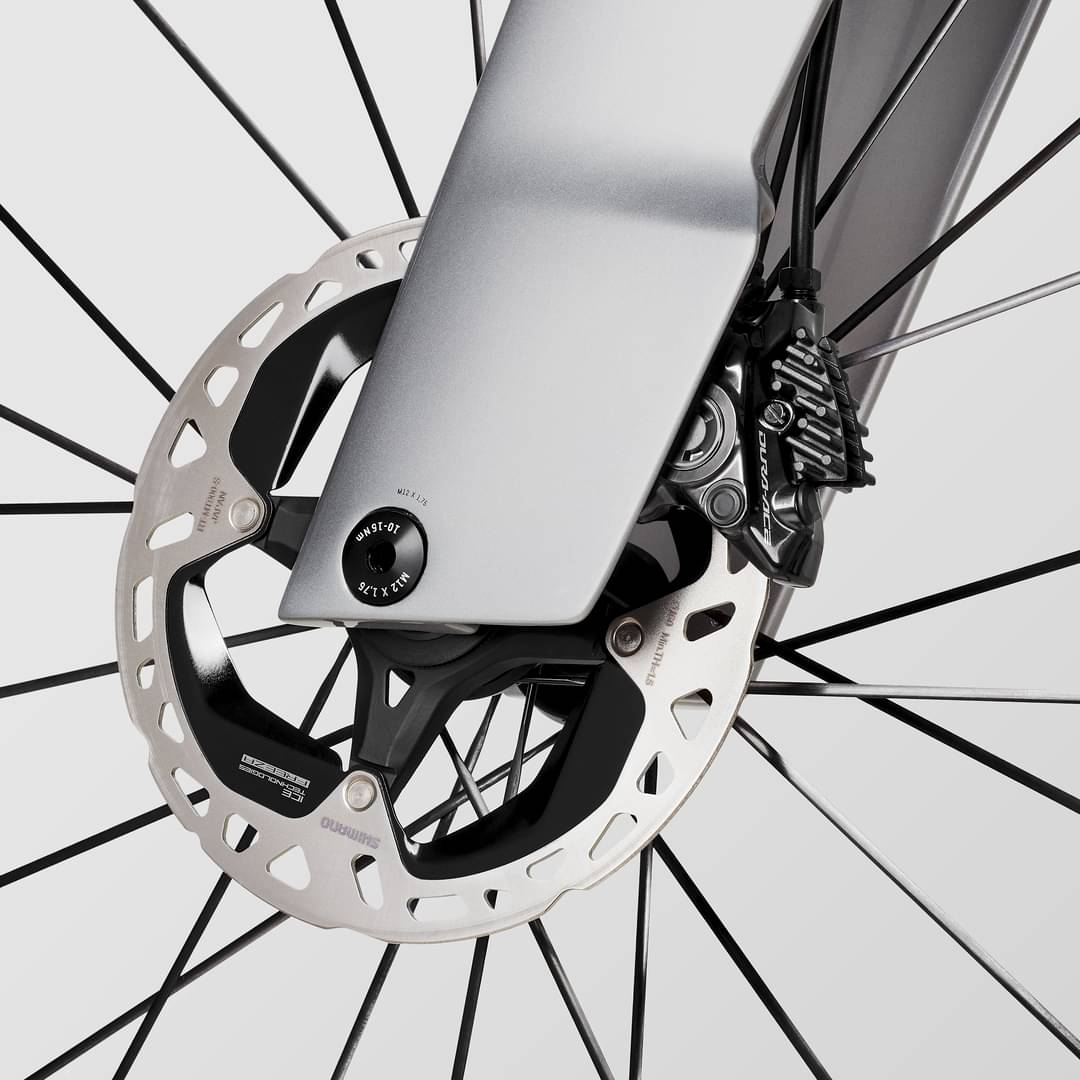

Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Speedmax CFR Disc Di2 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
