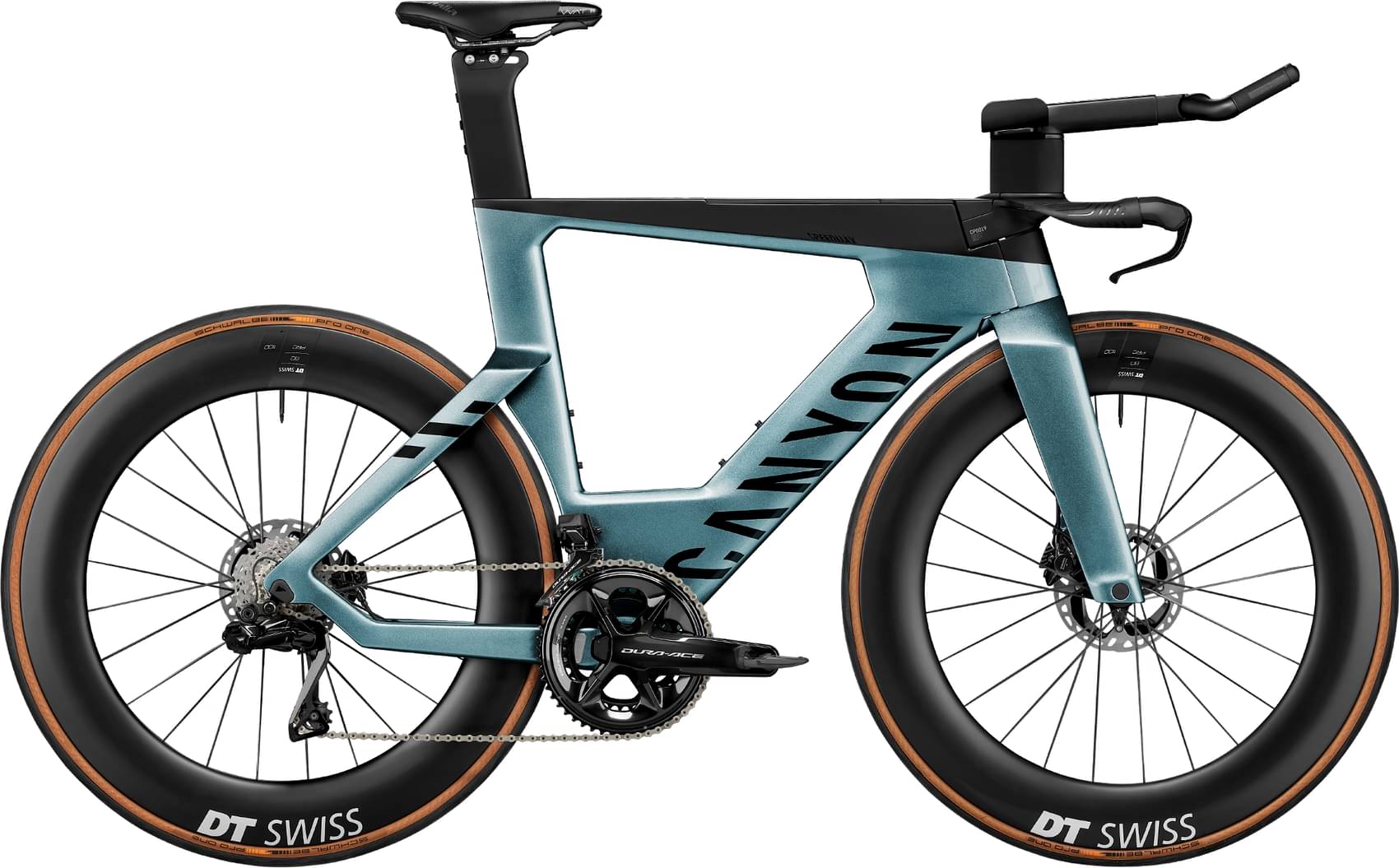

Canyon Speedmax CFR Disc LTD 2023
2023 Road
Estimate price |
13,189$
Weight | 9.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
169cm - 179cm
MD
177cm - 187cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

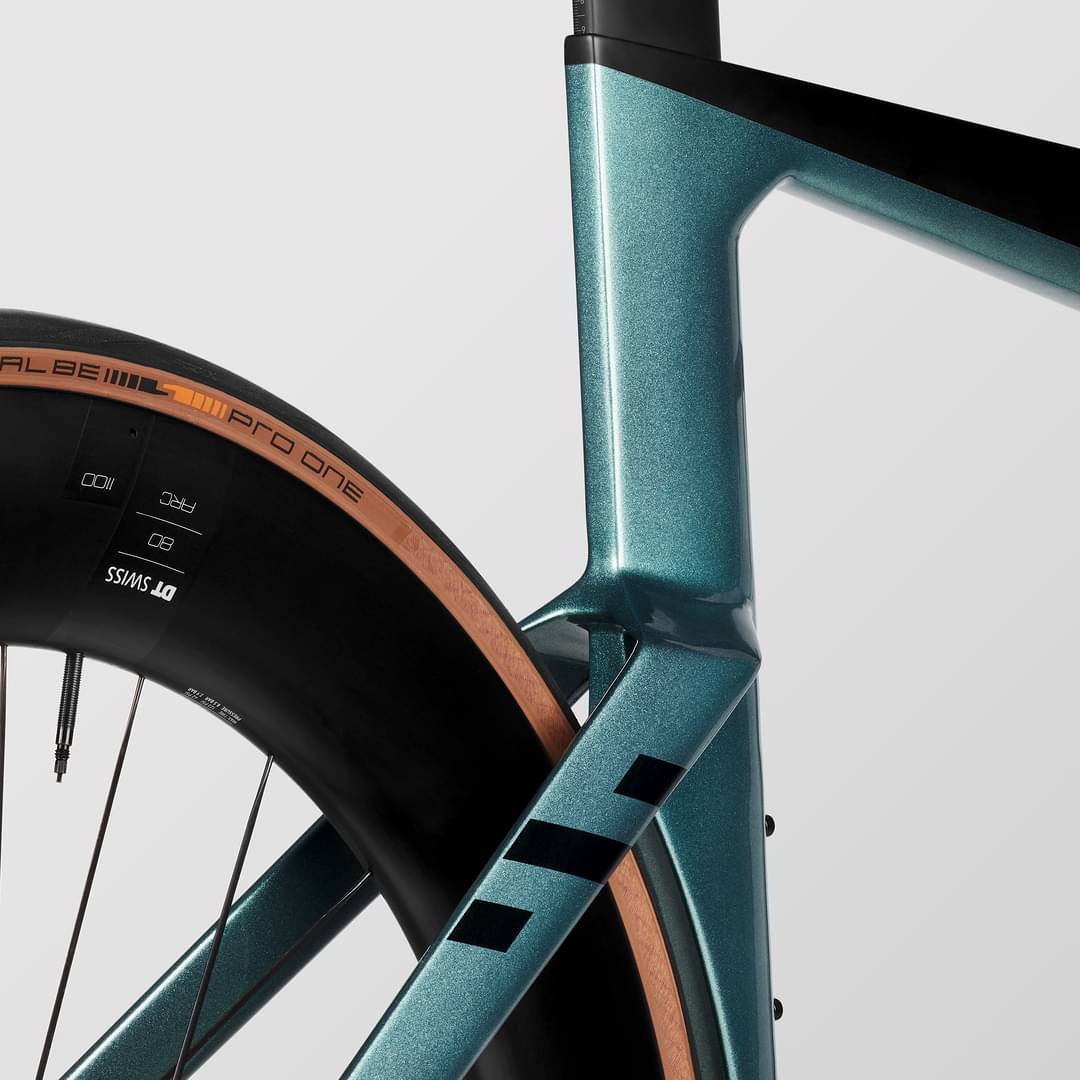

Canyon Speedmax CFR DISC, Canyon Factory Racing carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel., Axle dimension: 12x142 mm, Material: Carbon (CF)
Suspension Fork

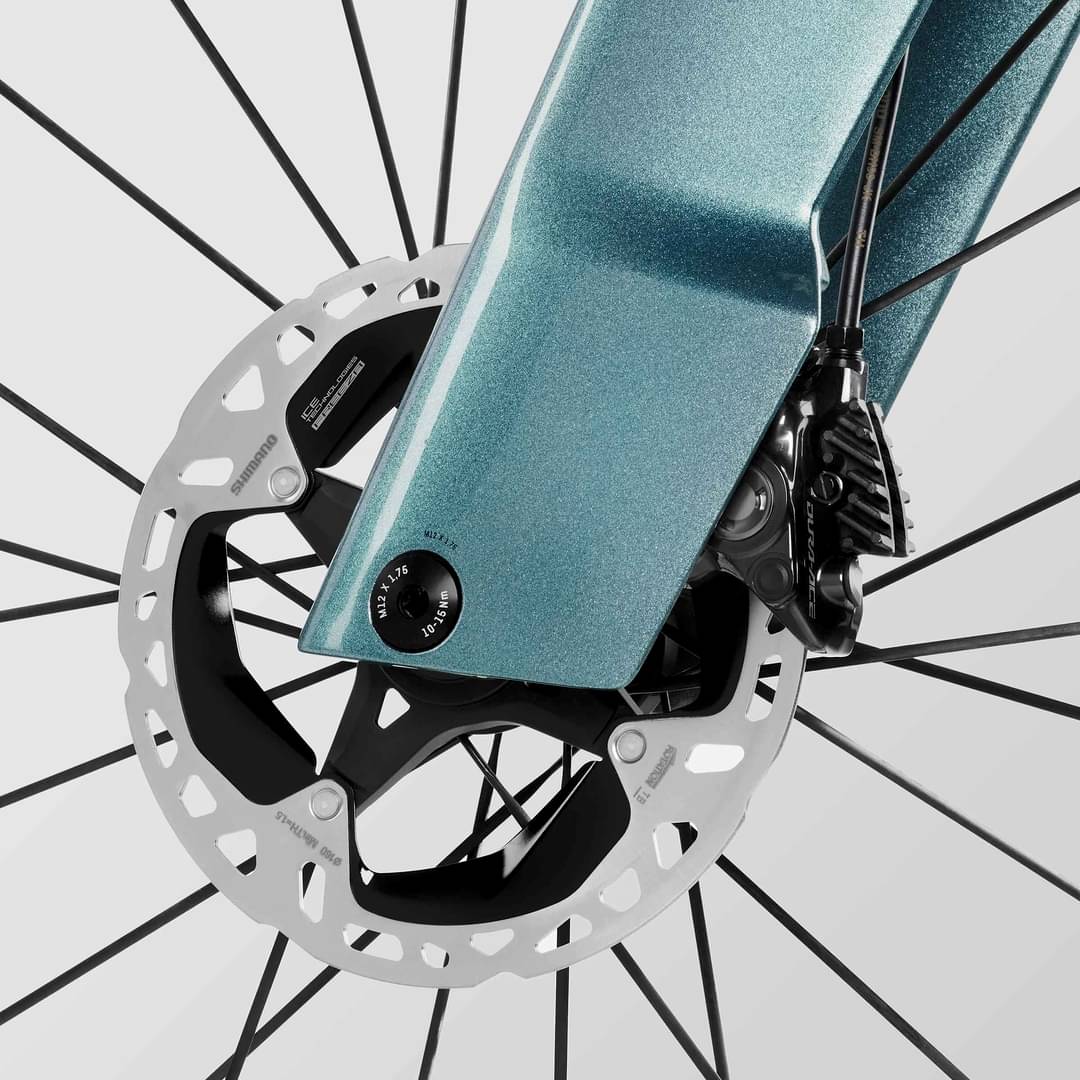

Canyon FK0080 CF Disc, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Material: Carbon (CFR)
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250, 12-speed
Front Derailleur
Shimano Dura-Ace Di2 R9250
Shift Levers
Shimano Dura-Ace Di2 R9160 Remote TT
Cassette
Shimano Dura-Ace R9200, 12-speed, 11-30, Number of sprockets: 12 | Shimano CS-R9200 Dura-Ace 12-speed Cassette 11-30
Crank
Shimano Dura-Ace Di2 R9200 Powermeter, Number of chainrings: 2
Bottom Bracket
Shimano Pressfit BB92, Bottom bracket standard: PF 86,5 | Ceramicspeed BB86 Shimano PressFit Bottom Bracket
Chain
Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano XTR CN-M9100 12-speed Chain 138 Links
Pedals
None included
Wheels
Rims
DT Swiss ARC 1100 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 80 mm | DT Swiss ARC 1100 Dicut, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 80 mm
Tires
Schwalbe Pro One, 25mm, Width: 25mm | Schwalbe Pro One, 28mm, Width: 28mm | Continental GP 5000S TR TL 28" Road Tyre 25mm | Continental GP 5000S TR TL 28" Road Tyre 28mm | Continental GP 5000 27.5" & 28" Road Tyre | Continental GP 5000 27.5" & 28" Road Tyre
Brakes
Brakes
Shimano Flat Mount Adapter +20mm
Brake Levers
Shimano Dura-Ace Di2 R9180
Cockpit
Handlebar

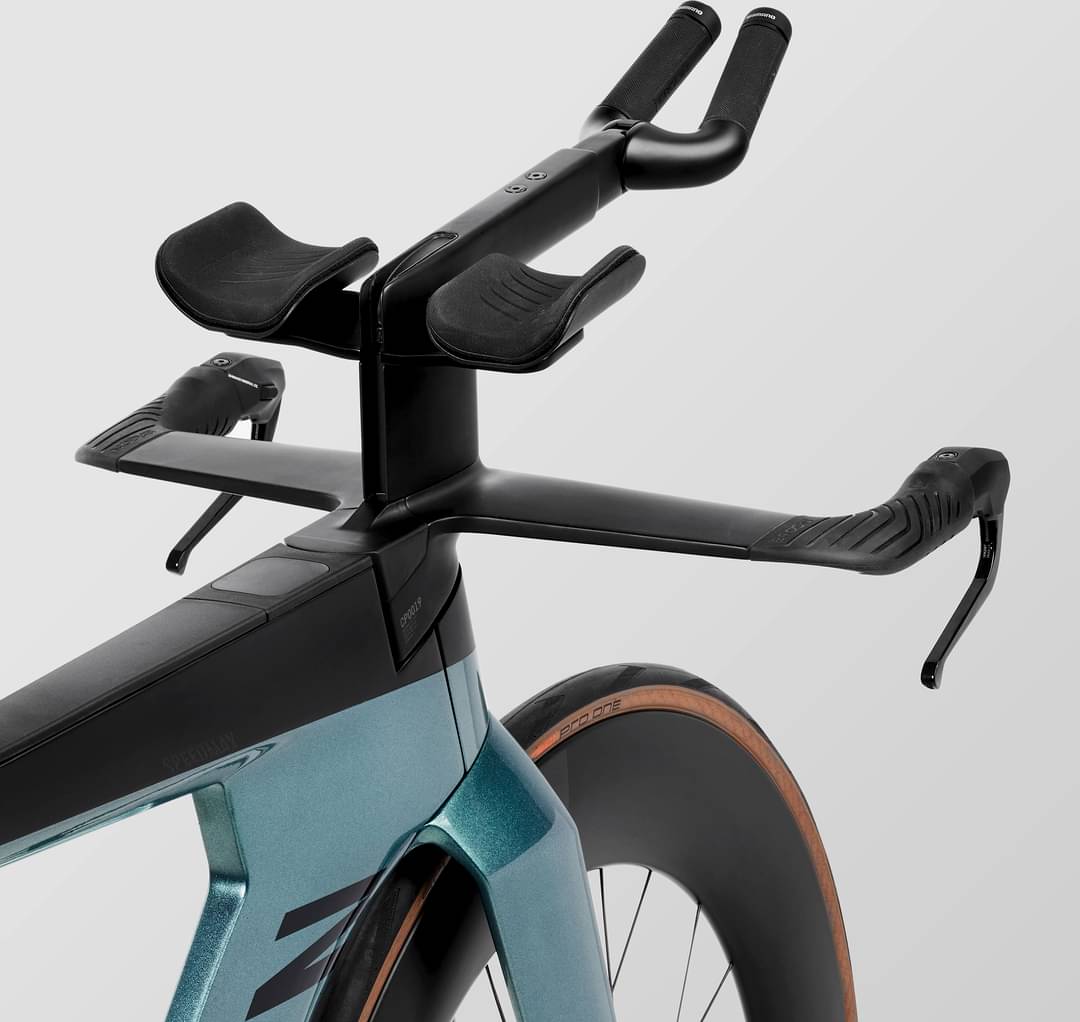

Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Seat
Saddle
Selle Italia Watt Kit Carbonio Superflow
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Weight: 295 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.11 mm | 1.13 mm | 1.12 mm | 1.15 mm | 1.14 mm |
| Front Center | 556 mm | 577 mm | 605 mm | 637 mm | 669 mm |
| Rake | 34 mm | 34 mm | 33 mm | 34 mm | 34 mm |
| Trail | 67 mm | 67 mm | 68 mm | 67 mm | 67 mm |
| Stack | 438 mm | 472 mm | 492 mm | 530 mm | 556 mm |
| Reach | 396 mm | 418 mm | 441 mm | 462 mm | 486 mm |
| Top Tube Length | 469 mm | 497 mm | 522 mm | 551 mm | 579 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.37 ° | 80.5 ° |
| Seat Tube Length | 488 mm | 531 mm | 552 mm | 592 mm | 616 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 64 mm | 62 mm | 83 mm | 123 mm | 150 mm |
| Chainstay Length | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 963 mm | 989 mm | 1017 mm | 1050 mm | 1082 mm |
| Bottom Bracket Drop | 52 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 762 mm | 800 mm | 820 mm | 860 mm | 884 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 197 cm | cm |
Model Overview
Speedmax CFR Disc LTD is part of the Canyon Speedmax model. Canyon released 95 bikes variations of this model so far. Take a sneak peek at all Canyon Speedmax bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Canyon Speedmax CF 7 Disc 2023 has a starting price of 3299$. Canyon Speedmax CFR Moonshot 2023 on the other hand is the most expensive at 13803$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Triathlon bikes
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, this doesn’t mean that if you spend less money on a Triathlon bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Speedmax CFR Disc LTD price was 12209$. Comparing the average cost of a Triathlon bike to this one, you will see that Speedmax CFR Disc LTD price is 192.29% higher.
Average weight for Triathlon bikes
Triathlon bikes weigh an average of 8.9 kg (19.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 9.4 kg (20.72 lbs), the Speedmax CFR Disc LTD model is a bit heavier than average. In other words, this model is 5.62% heavier than the average Triathlon bike.
Speedmax CFR Disc LTD components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Canyon Speedmax CFR Disc LTD 2023, has a carbon model. These wheels are less popular than 650b and 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
