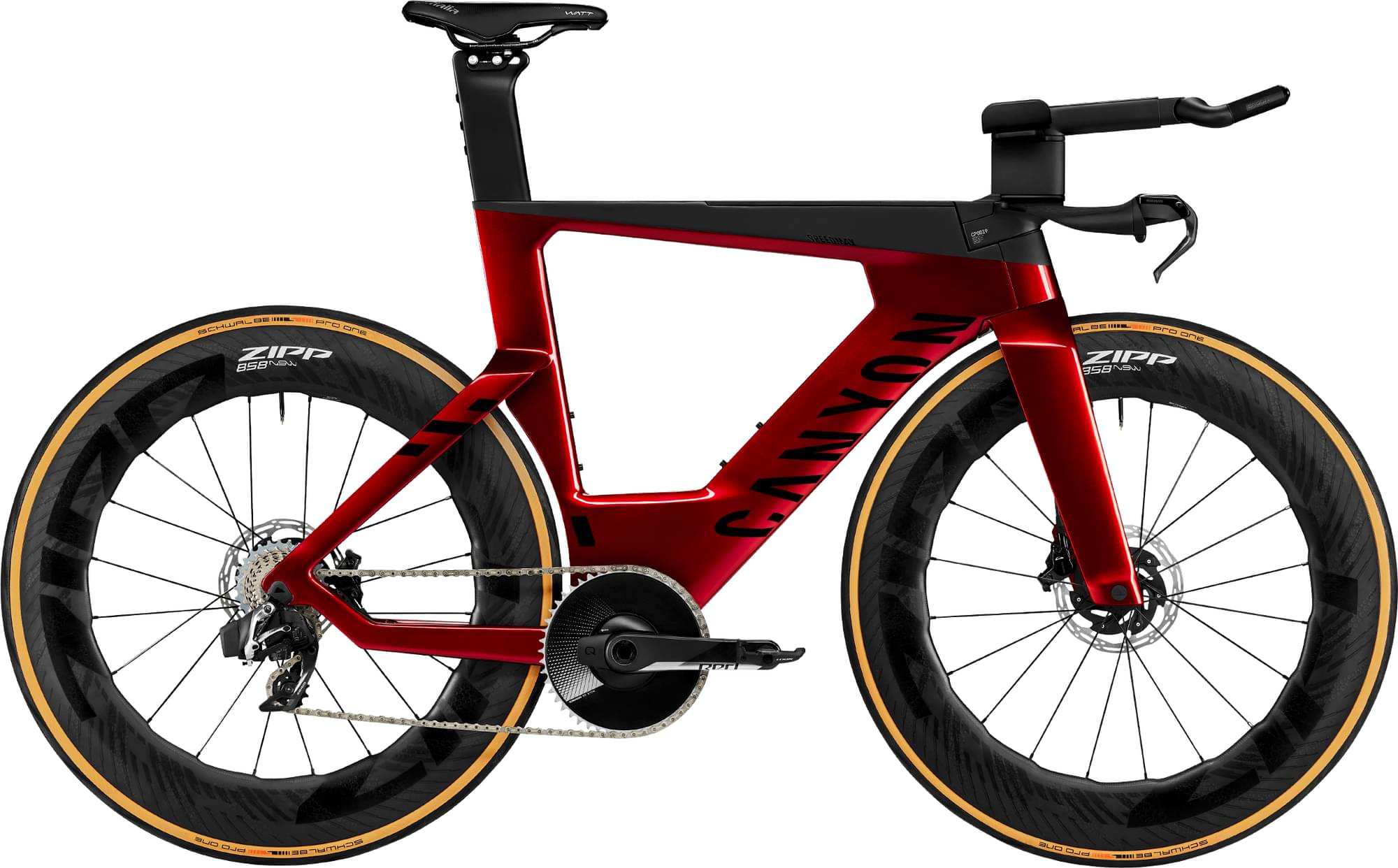

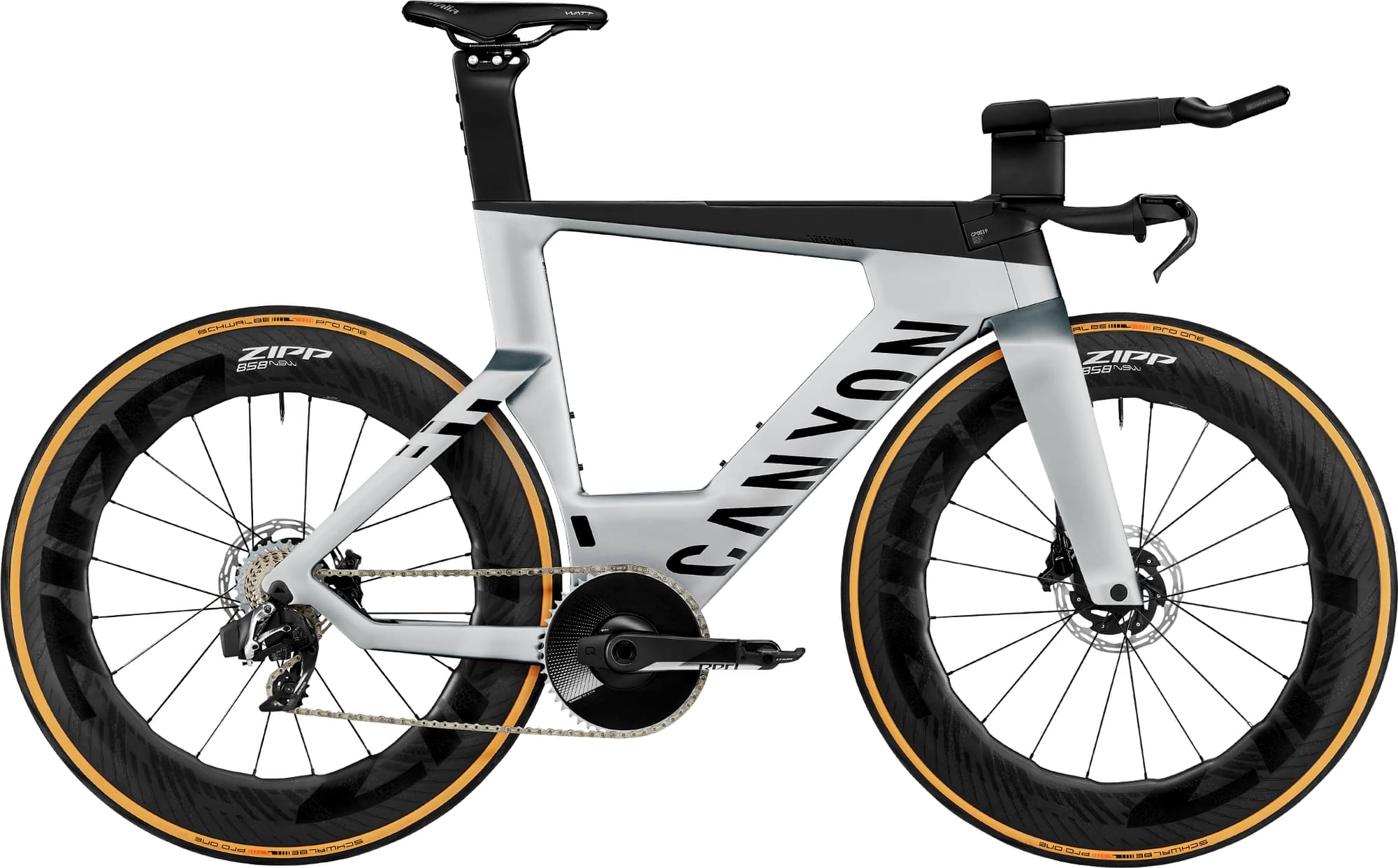

Canyon Speedmax CFR eTap 2022
2022 Road
Estimate price |
13,762$
Weight | 8.82 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 187cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Speedmax CFR DISC, Canyon Factory Racing triathlon carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Weight: 1480 g, Axle dimension: 12x142 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0080 CF Disc, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved.
Drivetrain
Rear Derailleur
SRAM RED eTap AXS, 12-speed, 12-speed, wireless shifting., Max cassette size: 33T, Weight: 277 g
Shift Levers
SRAM eTap Clics, Extension-end shifter buttons. Shift with thumbs or fingers, without changing position or grip. Connects to eTap AXS BlipBox., Weight: 30 g
Cassette
SRAM RED XG-1290, 12-speed, 10-28, Machined one-piece design for smoother, faster shifting and weight savings. Gear range: 10-28T, weight: 175 g
Crank
SRAM Red AXS Aero Powermeter, 50T, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit RED DUB, Pressfit BB86 road standard, compatible with SRAM DUB axles., Weight: 72 g | Ceramicspeed BB86 SRAMM GXP Bottom Bracket
Chain
SRAM RED D1 12s, Premium 12-speed chain. Signature flat-top design enables a narrower design with quieter operation and increased strength and durability. With HollowPin construction and hard chrome plated inner link plates and rollers for reduced wear and prolonged life. | SRAM Red AXS 12-speed Chain 114L
Pedals
None included
Wheels
Rims
ZIPP 858 NSW Hookless, Rotor mount: Center Lock | ZIPP 858 NSW Hookless, XDR, Rotor mount: Center Lock
Tires
Schwalbe Pro One, 25mm, High-end road tyre that combines suppleness, speed, and control at the highest level., Tech: tubeless-ready, v-guard puncture protection, Compound: Addix Race | Schwalbe Pro One, 28mm, High-end road tyre that combines suppleness, speed, and control at the highest level., Tech: tubeless-ready, v-guard puncture protection, Compound: Addix Race
Brakes
Brakes
Hydraulic Disc
Brake Levers
SRAM S-900 Aero HRD, Aero design specifically for triathlon and time trial bikes. Profiled carbon brake lever for better finger grip. Adjustable reach., Weight: 300 g
Cockpit
Handlebar
Canyon GP0226 Aerobar, Size: Medium, Length: 325 - 405 mm, Grip Adjustment: 7°, Telescopic mono-extension with ergonomically optimised dual grip.
Seat
Saddle
Selle Italia Watt Kit Carbonio Superflow, Lightweight, comfortable saddle with a redesigned shape, optimised for long-distance riding., Rail material: carbon, Rail length: 10 mm longer for more fitting options, Cover material: anti-slip for greater stability
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Weight: 295 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.13 mm | 1.12 mm | 1.15 mm | 1.15 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 577 mm | 605 mm | 637 mm | 669 mm |
| Rake | 34 mm | 33 mm | 34 mm | 34 mm |
| Trail | 67 mm | 68 mm | 67 mm | 67 mm |
| Stack | 464 mm | 484 mm | 522 mm | 548 mm |
| Reach | 410 mm | 433 mm | 454 mm | 478 mm |
| Top Tube Length | 489 mm | 514 mm | 543 mm | 571 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 531 mm | 552 mm | 592 mm | 616 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 62 mm | 83 mm | 123 mm | 150 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 981 mm | 1009 mm | 1042 mm | 1074 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 792 mm | 812 mm | 852 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 185 cm | 195 cm |
| Rider Max Height | 179 cm | 187 cm | 197 cm | cm |
About this model
Speedmax CFR eTap belongs to the Canyon Speedmax model. Canyon launched 95 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Canyon Speedmax CF 7 DISC 2022 is the cheapest bike model and costs 3799$. Canyon Speedmax CFR eTap 2022 is the most expensive one and costs 12740$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Triathlon bikes
According to our calculations, the average cost of a Triathlon bike that is reliable is 4177$. However, this doesn’t mean that if you spend less money on a Triathlon bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Canyon released this model in 2022, its price was 12740$. In conclusion, this bike price is 205% more expensive than the price of the average Triathlon bike.
Average weight for Triathlon bikes
If we make a quick analysis of the average weight of a Triathlon bike, we get 8.9 kg (19.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, Speedmax CFR eTap has a weight of 8.82 kg (19.44 lbs). To sum up, it’s 0.91% lighter than the average weight of Triathlon bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Speedmax CFR eTap model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Speedmax CFR eTap has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
