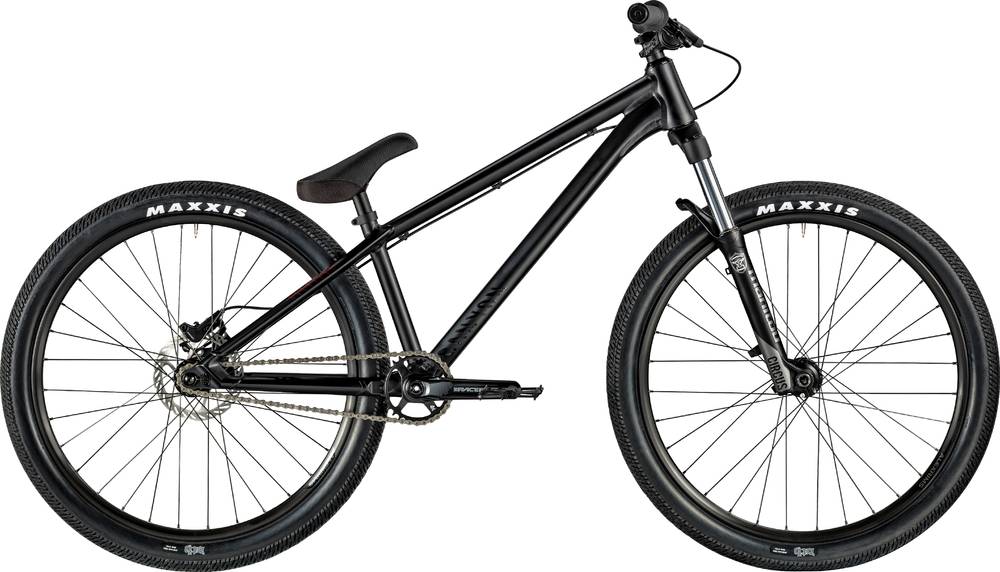

Canyon STCHD 360 2021
2021 Mountain
Estimate price |
1,299$
Weight | 12.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou Circus Comp
-
Groupset Race Face -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
140cm - 170cm
LG
160cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon STCHD
Suspension Fork
Manitou Circus Sport, Travel: 100 mm, Axle Dimension: 20 x 110 mm
Drivetrain
Crank
Race Face Aeffect 30T
Bottom Bracket
Race Face BSA Cinch
Chain
KMC Z510HX 1s
Pedals
None included
Wheels
Rims
Alexrims FR30 | STCHD Hubs
Tires
MAXXIS DTH 2.3"
Brakes
Brakes
SRAM Level T
Disk Rotors
Avid G2, Disc Mount: 6-Hole
Cockpit
Stem
Race Face Chester
Handlebar
Race Face Chester Riserbar, Material: Aluminium, Rise: 35 mm
Seat
Saddle
Canyon STCHD
Seatpost
Canyon STCHD
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 656 mm | 673 mm |
| Rake | 42 mm | 42 mm |
| Trail | 90 mm | 90 mm |
| Stack | 550 mm | 550 mm |
| Reach | 395 mm | 412 mm |
| Top Tube Length | 578 mm | 595 mm |
| Seat Tube Angle | 71.7 ° | 71.7 ° |
| Seat Tube Length | 310 mm | 310 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 378 mm | 378 mm |
| Wheelbase | 1033 mm | 1050 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 140 cm | 160 cm |
| Rider Max Height | 170 cm | 200 cm |
About this model
STCHD 360 belongs to the Canyon Stitched model. 26 bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Canyon Stitched 360 2021 is the most economical model, with a starting price of 1061$. Canyon Stitched 720 2021 on the other hand costs 1910$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Dirt Jump bikes average price
If you want to purchase a solid Dirt Jump bike, it is important to know that the average cost is 863$. However, this doesn’t mean that if you spend less money on a Dirt Jump bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 1299$. Doing a quick comparison, we notice that STCHD 360 price is 50.52% more expensive than the average cost of a Dirt Jump bike.
Average weight for Dirt Jump bikes
The average weight for Dirt Jump bikes is 12.37 kg (27.27 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, STCHD 360 has a weight of 12.2 kg (26.9 lbs). In short, the average Dirt Jump bike weight is 1.39% higher than this one.
STCHD 360 components
Fork
The STCHD 360 comes factory-installed with the Manitou Circus Comp fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The STCHD 360 2021 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The STCHD 360 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 2 sizes. They vary from 140 cm – 200 cm (4.59 ft – 6.56 ft). In short, you can easily find one that suits you.
