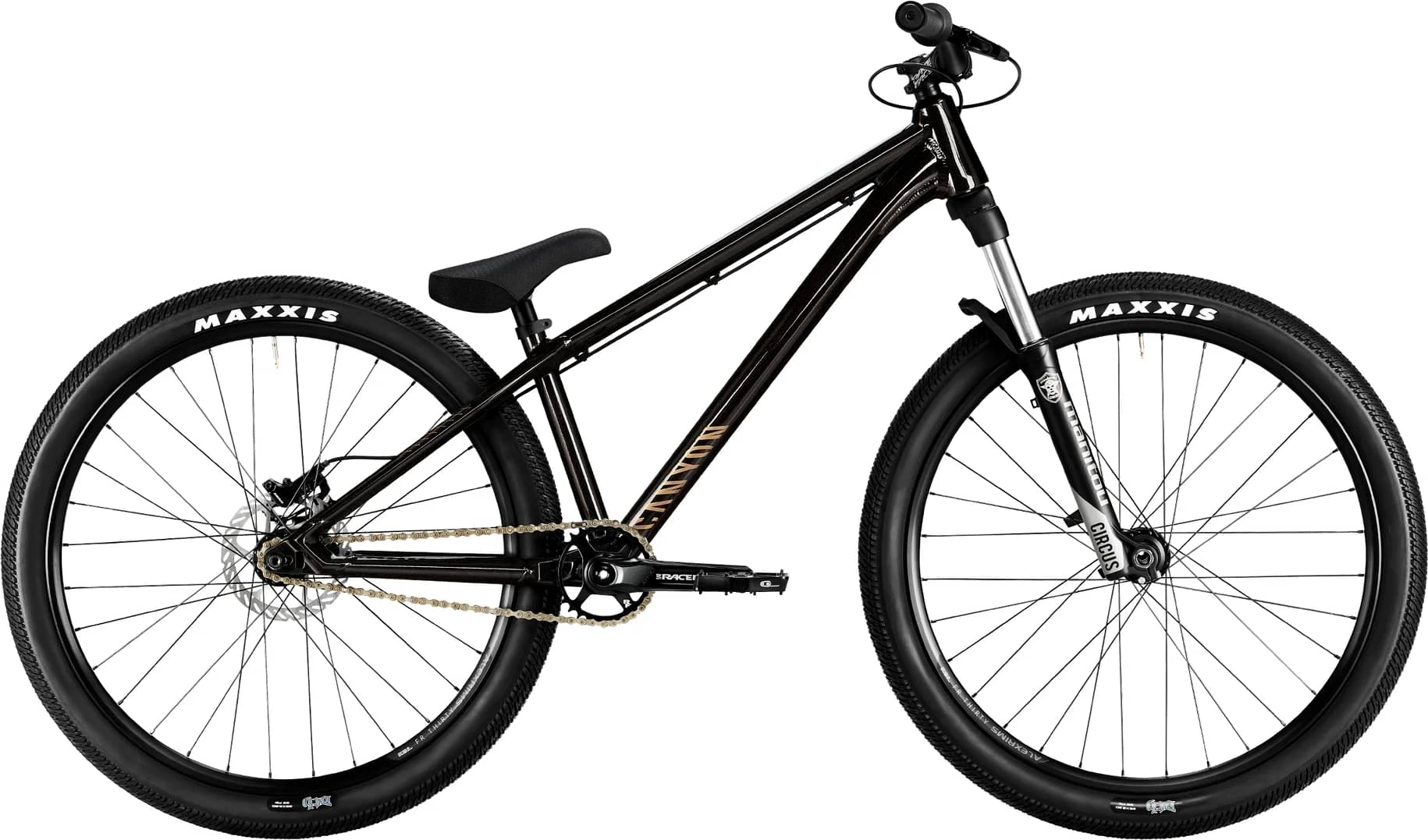

Canyon Stitched 360 2023
2023 Mountain
Estimate price |
1,162$
Weight | 12.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou Circus Sport
-
Groupset Race Face -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
140cm - 170cm
LG
160cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

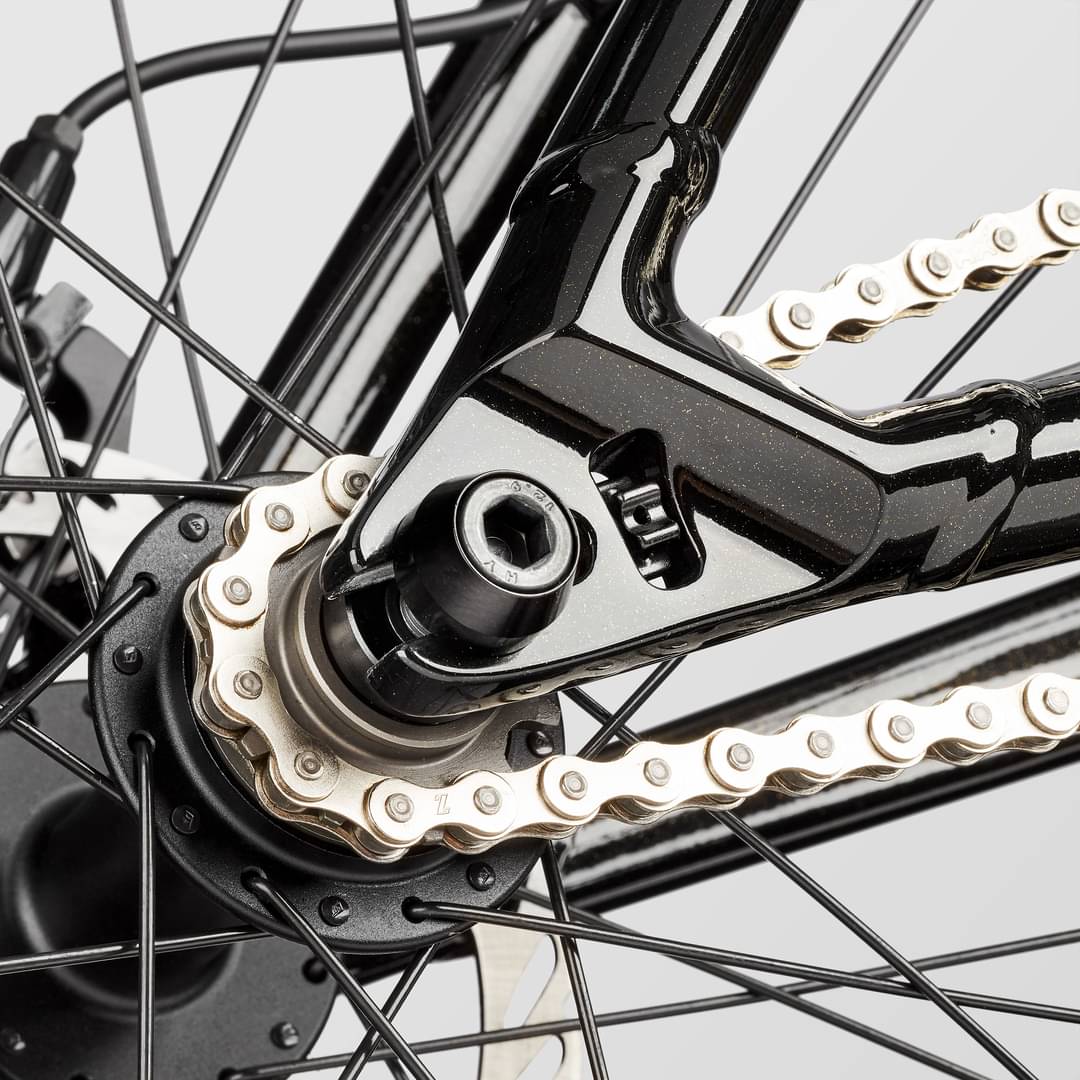

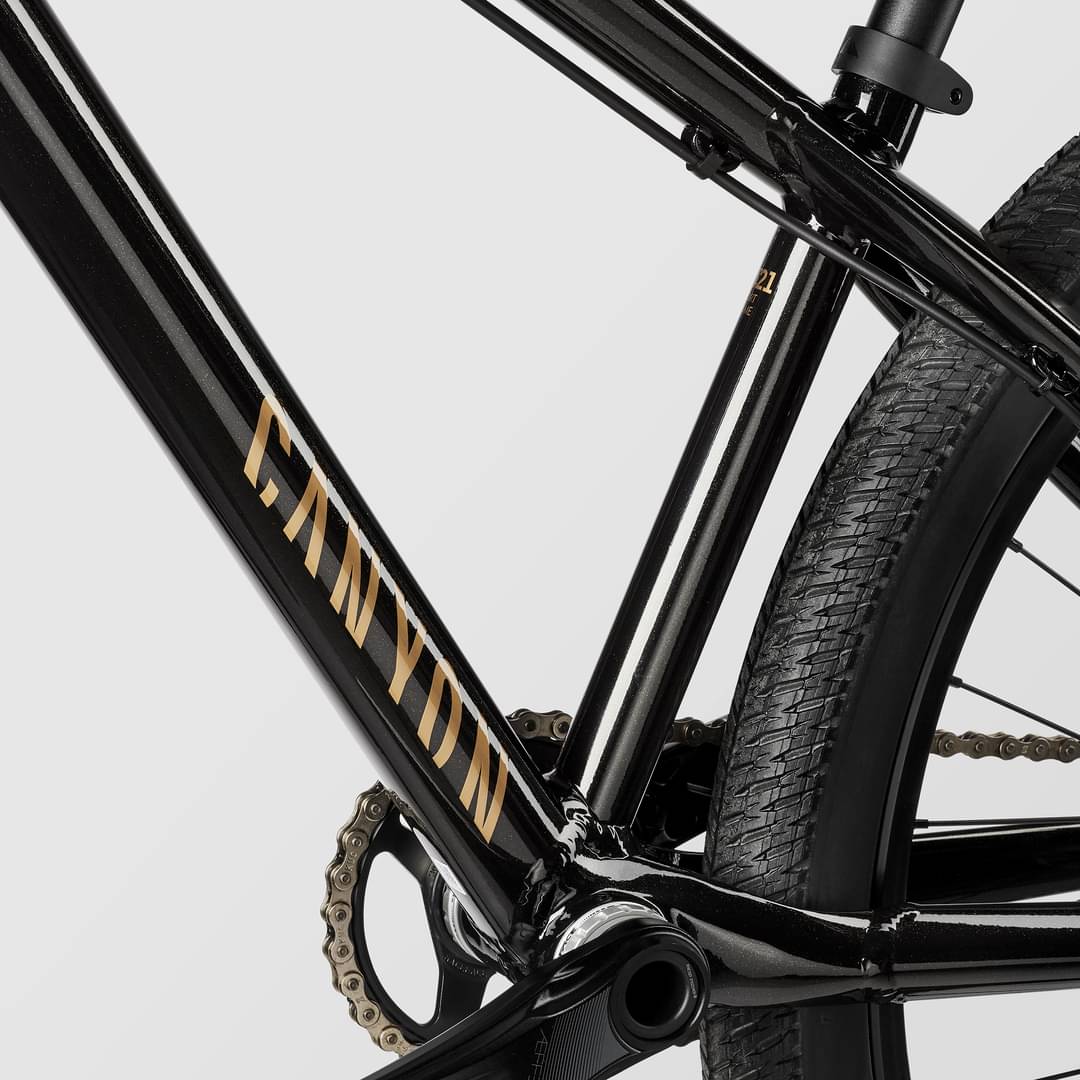

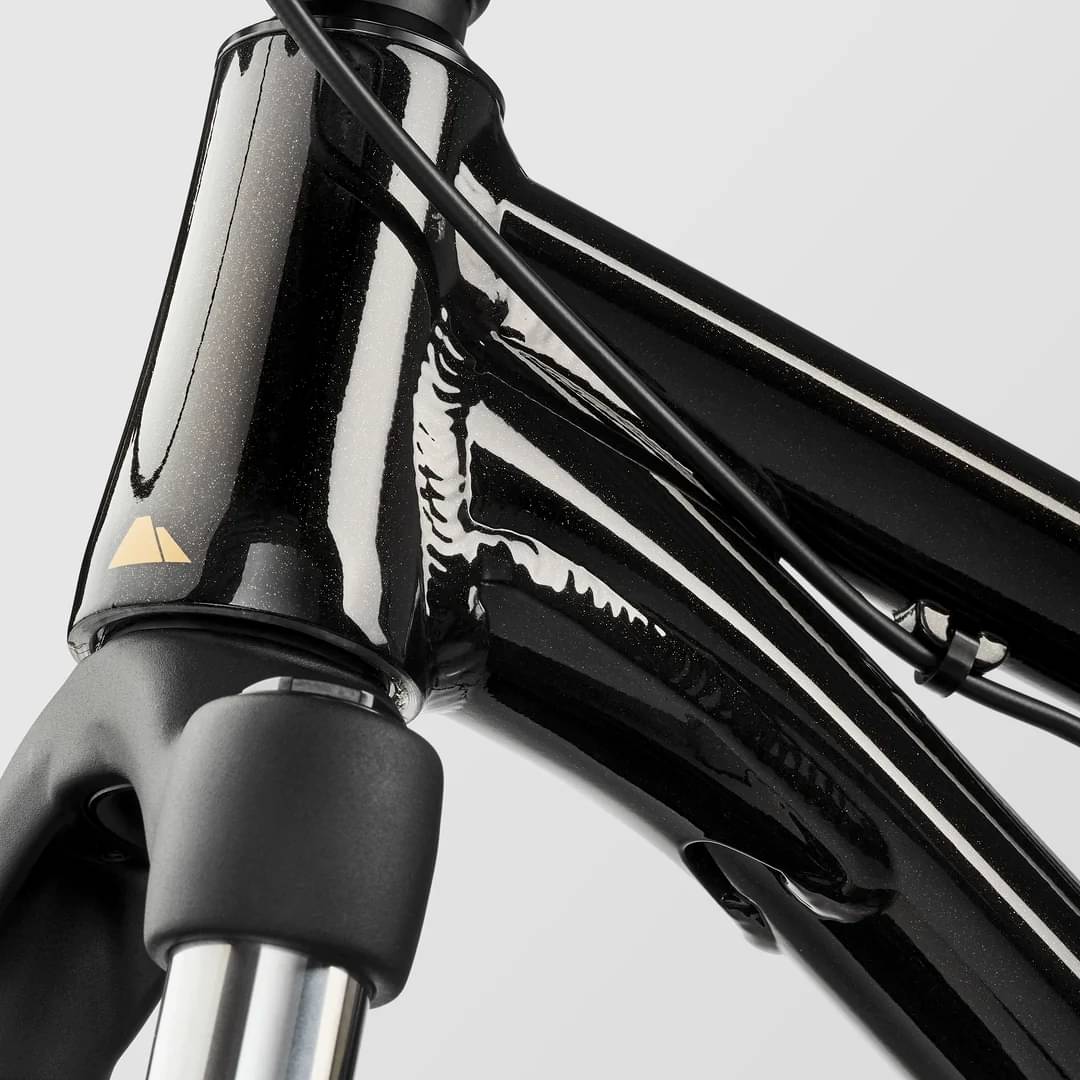

Stitched 360, Lightweight but highly robust frame. Category: 5. With BB box design for maximum bottom bracket stiffness and dropout-integrated chain tensioner., Material: Aluminium (AL)
Suspension Fork
Manitou Circus Sport, Travel: 100 mm, Fork steer tube diameter: 1 1/8", Weight: 3.38 kg
Drivetrain
Crank
Race Face Aeffect 30T, Number of chainrings: 1
Bottom Bracket
Race Face BSA Cinch, Bottom bracket standard: BSA 68/73
Chain
KMC Z510HX 1s | KMC Connection Link 1s
Pedals
None included
Wheels
Rims
Alexrims FR30 | Stitched Hub, Rotor mount: IS 6-bolt | Alexrims FR30 | Stitched Hub, Rotor mount: IS 6-bolt, Weight: 850 g
Tires
MAXXIS DTH 2.3", Width: 2.3", Weight: 650 g
Brakes
Brakes
SRAM Level T
Cockpit
Stem
Race Face Chester, Fork steer tube diameter: 1 1/8"
Handlebar
Race Face Chester Riserbar, Width: 780 mm
Grips
Canyon Stitched
Seat
Saddle
Canyon Stitched
Seatpost
Canyon Stitched, Canyon aluminium seatpost. Dimensions: 27.2 x 260 mm., Clamp diameter: 27,2 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 657 mm | 674 mm |
| Rake | 43 mm | 43 mm |
| Trail | 89 mm | 89 mm |
| Stack | 550 mm | 550 mm |
| Reach | 395 mm | 412 mm |
| Top Tube Length | 578 mm | 595 mm |
| Seat Tube Angle | 71.7 ° | 71.7 ° |
| Seat Tube Length | 310 mm | 310 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 377 mm | 377 mm |
| Wheelbase | 1033 mm | 1050 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 140 cm | 160 cm |
| Rider Max Height | 170 cm | 200 cm |
Model Overview
Stitched 360 is a Canyon Stitched model. Canyon launched 26 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon STCHD 360 2023 is the most affordable bike of this model and has a price of 999$. On the other hand, Canyon Stitched CFR Trial 2023, is the most expensive and costs 3184$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Dirt Jump bikes average price
Our math shows that the average cost of a dependable Dirt Jump bike is 863$. However, this doesn’t mean that if you spend less money on a Dirt Jump bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 1061$. Doing a quick comparison, we notice that Stitched 360 price is 22.94% more expensive than the average cost of a Dirt Jump bike.
Dirt Jump bikes average weight
Dirt Jump bikes weigh an average of 12.37 kg (27.27 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Stitched 360 weighs 12.2 kg (26.9 lbs) and is slightly lighter than the average. In other words, this model is 1.39% lighter than the average Dirt Jump bike.
Stitched 360 components
Fork

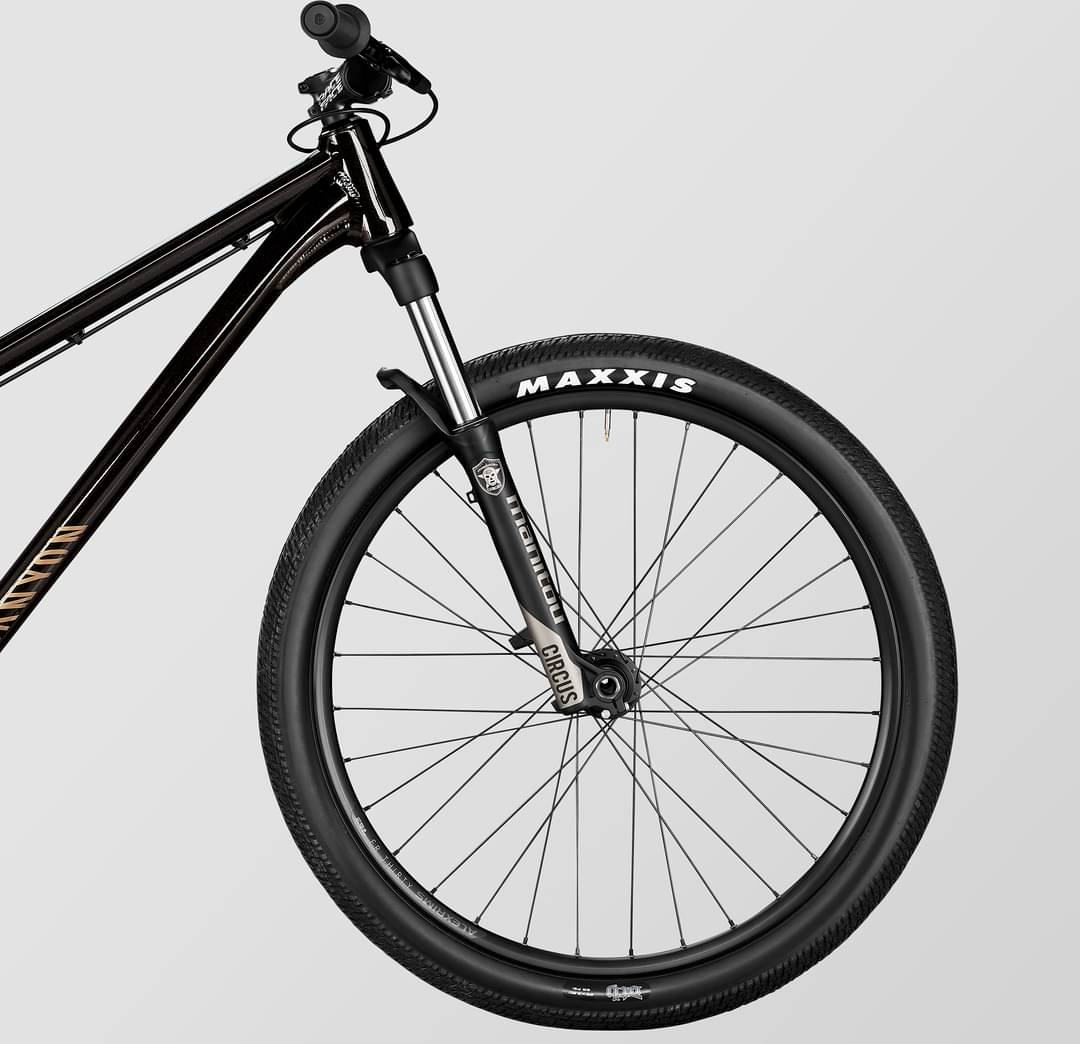

The fork installed on this bike is the Manitou Circus Sport model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Stitched 360 bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Canyon Stitched 360 bike has 2 sizes, in the range of 140 cm – 200 cm (4.59 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
