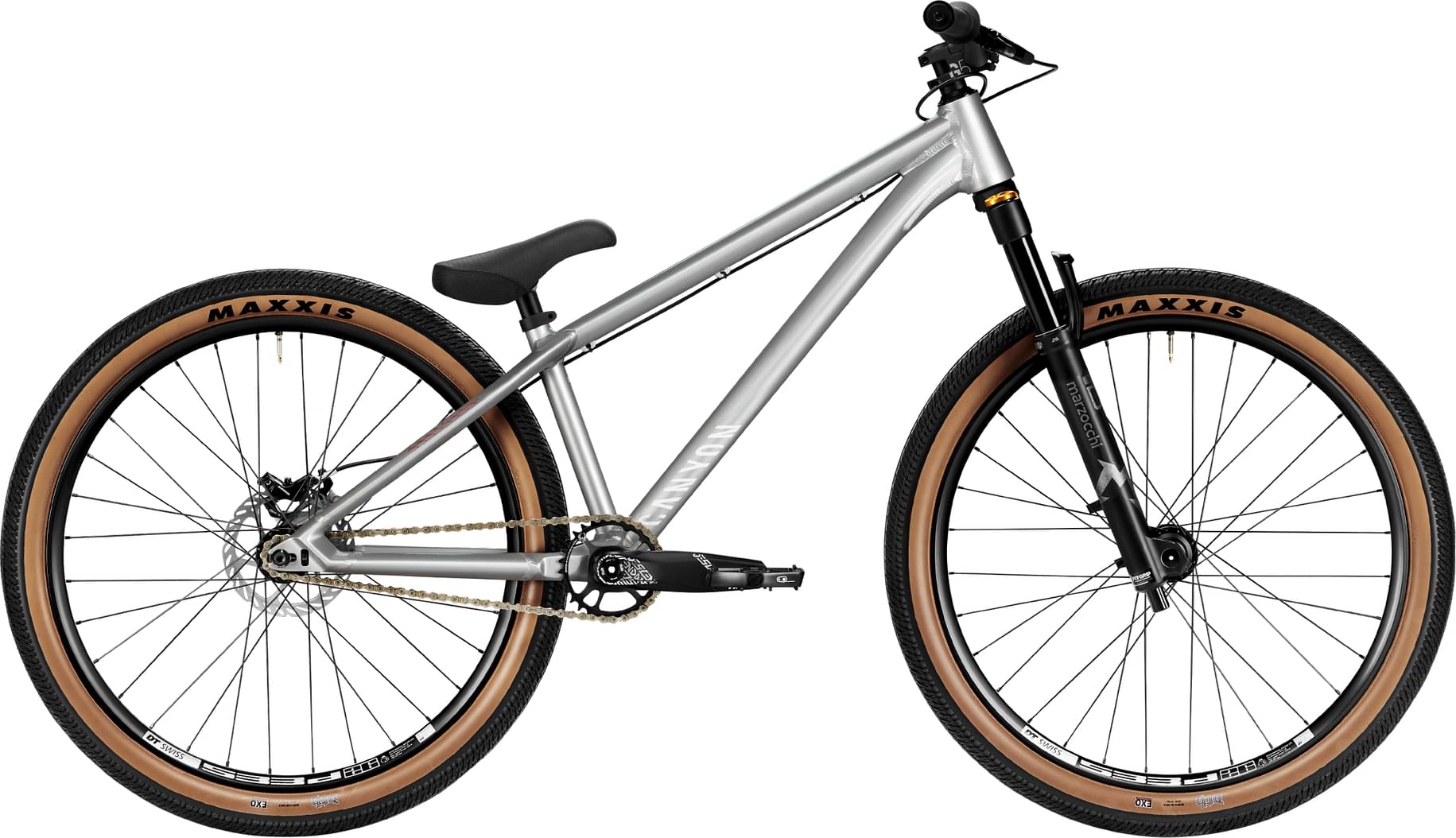

Canyon Stitched 360 Pro 2023
2023 Mountain
Estimate price |
1,605$
Weight | 11.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Marzocchi Bomber DJ
-
Groupset Truvativ Descendant -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
140cm - 170cm
LG
160cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

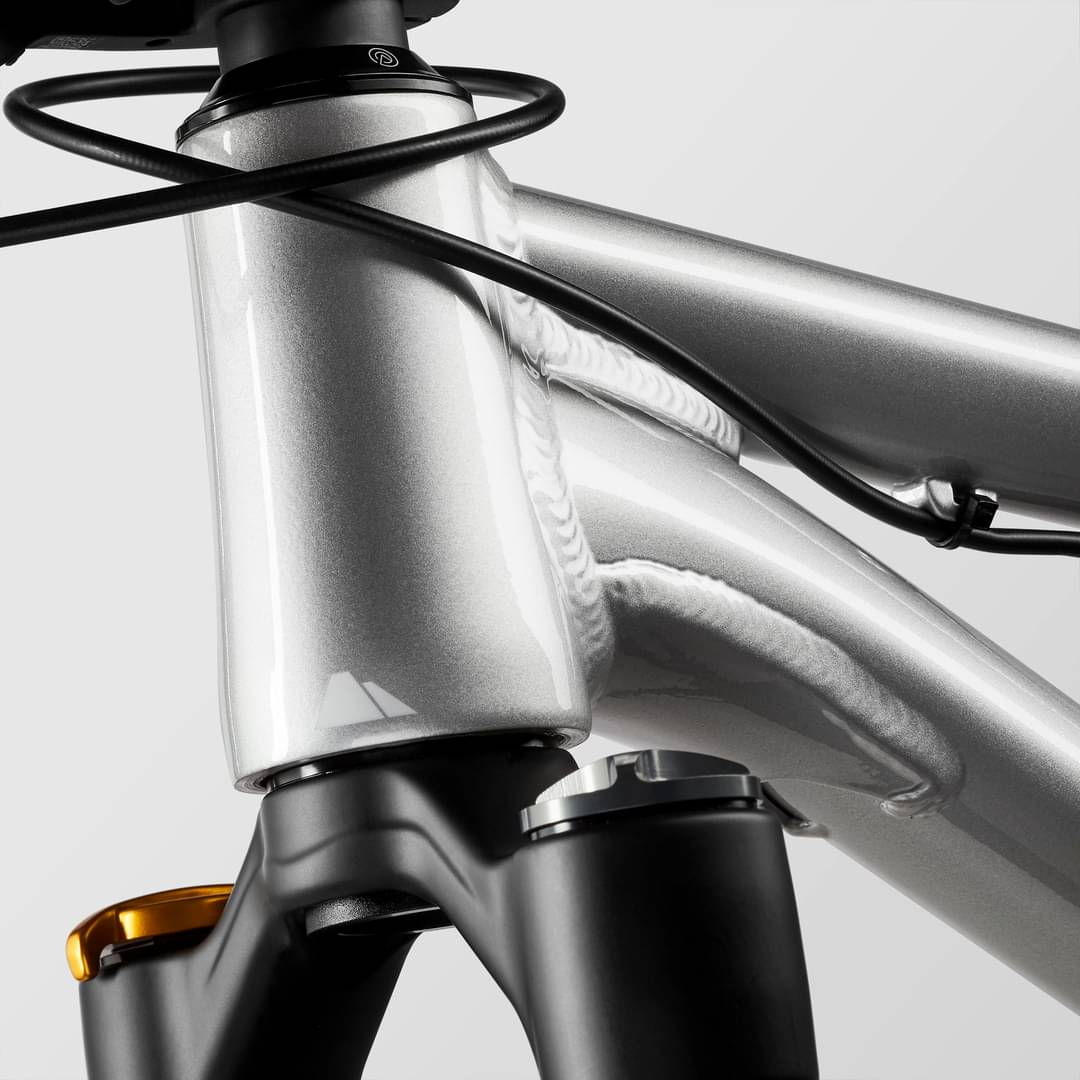

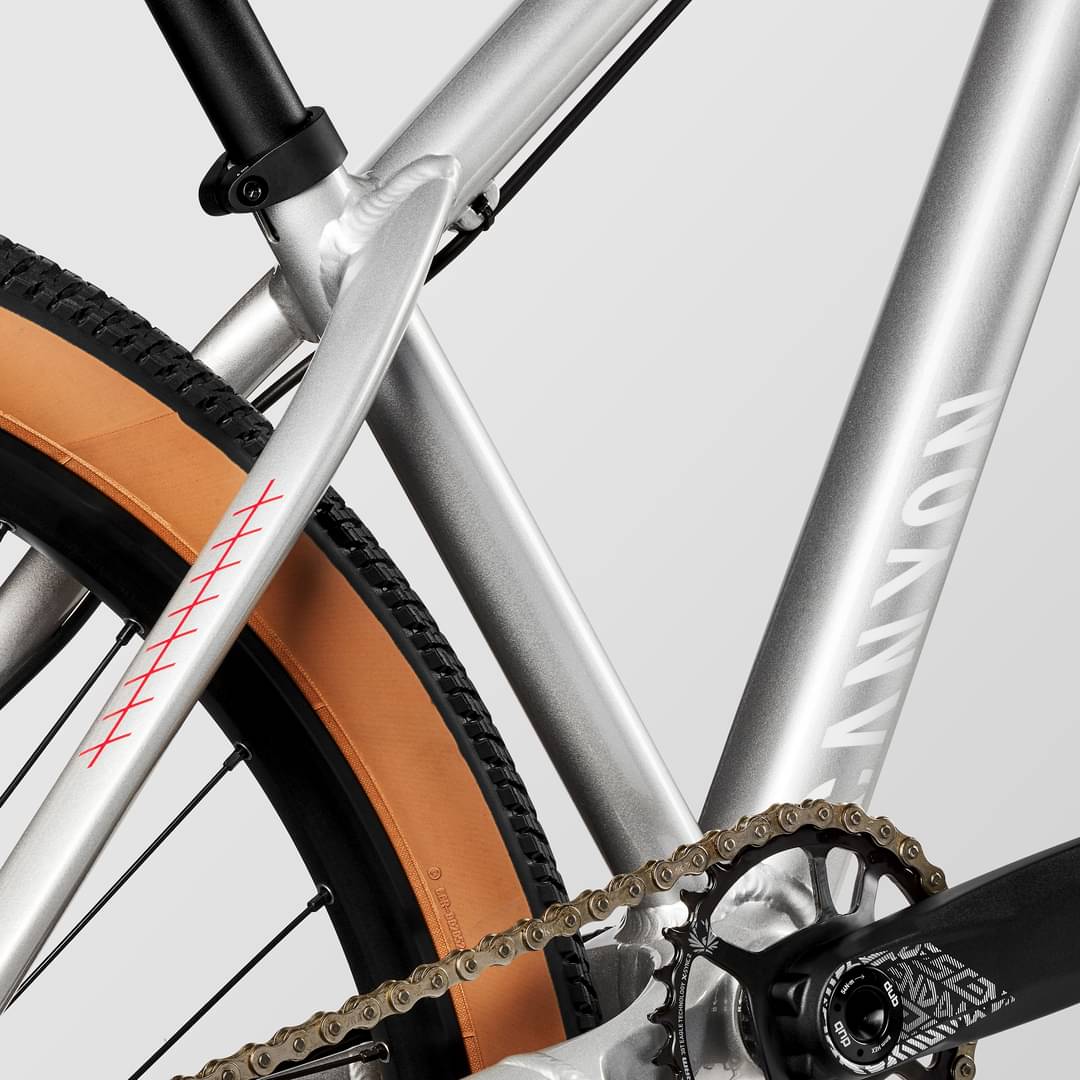

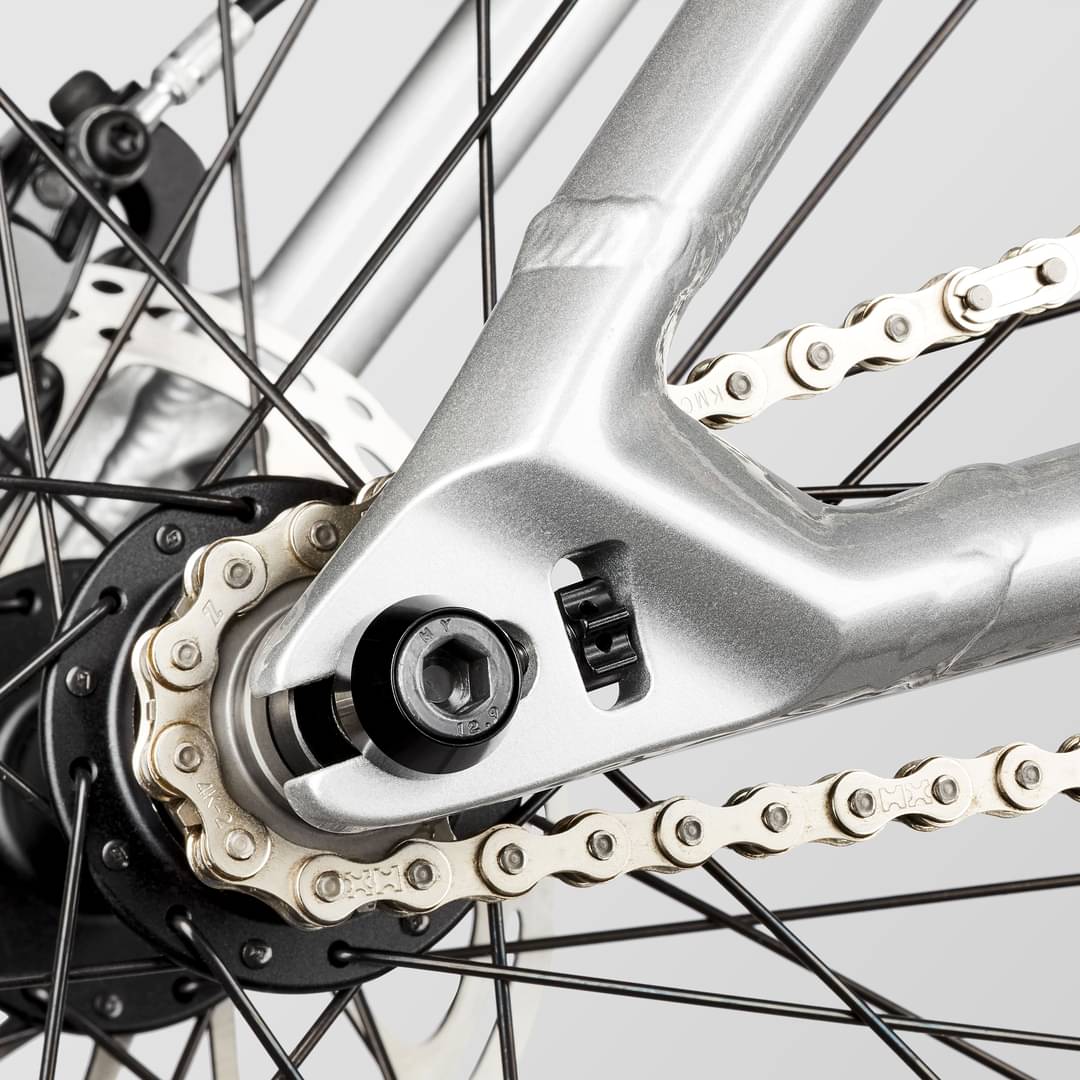

Stitched 360 PRO, Lightweight but highly robust frame. Category: 5. With BB box design for maximum bottom bracket stiffness and dropout-integrated chain tensioner., Material: Aluminium (AL)
Suspension Fork
Marzocchi Bomber DJ, Axle dimension: 20x110 mm, Stanchion Diameter: 36 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 37 mm
Drivetrain
Crank
Truvativ Descendant 6K DUB 30T, Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, Bottom bracket standard: BSA 73, Weight: 86 g
Chain
KMC Z510HX 1s | KMC Connection Link 1s
Pedals
None included
Wheels
Rims
DT Swiss 533D | Stitched Hub, Rotor mount: IS 6-bolt
Tires
MAXXIS DTH, Width: 2,3"
Brakes
Brakes
SRAM Level T
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon Stitched
Seat
Saddle
Canyon Stitched
Seatpost
Canyon Stitched, Canyon aluminium seatpost. Dimensions: 27.2 x 260 mm., Clamp diameter: 27,2 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 657 mm | 674 mm |
| Rake | 43 mm | 43 mm |
| Trail | 89 mm | 89 mm |
| Stack | 550 mm | 550 mm |
| Reach | 395 mm | 412 mm |
| Top Tube Length | 578 mm | 595 mm |
| Seat Tube Angle | 71.7 ° | 71.7 ° |
| Seat Tube Length | 310 mm | 310 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 377 mm | 377 mm |
| Wheelbase | 1033 mm | 1050 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 140 cm | 160 cm |
| Rider Max Height | 170 cm | 200 cm |
Model Overview
Stitched 360 Pro is part of the Canyon Stitched model. 26 bikes variations carry this model name so far. Take a sneak peek at all Canyon Stitched bikes models from 2023, by clicking here.
Model range prices
Canyon STCHD 360 2023 is the most economical model, with a starting price of 999$. Canyon Stitched CFR Trial 2023 on the other hand costs 3184$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Dirt Jump bikes
According to our math, the average price for a trustworthy Dirt Jump bike is 863$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Dirt Jump bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 1485$. Comparing this to the average Dirt Jump bike price, we see that the price is 72.07% higher.
Average weight for Dirt Jump bikes
The average weight for Dirt Jump bikes is 12.37 kg (27.27 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit lighter than average, Stitched 360 Pro has a weight of 11.55 kg (25.46 lbs). In conclusion, the average Dirt Jump bike weighs 7.1% more than Stitched 360 Pro.
Overview of components
Fork

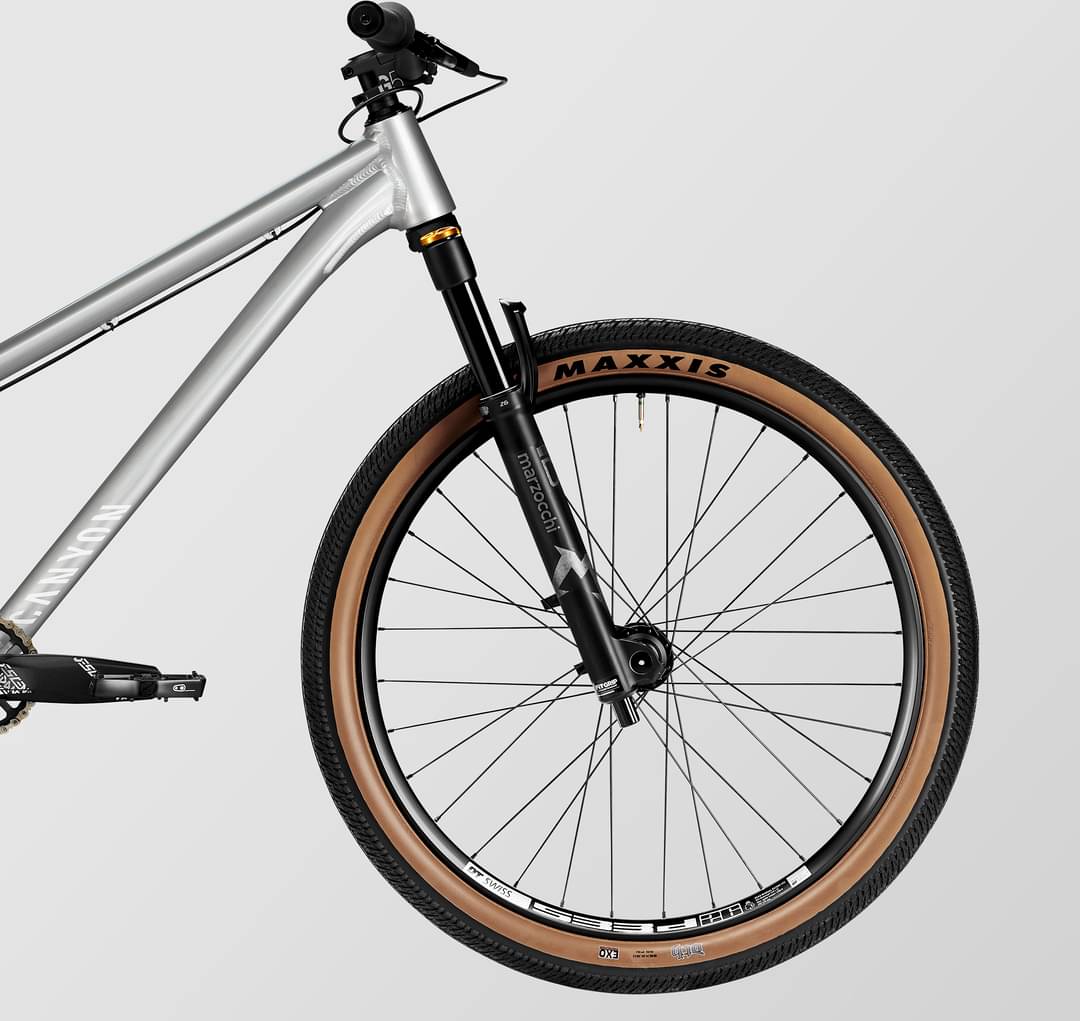

This bike has the Marzocchi Bomber DJ fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Canyon Stitched 360 Pro 2023, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Stitched 360 Pro has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 2 sizes. They vary from 140 cm – 200 cm (4.59 ft – 6.56 ft). In short, you can easily find one that suits you.
