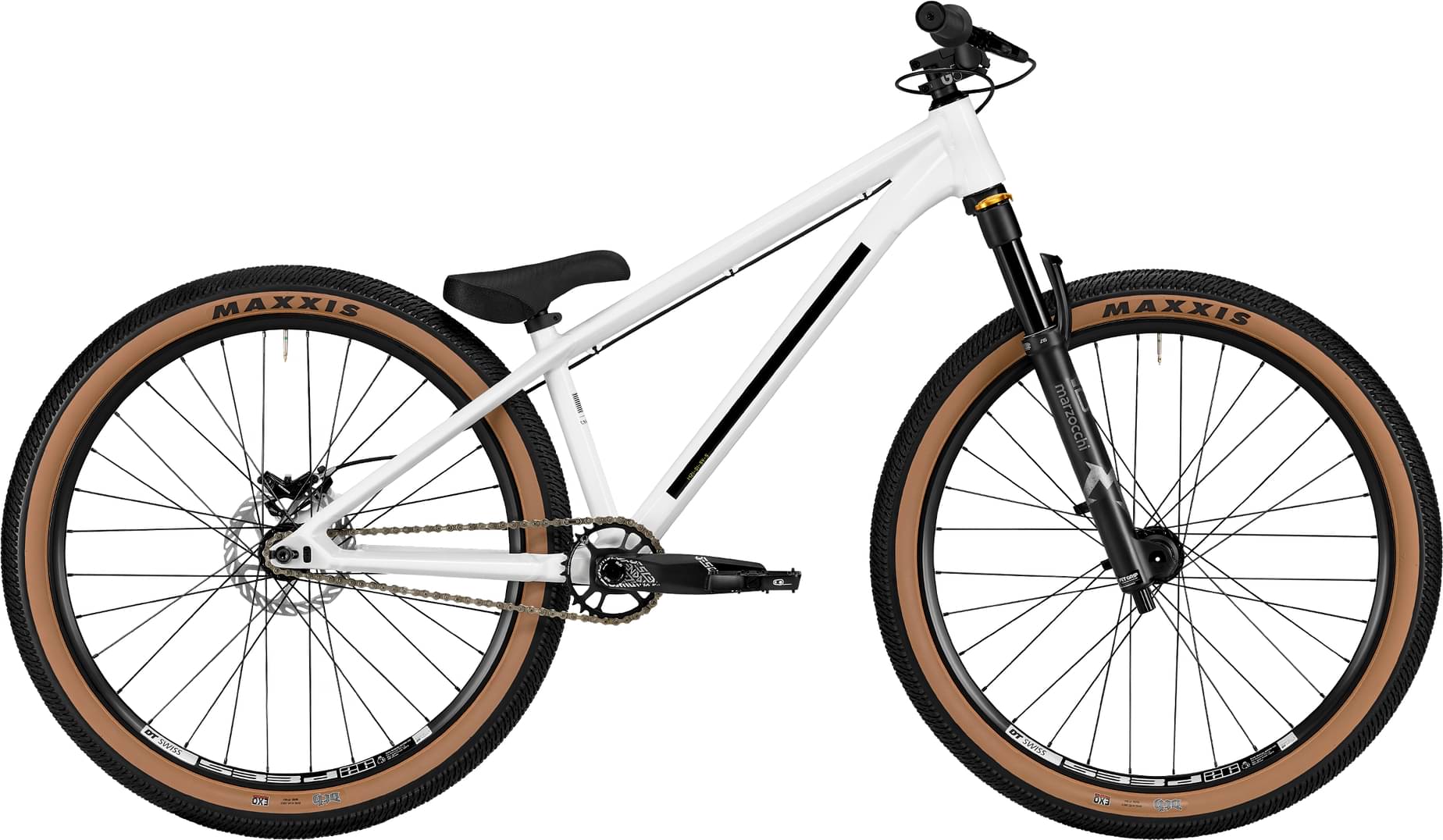

Canyon Stitched 360 Pro Nineyard 2023
2023 Mountain
Estimate price |
1,719$
Weight | 11.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Marzocchi Bomber DJ
-
Groupset Truvativ Descendant -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

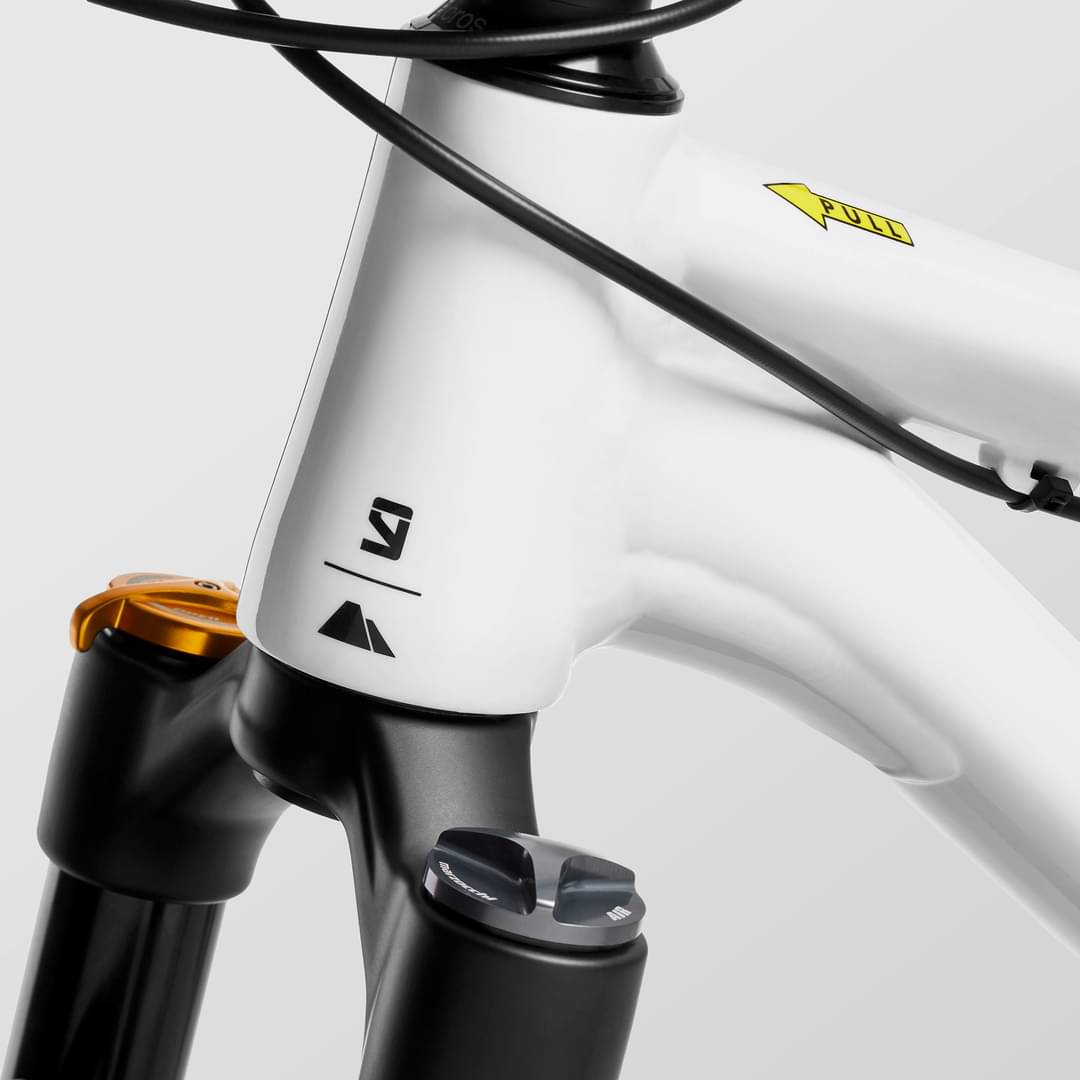

Frame
Frame
Stitched 360 Pro Nineyard, Material: Aluminium (AL)
Suspension Fork
Marzocchi Bomber DJ, Axle dimension: 20x110 mm, Stanchion Diameter: 36 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 37 mm
Drivetrain
Crank
Truvativ Descendant 6K DUB 30T, Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, Bottom bracket standard: BSA 73, Weight: 86 g

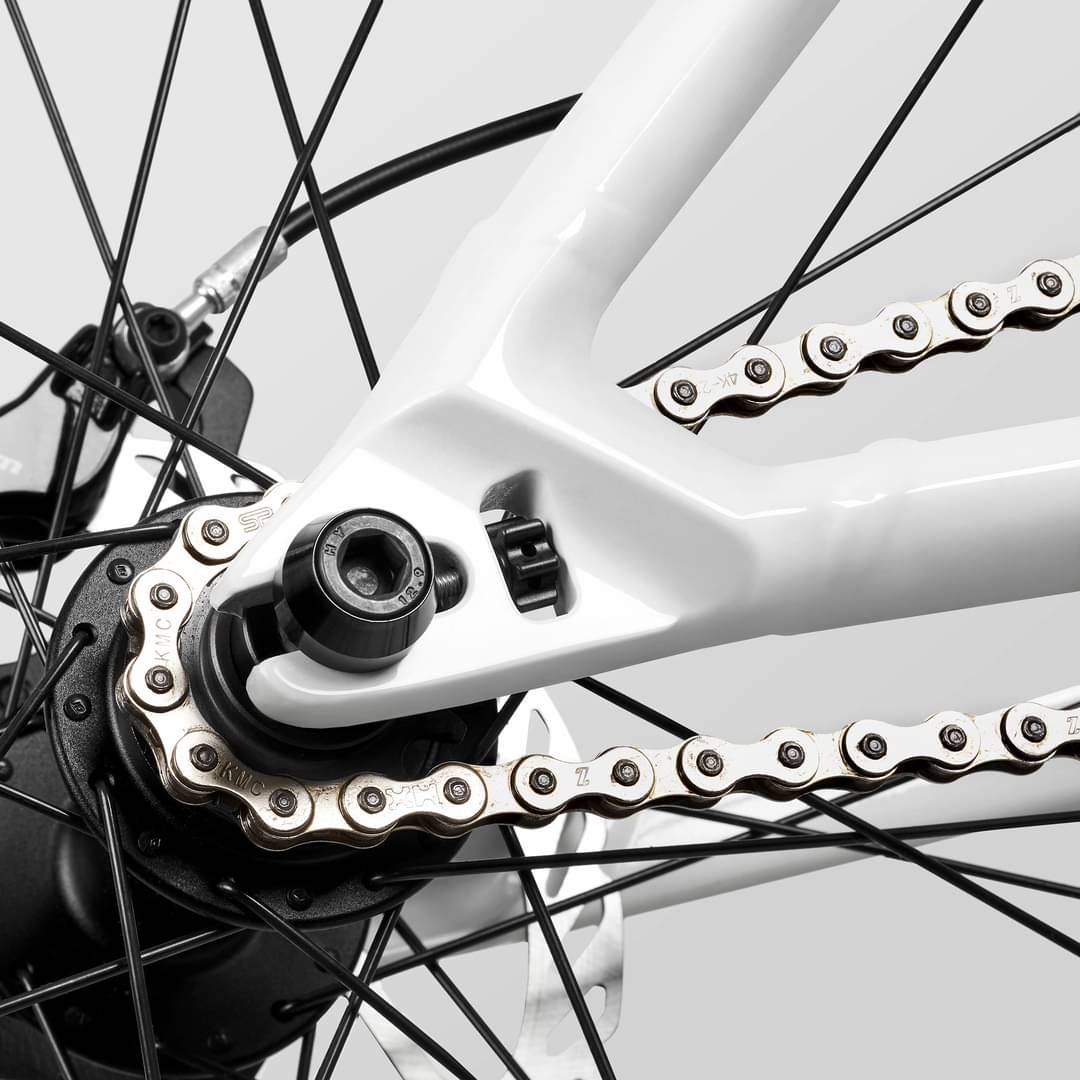

Chain
KMC Z510HX 1s | KMC Connection Link 1s
Pedals
None included
Wheels
Rims
DT Swiss 533D | Stitched Hub, Rotor mount: IS 6-bolt
Tires
MAXXIS DTH, Width: 2,3"
Brakes
Brakes
SRAM Level T
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon Stitched

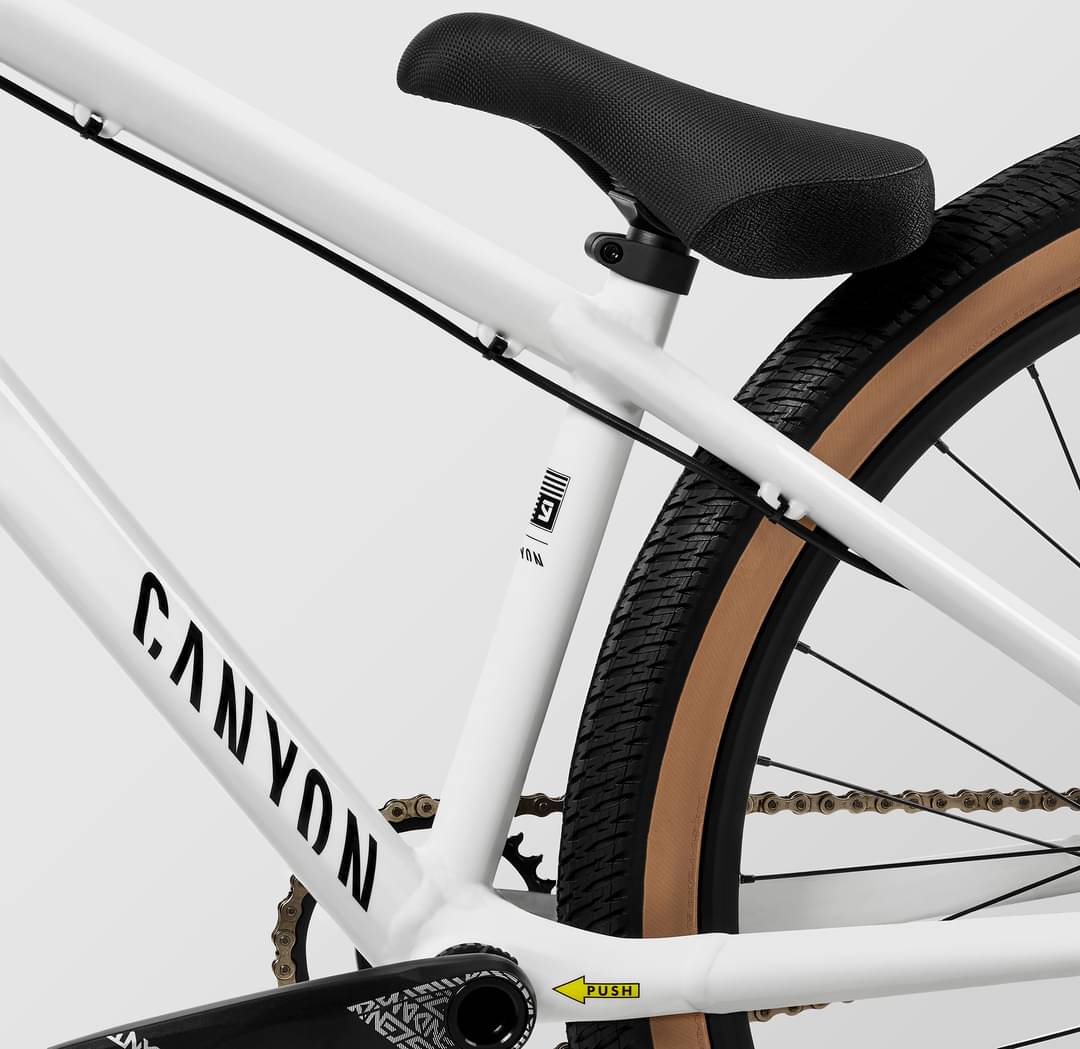

Seat
Saddle
Canyon Stitched
Seatpost
Canyon Stitched, Canyon aluminium seatpost. Dimensions: 27.2 x 260 mm., Clamp diameter: 27,2 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 657 mm | 674 mm |
| Rake | 43 mm | 43 mm |
| Trail | 89 mm | 89 mm |
| Stack | 550 mm | 550 mm |
| Reach | 395 mm | 412 mm |
| Top Tube Length | 578 mm | 595 mm |
| Seat Tube Angle | 71.7 ° | 71.7 ° |
| Seat Tube Length | 310 mm | 310 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 377 mm | 377 mm |
| Wheelbase | 1033 mm | 1050 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
| Rider Max Height | 170 cm | cm |
Model Overview
Stitched 360 Pro Nineyard belongs to the Canyon Stitched model. There are 26 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon STCHD 360 2023 is the cheapest bike model and costs 999$. Canyon Stitched CFR Trial 2023 is the most expensive one and costs 3184$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Dirt Jump bikes average price
Our math shows that the average cost of a dependable Dirt Jump bike is 863$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Dirt Jump bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Canyon Stitched 360 Pro Nineyard price was 1592$. Doing a quick comparison, we notice that Stitched 360 Pro Nineyard price is 84.47% higher than the average cost of a Dirt Jump bike.
Dirt Jump bikes average weight
The average weight for Dirt Jump bikes is 12.37 kg (27.27 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 11.55 kg (25.46 lbs), the Stitched 360 Pro Nineyard model is a bit lighter than average. In conclusion, the average Dirt Jump bike weighs 7.1% more than Stitched 360 Pro Nineyard.
Overview of components

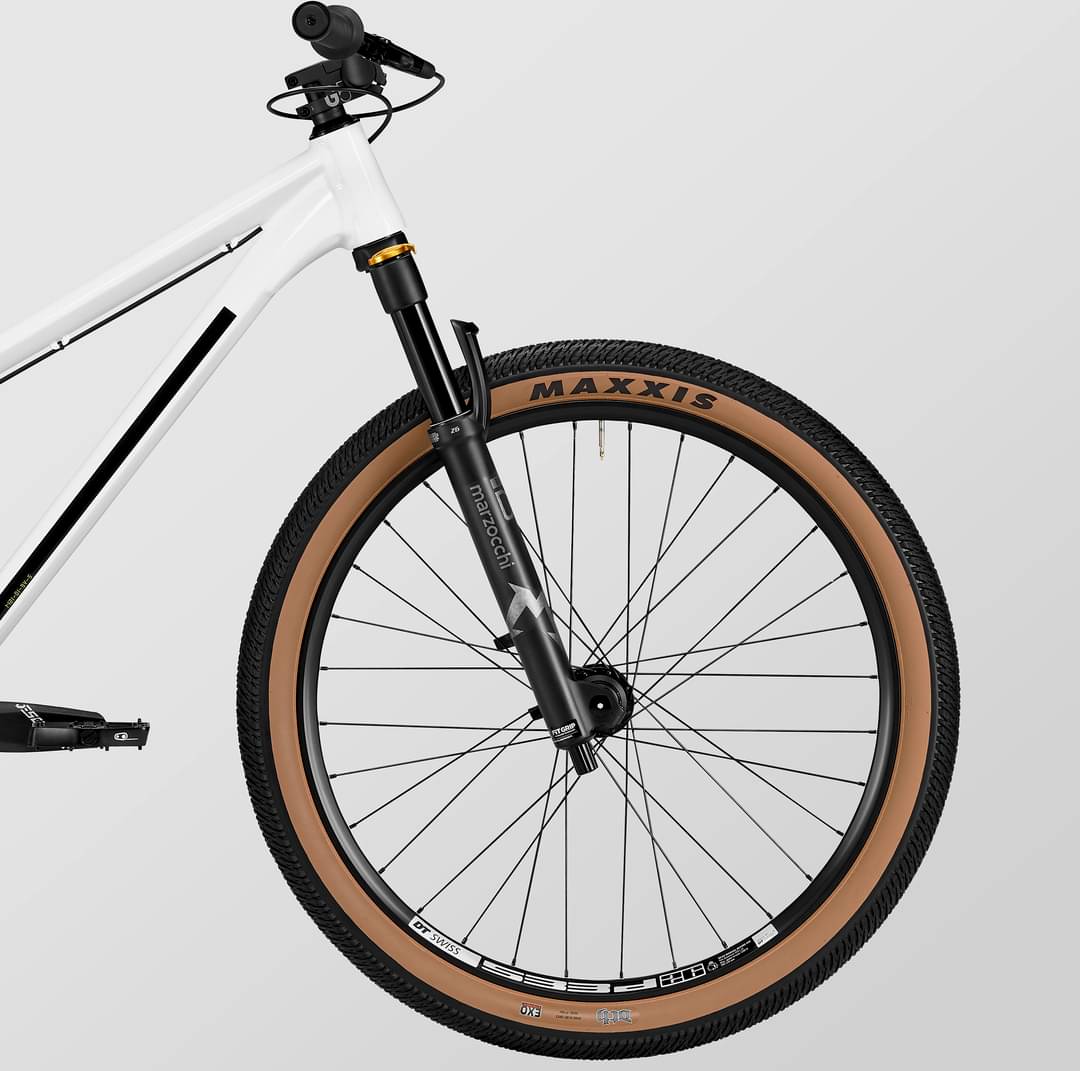

Fork
The Stitched 360 Pro Nineyard comes factory-installed with the Marzocchi Bomber DJ fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Stitched 360 Pro Nineyard bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Stitched 360 Pro Nineyard has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
