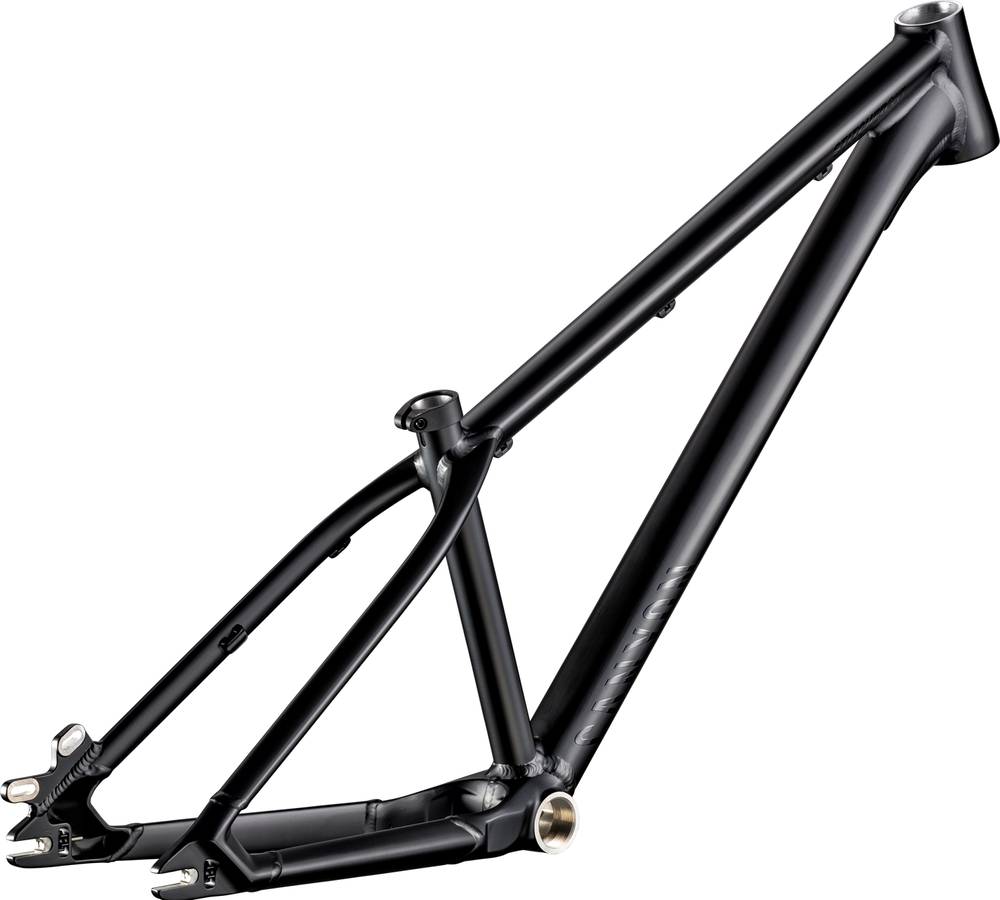

Canyon Stitched 360° Frameset 2019
2019 Mountain
Estimate price |
458$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Stitched, Material: Aluminium 6061, Axle Dimension: 9 x 135 mm, Brake Mount: IS-Mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 657 mm | 674 mm |
| Rake | 43 mm | 43 mm |
| Trail | 89 mm | 89 mm |
| Stack | 550 mm | 550 mm |
| Reach | 395 mm | 412 mm |
| Top Tube Length | 578 mm | 595 mm |
| Seat Tube Angle | 71.7 ° | 71.7 ° |
| Seat Tube Length | 310 mm | 310 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 377 mm | 377 mm |
| Wheelbase | 1033 mm | 1050 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Wheels | 26" | 26" |
Model Overview
Stitched 360° Frameset is a Canyon Stitched model. There are 26 frames that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Canyon Stitched 360° Frameset 2019 is the cheapest frame model and costs 424$. Canyon Stitched 720° Frameset 2019 is the most expensive one and costs 1379$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Dirt Jump frames average price
If you want an acceptable Dirt Jump frame you should know that the average price is 491$. However, you could also get a good Dirt Jump frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
This frame was released in 2019 and its price was 424$. In conclusion, this frame price is 15.8% lower than the price of the average Dirt Jump frame.
