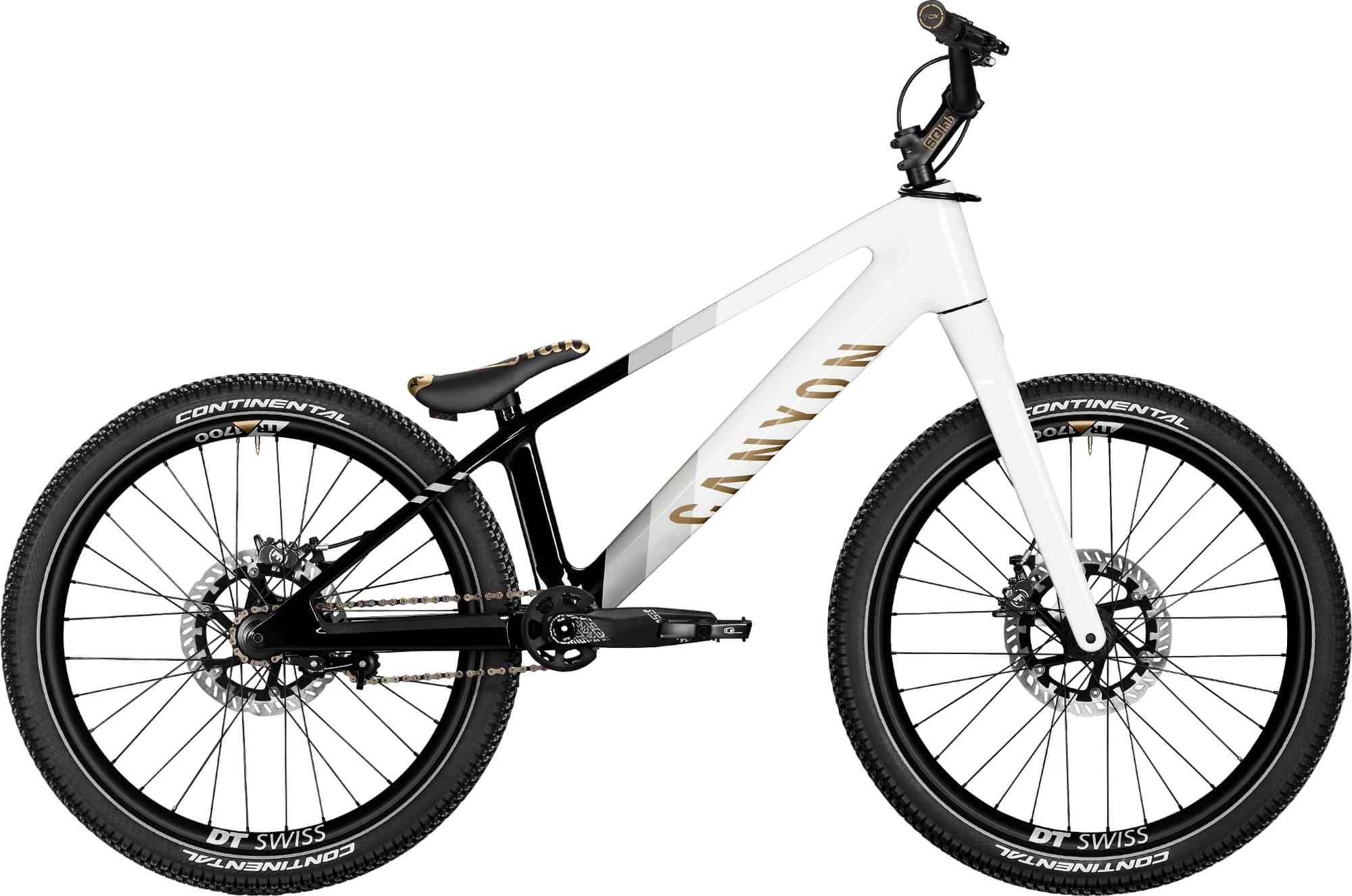

Canyon Stitched CFR Trial 2022
2022 Mountain
Estimate price |
3,440$
Weight | 9.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 24" -
Groupset Truvativ Descendant -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
140cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Stitched Trial, High-end carbon frame with integrated impact protection for maximum durability at a low weight of only 1,700 g., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0097-01, The Stitched CFR Trial carbon fork: the new benchmark in incredible durability and low weight.
Drivetrain
Cassette
Canyon EP1549-01
Crank
SRAM Descendant 6K, Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket., Bottom bracket standard: BSA 73
Chain
KMC X11-93, Durable 11-speed chain with nickel-plated outer links. The precision-manufactured KMC Double X Bridge, combined with specially chamfered inner and outer plates, keep the chain running super-smooth and guarantee fast, clean gear changes.
Chain Guide
Canyon GP0361-01, This chainguard keeps the chain securely on the chainring. | Canyon Stitched Trial, Integrated chain tensioner for incredible control, pedal feedback, and chain smoothness.
Pedals
None included
Wheels
Rims
DT Swiss TR1700, Rotor mount: IS 6-bolt | DT Swiss TR1700, Durable, stiff 24-inch aluminium wheels for agile handling., Rotor mount: IS 6-bolt
Tires
Continental Air King, Width: 2.35"
Brakes
Brakes
Magura MT7, Get legendary stopping power with a 4-piston design. Thanks to precise modulation and plenty power, the perfect brakes for demanding trails courses. | MAGURA MT7, Number of pistons: 4
Cockpit
Stem
SQlab 80X Trial Fabio Wibmer, Clamping Diameter: 31,8 mm
Handlebar
SQlab 30X Trial Fabio Wibmer, Robust Fabio Wibmer signature aluminium bar., Backsweep: 9°., Weight: 330 g., Clamping Diameter: 31,8 mm, Width: 730 mm, Rise: 84 mm
Grips
SQlab 70X Fabio Wibmer, Fabio's signature grips give maximum control and grip on rough terrain. The clamping mechanism on the inside edge increases absorption for more hand comfort.
Seat
Saddle
SQlab 60X Trial Fabio Wibmer, Fabio Wibmer Signature edition. Short, round trials saddle with rounded nose. Extended edges for more contact surface for tricks., Length: 225 mm., Weight: 195 g.
Seatpost
Canyon Stitched, Clamp diameter: 25,4 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Stack Reach Ratio | 1.2 mm |
| Front Center | 626 mm |
| Rake | 25 mm |
| Stack | 527 mm |
| Reach | 440 mm |
| Top Tube Length | 576 mm |
| Seat Tube Angle | 75 ° |
| Seat Tube Length | 284 mm |
| Head Tube Angle | 73 ° |
| Head Tube Length | 145 mm |
| Chainstay Length | 366 mm |
| Wheelbase | 992 mm |
| Bottom Bracket Drop | -10 mm |
| Standover Height | 705 mm |
| Wheels | 24" |
| Rider Min Height | 140 cm |
| Rider Max Height | 200 cm |
Model Overview
Stitched CFR Trial belongs to the Canyon Stitched model. 26 bikes variations carry this model name so far. Take a sneak peek at all Canyon Stitched bikes models from 2022, by clicking here.
Model range prices
Canyon Stitched 360 2022 is the cheapest bike model and costs 1167$. Canyon Stitched CFR Trial 2022 is the most expensive one and costs 3184$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Dirt Jump bikes
If you want an acceptable Dirt Jump bike you should know that the average price is 863$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Dirt Jump bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 3184$. Comparing the average cost of a Dirt Jump bike to this one, you will see that Stitched CFR Trial price is 268.95% more expensive.
Dirt Jump bikes average weight
Dirt Jump bikes weigh an average of 12.37 kg (27.27 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 9.95 kg (21.94 lbs), the Stitched CFR Trial model is much lighter than average. In short, the average Dirt Jump bike weight is 24.32% higher than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Stitched CFR Trial model has 24″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike has one size only, so it might not fit you. In conclusion, double-check its size to make sure it’s a good fit for you.
