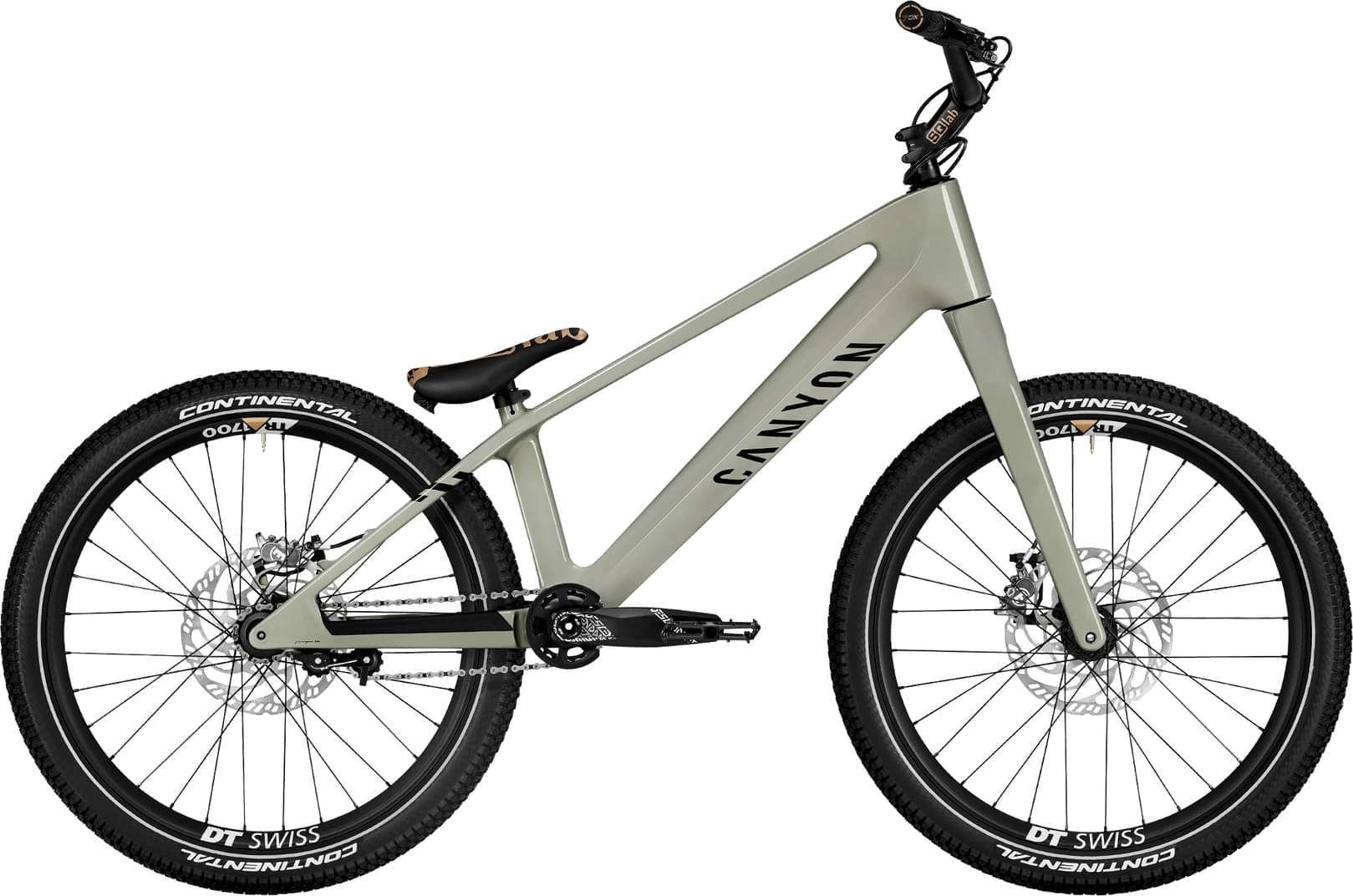

Canyon Stitched CFR Trial 2024
2024 Mountain
Estimate price |
2,907$
Weight | 9.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 24" -
Groupset Truvativ Descendant -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
140cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components

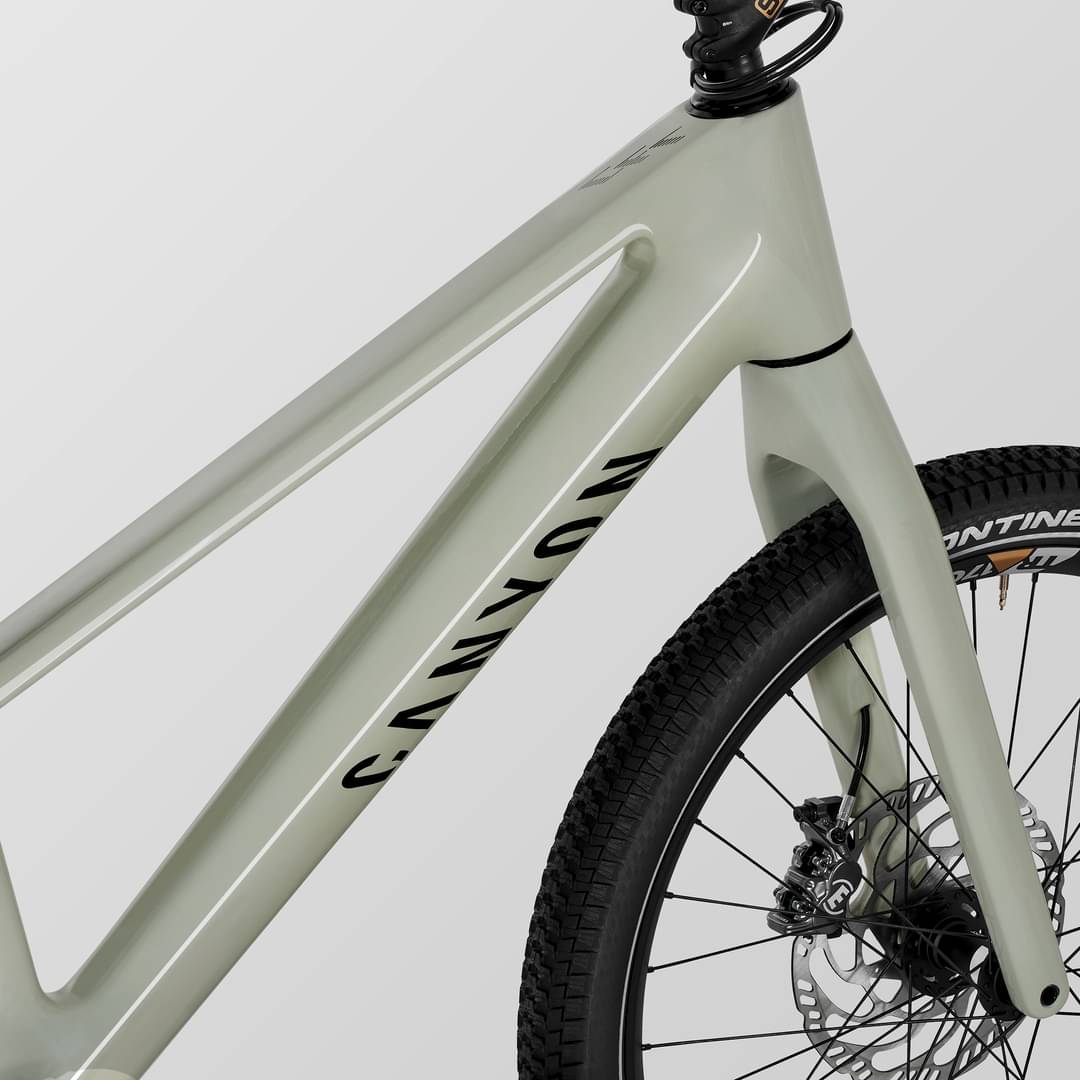

Frame
Frame
Canyon Stitched Trial, High-end carbon frame with integrated impact protection for maximum durability at a low weight of only 1,700 g., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0097-01, The Stitched CFR Trial carbon fork: the new benchmark in incredible durability and low weight., Fork steer tube diameter: 1 1/8" - 1,5", Material: Carbon (CF)

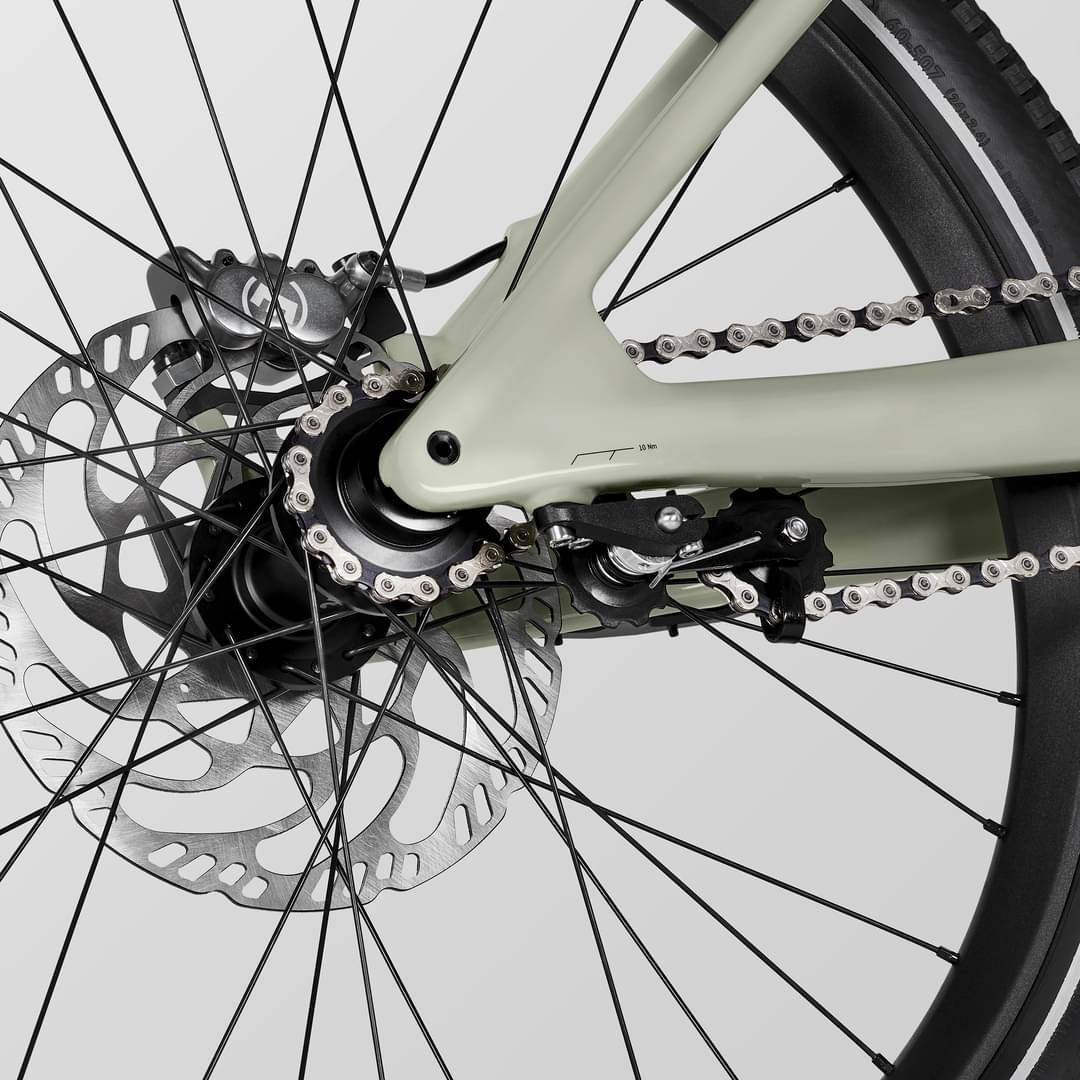

Drivetrain
Cassette
Canyon EP1549-01 Chainring, Number of sprockets: 1 | Canyon Stitched Trial, Number of sprockets: 1, Range: 16
Crank
SRAM Descendant 6K, Number of chainrings: 1
Bottom Bracket
SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 87 g
Chain
KMC Connection Link 11s | KMC X11-93
Chain Guide
Canyon GP0361-01 | Canyon Stitched Trial
Pedals
None included

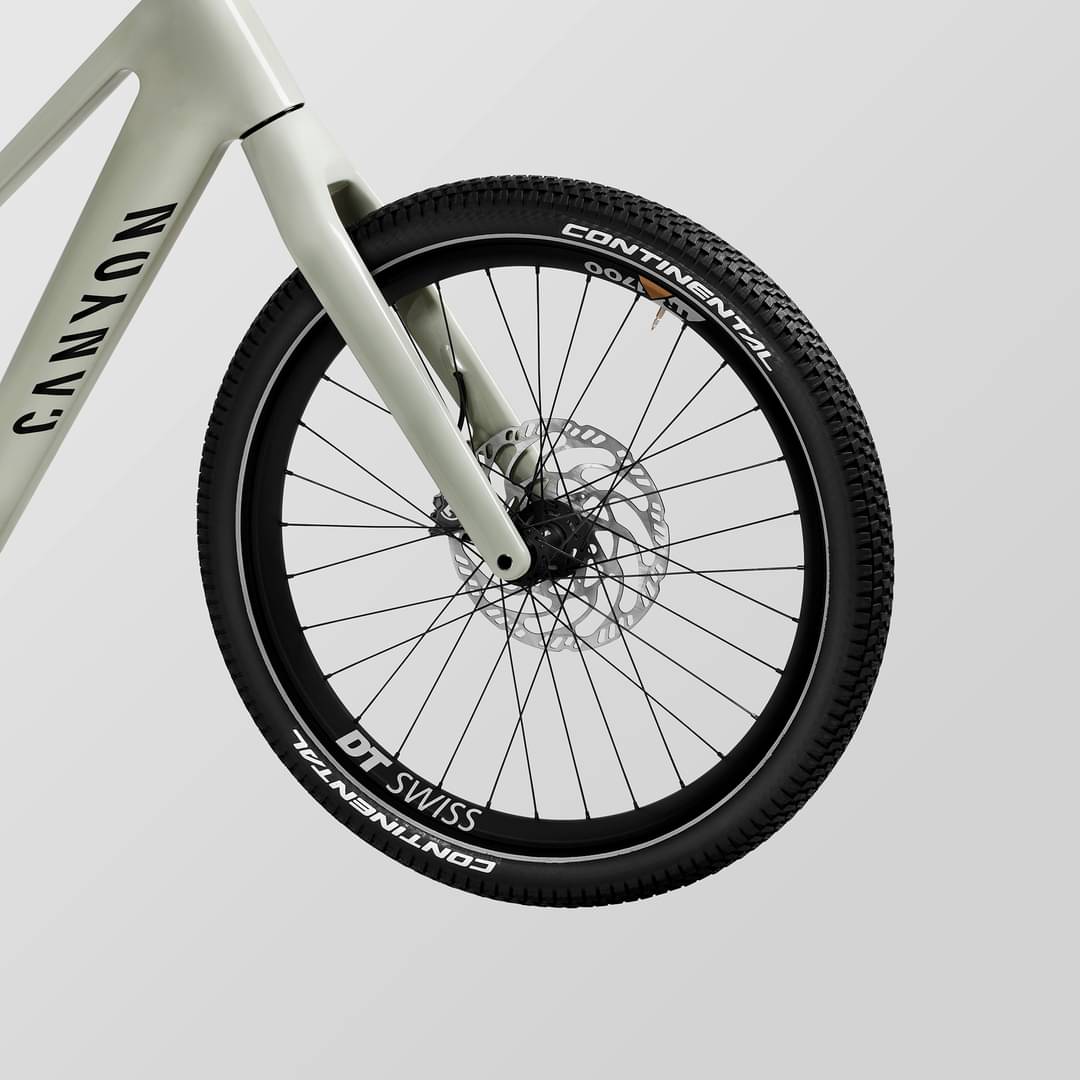

Wheels
Rims
DT Swiss TR1700, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt | DT Swiss TR1700, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 840 g
Tires
Continental Air King, Width: 2.35"
Brakes
Brakes
Magura MT7 | MAGURA MT7, Number of pistons: 4
Cockpit
Stem
SQlab 80X Trial Fabio Wibmer, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
SQlab 30X Trial Fabio Wibmer, Clamping diameter: 31,8 mm, Width: 730 mm, Rise: 84 mm
Grips
SQlab 70X Fabio Wibmer
Seat
Saddle
SQlab 60X Trial Fabio Wibmer
Seatpost
Canyon Stitched, Clamp diameter: 25,4 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Stack Reach Ratio | 1.199 mm |
| Front Center | 626 mm |
| Rake | 25 mm |
| Stack | 524 mm |
| Reach | 437 mm |
| Top Tube Length | 573 mm |
| Seat Tube Angle | 75 ° |
| Seat Tube Length | 284 mm |
| Head Tube Angle | 73 ° |
| Head Tube Length | 145 mm |
| Chainstay Length | 363 mm |
| Wheelbase | 989 mm |
| Bottom Bracket Drop | -10 mm |
| Standover Height | 702 mm |
| Wheels | 24" |
| Rider Min Height | 140 cm |
| Rider Max Height | 200 cm |
Model Overview
Stitched CFR Trial is a Canyon Stitched model. There are 29 bikes that carry this model name. Take a sneak peek at all Canyon Stitched bikes models from 2024, by clicking here.
Model range prices
Canyon Stitched 360 2024 is the most economical model, with a starting price of 1058$. Canyon Stitched CFR Trial 2024 on the other hand costs 2646$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Dirt Jump bikes average price
According to our math, the average price for a trustworthy Dirt Jump bike is 863$. However, you could also get a good Dirt Jump bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2646$. Comparing this to the average Dirt Jump bike price, we see that the price is 206.6% more expensive.
Dirt Jump bikes average weight
The average weight for Dirt Jump bikes is 12.37 kg (27.27 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, Stitched CFR Trial has a weight of 9.95 kg (21.94 lbs). In other words, this model is 24.32% lighter than the average Dirt Jump bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Stitched CFR Trial are the 24″ aluminum type. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Canyon Stitched CFR Trial 2024 is available in one size only. In conclusion, make sure it fits you, or look for another model.
