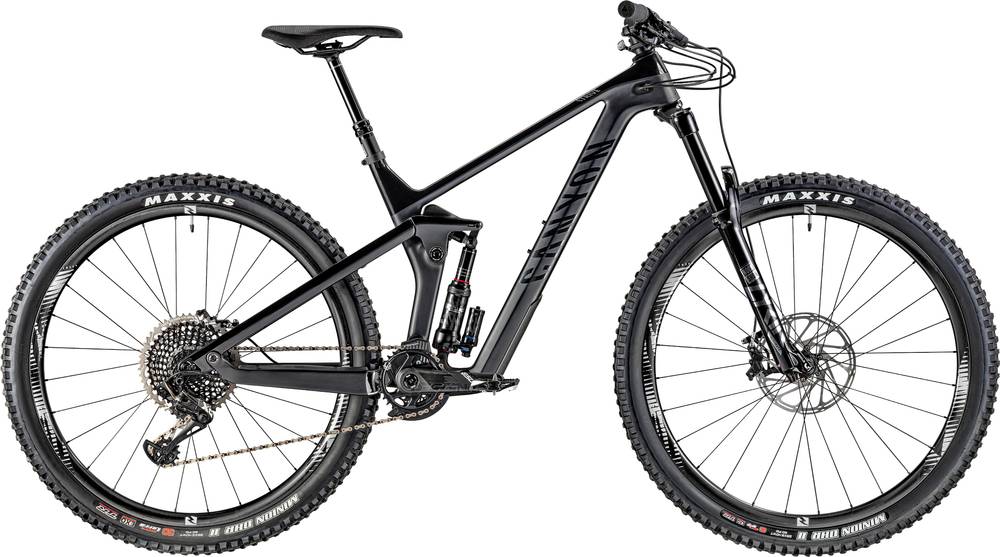

Canyon Strive CF 9.0 2020
2020 Mountain
Estimate price |
5,699$
Weight | 14.18 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD Clack
167cm - 179cm
MD Click
167cm - 179cm
LG Clack
177cm - 189cm
LG Click
177cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Strive CF, Light, strong, and brilliant—the full-carbon Strive instantly morphs from a downhill shredder into a climbing machine with a push of its Shapeshifter paddle. No proprietary shocks required. Simply brilliant.
Suspension Fork
RockShox Lyrik Ultimate, Travel: 160 mm, Technology: Charger2 RCT3, Axle Dimension: 15 x 110 mm
Rear Shock
RockShox Super Deluxe Ultimate RCT, RockShox’s Super Deluxe Ultimate provides the ultimate in smooth, tuneable rear- suspension performance.
Drivetrain
Rear Derailleur
SRAM XO1 Eagle
Shift Levers
SRAM X01 Eagle Trigger 12s
Cassette
SRAM XG-1295 Eagle 10-50 12s
Crank
Truvativ Descendant Carbon DUB 32T
Bottom Bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
Chain
SRAM X01 Eagle Chain 12s
Pedals
None included
Wheels
Rims
Reynolds TR 309, Rim Material: Carbon, Inner Width: 30 mm, Weight: 702 g | Reynolds TR 309 XD, Rim Material: Carbon, Inner Width: 30 mm, Weight: 1053 g
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Grip | MAXXIS Minion DHR II 2.4'', MAXXIS DHRII 2.4" rear tire provides outstanding grip and braking control.
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
SRAM Centerline Rounded Edges, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare. | SRAM Centerline Rounded Edges, 180mm SRAM Centerline rear rotor offers excellent braking control.
Cockpit
Stem
Canyon G5, The Canyon G5 stem (40mm extension) is both incredibly strong and beautifully designed.
Handlebar
Canyon G5 Riserbar, Our carbon-fiber G5 Riser bar offers the perfect combination of width (780mm) and rise (30mm).
Grips
Canyon G5 Lock-On, Canyon's G5 Lock-On grips are comfortable and secure.
Seat
Saddle
SDG Radar
Seatpost
RockShox Reverb Stealth 1X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Clack | SM Click | MD Clack | MD Click | LG Clack | LG Click | XL Clack | XL Click |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.508 mm | 1.508 mm | 1.434 mm | 1.434 mm | 1.362 mm | 1.362 mm | 1.316 mm | 1.316 mm |
| Bottom Bracket Height | 338 mm | 358 mm | 338 mm | 358 mm | 338 mm | 358 mm | 338 mm | 358 mm |
| Front Center | 736 mm | 736 mm | 763 mm | 763 mm | 797 mm | 797 mm | 835 mm | 835 mm |
| Rake | 53 mm | 70 mm | 53 mm | 70 mm | 53 mm | 70 mm | 53 mm | 71 mm |
| Trail | 109 mm | 79 mm | 109 mm | 79 mm | 109 mm | 79 mm | 109 mm | 78 mm |
| Stack | 626 mm | 626 mm | 631 mm | 631 mm | 640 mm | 640 mm | 658 mm | 658 mm |
| Reach | 415 mm | 415 mm | 440 mm | 440 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Top Tube Length | 601 mm | 601 mm | 627 mm | 627 mm | 660 mm | 660 mm | 695 mm | 695 mm |
| Seat Tube Angle | 73.5 ° | 75 ° | 73.5 ° | 75 ° | 73.5 ° | 75 ° | 73.5 ° | 75 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 440 mm | 455 mm | 455 mm | 500 mm | 500 mm |
| Head Tube Angle | 66 ° | 67.5 ° | 66 ° | 67.5 ° | 66 ° | 67.5 ° | 66 ° | 67.5 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1169 mm | 1169 mm | 1196 mm | 1196 mm | 1230 mm | 1230 mm | 1268 mm | 1268 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 785 mm | 785 mm | 786 mm | 786 mm | 789 mm | 789 mm | 800 mm | 800 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 169 cm | 169 cm | 179 cm | 179 cm | 189 cm | 189 cm | cm | cm |
Model Overview
Strive CF 9.0 completes the Canyon Strive model. Canyon launched 27 bikes of this model so far. You can easily view all of the Canyon Strive bikes models from 2020, here.
Model range prices
Canyon Strive CF 7.0 2020 is the cheapest bike model and costs 3699$. Canyon Strive CFR LTD 2020 is the most expensive one and costs 9500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2020, its price was 5699$. Comparing this to the average Enduro bike price, we see that the price is 58.35% higher.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Strive CF 9.0 has a weight of 14.18 kg (31.26 lbs). In conclusion, the average Enduro bike weighs 0.63% more than Strive CF 9.0.
Overview of components
Fork
This bike has the RockShox Lyrik Ultimate fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Strive CF 9.0 has a rear shock with a travel of 150mm. The model RockShox Super Deluxe Ultimate RCT is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Strive CF 9.0 bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Strive CF 9.0. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
