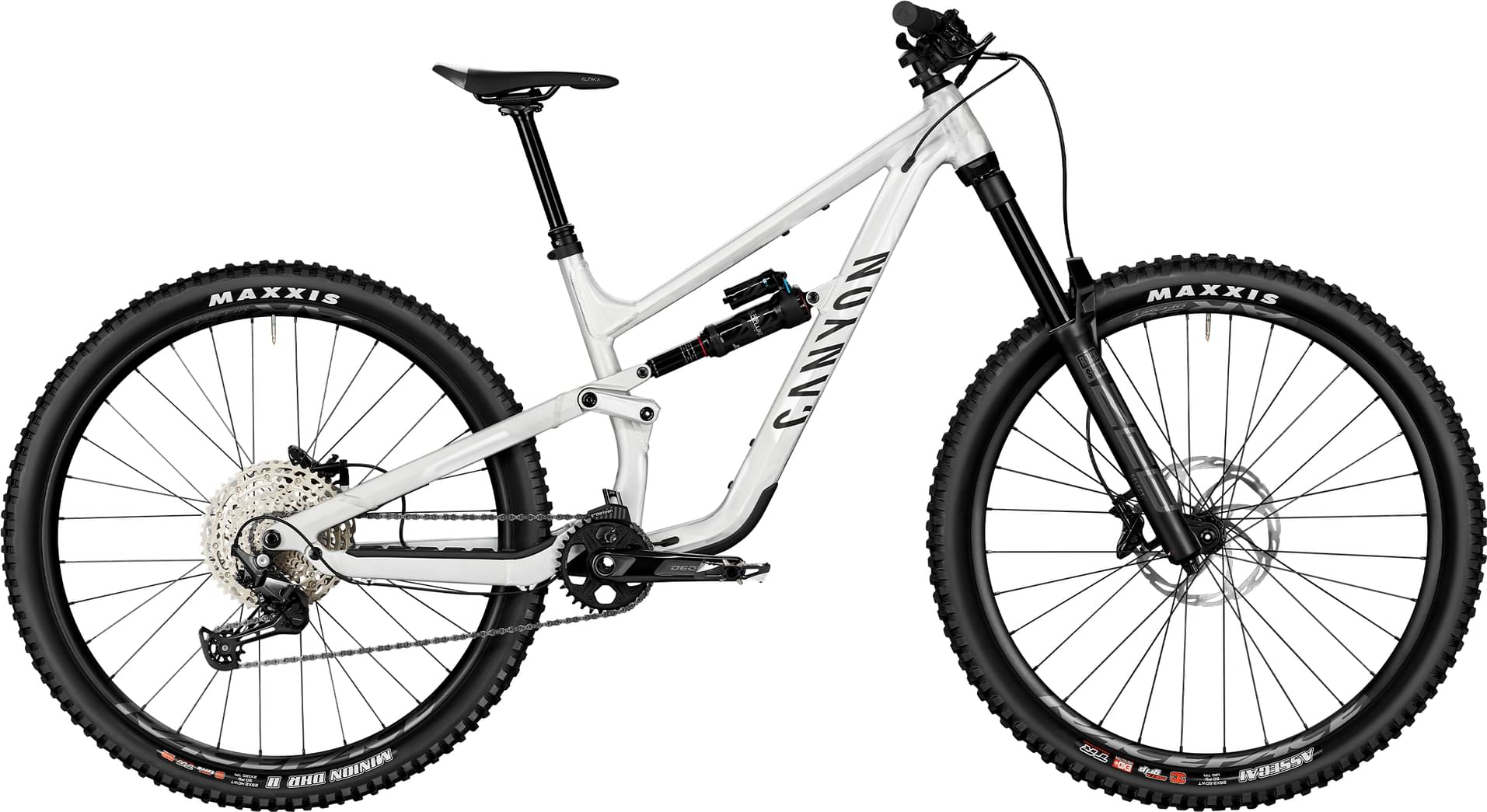

Canyon Torque 29 AL 5 2023
2023 Mountain
Estimate price |
2,999$
Weight | 16.44 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Select
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque AL, A big send, long-travel aluminium freeride frame with progressive, ultra-capable geometry., Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
ROCKSHOX ZEB SELECT, Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 170 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.40 kg

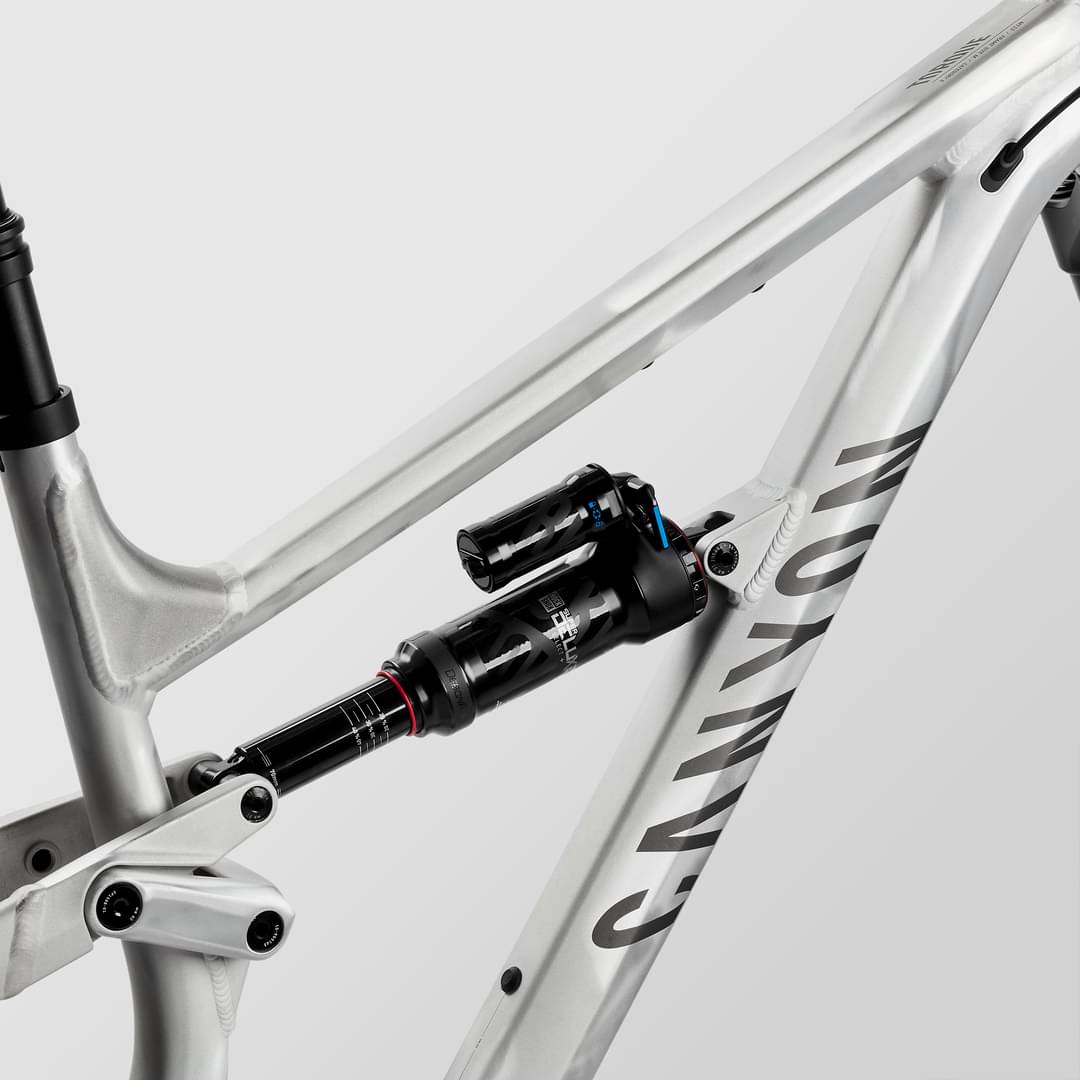

Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
Shimano DEORE M6100, Cage length: long, Weight: 317 g
Shift Levers
Shimano DEORE M6100
Cassette
Shimano DEORE M6100, Number of sprockets: 12
Crank
Shimano Deore FC-M6120-1, Number of chainrings: 1
Bottom Bracket
Shimano BSA BB52, Bottom bracket standard: BSA HT2 68/73, Weight: 98 g
Chain
Shimano CN-M6100
Chain Guide
Canyon Chainguide
Pedals
None included
Wheels
Rims
RaceFace AR30 | Shimano MT400, Rotor mount: Center Lock, Weight: 1.19 kg | RaceFace AR30 | Shimano MT510 SH12, Rotor mount: Center Lock, Weight: 1.02 kg
Tires
Maxxis Minion DHR II 3C MaxxTerra, Width: 2.4" | Maxxis Assegai 3C MaxxGrip, Width: 2,5", Weight: 1.16 kg
Brakes
Brakes
Shimano Deore M6120 | Shimano Deore
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
Fizik Gravita Alpaca X5
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 808 mm | 838 mm | 867 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 138 mm | 138 mm |
| Stack | 624 mm | 633 mm | 642 mm |
| Reach | 456 mm | 481 mm | 506 mm |
| Top Tube Length | 590 mm | 616 mm | 643 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 430 mm | 435 mm | 475 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1243 mm | 1273 mm | 1302 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 762 mm | 764 mm | 771 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Rear Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 185 cm | 194 cm | cm |
About this model
Torque 29 AL 5 belongs to the Canyon Torque model. 56 bikes variations carry this model name so far. You can easily view all of the Canyon Torque bikes models from 2023, here.
Model range prices
Canyon Torque Mullet AL 5 2023 is the cheapest bike model and costs 2866$. Canyon Torque 29 CF 9 2023 is the most expensive one and costs 6370$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Canyon released this model in 2023, its price was 2999$. Doing a quick comparison, we notice that Torque 29 AL 5 price is 20.01% lower than the average cost of an Enduro bike.
Enduro bikes average weight
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, Torque 29 AL 5 has a weight of 16.44 kg (36.24 lbs). In conclusion, the average Enduro bike weighs 15.21% less than Torque 29 AL 5.
Torque 29 AL 5 components
Fork
This bike has the RockShox ZEB Select fork installed. The fork’s travel is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Torque 29 AL 5 has a rear shock with a travel of 170mm. The model RockShox Super Deluxe Select+ is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Torque 29 AL 5 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Torque 29 AL 5 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Canyon Torque 29 AL 5 comes with a dropper post. Therefore, climbing or descending will be a breeze.
