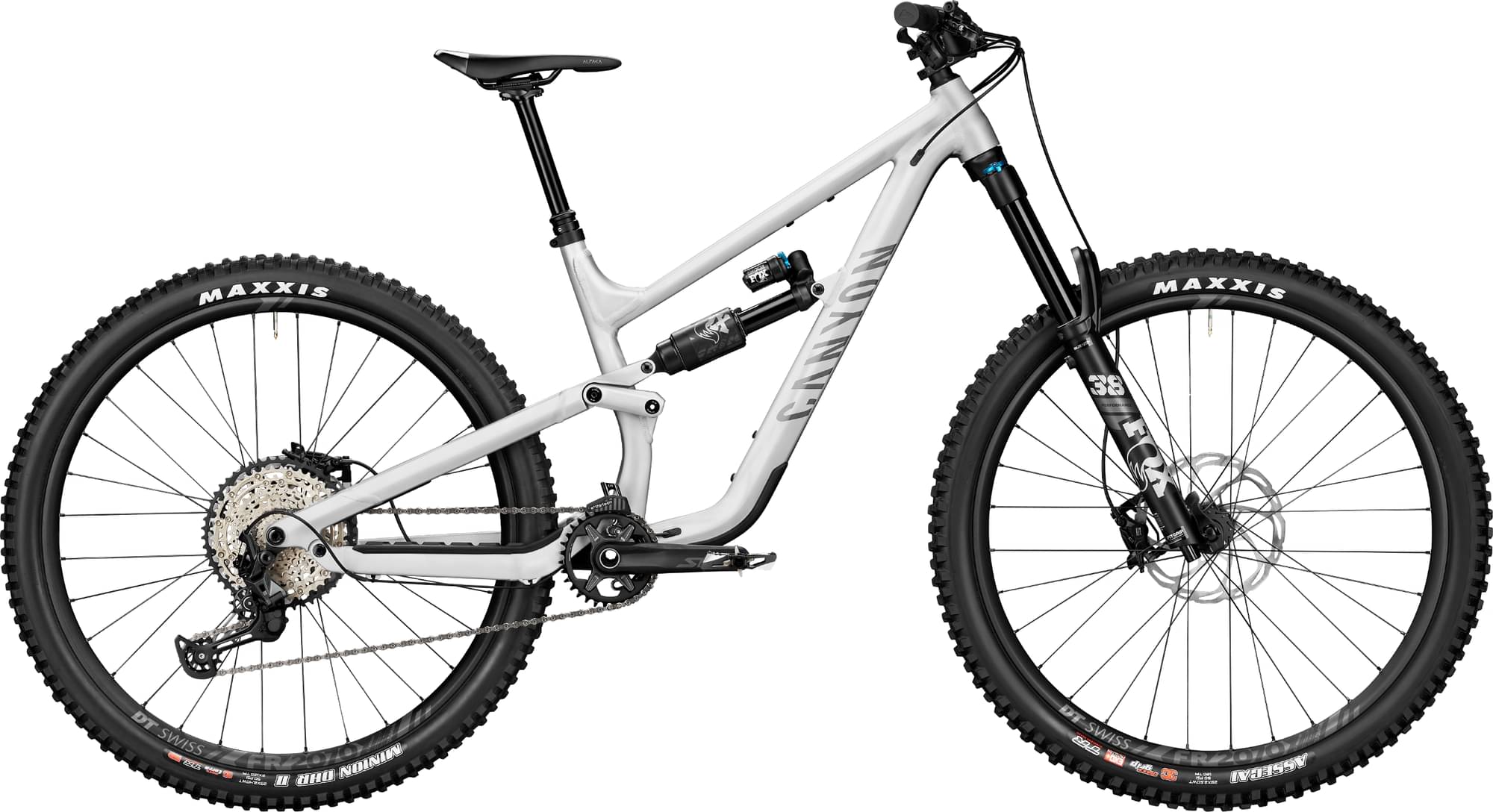

Canyon Torque 29 AL 6 2022
2022 Mountain
Estimate price |
3,784$
Weight | 16.54 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Float 38
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque AL, Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
FOX 38 FLOAT Performance Series, Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 170 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Rear Shock
FOX FLOAT X2 Performance Series, Gravity ready, with super smooth performance and sensivity through the gnarliest terrain.
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed, Fast, shockless shifting with HYPERGLIDE+ to deliver your power in all the right places., Cage Length: long
Shift Levers
Shimano SLX, 12-speed, 12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
Cassette
Shimano SLX, 12-speed (10-51), Cassette size: 10-51T. Gear range: 510%.
Crank
Shimano SLX FC-M7120-1, Number of chainrings: 1
Bottom Bracket
Token BSA
Chain
Shimano CN-M6100 12s
Chain Guide
Canyon Chainguide
Pedals
None included
Wheels
Rims
DT Swiss FR 2070 370LN, Rotor Mount: IS 6-bolt | DT SWISS FR2070 370LN, Rotor Mount: IS 6-bolt
Tires
MAXXIS MINION DHR 2 3C MaxxTerra, Width: 2.4" | MAXXIS ASSEGAI 3C MaxxGrip, Width: 2,5" | Maxxis Minion DHR II DD WT 29" x 2.4" MTB Tyre
Brakes
Brakes
Shimano SLX 4-piston front brake, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g | Shimano SLX 4-piston rear brake, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g
Disk Rotors
Rotor Hayes, 203 mm
Cockpit
Stem
Canyon G5 Stem, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Material: aluminium. Length: 40 mm. Clamping diameter: 31.8 mm., Clamping Diameter: 31,8 mm
Handlebar
Canyon G5 Riser Bar, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping Diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5 Grips, Get huge grip, with or without gloves. The clamp guarantees a tight lock on the bar.
Seat
Saddle
Fizik Gravita Alpaca X5
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 808 mm | 838 mm | 867 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 138 mm | 138 mm |
| Stack | 624 mm | 633 mm | 642 mm |
| Reach | 456 mm | 481 mm | 506 mm |
| Top Tube Length | 669 mm | 692 mm | 715 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 430 mm | 435 mm | 475 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1243 mm | 1273 mm | 1302 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 762 mm | 764 mm | 771 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Rear Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 185 cm | 194 cm | cm |
Model Overview
Torque 29 AL 6 belongs to the Canyon Torque model. Canyon released 56 bikes variations of this model so far. Take a sneak peek at all Canyon Torque bikes models from 2022, by clicking here.
Model range prices
Canyon Torque 27.5 AL 5 2022 is the most economical model, with a starting price of 2972$. Canyon Torque 29 CF 9 2022 on the other hand costs 6370$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3503$. Doing a quick comparison, we notice that Torque 29 AL 6 price is 2.74% lower than the average cost of an Enduro bike.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 16.54 kg (36.46 lbs), Canyon bike is much heavier than average. In conclusion, the average Enduro bike weighs 15.91% less than Torque 29 AL 6.
Torque 29 AL 6 components
Fork
The Fox Performance Float 38 is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Torque 29 AL 6 has a rear shock with a travel of 170mm. The model FOX FLOAT X2 Performance Series is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Torque 29 AL 6 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Torque 29 AL 6 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Torque 29 AL 6. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
