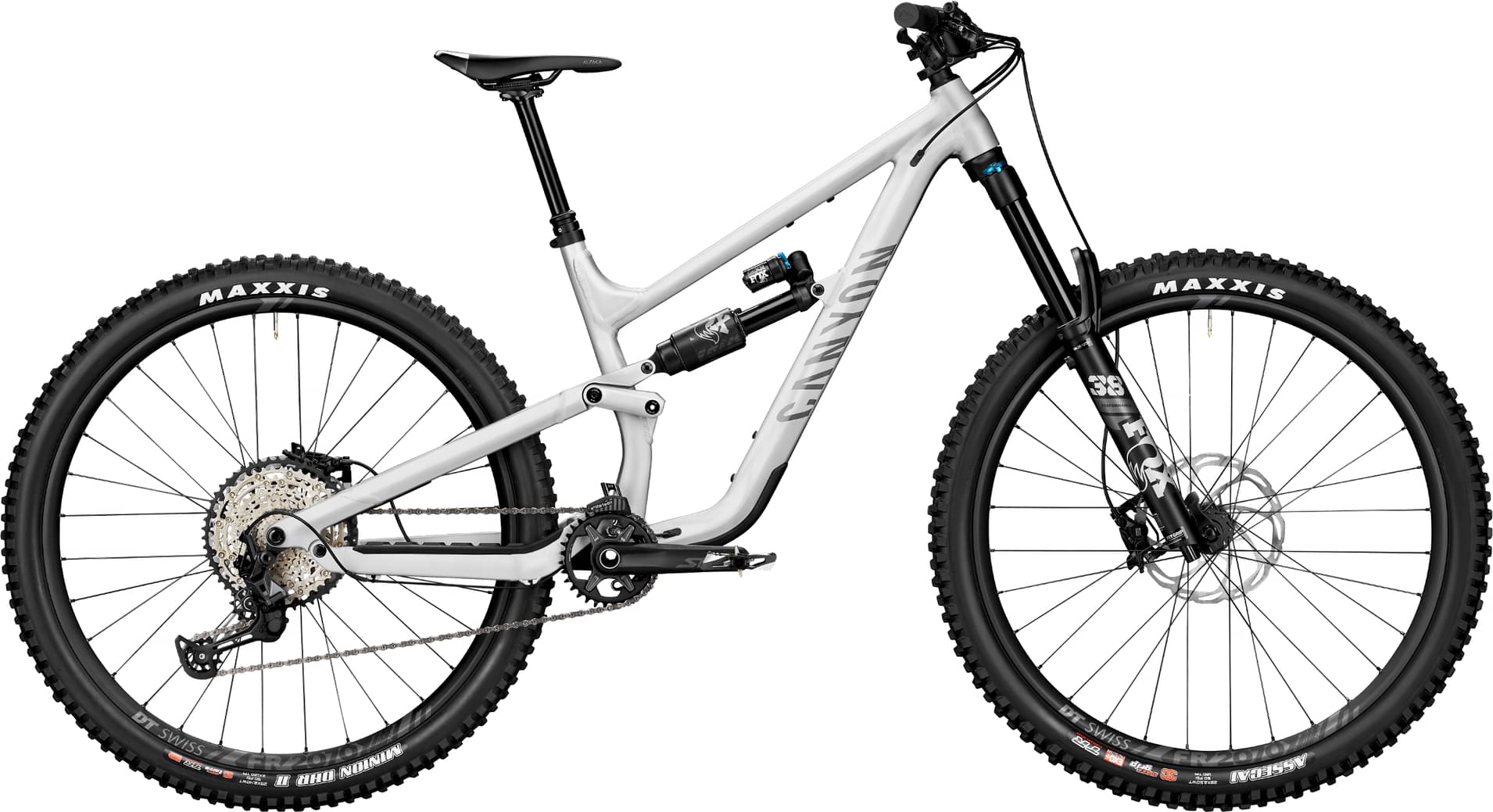

Canyon Torque 29 AL 6 2023
2023 Mountain
Estimate price |
3,669$
Weight | 16.54 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Float 38
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque AL, Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
Fox 38 Float Performance Series, Freeride fork with burly 38 mm stanchions and GRIP damper with 3-position on-the-fly adjustability., Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 170 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Rear Shock
Fox Float X2 Performance Series, Gravity ready, with super smooth performance and sensivity through the gnarliest terrain.
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed, Fast, shockless shifting with HYPERGLIDE+ to deliver your power in all the right places., Cage length: long
Shift Levers
Shimano SLX, 12-speed, 12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
Cassette
Shimano SLX, 12-speed (10-51), Cassette size: 10-51T. Gear range: 510%. | Shimano CS-M7100 MTB 12-speed Cassette
Crank
Shimano SLX FC-M7120-1, One-by crankset with direct mount chainrings, optimised gear tooth profile for improved chain retention, and hollow-forged crank for better stiffness-to-weight., Number of chainrings: 1
Bottom Bracket
Token BSA, Bottom bracket standard: BSA 68/73
Chain
Shimano CN-M6100 12s, 12-speed chain with extended inner plate for improved chain engagement and retention. | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Chain Guide
Canyon Chainguide
Pedals
None included
Wheels
Rims
DT Swiss FR2070 370LN, Robust wheel combining burly FR2070 alloy rims with reliable 370 hub., Rotor mount: IS 6-bolt, Wheelsize: 29" | DT SWISS FR2070 370LN, Rotor mount: IS 6-bolt, Wheelsize: 29"
Tires
Maxxis Minion DHR II 3C MaxxTerra, Width: 2.4" | Maxxis Assegai 3C MaxxGrip, Width: 2,5" | Maxxis Minion DHR II DD WT 29" x 2.4" MTB Tyre | Maxxis Assegai EXO+ TR MaxxTerra WT 29" x 2.5" MTB Tyre
Brakes
Brakes
Shimano SLX 4-piston front brake, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection., ICE TECH brake pads, 444 g | Shimano SLX M7120, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection., ICE TECH brake pads, 444 g
Cockpit
Stem
Canyon G5 Stem, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Canyon G5 Riser Bar, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5 Grips, Get huge grip, with or without gloves. The clamp guarantees a tight lock on the bar.
Seat
Saddle
Fizik Gravita Alpaca X5
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 808 mm | 838 mm | 867 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 138 mm | 138 mm |
| Stack | 624 mm | 633 mm | 642 mm |
| Reach | 456 mm | 481 mm | 506 mm |
| Top Tube Length | 590 mm | 616 mm | 643 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 430 mm | 435 mm | 475 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1243 mm | 1273 mm | 1302 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 762 mm | 764 mm | 771 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Rear Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 185 cm | 194 cm | cm |
About this model
Torque 29 AL 6 completes the Canyon Torque model. There are 56 bikes that carry this model name. You can easily view all of the Canyon Torque bikes models from 2023, here.
Model range prices
The most economical model, the Canyon Torque Mullet AL 5 2023 has a starting price of 2866$. Canyon Torque 29 CF 9 2023 on the other hand is the most expensive at 6370$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3397$. In conclusion, this bike price is 5.95% smaller than the price of the average Enduro bike.
Enduro bikes average weight
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, Torque 29 AL 6 has a weight of 16.54 kg (36.46 lbs). In other words, this model is 15.91% heavier than the average Enduro bike.
Torque 29 AL 6 components

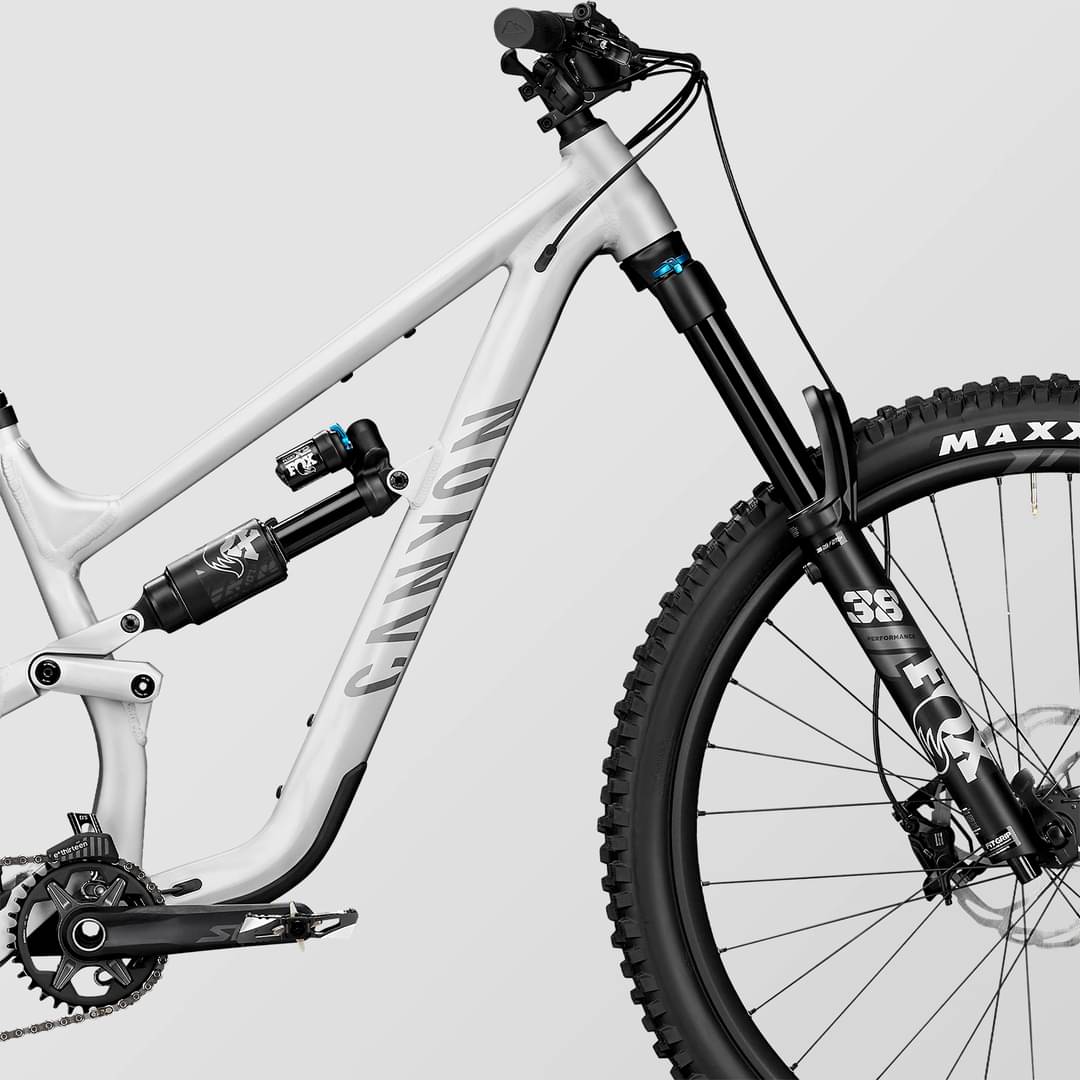

Fork
Canyon Torque 29 AL 6 2023 bike is equipped with the Fox Performance Float 38 fork, and has 170mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.

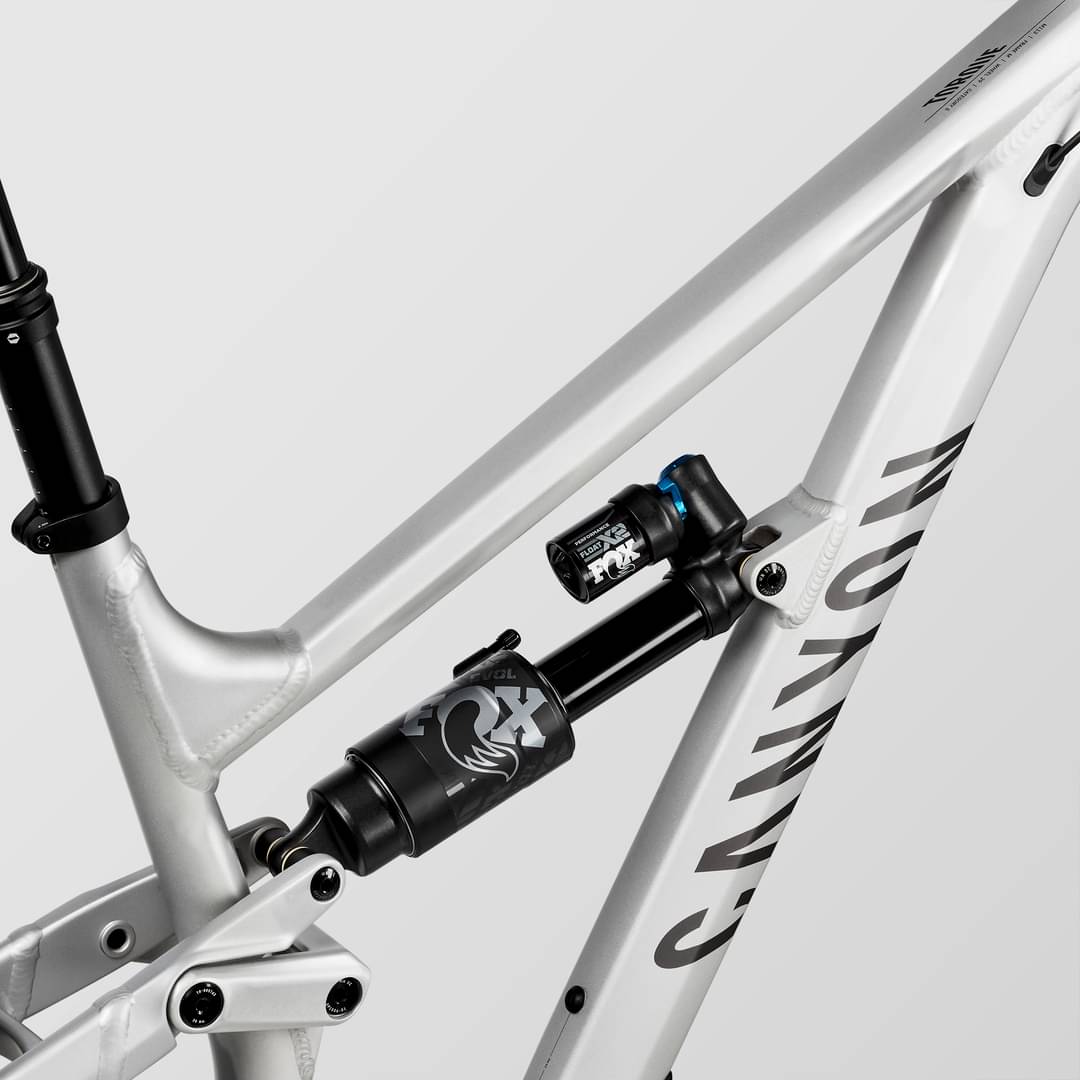

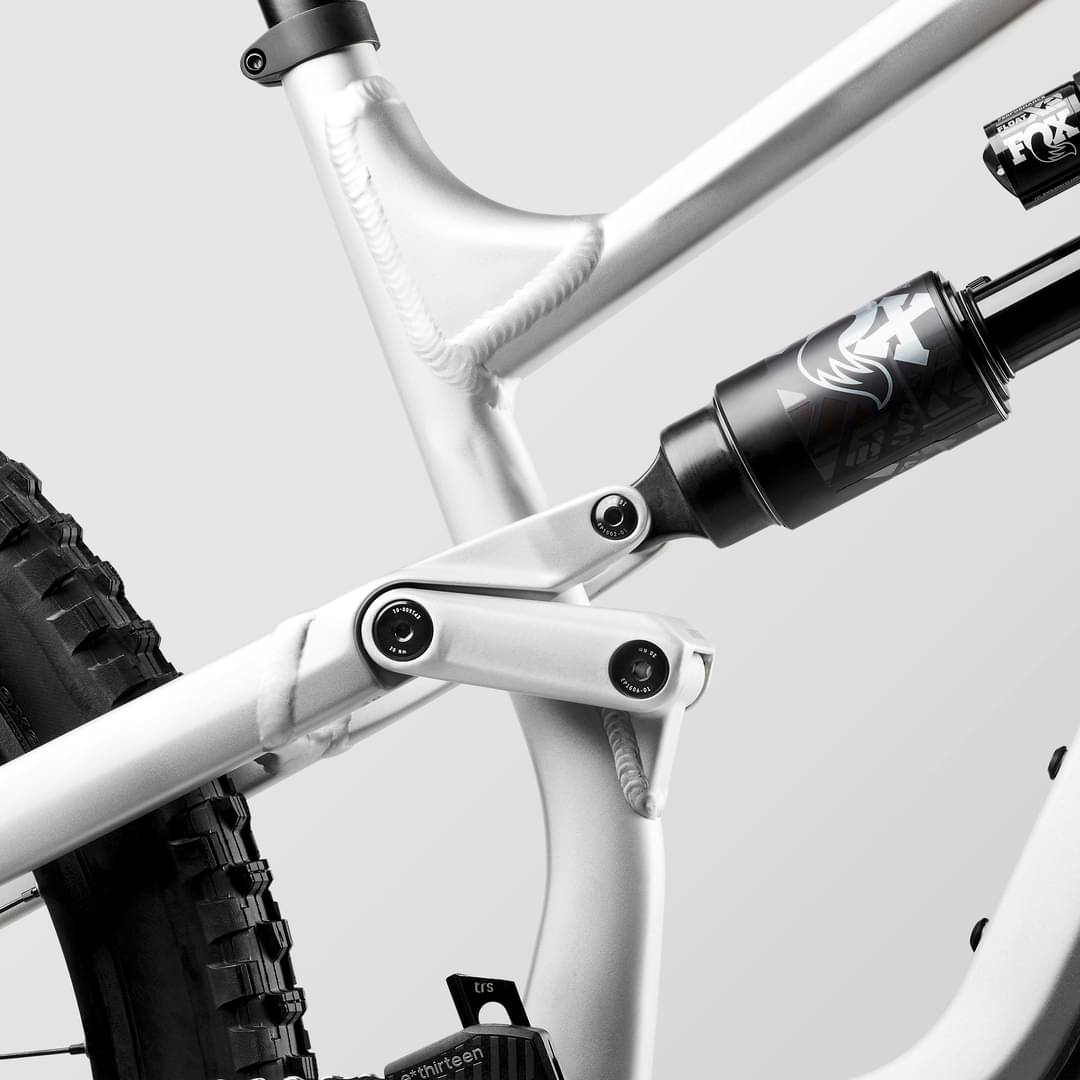

Rear Shock
Canyon Torque 29 AL 6 bike has the Fox Float X2 Performance Series model installed, and has a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Torque 29 AL 6 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Torque 29 AL 6 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Torque 29 AL 6. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
