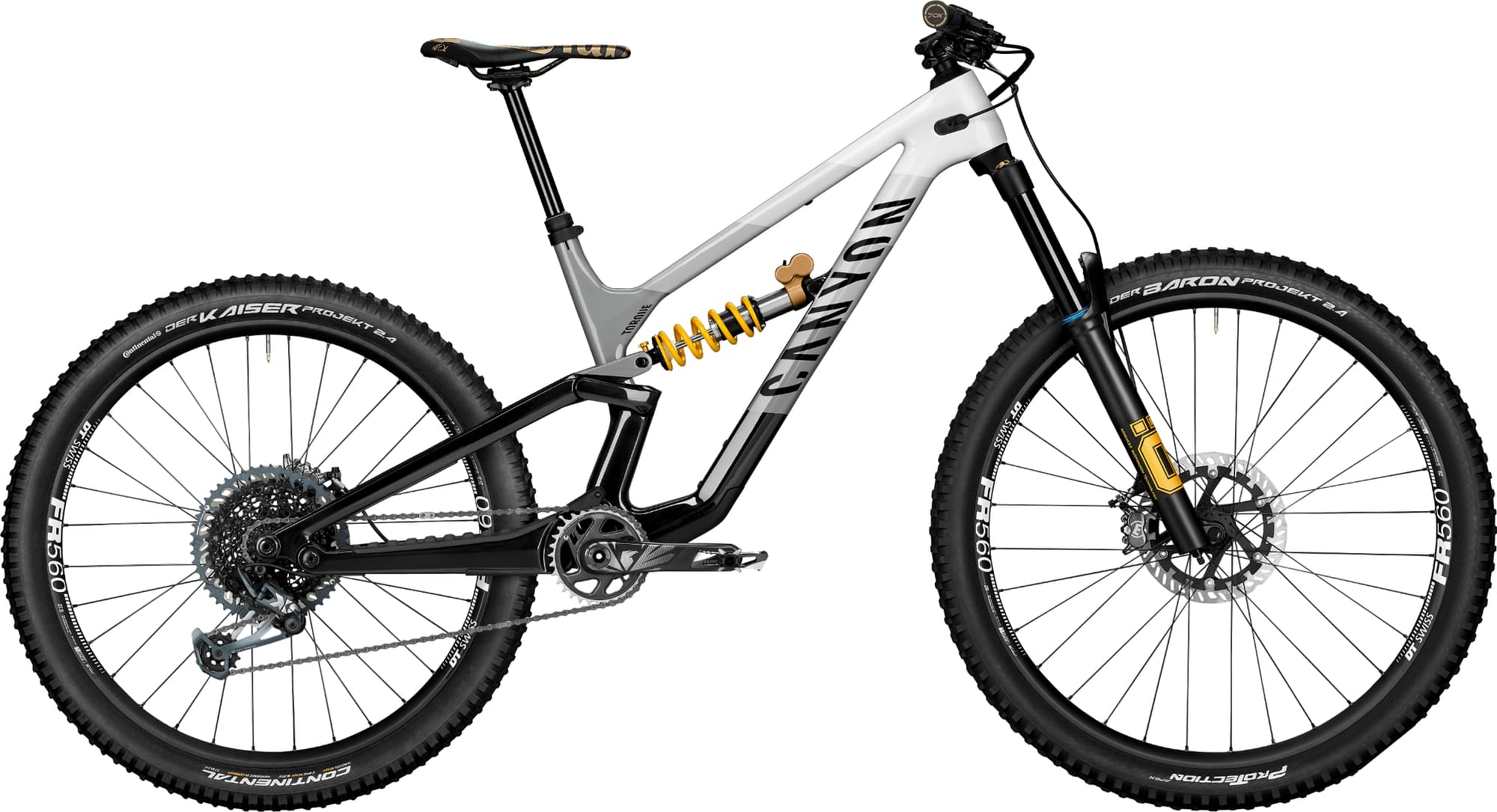

Canyon Torque CF CLLCTV FW 2022
2022 Mountain
Estimate price |
6,651$
Weight | 14.82 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Öhlins RXF38
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque CF, Extra-robust carbon mullet frame. Developed for bike park riding and the toughest trails. Category: 5., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
Öhlins RXF38, Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 170 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Rear Shock
Öhlins TTX22M, A DH proven coil sprung damper that also offers riders good pedal efficiency on mellower trails and climbs., Spring: 388
Drivetrain
Rear Derailleur
SRAM X01 Eagle, SRAM X01 Eagle 12-speed rear derailleur delivers quick and precise shifts.
Shift Levers
SRAM X01 Eagle, 12-speed, Aimed at aggressive trail riders, Eagle X01 pairs premium materials and design for years of accurate shifts under pressure.
Cassette
SRAM GX Eagle, 12-speed (10-52), Cassette size: 10-52T, Gear range: 520% | SRAM GX XG-1275 12-speed Cassette 10-52
Crank
SRAM X1 CF Eagle, SRAM X01 Eagle crankset with 32-tooth chainring and 170mm crankarms for plenty of pedaling clearance., Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket., Bottom bracket standard: BSA 73
Chain
SRAM SX Eagle 12-speed | SRAM NX Eagle 12-speed Chain
Chain Guide
Canyon GP0293-02
Pedals
None included
Wheels
Rims
DT Swiss FR 560 350, Rotor mount: IS 6-bolt
Tires
Continental Der Kaiser, 27.5 x 2.4 inch. Race tyres combining excellent traction, rolling efficiency, braking power, and precise handling. Outstanding puncture protection with double-layer Apex sidewall reinforcement. | Continental Der Baron Projekt ProTection Apex, Width: 2.35"
Brakes
Brakes
Magura MT7 CarbotectureSL
Cockpit
Stem
SQlab 80X Fabio Wibmer, Solid but light: the new 80X stem's black/gold design matches perfectly with the Fabio Wibmer Signature Handlebar. Length: 35 mm, clamp diameter: 31.8 mm.
Handlebar
SQlab 30X Fabio Wibmer, This bombproof Fabio Wibmer special edition handlebar features extra reinforcement against push and pulling forces. Width: 780 mm, backsweep: 7°, upsweep: 4°. Clamp diameter: 31.8 mm.
Grips
SQlab 70X Fabio Wibmer, Fabio's signature grips give maximum control and grip on rough terrain. The clamping mechanism on the inside edge increases absorption for more hand comfort.
Seat
Saddle
SQlab 611 Ergowave, Fabio Wibmer signature saddle. Dimensions: 28 x 13 cm. Black/gold design. With a curved design and raised back section, you get more rearward support, and precise pressure distribution.
Seatpost
G5 Adjustable Dropper Post, Clamp diameter: 30,9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.3 mm | 1.26 mm |
| Front Center | 815 mm | 844 mm | 874 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 136 mm | 136 mm | 136 mm |
| Stack | 625 mm | 634 mm | 643 mm |
| Reach | 461 mm | 486 mm | 511 mm |
| Top Tube Length | 600 mm | 627 mm | 654 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 430 mm | 445 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1244 mm | 1273 mm | 1303 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 767 mm | 769 mm | 774 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Rear Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 172 cm | 180 cm | 193 cm |
| Rider Max Height | 185 cm | 195 cm | cm |
About this model
Torque CF CLLCTV FW is part of the Canyon Torque model. Canyon launched 56 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Canyon Torque 27.5 AL 5 2022 has a starting price of 2972$. Canyon Torque 29 CF 9 2022 on the other hand is the most expensive at 6370$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2022, its price was 6157$. In conclusion, this bike price is 71.08% more expensive than the price of the average Enduro bike.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 14.82 kg (32.67 lbs), the Torque CF CLLCTV FW model is slightly heavier than average. In other words, this model is 3.85% heavier than the average Enduro bike.
Overview of components
Fork
The fork installed on this bike is the Öhlins RXF38 model. The travel on this model is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the Öhlins TTX22M model, with a travel of 170mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Torque CF CLLCTV FW bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Canyon Torque CF CLLCTV FW comes with a dropper post. Therefore, climbing or descending will be a breeze.
