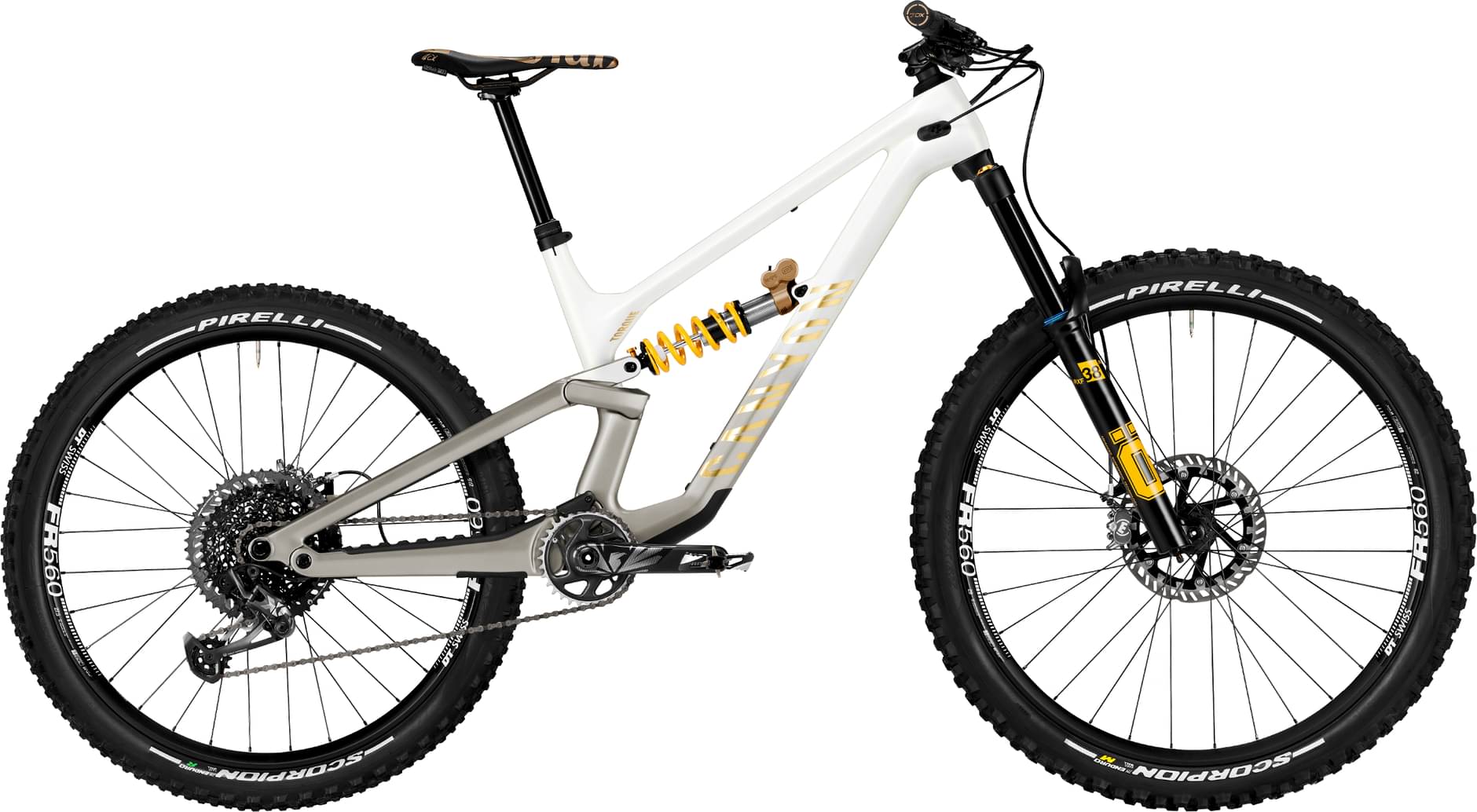

Canyon Torque CF CLLCTV FW 2023
2023 Mountain
Estimate price |
6,651$
Weight | 14.82 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 175mm -
Fork Öhlins RXF38
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque CF, Extra-robust carbon mullet frame. Developed for bike park riding and the toughest trails. Category: 5., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
Öhlins RXF38, Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 170 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.32 kg

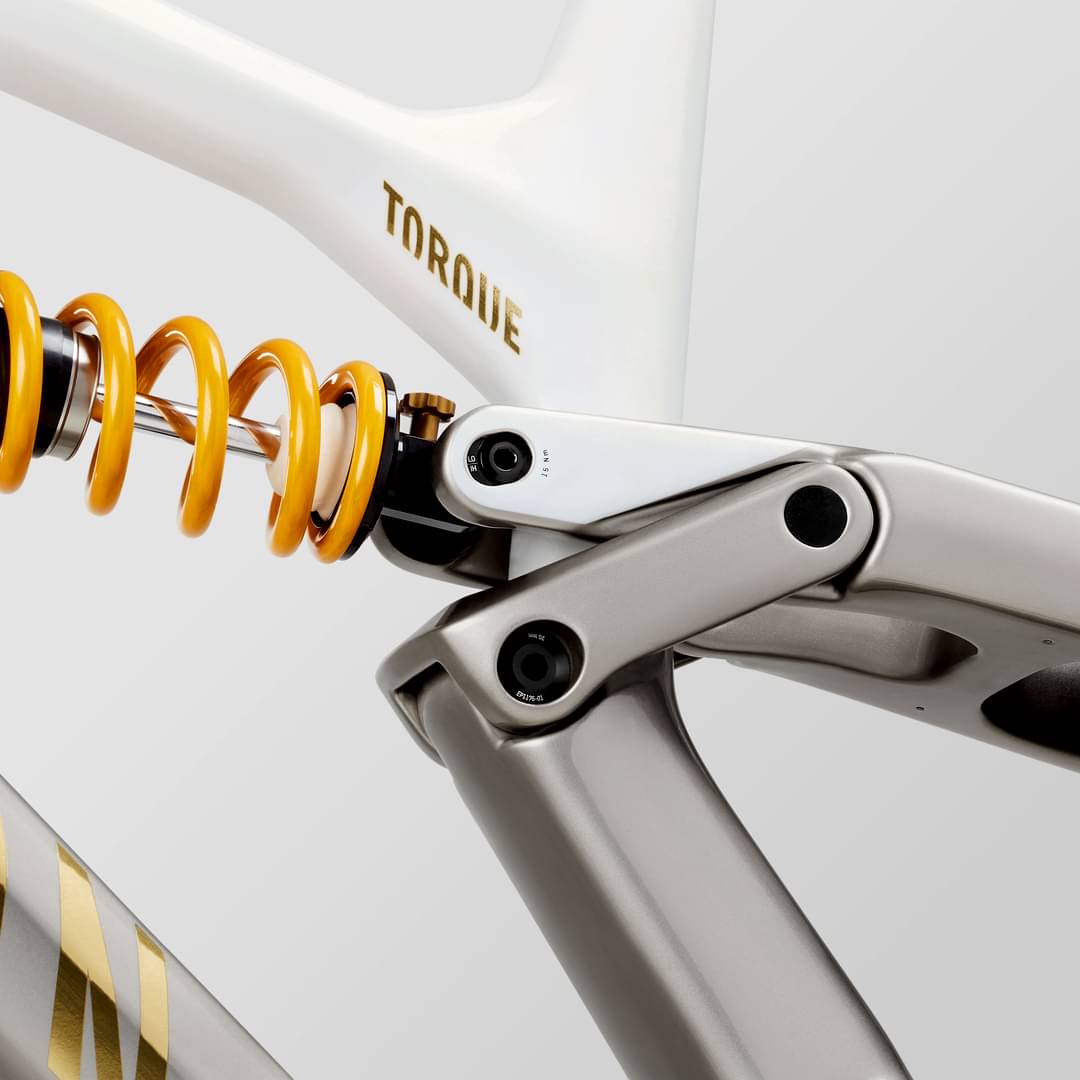

Rear Shock
Öhlins TTX22M, Spring: 388
Drivetrain
Rear Derailleur
SRAM X01 Eagle, Cage length: long, Weight: 289 g
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM GX Eagle, 12-speed (10-52), Number of sprockets: 12 | SRAM GX XG-1275 12-speed Cassette 10-52
Crank
SRAM X1 CF Eagle, Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, Bottom bracket standard: BSA 73, Weight: 87 g
Chain
SRAM SX Eagle 12-speed | SRAM NX Eagle 12-speed Chain 126 Links
Chain Guide
Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02
Pedals
None included
Wheels
Rims
DT Swiss 350 FR560, Rotor mount: IS 6-bolt, Weight: 1.03 kg | DT Swiss FR 560 350, Rotor mount: IS 6-bolt
Tires
Pirelli Scorpion Enduro M | Pirelli Scorpion Enduro R
Brakes
Brakes
Magura MT7 CarbotectureSL
Cockpit
Stem
SQlab 80X Fabio Wibmer, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
SQlab 30X Fabio Wibmer, Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 25 mm
Grips
SQlab 70X Fabio Wibmer
Seat
Saddle
SQlab 611 Ergowave, Gender: Male
Seatpost
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.31 mm | 1.26 mm |
| Front Center | 787 mm | 815 mm | 844 mm | 874 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 619 mm | 624 mm | 633 mm | 642 mm |
| Reach | 435 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 573 mm | 599 mm | 626 mm | 653 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 395 mm | 430 mm | 445 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1215 mm | 1243 mm | 1272 mm | 1302 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 758 mm | 760 mm | 765 mm | 773 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm |
| Rear Travel | 175 mm | 175 mm | 175 mm | 175 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
About this model
Torque CF CLLCTV FW is part of the Canyon Torque model. 56 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Torque Mullet AL 5 2023 is the most affordable bike of this model and has a price of 2866$. On the other hand, Canyon Torque 29 CF 9 2023, is the most expensive and costs 6370$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 6157$. Comparing the average cost of an Enduro bike to this one, you will see that Torque CF CLLCTV FW price is 71.08% more expensive.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, Torque CF CLLCTV FW has a weight of 14.82 kg (32.67 lbs). In other words, this model is 3.85% heavier than the average Enduro bike.
Torque CF CLLCTV FW components
Fork
The Öhlins RXF38 is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Öhlins TTX22M, with a travel distance of 175mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Torque CF CLLCTV FW 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Torque CF CLLCTV FW has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
Canyon Torque CF CLLCTV FW comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
