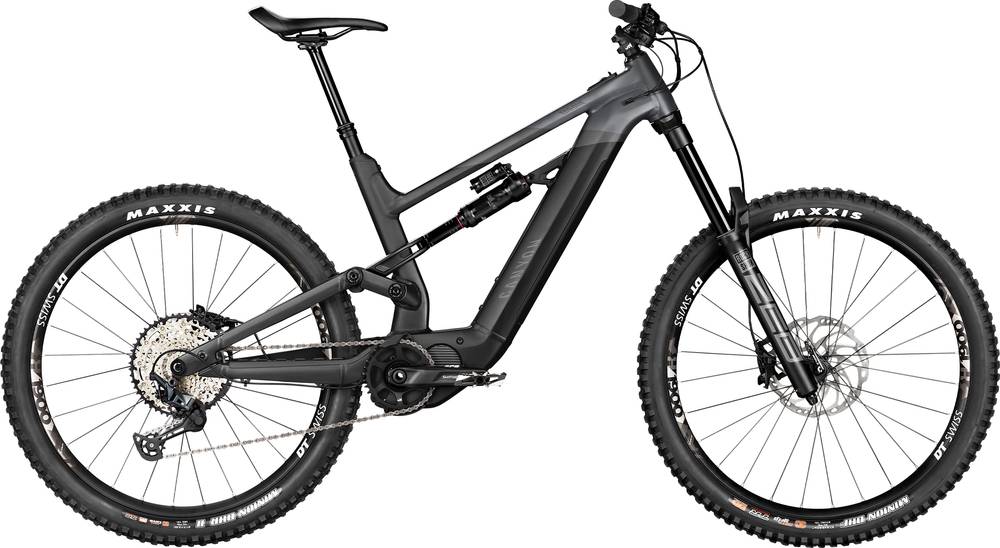

Canyon Torque:ON 8 Dual Battery 2021
2021 E-bike
Estimate price |
5,734$
Weight | 23.74 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 175mm -
Fork RockShox ZEB
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8035 504Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, adaptor for external charging not included | Shimano Steps BT-E8035 - Integrierter Akku für Unterrohr - 504 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque:ON, Aluminium frame, 175mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203)
Suspension Fork
Rockshox ZEB R, 180mm, 180mm of front suspension, 27.5 fork, Boost 110 spacing, 38mm stanchions, DebonAir air spring, Charger R compression damping, rebound damping adjuster
Rear Shock
RockShox Super Deluxe Select, 250x70, 175mm of rear suspension. The Super Deluxe Select delivers true long-travel performance, highly tunable DebonAir™ spring, adjustable rebound damping
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed, 12-speed, max cassette size: 51T. Weight: 310 g, Shadow RD+ chain stabilizing system
Shift Levers
Shimano SLX, 12-speed, Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 133 g
Cassette
Shimano SLX, 12-speed (10-51), Primarily-steel cogs with aluminium 51T cog, Microspline interface, Gear range: 10-51T, weight: 533 g, Hyperglide+ technology provides better chain engagement.
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 160mm crank arms
Bottom Bracket
STEPS, press-fit
Chain
Shimano M6100 12-speed, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Wheels
Rims
DT Swiss H-1900 Spline, 27.5", Rear wheel made for the demands of E-MTBs. DT Swiss Hybrid/370 3-pawl hub with steel freehub, Boost 148 spacing, reinforced DT Hybrid 1 spokes, aluminum tubeless-ready DT Swiss 27.5" rim, 35mm inner width | DT Swiss H-1900 Spline, 27.5", Front wheel made for the demands of E-MTBs. DT Swiss Hybrid/370 front hub with Boost 110 spacing, aluminum tubeless-ready DT Swiss 27,5" rim, 30mm inner width
Tires
Maxxis Minion DHF, 27.5x2.5", 3C MaxxTerra compound | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Brakes
Brakes
Shimano SLX 4-piston front brake, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g | Shimano SLX 4-piston rear brake, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g
Disk Rotors
Shimano EM600 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal | Shimano SLX rotor, 203mm, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 40mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano BT-E8035 504Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, adaptor for external charging not included | Shimano Steps BT-E8035 - Integrierter Akku für Unterrohr - 504 Wh
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 784 mm | 814 mm | 843 mm | 872 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 128 mm | 127 mm | 128 mm | 128 mm |
| Stack | 622 mm | 631 mm | 640 mm | 649 mm |
| Reach | 441 mm | 466 mm | 491 mm | 516 mm |
| Top Tube Length | 618 mm | 645 mm | 673 mm | 700 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 440 mm | 460 mm | 500 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1220 mm | 1250 mm | 1279 mm | 1308 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 783 mm | 786 mm | 792 mm | 796 mm |
| Front Travel | 180 mm | 180 mm | 180 mm | 180 mm |
| Rear Travel | 175 mm | 175 mm | 175 mm | 175 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
About this model
Torque:ON 8 Dual Battery completes the Canyon E Torqueon model. Canyon released 15 e-bikes variations of this model so far. You can easily view all of the Canyon E Torqueon e-bikes models from 2021, here.
Model range prices
Canyon Torque:ON 8 Dual Battery 2021 is the most economical model, with a starting price of 5308$. Canyon Torque:ON 9 Dual Battery 2021 on the other hand costs 6688$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2021 and its price was 5308$. If we compare this with the average Enduro e-bike cost we notice that the price is 10.93% higher.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 23.74 kg (52.34 lbs), Canyon e-bike is slightly heavier than average. In other words, this model is 1.37% heavier than the average Enduro e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Torque:ON 8 Dual Battery components
Fork
Canyon Torque:ON 8 Dual Battery 2021 e-bike is equipped with the RockShox ZEB fork, and has 180mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the RockShox Super Deluxe Select model, with a travel of 175mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Torque:ON 8 Dual Battery 2021 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Torque:ON 8 Dual Battery has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
