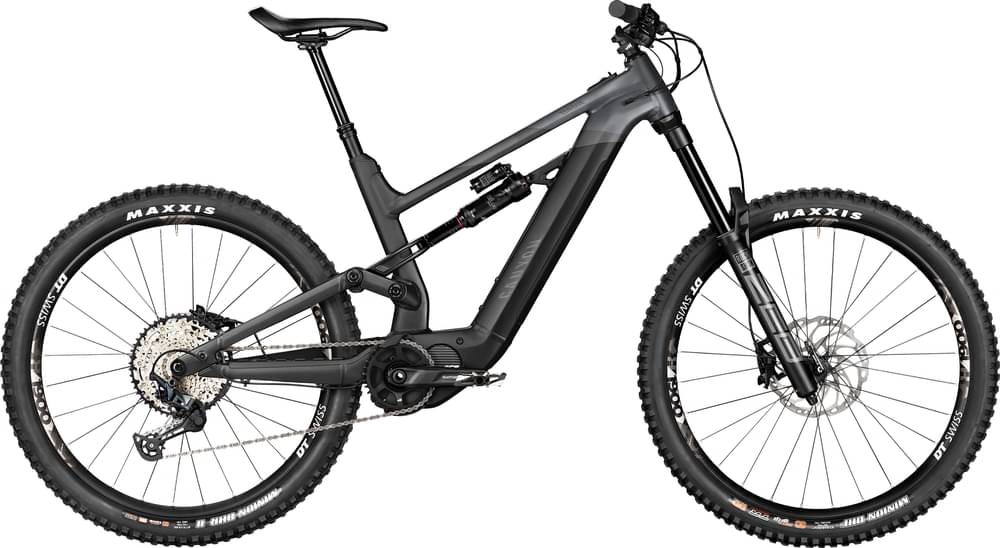

Canyon Torque:ON 8 Dual Battery 2022
2022 E-bike
Estimate price |
5,734$
Weight | 23.74 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 175mm -
Fork RockShox ZEB
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8035 504Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, adaptor for external charging not included | Shimano Steps BT-E8035 - Integrierter Akku für Unterrohr - 504 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque:ON, Aluminium frame, 175mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203)
Suspension Fork
Rockshox ZEB R, 180mm, 180mm of front suspension, 27.5 fork, Boost 110 spacing, 38mm stanchions, DebonAir air spring, Charger R compression damping, rebound damping adjuster
Rear Shock
RockShox Super Deluxe Select, 250x70, 175mm of rear suspension. The Super Deluxe Select delivers true long-travel performance, highly tunable DebonAir™ spring, adjustable rebound damping
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed, Reliable 1x12 rear derailleur.
Shift Levers
Shimano SLX, 12-speed, Precise 1x12 shifting system.
Cassette
Shimano SLX, 12-speed (10-51), Cassette size: 10-51T. Gear range: 510%.
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 160mm crank arms
Bottom Bracket
STEPS, press-fit
Chain
Shimano M6100 12-speed, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Wheels
Rims
DT Swiss H-1900 Spline, 27.5", Rear wheel made for the demands of E-MTBs. DT Swiss Hybrid/370 3-pawl hub with steel freehub, Boost 148 spacing, reinforced DT Hybrid 1 spokes, aluminum tubeless-ready DT Swiss 27.5" rim, 35mm inner width | DT Swiss H-1900 Spline, 27.5", Front wheel made for the demands of E-MTBs. DT Swiss Hybrid/370 front hub with Boost 110 spacing, aluminum tubeless-ready DT Swiss 27,5" rim, 30mm inner width
Tires
Maxxis Minion DHF, 27.5x2.5", 3C MaxxTerra compound | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Brakes
Brakes
Shimano SLX 4-piston front brake, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g | Shimano SLX 4-piston rear brake, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 444 g
Disk Rotors
Shimano EM600 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal | Shimano SLX rotor, 203mm, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 40mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano BT-E8035 504Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, adaptor for external charging not included | Shimano Steps BT-E8035 - Integrierter Akku für Unterrohr - 504 Wh
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 784 mm | 814 mm | 843 mm | 872 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 128 mm | 127 mm | 128 mm | 128 mm |
| Stack | 622 mm | 631 mm | 640 mm | 649 mm |
| Reach | 441 mm | 466 mm | 491 mm | 516 mm |
| Top Tube Length | 618 mm | 645 mm | 673 mm | 700 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 440 mm | 460 mm | 500 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1220 mm | 1250 mm | 1279 mm | 1308 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 783 mm | 786 mm | 792 mm | 796 mm |
| Front Travel | 180 mm | 180 mm | 180 mm | 180 mm |
| Rear Travel | 175 mm | 175 mm | 175 mm | 175 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
About this model
Torque:ON 8 Dual Battery belongs to the Canyon E Torqueon model. Canyon released 15 e-bikes variations of this model so far. You can easily view all of the Canyon E Torqueon e-bikes models from 2022, here.
Model range prices
The most economical model, the Canyon Torque:ON 8 2022 has a starting price of 5096$. Canyon Torque:ON 9 Dual Battery 2022 on the other hand is the most expensive at 6688$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 5308$. Doing a quick comparison, we notice that Torque:ON 8 Dual Battery price is 10.93% more expensive than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, Torque:ON 8 Dual Battery has a weight of 23.74 kg (52.34 lbs). To sum up, it’s 1.37% heavier than the average weight of Enduro e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Torque:ON 8 Dual Battery components
Fork
The Torque:ON 8 Dual Battery comes factory-installed with the RockShox ZEB fork. This has a travel range of 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Canyon Torque:ON 8 Dual Battery e-bike has the RockShox Super Deluxe Select model installed, and has a travel of 175mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Torque:ON 8 Dual Battery e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Torque:ON 8 Dual Battery has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Canyon Torque:ON 8 Dual Battery includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
