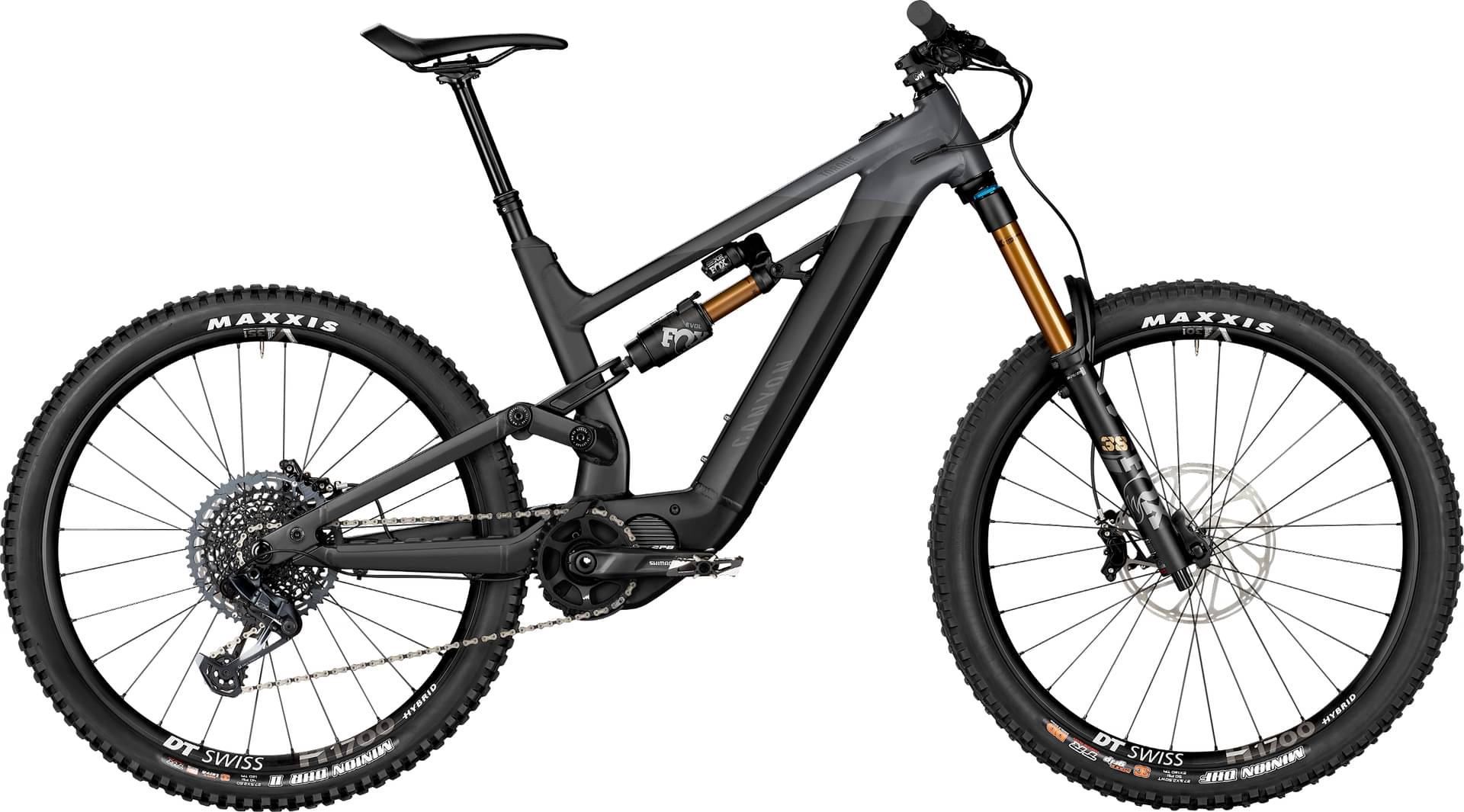

Canyon Torque:ON 9 2023
2023 E-bike
Estimate price |
6,881$
Weight | 23.81 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 175mm -
Fork Fox Factory Float 38
-
Groupset GX Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8035, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Torque:ON, Aluminium frame, 175mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-mount brakes (203 mm).
Suspension Fork
FOX 38 Factory Grip2, 180mm, 180mm of front suspension, 27.5 fork, Boost 110 spacing, 38mm stanchions, Kashima coat, air bleeders, floating axle, EVOL Float air spring, Grip2 high and low-speed compression damping adjuster, rebound damping adjuster
Rear Shock
Fox Float X2 Factory, 175 mm travel, 8-click HS & LS compression & rebound adjustment, increased control on quick hits via linear damping. Eye-to-eye length: 250 mm, stroke: 70 mm, Kashima Coat.
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed, Cage Lock and Roller Bearing Clutch technologies, 12-speed, Max cassette size: 52T, Weight: 290 g
Shift Levers
SRAM GX Eagle, 12-speed, Single-click, E-MTB specific rear deralleur shifter, 12-speed, MatchMaker X clamp,
Cassette
SRAM GX Eagle, 12-speed (10-52), Cassette size: 10-52T, Gear range: 520% | SRAM GX XG-1275 12-speed Cassette 10-52
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 160mm crank arms
Bottom Bracket
STEPS, press-fit
Chain
SRAM X01 Eagle 12-speed | SRAM X01 Eagle 12-speed Chain 126 Links
Wheels
Rims
DT Swiss H-1700 Spline, 27.5", Front wheel made for the demands of E-MTBs. DT Swiss Hybrid/350 front hub with Boost 110 spacing, aluminum tubeless-ready DT Swiss 27.5" rim, 30mm inner width | DT Swiss H-1700 Spline, 27.5", Rear wheel made for the demands of E-MTBs. DT Swiss Hybrid/350 star ratchet hub with steel freehub, Boost 148 spacing, reinforced DT Hybrid 1 spokes, aluminum tubeless-ready DT Swiss 27.5" rim, 35mm inner width
Tires
Maxxis Minion DHF, 27.5x2.5", 3C MaxxTerra compound | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 27.5" x 2.6" MTB Tyre
Brakes
Brakes
SRAM Code RSC 4-piston front brake, SRAM's most powerful and adjustable four-piston brake. Features reach and contact point adjusters | SRAM Code RSC 4-piston rear brake, SRAM's most powerful and adjustable four-piston brake. Features reach and contact point adjusters
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 40mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On, Get the ideal mix of incredible direct feedback and comfort. The grips always stay firmly in place, thanks to the screw-tight clamp.
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery
Motor
Shimano Steps EP8 Motor, High-torque motor. Maximum torque: 85 Nm. 3 app-tunable support modes: Eco, Trail, Boost.
Battery
Shimano BT-E8035, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 784 mm | 814 mm | 843 mm | 872 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 128 mm | 127 mm | 128 mm | 128 mm |
| Stack | 622 mm | 631 mm | 640 mm | 649 mm |
| Reach | 441 mm | 466 mm | 491 mm | 516 mm |
| Top Tube Length | 618 mm | 645 mm | 673 mm | 700 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 440 mm | 460 mm | 500 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1220 mm | 1250 mm | 1279 mm | 1308 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 783 mm | 786 mm | 792 mm | 796 mm |
| Front Travel | 180 mm | 180 mm | 180 mm | 180 mm |
| Rear Travel | 175 mm | 175 mm | 175 mm | 175 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Torque:ON 9 is part of the Canyon E Torqueon model. Canyon released 15 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Torque:ON 7 2023 is the cheapest e-bike model and costs 4299$. Canyon Torque:ON CF Roczen 2023 is the most expensive one and costs 8199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Canyon released this model in 2023, its price was 6370$. If we compare this with the average Enduro e-bike cost we notice that the price is 33.12% more expensive.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Canyon Torque:ON 9 it’s weighing 23.81 kg (52.49 lbs). At this weight, is slightly heavier than average. In other words, this model is 1.67% heavier than the average Enduro e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Torque:ON 9 has a rear shock with a travel of 175mm. The model Fox Float X2 Factory is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Torque:ON 9 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Torque:ON 9 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
The Canyon model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
