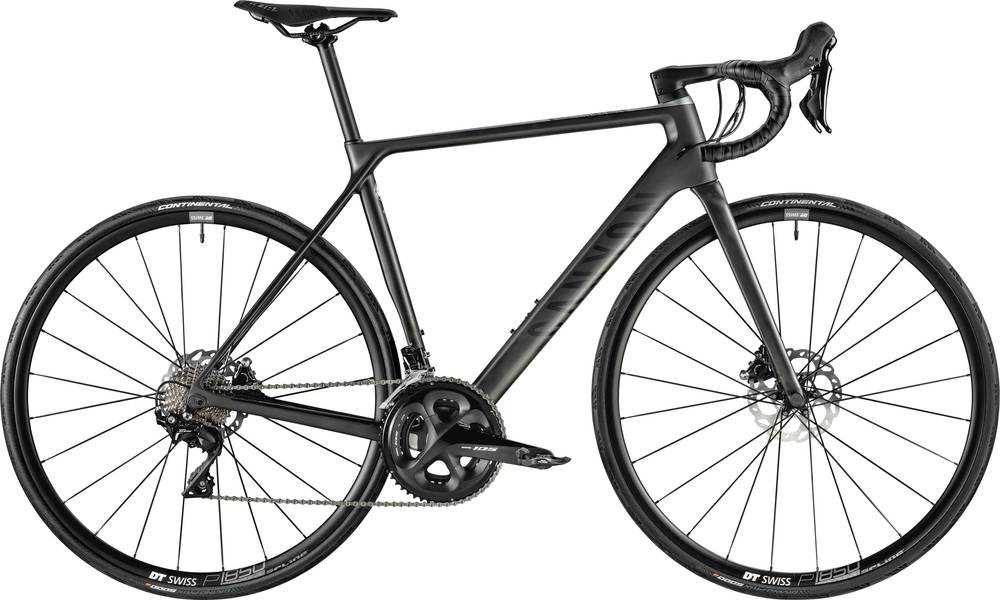

Canyon Ultimate CF SL Disc 7.0 2020
2020 Road
Estimate price |
2,299$
Weight | 7.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate CF SL Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon FK0086 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano 105 R7000 SS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7020 2s, Weight: 305 g | Shimano 105 R7020 11s, Weight: 305 g
Cassette
Shimano 105 R7000 11-30 11s
Crank
Shimano 105 R7000, 52/36
Bottom Bracket
Shimano Pressfit BB72
Pedals
None included
Wheels
Rims
DT Swiss P 1850 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 18 mm, Weight: 754 g | DT Swiss P 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 18 mm, Weight: 962 g
Tires
Continental Grand Prix 5000 / Attack 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II
Brakes
Brake Levers
Shimano 105 R7020 2s, Weight: 305 g | Shimano 105 R7020 11s, Weight: 305 g
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Seat
Saddle
Fizik Antares R7
Seatpost
Canyon SP0042 VCLS CF, Material: Carbon, Setback: 8 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.381 mm | 1.418 mm | 1.45 mm | 1.484 mm | 1.467 mm | 1.474 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 579 mm | 584 mm | 588 mm | 591 mm | 606 mm | 629 mm | 641 mm |
| Rake | 44 mm | 44 mm | 45 mm | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 78 mm | 69 mm | 60 mm | 54 mm | 55 mm | 54 mm | 52 mm |
| Stack | 500 mm | 522 mm | 546 mm | 567 mm | 592 mm | 613 mm | 631 mm |
| Reach | 368 mm | 378 mm | 385 mm | 391 mm | 399 mm | 418 mm | 428 mm |
| Top Tube Length | 513 mm | 529 mm | 543 mm | 556 mm | 571 mm | 596 mm | 612 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 434 mm | 467 mm | 494 mm | 522 mm | 554 mm | 584 mm | 614 mm |
| Head Tube Angle | 69.6 ° | 71 ° | 72.3 ° | 73.3 ° | 73.3 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 89 mm | 107 mm | 130 mm | 148 mm | 174 mm | 195 mm | 213 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 983 mm | 988 mm | 993 mm | 996 mm | 1011 mm | 1034 mm | 1046 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 720 mm | 748 mm | 775 mm | 801 mm | 828 mm | 851 mm | 874 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Ultimate CF SL Disc 7.0 is part of the Canyon Ultimate model. Canyon launched 158 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Canyon Ultimate CF SL Disc 7.0 2020 is the most economical model, with a starting price of 2299$. Canyon Ultimate CF SLX Disc 9.0 Team Movistar 2020 on the other hand costs 9000$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 2299$. Doing a quick comparison, we notice that Ultimate CF SL Disc 7.0 price is 45.72% smaller than the average cost of a Race bike.
Average weight for Race bikes
Race bikes weigh an average of 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Ultimate CF SL Disc 7.0 has a weight of 7.9 kg (17.42 lbs). In conclusion, the average Race bike weighs 15.84% less than Ultimate CF SL Disc 7.0.
Ultimate CF SL Disc 7.0 components
Fork material
Ultimate CF SL Disc 7.0 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Ultimate CF SL Disc 7.0 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ultimate CF SL Disc 7.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
