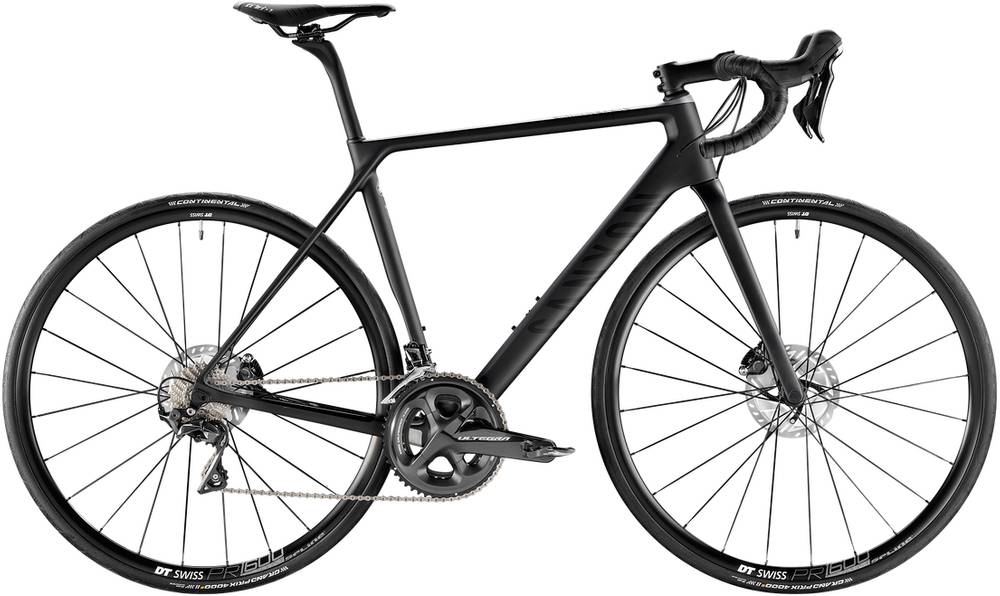

Canyon Ultimate CF SL Disc 8.0 2018
2018 Road
Estimate price |
2,799$
Weight | 7.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate CF SL Disc, Material: carbon, SPORT PRO geometry, Laterally stiff, comfortable, Press-Fit bottom bracket, Carbon dropouts, Integrated cable routing, 27.2 mm seat post diameter, Weight: 920 g (M)
Suspension Fork
Canyon One One Four SLX Disc, Full carbon fork, 1 1/4" fork shaft, Flat mount disc brake standard, Through Axles (12 x 100 mm), Weight: 325 g
Drivetrain
Rear Derailleur
Shimano Ultegra, 11s, Fast and accurate shifts, Short Cage (SS), 11-speed, SH RD-8000
Front Derailleur
Shimano Ultegra, 11s, fast and exact shifting, spring mechanism for easier and more direct shifting, SH FD-8000
Shift Levers
Shimano Ultegra Disc, 11s, SH ST-8020
Cassette
Shimano Ultegra, 11s, SH CS-8000, 11-12-13-14-15-17-19-21-23-25-28 T
Crank
Shimano Ultegra, 11s
Bottom Bracket
Shimano Pressfit, Press-Fit, 86,5 x 41mm, SM BB72-41B
Chain
Shimano CN-HG700-11
Pedals
none included
Wheels
Rims
DT Swiss PR 1600 Spline DB, Tubeless-ready rims, DT new aero spokes, DT Pro Lock nipples, DT Ratchet System, 12 mm Through Axle with RWS release system for both wheels, Width: 18 mm internal / 22 mm external, Profile: 23 mm, Weight: 1638 g (700C); 1560 g (650B)
Tires
Continental Grand Prix 4000s II, BlackChili Compound for low rolling resistance, extra durability and maximum grip in the wet, Vectran Breaker puncture protection, Folding tyre, Width: 25 mm
Brakes
Brakes
Shimano Ultegra Disc
Brake Levers
Shimano Ultegra Disc, 11s, SH ST-8020
Cockpit
Stem
Canyon V13, Angle: +/- 6°, 1 1/4" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Square profile design for extra torsional stiffness, Compliant with Canyon Category 2 testing standards
Handlebar
Canyon H17 Ergo AL, In-house developed Canyon aluminium ergonomic handlebars, Short reach and width-dependent drop facilitate a quick change of grip, Variable top handlebar diameter: Depending on the width of the handlebar, adapted to average palm size for a perfect ergonomic fit, Compliant with Canyon Category 2 Testing Standards
Headset
Canyon | Acros
Seat
Saddle
Fizik Antares R5, Carbon reinforced nylon shell, Wing Flex for greater freedom of movement in the thigh and enhanced power transmission
Seatpost
Canyon S13 VCLS CF (15 - 35 mm Setback), Length: 330 mm, Diameter: 27.2 mm, In-house developed Canyon seatpost with VCLS technology for extra comfort and stability, Wide-ranging setback adjustability: 15 - 35 mm, Compliant with Canyon Category 2 testing standards
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.381 mm | 1.418 mm | 1.45 mm | 1.484 mm | 1.467 mm | 1.474 mm |
| Stack | 500 mm | 522 mm | 546 mm | 567 mm | 592 mm | 613 mm | 631 mm |
| Reach | 368 mm | 378 mm | 385 mm | 391 mm | 399 mm | 418 mm | 428 mm |
| Top Tube Length | 513 mm | 529 mm | 543 mm | 556 mm | 571 mm | 596 mm | 612 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 434 mm | 467 mm | 494 mm | 522 mm | 554 mm | 584 mm | 614 mm |
| Head Tube Angle | 69.6 ° | 71 ° | 72.3 ° | 73.3 ° | 73.3 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 89 mm | 107 mm | 130 mm | 148 mm | 174 mm | 195 mm | 213 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 983 mm | 988 mm | 993 mm | 996 mm | 1011 mm | 1034 mm | 1046 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview
Ultimate CF SL Disc 8.0 is a Canyon Ultimate model. There are 158 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Canyon Ultimate CF SL Disc 8.0 2018 is the most affordable bike of this model and has a price of 2799$. On the other hand, Canyon Ultimate CF EVO 10.0 LTD 2018, is the most expensive and costs 8500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2018, its price was 2799$. Doing a quick comparison, we notice that Ultimate CF SL Disc 8.0 price is 19.69% smaller than the average cost of a Race bike.
Race bikes average weight
Race bikes have an average weight of 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Ultimate CF SL Disc 8.0 weighs 7.5 kg (16.53 lbs) and is a bit heavier than the average. In other words, this model is 9.97% heavier than the average Race bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Ultimate CF SL Disc 8.0 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ultimate CF SL Disc 8.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, it won’t be difficult to find the right one for you.
