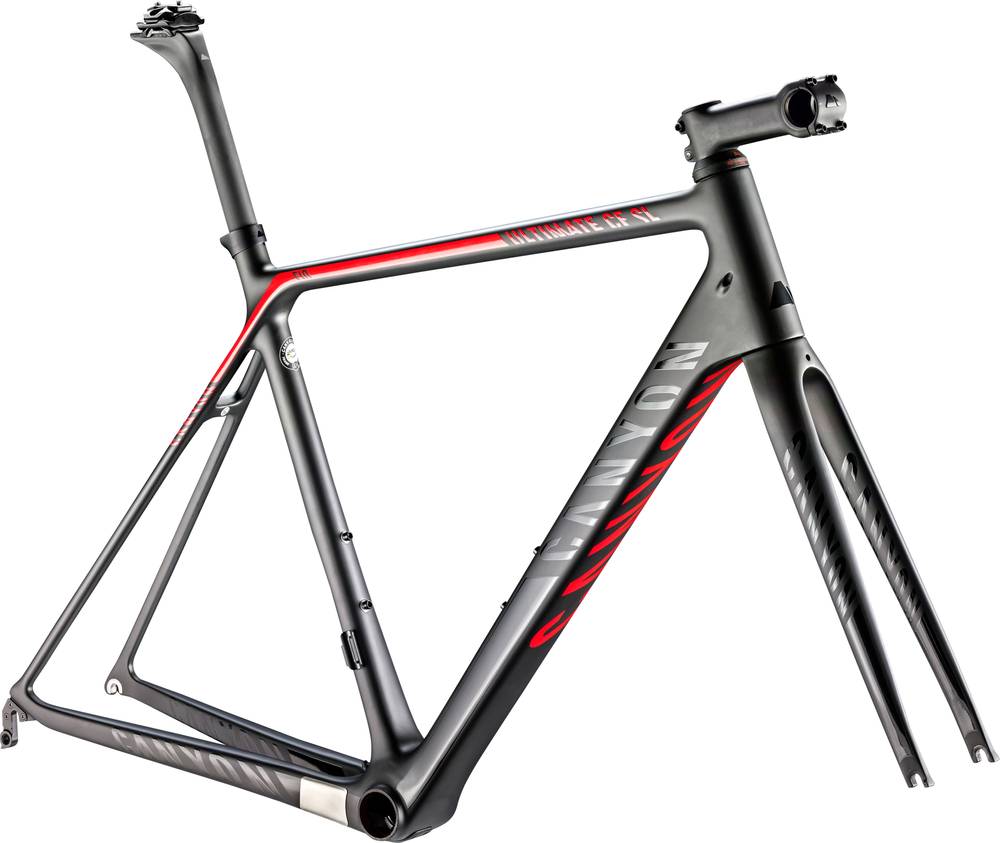

Canyon Ultimate CF SL Frameset Mechanical 2018
2018 Road
Estimate price |
1,261$
Weight | 1.25 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 178cm
MD
176cm - 183cm
LG
181cm - 188cm
XL
186cm - 193cm
XXL
191cm - 197cm
XXXL
204cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate CF SL, Material: Carbon, Axle Dimension: 9 x 130 mm, Brake Mount: Rim Brake
Suspension Fork
Canyon F17 CF, Material: Carbon, Steerer: 1 1/4'' - 1 1/2'', Axle Dimension: 9 x 100 mm, Brake Mount: Rim Brake
Cockpit
Stem
Canyon V13
Headset
Acros Ai-70F
Seat
Seatpost
Canyon S13 VCLS CF, Material: Carbon, Setback: 15 - 35 mm, Technology: VCLS, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.42 mm | 1.47 mm | 1.47 mm | 1.48 mm | 1.48 mm | 1.49 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 572 mm | 574 mm | 580 mm | 597 mm | 614 mm | 632 mm | 648 mm |
| Rake | 44 mm | 49 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 65 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Stack | 525 mm | 525 mm | 557 mm | 576 mm | 595 mm | 614 mm | 633 mm |
| Reach | 367 mm | 371 mm | 380 mm | 391 mm | 402 mm | 414 mm | 425 mm |
| Top Tube Length | 523 mm | 533 mm | 546 mm | 563 mm | 579 mm | 597 mm | 613 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 465 mm | 505 mm | 537 mm | 563 mm | 585 mm | 610 mm | 635 mm |
| Head Tube Angle | 71.65 ° | 72.5 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 121 mm | 137 mm | 149 mm | 169 mm | 189 mm | 209 mm | 228 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 969 mm | 971 mm | 977 mm | 994 mm | 1011 mm | 1029 mm | 1045 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 171 cm | 176 cm | 181 cm | 186 cm | 191 cm | 204 cm |
| Rider Max Height | 173 cm | 178 cm | 183 cm | 188 cm | 193 cm | 197 cm | 197 cm |
Model Overview
Ultimate CF SL Frameset Mechanical is a Canyon Ultimate model. 158 frames variations carry this model name so far. You can easily view all of the Canyon Ultimate frames models from 2018, here.
Model range prices
Canyon Ultimate CF SL Frameset Electrical 2018 is the cheapest frame model and costs 1167$. Canyon Ultimate CF EVO Frameset Mechanical 2018 is the most expensive one and costs 3503$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race frames
Our math shows that the average cost of a dependable Race frame is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Ultimate CF SL Frameset Mechanical price was 1167$. If we compare this with the average Race frame cost we notice that the price is 109.51% lower.
Average weight for Race frames
Race frames weigh an average of 1.41 kg (3.11 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Ultimate CF SL Frameset Mechanical it’s weighing 1.25 kg (2.76 lbs). At this weight, is considerably lighter than average. In short, the average Race frame weight is 12.8% higher than this one.
Ultimate CF SL Frameset Mechanical components
Fork material
Ultimate CF SL Frameset Mechanical has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Sizes
Ultimate CF SL Frameset Mechanical comes in 7 sizes, that range from 165 cm – 197 cm (5.41 ft – 6.46 ft). In conclusion, finding one for you shouldn’t be a problem.
