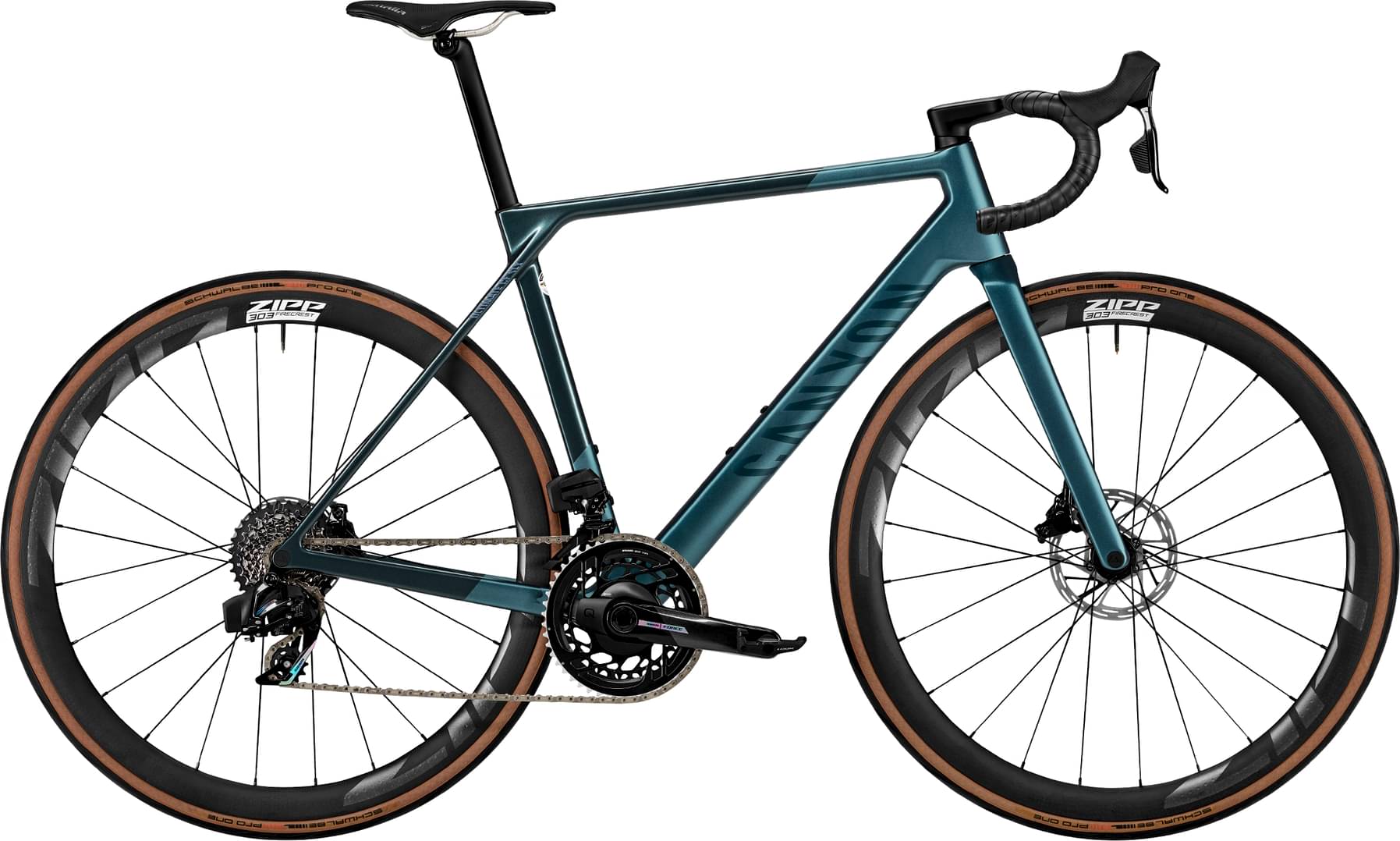

Canyon Ultimate CF SLX 8 Force AXS 2023
2023 Road
Estimate price |
8,028$
Weight | 7.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force eTap -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
159cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate CF SLX, 5th-generation Ultimate frame., Classic road race design, engineered for the perfect balance of comfort, toughness, stiffness, lightness, and aerodynamics., Axle dimension: 12x142 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0104 CF, Axle dimension: 12x100 mm, Material: Carbon (CF)
Drivetrain
Rear Derailleur
SRAM Force AXS 12s
Front Derailleur
SRAM Force AXS Front Derailleur D2
Shift Levers
SRAM Force AXS HRD, 12-speed | SRAM FORCE AXS HRD, 12-speed
Cassette
SRAM Force, 12-speed, 10-33T, Number of sprockets: 12 | SRAM Force XG-1270 12-speed Cassette
Crank
SRAM Force AXS Powermeter, Number of chainrings: 2
Bottom Bracket
SRAM Pressfit RED DUB, Bottom bracket standard: PF 86,5, Weight: 78 g
Chain
SRAM FORCE D1 12-speed, With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear. | SRAM RED AXS 12-speed Chain Lock | SRAM Force AXS 12-speed Chain 114 Links
Pedals
None included
Wheels
Rims
Zipp 303 Firecrest Force Launch Edition, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Weight: 613 g | Zipp 303 Firecrest Force Launch Edition XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Weight: 739 g
Tires
Schwalbe Pro One, 28mm, Width: 28mm, Weight: 250 g | Continental GP 5000S TR TL 28" Road Tyre 28mm | Continental GP 5000 27.5" & 28" Road Tyre
Brakes
Brakes
Hydraulic Disc
Brake Levers
SRAM Force AXS HRD, 12-speed | SRAM FORCE AXS HRD, 12-speed
Seat
Saddle
Selle Italia SLR Boost Superflow Titanium, Gender: Unisex, Weight: 158 g
Seatpost
Canyon SP0055, Custom carbon seatpost with aerodynamic D-shape profile., Setback: 10 mm, Weight: 110 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.33 mm | 1.37 mm | 1.38 mm | 1.42 mm | 1.44 mm | 1.44 mm | 1.45 mm |
| Front Center | 561 mm | 576 mm | 580 mm | 583 mm | 589 mm | 601 mm | 625 mm | 638 mm |
| Rake | 44 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm | 42 mm | 43 mm |
| Trail | 67 mm | 78 mm | 69 mm | 60 mm | 56 mm | 57 mm | 56 mm | 53 mm |
| Stack | 490 mm | 505 mm | 527 mm | 546 mm | 567 mm | 587 mm | 613 mm | 631 mm |
| Reach | 365 mm | 379 mm | 385 mm | 397 mm | 400 mm | 408 mm | 426 mm | 436 mm |
| Top Tube Length | 504 mm | 523 mm | 536 mm | 553 mm | 562 mm | 576 mm | 601 mm | 616 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 70.2 ° | 70 ° | 71.2 ° | 72.8 ° | 73.25 ° | 73.3 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 104 mm | 88 mm | 107 mm | 121 mm | 142 mm | 162 mm | 188 mm | 206 mm |
| Chainstay Length | 412 mm | 417 mm | 417 mm | 417 mm | 417 mm | 420 mm | 422 mm | 422 mm |
| Wheelbase | 965 mm | 982 mm | 986 mm | 989 mm | 995 mm | 1010 mm | 1036 mm | 1049 mm |
| Bottom Bracket Drop | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 704 mm | 727 mm | 755 mm | 782 mm | 808 mm | 835 mm | 858 mm | 881 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 161 cm | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Ultimate CF SLX 8 Force AXS is a Canyon Ultimate model. Canyon released 158 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Ultimate CF SL 7 Disc 2023 is the most economical model, with a starting price of 2335$. Canyon Ultimate CFR WRL 2023 on the other hand costs 11679$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Ultimate CF SLX 8 Force AXS price was 7431$. Comparing this to the average Race bike price, we see that the price is 121.82% more expensive.
Average weight for Race bikes
The average weight for Race bikes is 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Canyon Ultimate CF SLX 8 Force AXS it’s weighing 7.42 kg (16.36 lbs). At this weight, is a bit heavier than average. In short, the average Race bike weight is 8.8% lower than this one.
Ultimate CF SLX 8 Force AXS components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Ultimate CF SLX 8 Force AXS are the carbon type. The 650c wheels are smaller in diameter than 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Ultimate CF SLX 8 Force AXS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
