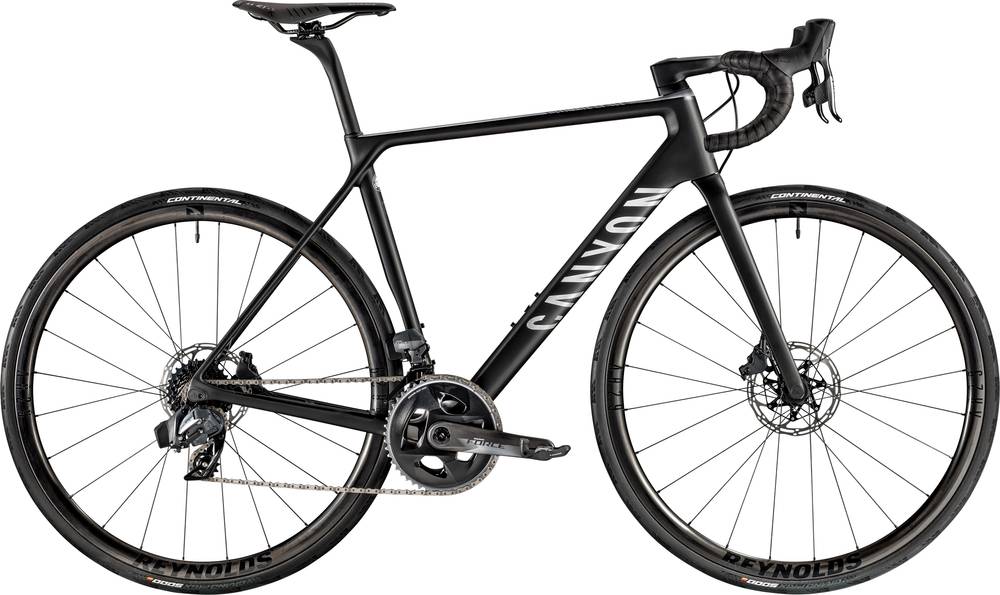

Canyon Ultimate CF SLX Disc 8.0 SL 2019
2019 Road
Estimate price |
5,199$
Weight | 7.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate CF SLX Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon F38 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
SRAM Force eTap AXS, 12-speed, With wireless shifting, Orbit damper technology, and larger X-SYNC pulleys for improved durability
Front Derailleur
SRAM Force eTap AXS, With wireless shifting, for 2x12 drivetrains, mounting type: braze-on
Shift Levers
SRAM Force eTap AXS HRD 2s | SRAM Force eTap AXS HRD 12s
Cassette
SRAM Force XG-1270, 12-speed, 10-28, 12-speed, gear range: 10-28T. Optimised for electronic shifting.
Crank
SRAM Force D1, Compatible with 12-speed drivetrains, gearing: 48/35 48/35
Bottom Bracket
SRAM Pressfit RED DUB, Weight: 72 g
Chain
SRAM Force D1 12s
Pedals
None included
Wheels
Rims
Reynolds AR 29 DB | Reynolds AR 29 Disc
Tires
Continental Grand Prix 5000 28 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable
Brakes
Brake Levers
SRAM Force eTap AXS HRD 2s | SRAM Force eTap AXS HRD 12s
Disk Rotors
SRAM Centerline X Rounded Edges, Disc Mount: Centerlock
Seat
Saddle
Fizik Antares R3
Seatpost
Canyon S13 VCLS CF, Material: Carbon, Setback: 15 - 35 mm, Technology: VCLS, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.355 mm | 1.381 mm | 1.418 mm | 1.45 mm | 1.484 mm | 1.467 mm | 1.474 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 579 mm | 584 mm | 588 mm | 591 mm | 606 mm | 629 mm | 641 mm |
| Rake | 43 mm | 44 mm | 45 mm | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 79 mm | 69 mm | 60 mm | 54 mm | 55 mm | 54 mm | 52 mm |
| Stack | 500 mm | 522 mm | 546 mm | 567 mm | 592 mm | 613 mm | 631 mm |
| Reach | 369 mm | 378 mm | 385 mm | 391 mm | 399 mm | 418 mm | 428 mm |
| Top Tube Length | 513 mm | 529 mm | 543 mm | 556 mm | 571 mm | 596 mm | 612 mm |
| Seat Tube Angle | 73.9 ° | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 434 mm | 467 mm | 494 mm | 522 mm | 554 mm | 584 mm | 614 mm |
| Head Tube Angle | 69.6 ° | 71 ° | 72.3 ° | 73.3 ° | 73.3 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 89 mm | 107 mm | 130 mm | 148 mm | 174 mm | 195 mm | 213 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 983 mm | 988 mm | 993 mm | 996 mm | 1011 mm | 1034 mm | 1046 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 720 mm | 748 mm | 775 mm | 801 mm | 828 mm | 851 mm | 874 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Ultimate CF SLX Disc 8.0 SL belongs to the Canyon Ultimate model. 158 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Canyon Ultimate CF SL 7.0 2019 is the most economical model, with a starting price of 1799$. Canyon Ultimate CF SLX Disc 9.0 Team Movistar 2019 on the other hand costs 9000$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 5199$. Doing a quick comparison, we notice that Ultimate CF SLX Disc 8.0 SL price is 55.19% more expensive than the average cost of a Race bike.
Average weight for Race bikes
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Ultimate CF SLX Disc 8.0 SL weighs 7.2 kg (15.87 lbs) and is a bit heavier than the average. In short, the average Race bike weight is 5.57% lower than this one.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Ultimate CF SLX Disc 8.0 SL model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
