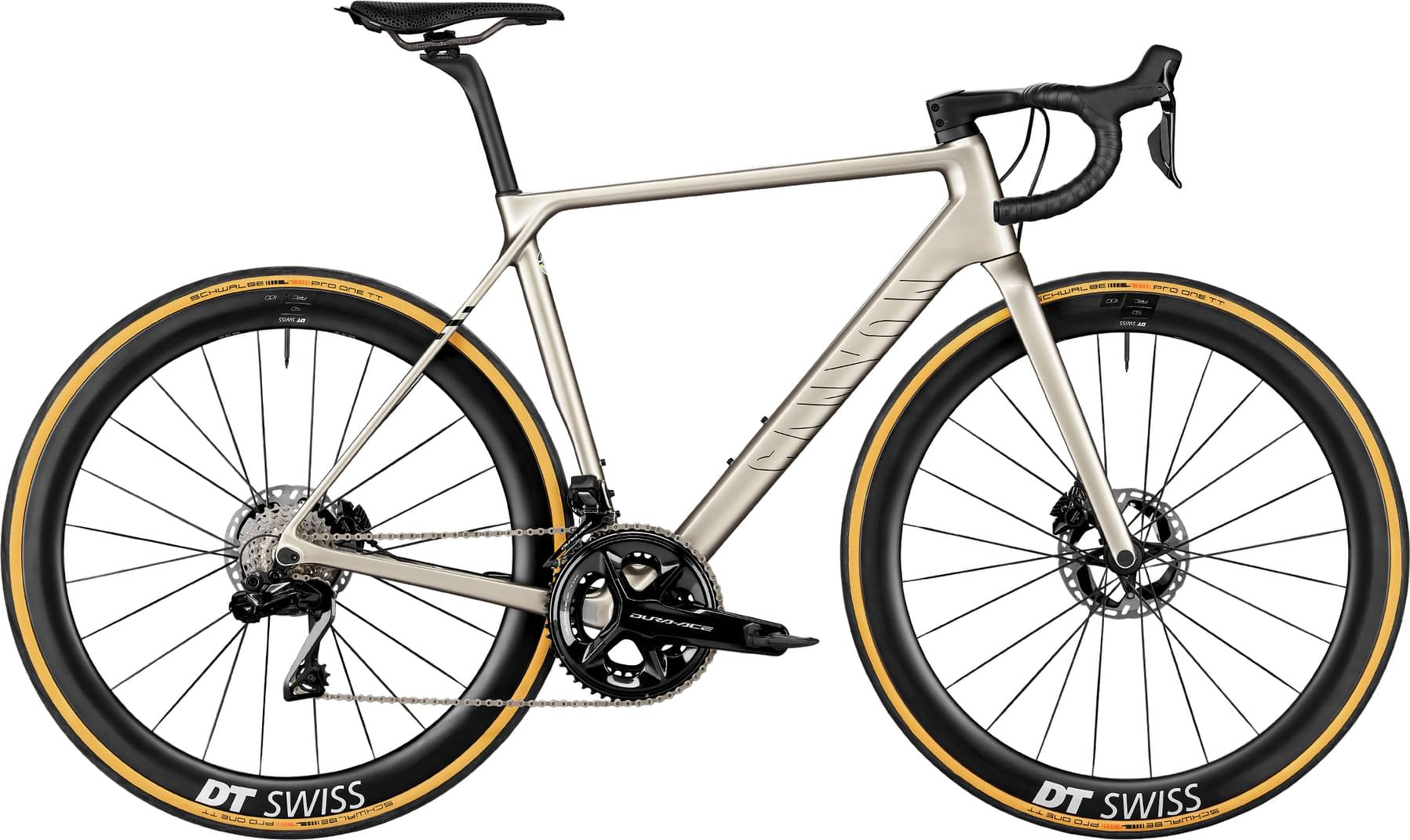

Canyon Ultimate CFR Disc Aero 2023
2023 Road
Estimate price |
8,299$
Weight | 6.54 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

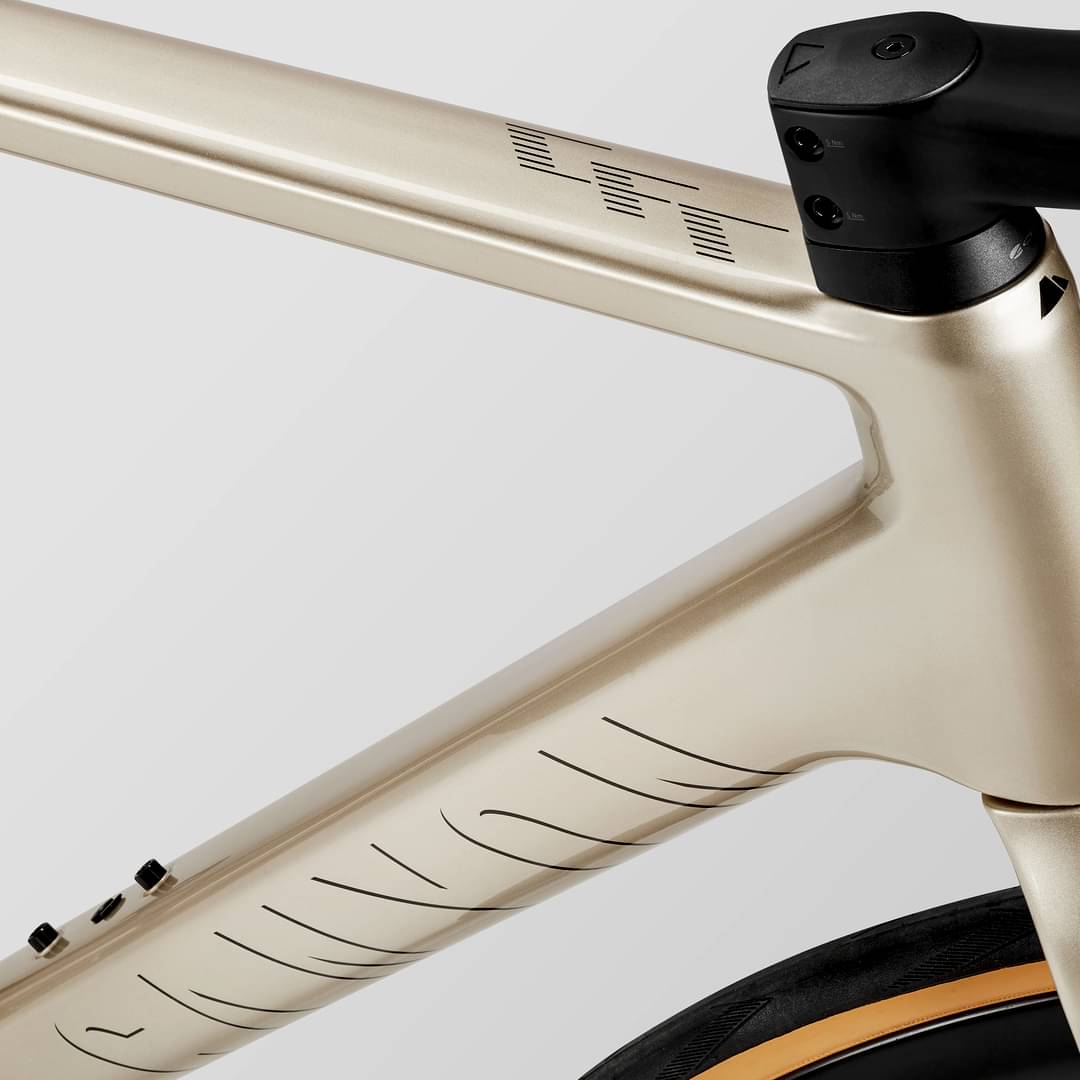

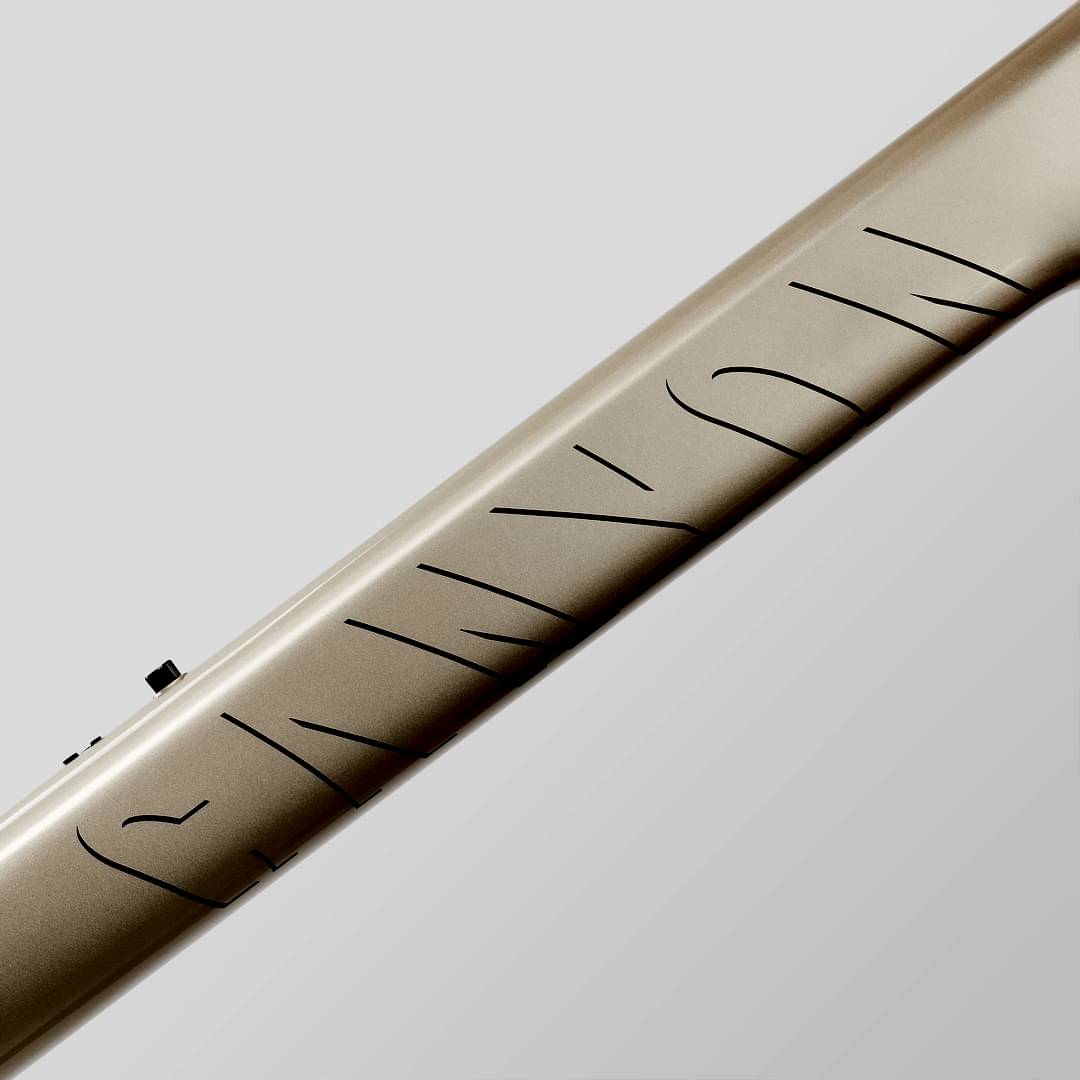

Canyon Ultimate CFR Disc, Pro-level road race bike frame combining WorldTour-proven design with super-advanced Japanese carbon. Weight: an astonishing 641 g (size M).
Suspension Fork
Canyon FK0072 CF Disc, Aero-optimised design, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved.
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250,12-speed
Front Derailleur
Shimano Dura-Ace Di2 R9250, Superlight: only 99 g, Attachment type: braze-on
Shift Levers
Shimano Dura-Ace Di2 R9270, 2-speed, Pro-level left-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632). | Shimano Dura-Ace Di2 R9270, 12-speed, Pro-level right-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632).
Cassette
Shimano Dura-Ace R9200, 12-speed, 11-30, Gear range: 11-30 T

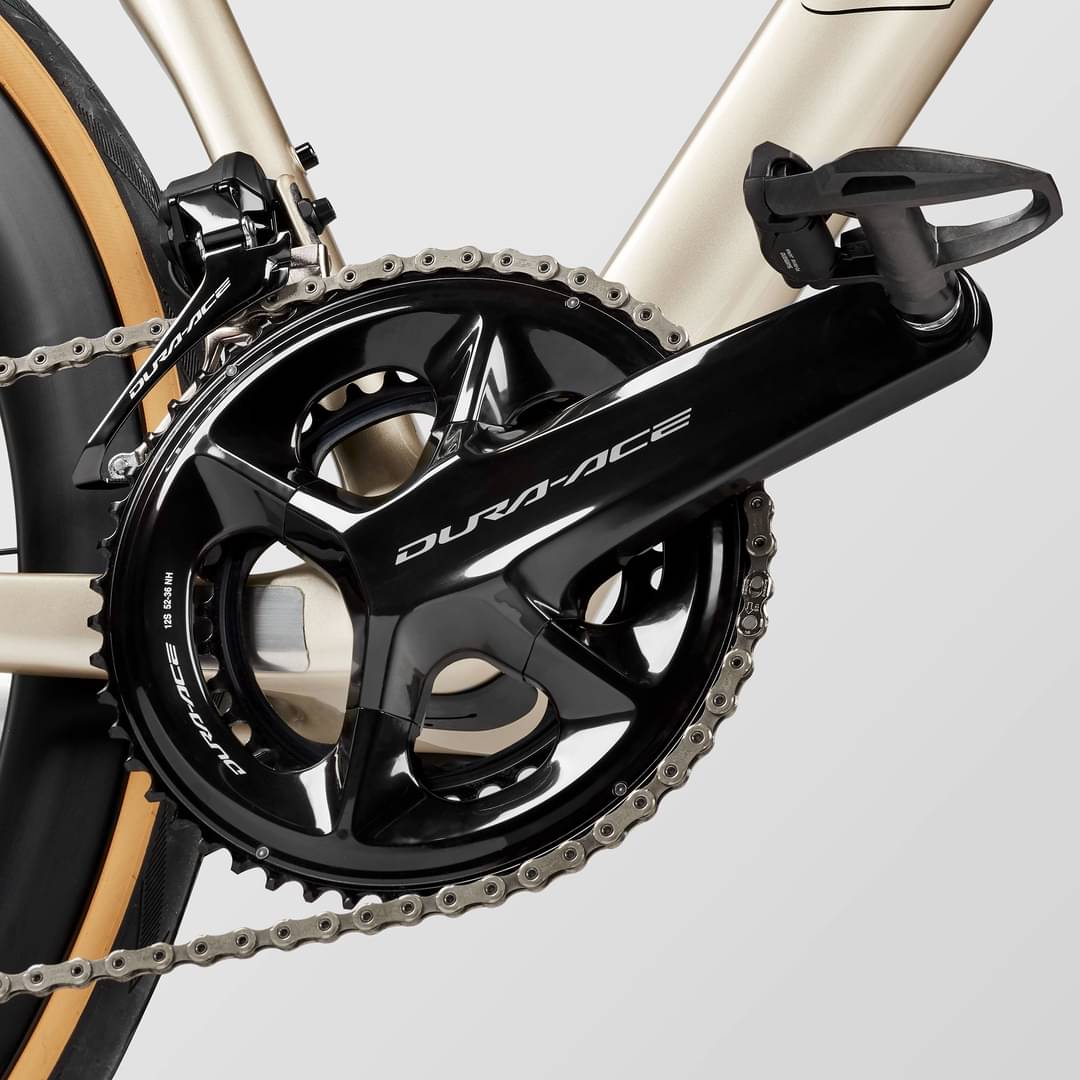

Crank
Shimano Dura-Ace Di2 R9200
Bottom Bracket
Shimano Pressfit BB92, Pressfit BB86 standard, compatible with 24 mm axles, featuring Hollowtech 2 technology., Weight: 54 g
Chain
Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano XTR CN-M9100 12-speed Chain 138 Links
Pedals
None included
Wheels
Rims
DT Swiss ARC 1100 Dicut db, Front wheel with Aero+ technology for stability, low drag, and all-round performance. With DT Swiss aero spokes and SINC ceramic bearings., Tubeless-ready, Rim depth: 50 mm, Inner width: 20 mm | DT Swiss ARC 1100 Dicut db
Tires
Schwalbe Pro One TT Evo 25mm, Casing: MicroSkin, Compound: OneStar, Technology: Tubeless Easy | Schwalbe Pro One TT, 28mmm, Pure race tyre: speed, minimum rolling resistance, minimum weight., Carcass: Super Race, Compound: Addix Race
Brakes
Brakes
Shimano Flat Mount Adapter +20mm
Brake Levers
Shimano Dura-Ace Di2 R9270, 2-speed, Pro-level left-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632). | Shimano Dura-Ace Di2 R9270, 12-speed, Pro-level right-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632).
Seat
Saddle
Fizik Antares Versus R1, 3D printed saddle with tailored zonal cushioning., Width: 139mm, Rail material: carbon (oval), Weight: 174 g
Seatpost
Canyon S13 VCLS CF, Material: Carbon, Setback: 15 - 35 mm, Technology: VCLS, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.381 mm | 1.418 mm | 1.45 mm | 1.484 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 579 mm | 584 mm | 588 mm | 591 mm | 606 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 78 mm | 69 mm | 61 mm | 55 mm | 55 mm |
| Stack | 500 mm | 522 mm | 546 mm | 567 mm | 592 mm |
| Reach | 368 mm | 378 mm | 385 mm | 391 mm | 399 mm |
| Top Tube Length | 513 mm | 529 mm | 543 mm | 556 mm | 571 mm |
| Seat Tube Angle | 73.85 ° | 73.83 ° | 73.82 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 434 mm | 467 mm | 494 mm | 522 mm | 554 mm |
| Head Tube Angle | 69.6 ° | 71 ° | 72.25 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 89 mm | 107 mm | 130 mm | 148 mm | 174 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 983 mm | 988 mm | 993 mm | 996 mm | 1011 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 720 mm | 748 mm | 775 mm | 801 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm |
Model Overview
Ultimate CFR Disc Aero is a Canyon Ultimate model. 158 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Ultimate CF SL 7 Disc 2023 is the cheapest bike model and costs 2335$. Canyon Ultimate CFR WRL 2023 is the most expensive one and costs 11679$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Ultimate CFR Disc Aero price was 8299$. Comparing the average cost of a Race bike to this one, you will see that Ultimate CFR Disc Aero price is 147.73% more expensive.
Race bikes average weight
Race bikes have an average weight of 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Ultimate CFR Disc Aero has a weight of 6.54 kg (14.42 lbs). In conclusion, the average Race bike weighs 4.28% more than Ultimate CFR Disc Aero.
Ultimate CFR Disc Aero components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Ultimate CFR Disc Aero model has 700c carbon wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ultimate CFR Disc Aero has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
