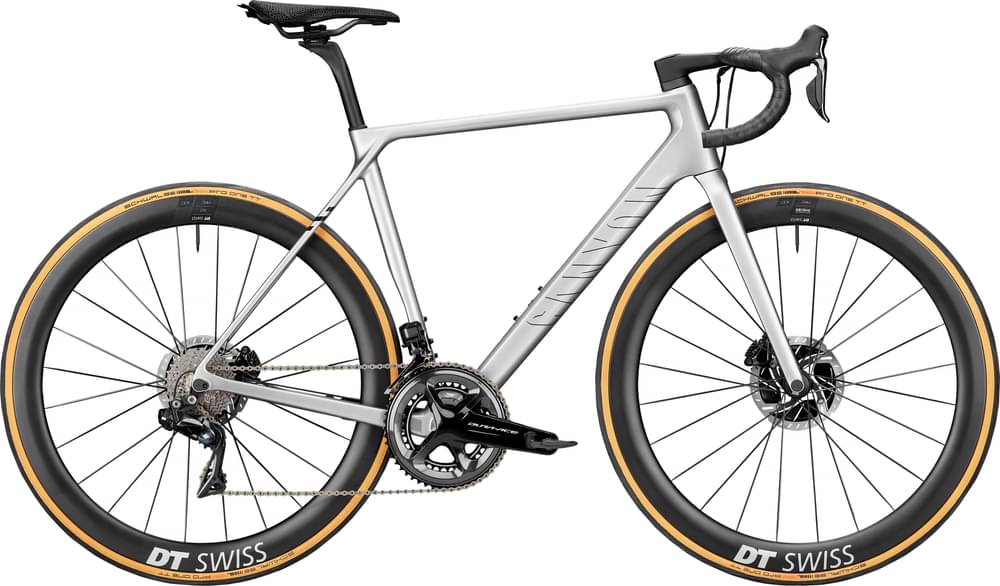

Canyon Ultimate CFR Disc Di2 2021
2021 Road
Estimate price |
9,000$
Weight | 6.59 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2, 105 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate CFR Disc
Suspension Fork
Canyon FK0072 CF Disc
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9150, 11-speed, Short-cage 11-speed derailleur, max. cassette size: 30T, Shadow shifting technology. Weight: 205 g
Front Derailleur
Shimano Dura-Ace Di2 R9150, For 2x11 speed setups, with automatic trimming, braze-on mount. Weight: 105 g
Shift Levers
Shimano Dura-Ace Di2 R9170 2s, Weight: 160 g | Shimano Dura-Ace Di2 R9170 11s, Weight: 160 g
Cassette
Shimano Dura-Ace R9100 11-30 11s, Performance cassette. With carbon fibre & alloy spider and five titanium sprockets for accurate shifting and light weight.
Crank
Shimano Dura-Ace R9100 PM, 2x11-speed crankset with integrated dual-sided power meter and 52/36 gearing. With HollowTech II design for superlight construction. Weight: 670 g, *US size small comes with 170mm cranks
Bottom Bracket
Shimano Pressfit BB92, Pressfit BB86 standard, compatible with 24 mm axles, featuring Hollowtech 2 technology. Weight: 54 g
Chain
Shimano HG901 11-speed, High-end chain with complete SIL-TEC treatment on plates and roller, for increased durability and efficiency.
Pedals
None included
Wheels
Rims
DT Swiss ARC 1100 Dicut db
Tires
Schwalbe Pro One TT Evo 25mm, Casing: MicroSkin, Compound: OneStar, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano Dura-Ace Di2 R9170 2s, Weight: 160 g | Shimano Dura-Ace Di2 R9170 11s, Weight: 160 g
Disk Rotors
Shimano RT900, Premium lightweight Centerlock brake rotor featuring Ice Freeza technology., Weight: 117 g
Seat
Saddle
Fizik Antares Versus R1, 3D printed saddle with tailored zonal cushioning. Width: 139mm, rail material: carbon (oval), weight: 174 g
Seatpost
Canyon S13 VCLS CF, Material: Carbon, Setback: 15 - 35 mm, Technology: VCLS, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.381 mm | 1.418 mm | 1.45 mm | 1.484 mm | 1.467 mm | 1.474 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 579 mm | 584 mm | 588 mm | 591 mm | 606 mm | 629 mm | 641 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 78 mm | 69 mm | 61 mm | 55 mm | 55 mm | 54 mm | 52 mm |
| Stack | 500 mm | 522 mm | 546 mm | 567 mm | 592 mm | 613 mm | 631 mm |
| Reach | 368 mm | 378 mm | 385 mm | 391 mm | 399 mm | 418 mm | 428 mm |
| Top Tube Length | 513 mm | 529 mm | 543 mm | 556 mm | 571 mm | 596 mm | 612 mm |
| Seat Tube Angle | 73.85 ° | 73.83 ° | 73.82 ° | 73.8 ° | 73.79 ° | 73.78 ° | 73.77 ° |
| Seat Tube Length | 434 mm | 467 mm | 494 mm | 522 mm | 554 mm | 584 mm | 614 mm |
| Head Tube Angle | 69.6 ° | 71 ° | 72.25 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 89 mm | 107 mm | 130 mm | 148 mm | 174 mm | 195 mm | 213 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 983 mm | 988 mm | 993 mm | 996 mm | 1011 mm | 1034 mm | 1046 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 720 mm | 748 mm | 775 mm | 801 mm | 828 mm | 851 mm | 874 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Ultimate CFR Disc Di2 is part of the Canyon Ultimate model. Canyon released 158 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Ultimate CF SL 7 2021 has a starting price of 1804$. Canyon Ultimate CFR Disc Aero 2021 on the other hand is the most expensive at 10000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 9000$. If we compare this with the average Race bike cost we notice that the price is 168.66% more expensive.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Ultimate CFR Disc Di2 weighs 6.59 kg (14.53 lbs) and is slightly lighter than the average. In other words, this model is 3.49% lighter than the average Race bike.
Ultimate CFR Disc Di2 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Ultimate CFR Disc Di2 are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Ultimate CFR Disc Di2 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
