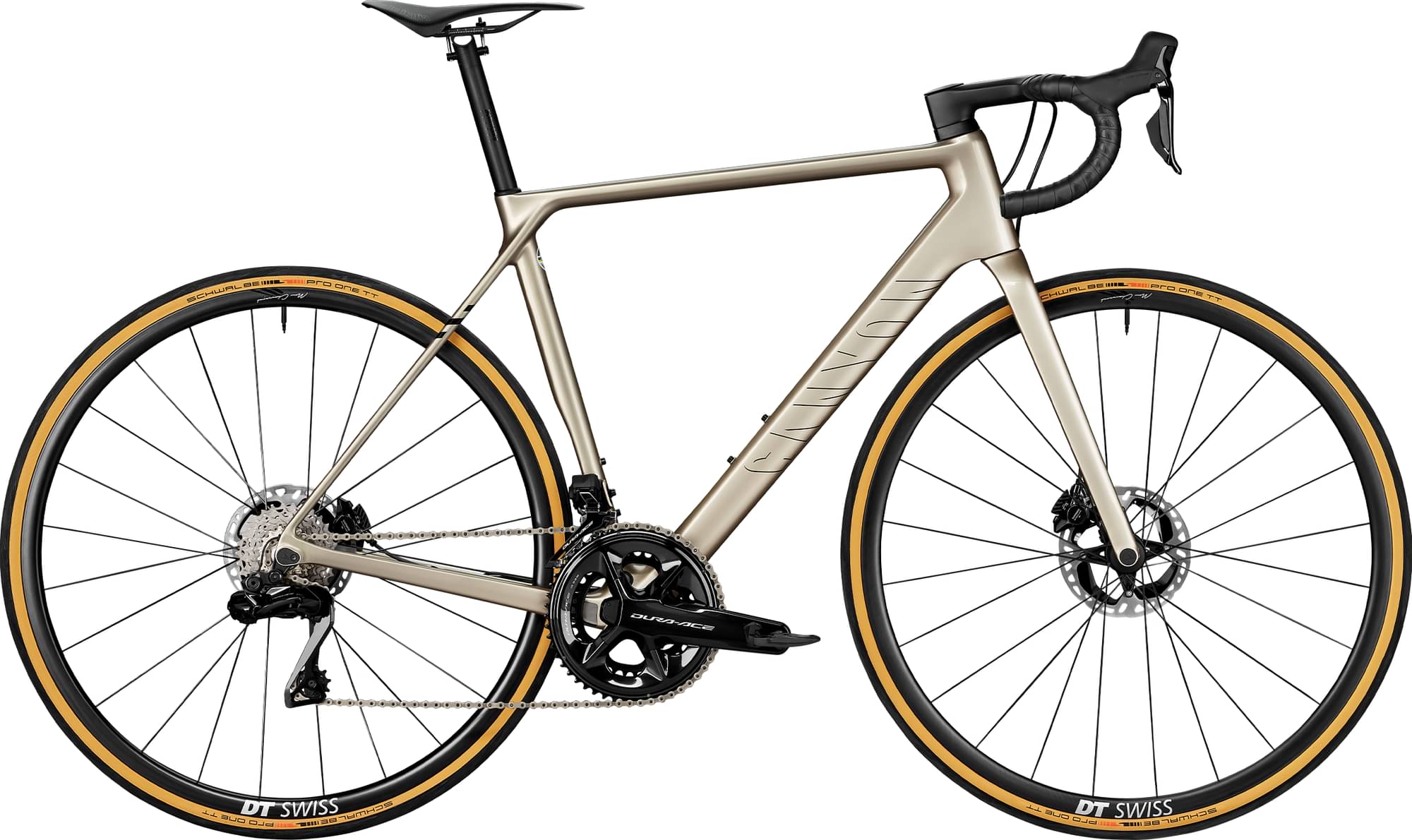

Canyon Ultimate CFR Disc Di2 2022
2022 Road
Estimate price |
10,321$
Weight | 6.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate CFR Disc, Pro-level road race bike frame combining WorldTour-proven design with super-advanced Japanese carbon. Weight: an astonishing 641 g (size M).
Suspension Fork
Canyon FK0072 CF Disc, Aero-optimised design, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved.
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250, 12-speed, Pro-level semi-wireless rear derailleur. Incredible shifting speed: 58% faster. Max cassette size: 34T.
Front Derailleur
Shimano Dura-Ace Di2 R9250, Semi-wireless derailleur with world-class performance. 45% faster shifting. 33% smaller frontal area. Superlight: only 99g. Attachment type: braze-on.
Shift Levers
Shimano Dura-Ace Di2 R9270, 2-speed, Pro-level left-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632). | Shimano Dura-Ace Di2 R9270, 12-speed, Pro-level right-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632).
Cassette
Shimano Dura-Ace R9200, 12-speed, 11-30, The latest generation of superlight Shimano cassettes. Gear range: 11-30T.
Crank
Rotor ALDHU24 Inspider
Bottom Bracket
Shimano Pressfit BB92, Pressfit BB86 standard, compatible with 24 mm axles, featuring Hollowtech 2 technology. Weight: 54 g
Chain
Shimano XTR CN-M9100 12-speed Chain | Shimano SM-CN910 12-speed Quick-Link Chain Connector
Pedals
None included
Wheels
Rims
DT Swiss PRC 1100 Dicut Mon Chasseral, DT Swiss’ lightest disc climbing wheelset, hand-made in Europe. Tubeless-ready. Hub type: 180 with Ratchet EXP 36. Rim depth: 24 mm. Bearings: SINC ceramic. Wheelset weight: 1266 g. | DT Swiss PRC1100 Dicut Mon Chasseral SH11, DT Swiss’ lightest disc climbing wheelset, hand-made in Europe. Tubeless-ready. Hub type: 180 with Ratchet EXP 36. Rim depth: 24 mm. Bearings: SINC ceramic. Wheelset weight: 1266 g.
Tires
Schwalbe Pro One TT, 28mmm, Pure race tyre: speed, minimum rolling resistance, minimum weight. Carcass: Super Race. Compound: Addix Race.
Brakes
Brakes
Shimano Flat Mount Adapter +20mm, Adapter that makes it possible to mount 160 mm brake rotors.
Brake Levers
Shimano Dura-Ace Di2 R9270, 2-speed, Pro-level left-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632). | Shimano Dura-Ace Di2 R9270, 12-speed, Pro-level right-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632).
Disk Rotors
Shimano RT-MT900, Disc Mount: Centerlock
Seat
Saddle
Selle Italia SLR C59, Superlight 61 g saddle with full-carbon construction. With SuperFlow cutout for extra comfort.
Seatpost
Schmolke TLO UD Carbon, Material: Carbon, Setback: 0 mm, Weight: 87 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.381 mm | 1.418 mm | 1.45 mm | 1.484 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 579 mm | 584 mm | 588 mm | 591 mm | 606 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 78 mm | 69 mm | 61 mm | 55 mm | 55 mm |
| Stack | 500 mm | 522 mm | 546 mm | 567 mm | 592 mm |
| Reach | 368 mm | 378 mm | 385 mm | 391 mm | 399 mm |
| Top Tube Length | 513 mm | 529 mm | 543 mm | 556 mm | 571 mm |
| Seat Tube Angle | 73.85 ° | 73.83 ° | 73.82 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 434 mm | 467 mm | 494 mm | 522 mm | 554 mm |
| Head Tube Angle | 69.6 ° | 71 ° | 72.25 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 89 mm | 107 mm | 130 mm | 148 mm | 174 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 983 mm | 988 mm | 993 mm | 996 mm | 1011 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 720 mm | 748 mm | 775 mm | 801 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | cm |
Model Overview
Ultimate CFR Disc Di2 belongs to the Canyon Ultimate model. Canyon launched 158 bikes of this model so far. You can easily view all of the Canyon Ultimate bikes models from 2022, here.
Model range prices
Canyon Ultimate CF SL 7 2022 is the cheapest bike model and costs 1804$. Canyon Ultimate CFR Disc Aero 2022 is the most expensive one and costs 10000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2022 and its price was 9555$. Comparing the average cost of a Race bike to this one, you will see that Ultimate CFR Disc Di2 price is 185.22% higher.
Race bikes average weight
Race bikes have an average weight of 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Canyon Ultimate CFR Disc Di2 it’s weighing 6.16 kg (13.58 lbs). At this weight, is considerably lighter than average. To sum up, it’s 10.71% lighter than the average weight of Race bikes.
Ultimate CFR Disc Di2 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Ultimate CFR Disc Di2 bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Ultimate CFR Disc Di2 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
