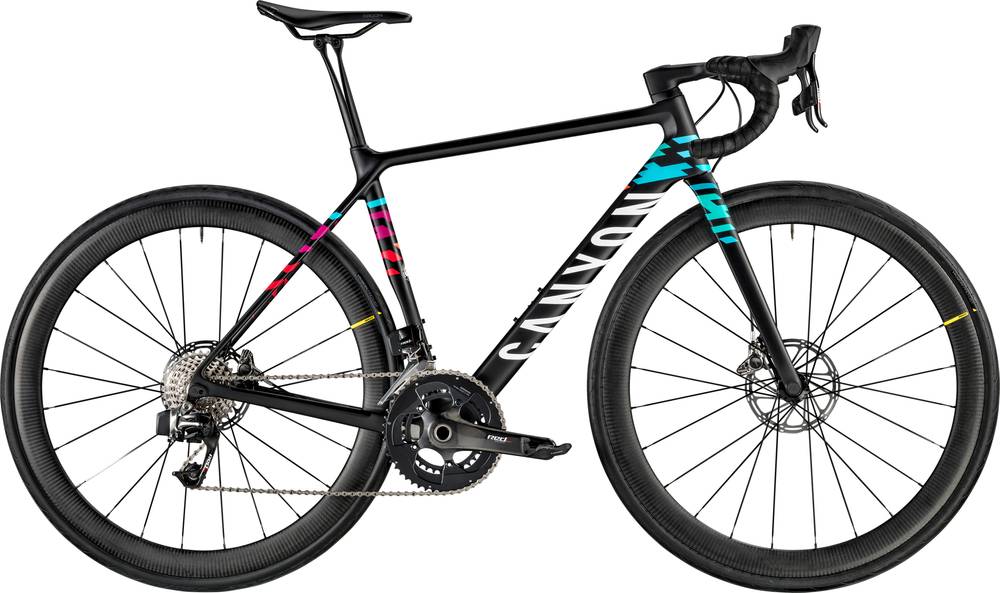

Canyon Ultimate WMN CF SLX Disc 9.0 Team CSR 2019
2019 Road
Estimate price |
7,000$
Weight | 7.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650c / 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
159cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate WMN CF SLX Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon F38 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
SRAM RED eTap GS
Front Derailleur
SRAM RED eTap
Shift Levers
SRAM RED eTap HRD 2s | SRAM RED eTap HRD 11s
Cassette
SRAM XG-1190 11-32 11s
Crank
SRAM RED, 50/34
Bottom Bracket
SRAM Pressfit GXP
Chain
SRAM RED 11s
Pedals
None included
Wheels
Rims
Mavic Cosmic Pro Carbon UST Disc, Rim Material: Carbon, Rim Height: 45 mm, Inner Width: 19 mm, Tire: Yksion Pro UST 28 mm, Weight (w/o Tire): 760 g | Mavic Cosmic Pro Carbon UST Disc SH11, Rim Material: Carbon, Rim Height: 45 mm, Inner Width: 19 mm, Tire: Yksion Pro UST 28 mm, Weight (w/o Tire): 890 g
Tires
Mavic Yksion Pro GripLink | Mavic PowerLink, Rubber compound developed to privide maximum grip levels, 127 TPI carcass for smooth rolling performance, Width: 25 mm
Brakes
Brake Levers
SRAM RED eTap HRD 2s | SRAM RED eTap HRD 11s
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Headset
Canyon | Acros
Seat
Saddle
Ergon SR1 Sport
Seatpost
Canyon S14 VCLS 2.0 CF, Material: Carbon, Setback: -2 mm / 10 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.42 mm | 1.43 mm | 1.45 mm | 1.47 mm |
| Front Center | 549 mm | 552 mm | 577 mm | 582 mm | 595 mm |
| Rake | 42 mm | 42 mm | 45 mm | 44 mm | 39 mm |
| Trail | 68 mm | 62 mm | 68 mm | 61 mm | 66 mm |
| Stack | 491 mm | 512 mm | 534 mm | 557 mm | 579 mm |
| Reach | 356 mm | 361 mm | 374 mm | 384 mm | 395 mm |
| Top Tube Length | 497 mm | 507 mm | 527 mm | 543 mm | 561 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 406 mm | 436 mm | 466 mm | 496 mm | 526 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71 ° | 72.3 ° | 72.3 ° |
| Head Tube Length | 100 mm | 119 mm | 113 mm | 133 mm | 154 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 962 mm | 965 mm | 987 mm | 992 mm | 1005 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 700 | 717 mm | 751 mm | 778 mm | 805 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 |
| Rider Max Height | 161 cm | 167 cm | 173 cm | 179 cm | 184 cm |
Model Overview
Ultimate WMN CF SLX Disc 9.0 Team CSR is a Canyon Ultimate model. Canyon launched 158 bikes of this model so far. Take a sneak peek at all Canyon Ultimate bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Canyon Ultimate CF SL 7.0 2019 has a starting price of 1799$. Canyon Ultimate CF SLX Disc 9.0 Team Movistar 2019 on the other hand is the most expensive at 9000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Ultimate WMN CF SLX Disc 9.0 Team CSR price was 7000$. In conclusion, this bike price is 108.96% higher than the price of the average Race bike.
Race bikes average weight
Race bikes weigh an average of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Ultimate WMN CF SLX Disc 9.0 Team CSR it’s weighing 7.2 kg (15.87 lbs). At this weight, is a bit heavier than average. In other words, this model is 5.57% heavier than the average Race bike.
Ultimate WMN CF SLX Disc 9.0 Team CSR components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Ultimate WMN CF SLX Disc 9.0 Team CSR 2019 bike is equipped with carbon wheels when leaving the factory. These wheels are less popular than 650b and 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
