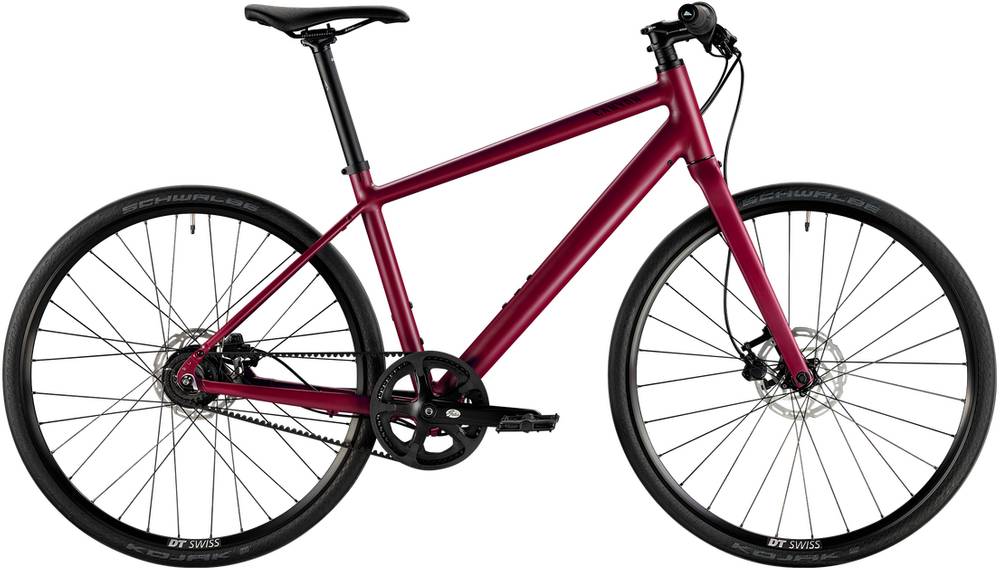

Canyon Urban 5.0 2019
2019 Urban
Estimate price |
1,299$
Weight | 10.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon U13 Urban AL, Canyon Aluminium Technology, Material: 6061 aluminium, Hub gears with belt drive, Tapered steerer, Pannier rack & mudguard attachment, Welded seams, Weight: ca. 1,850g (M)
Suspension Fork
Canyon FK049 - One One Eight CF Disc
Drivetrain
Pedals
VP Components VP-536
Wheels
Front Hub
Shimano Nexus, 8s | DT Swiss 350, RW: Shimano Nexus, SG-C6001, 8 Speed, FW: DT Swiss 350
Rear Hub
Shimano Nexus, 8s | DT Swiss 350, RW: Shimano Nexus, SG-C6001, 8 Speed, FW: DT Swiss 350
Rims
DT Swiss X453d, 650b, 20mm inner width, 24mm outer width
Tires
Schwalbe Kojak, SpeedGrip Compound, Width: 35 mm, 650b
Brakes
Brakes
Tektro HD-M285
Cockpit
Stem
Iridium
Handlebar
Iridium
Grips
Canyon Race Grip, Ultralight silicone grip, Specially adapted for grip shift, Outer diameter: 32 mm black
Headset
Acros AzX 214
Seat
Saddle
Iridium Urban
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.381 mm | 1.396 mm | 1.402 mm | 1.396 mm |
| Stack | 555 mm | 578 mm | 610 mm | 645 mm |
| Reach | 402 mm | 414 mm | 435 mm | 462 mm |
| Top Tube Length | 566 mm | 585 mm | 616 mm | 653 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 485 mm | 535 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 136 mm | 160 mm | 193 mm | 230 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 1017 mm | 1036 mm | 1068 mm | 1106 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Urban 5.0 is part of the Canyon Urban model. Canyon launched 3 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Canyon Urban 5.0 2019 is the most affordable bike of this model and has a price of 1299$. On the other hand, Canyon Urban 8.0 2019, is the most expensive and costs 1999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter bikes average price
Our math shows that the average cost of a dependable Commuter bike is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 1299$. Doing a quick comparison, we notice that Urban 5.0 price is 70.47% more expensive than the average cost of a Commuter bike.
Average weight for Commuter bikes
Commuter bikes have an average weight of 14.29 kg (31.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 10.7 kg (23.59 lbs), the Urban 5.0 model is much lighter than average. In other words, this model is 33.55% lighter than the average Commuter bike.
Urban 5.0 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Canyon Urban 5.0 2019, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Urban 5.0 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Urban 5.0 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
