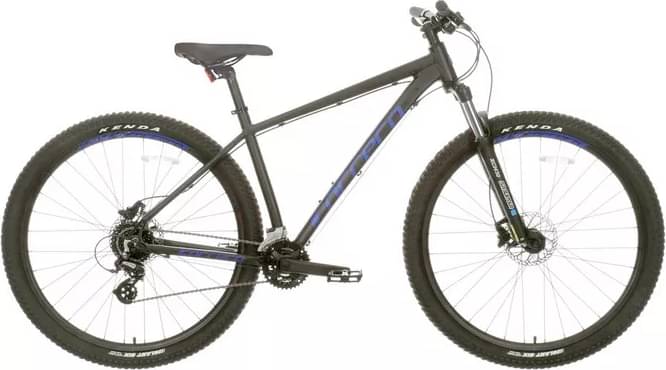

Carrera Hellcat Mens Mountain Bike 2020
2020 Mountain
Estimate price |
515$
Weight | 15.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Suntour XCM, 100mm travel
Drivetrain
Rear Derailleur
Shimano RD-M310 Altus 7/8 speed or Microshift Mezzo 8-speed
Front Derailleur
Shimano FD-M315-TS, 34.9mm clamp
Cassette
Shimano CS-HG200 8 speed, 12-32T
Crank
Prowheel 36/22T, square taper (S - 170mm, M/L - 175mm)
Chain
KMC Z8, 8-speed
Pedals
Alloy MTB pedal, 9/16"
Wheels
Front Hub
Black, alloy, Quick release 9x100mm
Rear Hub
Black, alloy, Quick release 10x135mm
Rims
Carrera double-wall alloy, 32H
Tires
Carrera Puncture Protect by Kenda, MTB
Brakes
Brakes
Clarks Clout Hydraulic disc brake, 160mm rotor
Cockpit
Handlebar
Carrera riser bar, 15mm rise, 31.8mm clamp, Width: S - 720mm M/L/XL - 740mm
Grips
Carrera MTB
Headset
Semi-integrated, 1 1/8"
Seat
Seatpost
Carrera Alloy, 31.6mm, 34.9mm clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 319 mm | 314 mm | 309 mm | 309 mm | 309 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Top Tube Length | 572 mm | 587 mm | 607 mm | 627 mm | 647 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 410 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 100 mm | 110 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Bottom Bracket Drop | 55 mm | 60 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Hellcat Mens Mountain Bike belongs to the Carrera Hellcat model. Carrera launched 2 bikes of this model so far. You can easily view all of the Carrera Hellcat bikes models from 2020, here.
Model range prices
Carrera Hellcat Mens Mountain Bike 2020 is the most affordable bike of this model and has a price of 468$. On the other hand, Carrera Hellcat Womens Mountain Bike 2020, is the most expensive and costs 468$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Carrera released this model in 2020, its price was 468$. Comparing this to the average Crosscountry bike price, we see that the price is 307.05% lower.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Carrera Hellcat Mens Mountain Bike it’s weighing 15.3 kg (33.73 lbs). At this weight, is much heavier than average. In short, the average Crosscountry bike weight is 23.39% lower than this one.
Overview of components
Fork
The Hellcat Mens Mountain Bike comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Hellcat Mens Mountain Bike bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hellcat Mens Mountain Bike comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
