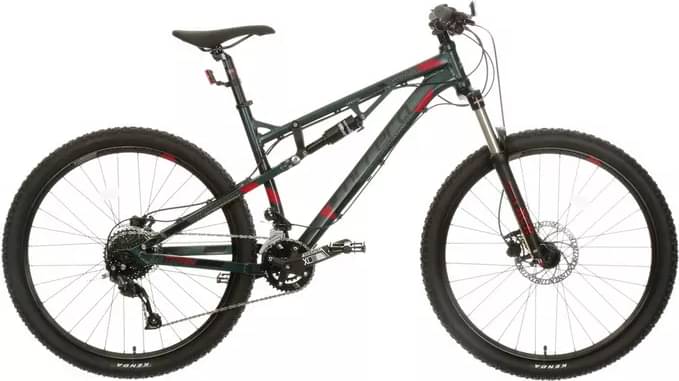

Carrera Titan Mens Full Suspension Mountain Bike 2022
2022 Mountain
Estimate price |
917$
Weight | 15.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Alivio, Suntour -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Suntour XCR 32
Drivetrain
Rear Derailleur
Shimano Alivio 7/8 speed, M310
Front Derailleur
Shimano Alivio, 9 speed direct mount, M2000
Shift Levers
Shimano Alivio M3000, 2x9
Cassette
Shimano HG200 9 speed 11-36T
Crank
Suntour XCM, Square Taper, 36/22T (S - 170mm, M/L - 175mm)
Bottom Bracket
Sealed bearing, 73x127
Chain
KMC X9
Pedals
Alloy Black MTB, 9/16"
Wheels
Front Hub
Alloy, 9x100m quick release
Rear Hub
Alloy, 10x135mm quick release, 8/9/10 speed freehub body
Rims
Carrera double-wall alloy, 32H
Tires
Kenda Kadre tyre with Carrera Puncture Protect
Brakes
Brakes
Front: Tektro, Hydraulic Disc, 180mm Rotor, Rear: Tektro, Hydraulic Disc, 180mm Rotor
Cockpit
Stem
Carrera alloy, 45mm, 31.8mm clamp
Handlebar
Carrera Alloy, 31.8mm clamp, 12mm rise (Width: all sizes - 720mm)
Grips
Carrera by Velo
Headset
Semi-Integrated, 1 1/8" (44/44mm)
Seat
Saddle
Carrera Memory Foam Saddle
Seatpost
Carrera Alloy, 31.6 x 350mm, 34.9mm seat clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 586 mm | 593 mm | 600 mm |
| Reach | 400 mm | 422 mm | 435 mm |
| Top Tube Length | 554 mm | 577 mm | 596 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 460 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Titan Mens Full Suspension Mountain Bike completes the Carrera Titan model. Carrera launched 6 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Carrera Titan Mens Full Suspension Mountain Bike 2022 is the most affordable bike of this model and has a price of 833$. On the other hand, Carrera Titan X Mens Full Suspension Mountain Bike 2022, is the most expensive and costs 1168$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Carrera Titan Mens Full Suspension Mountain Bike price was 833$. Doing a quick comparison, we notice that Titan Mens Full Suspension Mountain Bike price is 231.57% lower than the average cost of a Trail bike.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 15.8 kg (34.83 lbs), Carrera bike is much heavier than average. To sum up, it’s 21.73% heavier than the average weight of Trail bikes.
Overview of components
Fork
Carrera Titan Mens Full Suspension Mountain Bike 2022 bike is equipped with the Suntour XCR fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Titan Mens Full Suspension Mountain Bike 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Carrera Titan Mens Full Suspension Mountain Bike is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Carrera Titan Mens Full Suspension Mountain Bike bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
