Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Backfire R intube, Material: Aluminium, 29", Steuerrohr: 1.5" straight, Ausfallende: 12x148 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: TBP033A
Suspension Fork
SR Suntour XCR34 AIR BOOST LOR, Federweg: 100 mm, 1.5" tapered
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120-DSGS, 1x10
Shift Levers
Shimano Deore, SL-M4100-R
Cassette
Shimano Deore, CS-M4100-10, 11-42T
Crank
CENTURION R Comp Gen4, mattschwarz, Länge: 170 mm (XS), 175 mm (S/M, M/L, XL), TCK10
Chain
KMC E10 silber, Kettenlänge: 116 Links
Chain Guide
CENTURION Trail R, passend für Bosch Performance Line CX Gen4
Pedals
VP-537
Wheels
Front Hub
Shimano HB-MT400-B / Shimano FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rear Hub
Shimano HB-MT400-B / Shimano FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rims
PROCRAFT Altitude MD30, IW 30 mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
Maxxis Ardent, 29x2.4", tanwall
Brakes
Brakes
Shimano BR-MT410, resin pad
Brake Levers
Shimano BL-MT401
Cockpit
Stem
PROCRAFT Comp II, Winkel: 7°, Länge: 50 mm (XS), 60 mm (S/M), 60 mm (M/L), 70 mm (XL)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8 mm, Breite: 720 mm, Rise: 22 mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Pro II, Durchmesser: 30.9 mm, Länge: 350 mm (XS, S/M), 400 mm (M/L, XL)
Motor & Battery
Motor
Bosch Performance Line CX, max. 85 Nm, 250 W
Battery
Bosch PowerTube 625 Wh
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM/MD | MD/LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 4.145 mm | 4.349 mm | 4.537 mm | 4.764 mm |
| Stack | 630 mm | 648 mm | 667 mm | 686 mm |
| Top Tube Length | 595 mm | 621 mm | 646 mm | 672 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1145 mm | 1173 mm | 1200 mm | 1228 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

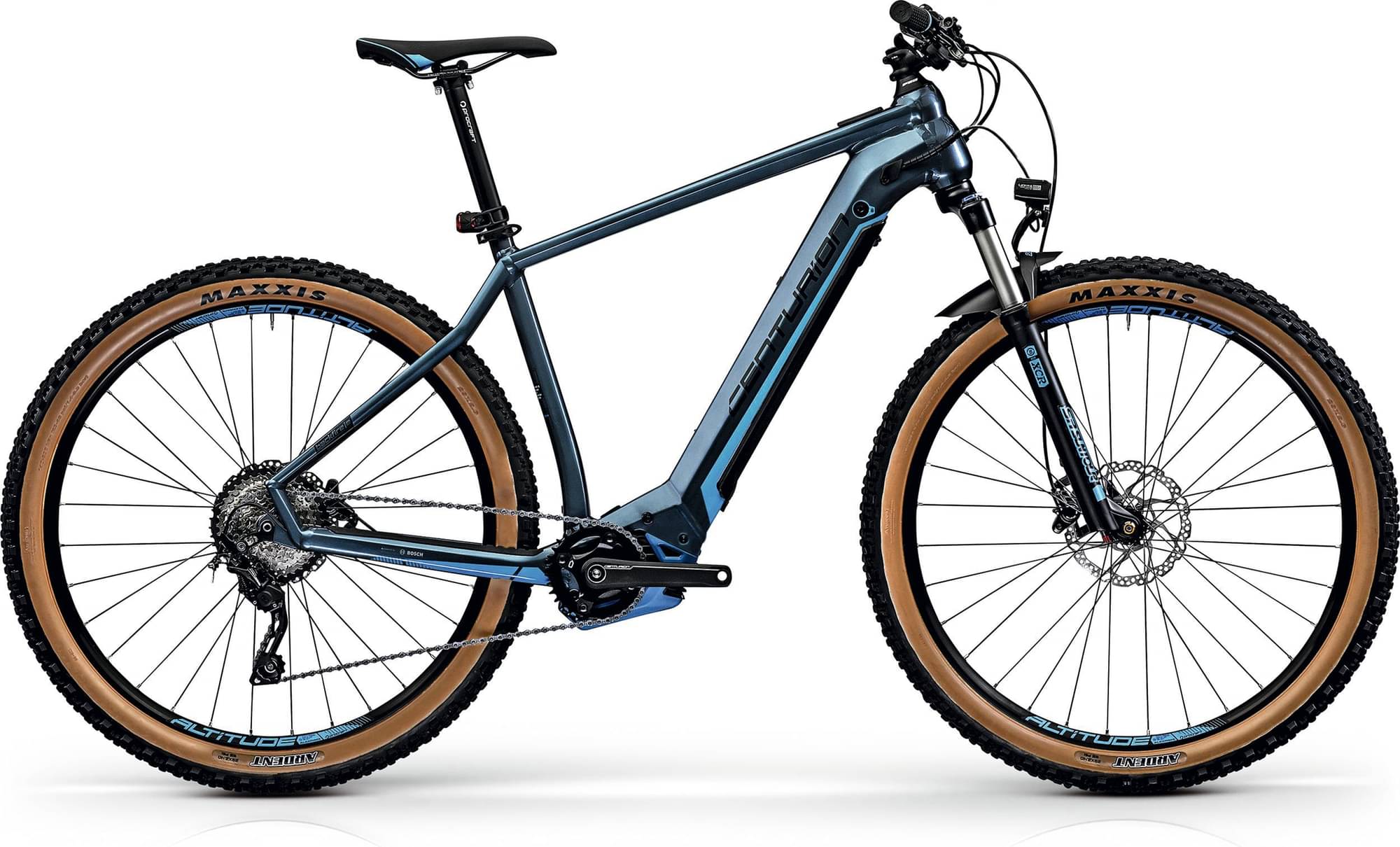

Backfire E R760i is a Centurion E Backfire model. There are 36 e-bikes that carry this model name. You can easily view all of the Centurion E Backfire e-bikes models from 2023, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Backfire E R760i components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Backfire E R760i 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Centurion Backfire E R760i is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
