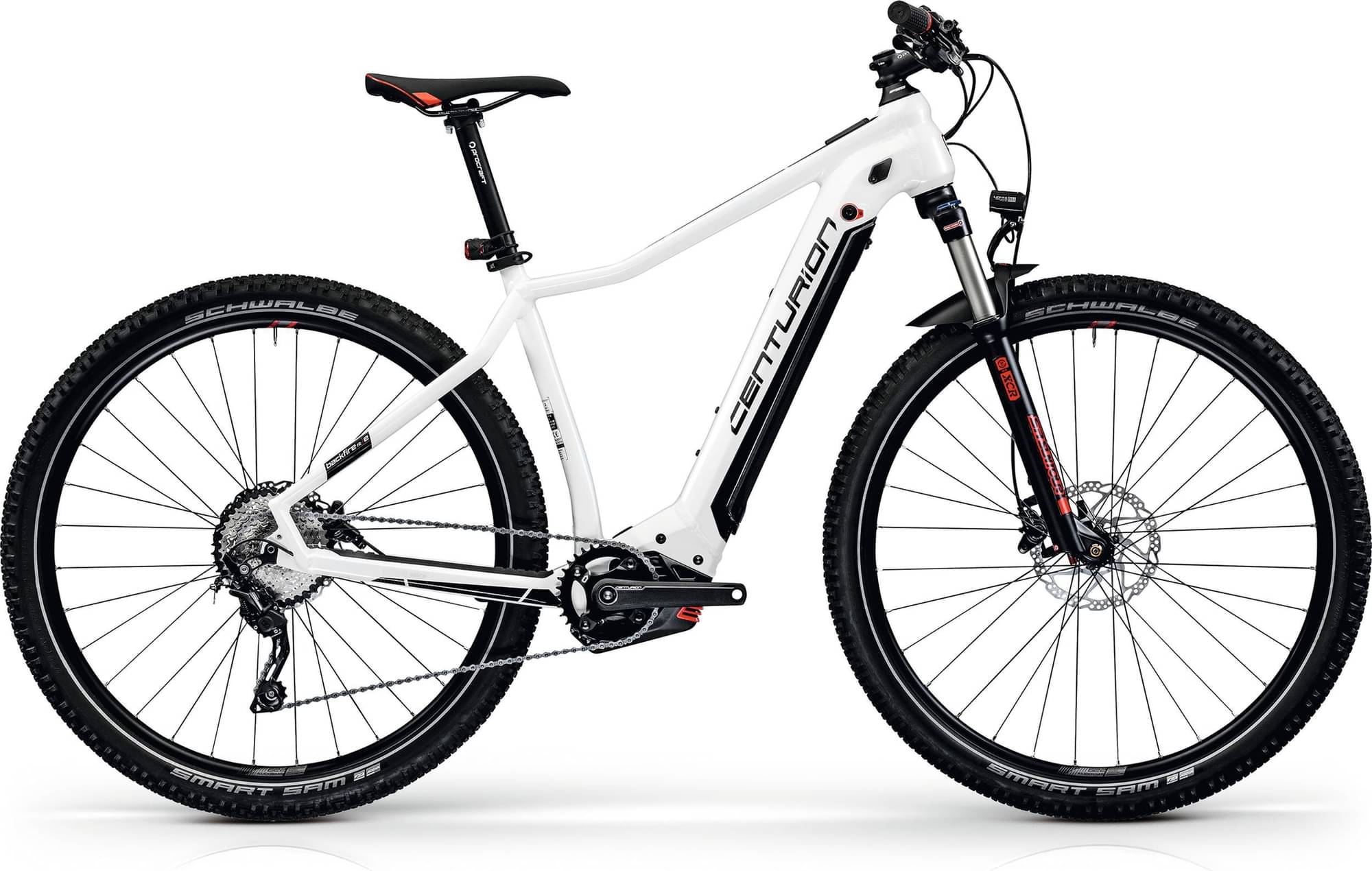

centurion Backfire Fit E R760i 2021
2021 E-bike
Weight | 22.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625 Wh, mit BOSCH PowerPack 500 Wh nachrüstbar [außer RH XS] -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Backfire Fit R intube, Material: Aluminium, Steuerrohr: 1.5" straight, Ausfallende: 12x148 mm, Bremsaufnahme: Postmount 180 mm
Suspension Fork
SR SUNTOUR XCR34 AIR BOOST LOR, Federweg: 100 mm, 1.5" tapered
Drivetrain
Rear Derailleur
SHIMANO Deore, RD-M4120-DSGS, 1x10
Shift Levers
SHIMANO Deore, SL-M4100-R
Cassette
SHIMANO Deore, CS-M4100-10, 11-42T
Crank
CENTURION Comp Gen4, mattschwarz, Länge: 170 mm [XS, S], 175 mm [M, L, XL]
Chain
KMC x10e EPT
Chain Guide
CENTURION Trail R, passend für BOSCH Performance Line CX Gen4
Pedals
VP-993
Wheels
Front Hub
SHIMANO HB-MT400-B / SHIMANO FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rear Hub
SHIMANO HB-MT400-B / SHIMANO FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rims
PROCRAFT Altitude MD27, IW27, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Smart Sam 27.5/29x2.25", Performance Line mit Reflex
Brakes
Brakes
SHIMANO BR-MT410, resin pad
Brake Levers
SHIMANO BL-MT401
Cockpit
Stem
PROCRAFT Comp II, 7°
Handlebar
PROCRAFT Riser Pro, dia: 31.8 mm, 680 mm [XS], 720 mm [S, M, L, XL], rise: 22 mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Pro II, dia: 30.9 mm, 350 mm [XS, S, M], 400 mm [L, XL]
Motor & Battery
Motor
BOSCH Performance Line CX Gen4, 85 Nm, 250 W
Battery
BOSCH PowerTube 625 Wh, mit BOSCH PowerPack 500 Wh nachrüstbar [außer RH XS]
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.63 mm | 1.6 mm | 1.57 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm | 306 mm |
| Front Center | 654 mm | 677 mm | 701 mm | 725 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 91 mm | 89 mm | 88 mm | 86 mm |
| Stack | 641 mm | 661 mm | 681 mm | 701 mm |
| Reach | 386 mm | 406 mm | 426 mm | 446 mm |
| Top Tube Length | 577 mm | 603 mm | 629 mm | 655 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.75 ° | 70 ° | 70.25 ° | 70.5 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1101 mm | 1125 mm | 1149 mm | 1173 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Backfire Fit E R760i belongs to the Centurion E Backfire model. Centurion released 36 e-bikes variations of this model so far. Take a sneak peek at all Centurion E Backfire e-bikes models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry e-bikes
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Centurion Backfire Fit E R760i it’s weighing 22.2 kg (48.94 lbs). At this weight, is slightly lighter than average. In short, the average Crosscountry e-bike weight is 4.55% higher than this one.
Backfire Fit E R760i components
Fork
The Backfire Fit E R760i comes factory-installed with the Suntour XCR Air fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Centurion Backfire Fit E R760i 2021, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Backfire Fit E R760i comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Backfire Fit E R760i comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
