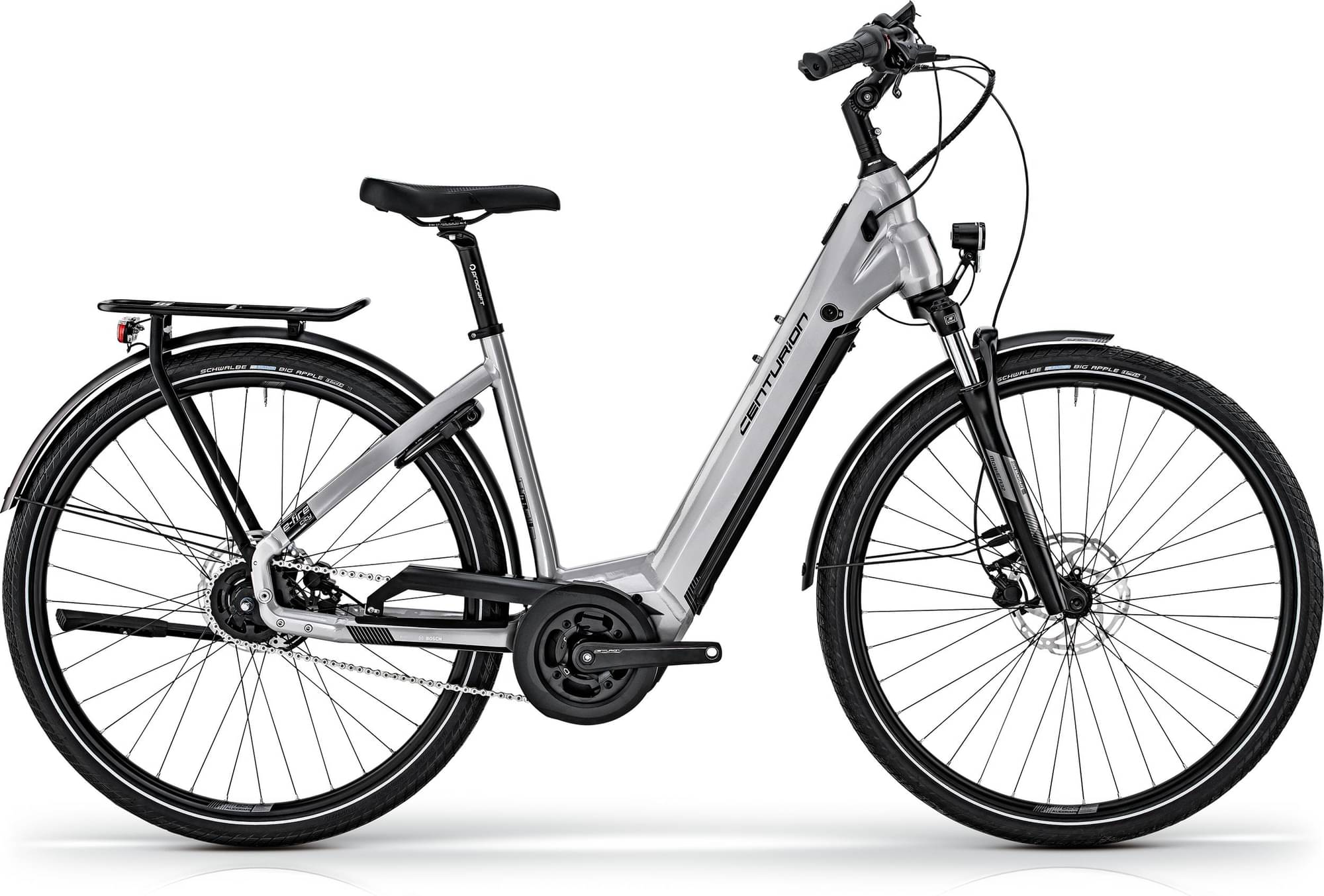

centurion E-Fire City R650i 2022
2022 E-bike
Weight | 28.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire City R G3 intube, Material: Aluminium, Steuerrohr: 1.5" straight, Ausfallende: 10x135 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: 27.5": CBP049A, 28": ABP085B
Suspension Fork
SR Suntour MOBIEA32-COIL, Federweg: 63 mm, 1.5" tapered
Drivetrain
Shift Levers
Shimano Nexus Revoshift, SL-C7000-5, mit Ganganzeige
Cassette
Shimano CS-C7000 30T
Crank
CENTURION R Comp Gen3, mattschwarz, Länge: 170 mm (XS, S), 175 mm (M, L), TCK10
Chain
KMC Z1eHX Narrow, Kettenlänge: 28": 110 Links, 27.5": 108 Links
Chain Guide
Curana FLY
Pedals
VPE-891
Wheels
Front Hub
PROCRAFT Centerlock 15 light * 15x100 mm * 36H / Shimano Nexus Inter-5E, SG-C7000-5D, 36H
Rear Hub
PROCRAFT Centerlock 15 light * 15x100 mm * 36H / Shimano Nexus Inter-5E, SG-C7000-5D, 36H
Rims
PROCRAFT MD23, IW 23 mm
Spokes
PROCRAFT stainless 2.0
Tires
Schwalbe Big Apple/Big Ben, 28/27.5x2.0", Active Line mit Reflex
Brakes
Brakes
Tektro HD-T275, organic pad
Brake Levers
Tektro HD-T275
Cockpit
Stem
PROCRAFT Adjustable Pro, Winkel: -10-60°, Länge: 100 mm
Handlebar
PROCRAFT City Comp, Durchmesser: 31.8 mm, Breite: 640 mm, Backsweep 35°
Seat
Saddle
PROCRAFT City II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9 mm, Länge: 350 mm
Motor & Battery
Motor
Bosch Performance Line Gen3, max. 50 Nm, 250 W
Battery
Bosch PowerTube 500 Wh
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.69 mm | 1.61 mm | 1.58 mm |
| Front Center | 652 mm | 662 mm | 689 mm | 715 mm |
| Rake | 41 mm | 43 mm | 42 mm | 42 mm |
| Trail | 86 mm | 85 mm | 86 mm | 86 mm |
| Stack | 630 mm | 656 mm | 665 mm | 684 mm |
| Reach | 372 mm | 388 mm | 412 mm | 432 mm |
| Top Tube Length | 565 mm | 590 mm | 616 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 180 mm | 170 mm | 180 mm | 200 mm |
| Chainstay Length | 457 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1105 mm | 1126 mm | 1153 mm | 1180 mm |
| Bottom Bracket Drop | 46 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
E-Fire City R650i is a Centurion E E Fire model. 83 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Commuter e-bikes
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
E-Fire City R650i weighs 28.2 kg (62.17 lbs) and is considerably heavier than the average. In other words, this model is 11.9% heavier than the average Commuter e-bike.
E-Fire City R650i components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the E-Fire City R650i model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
