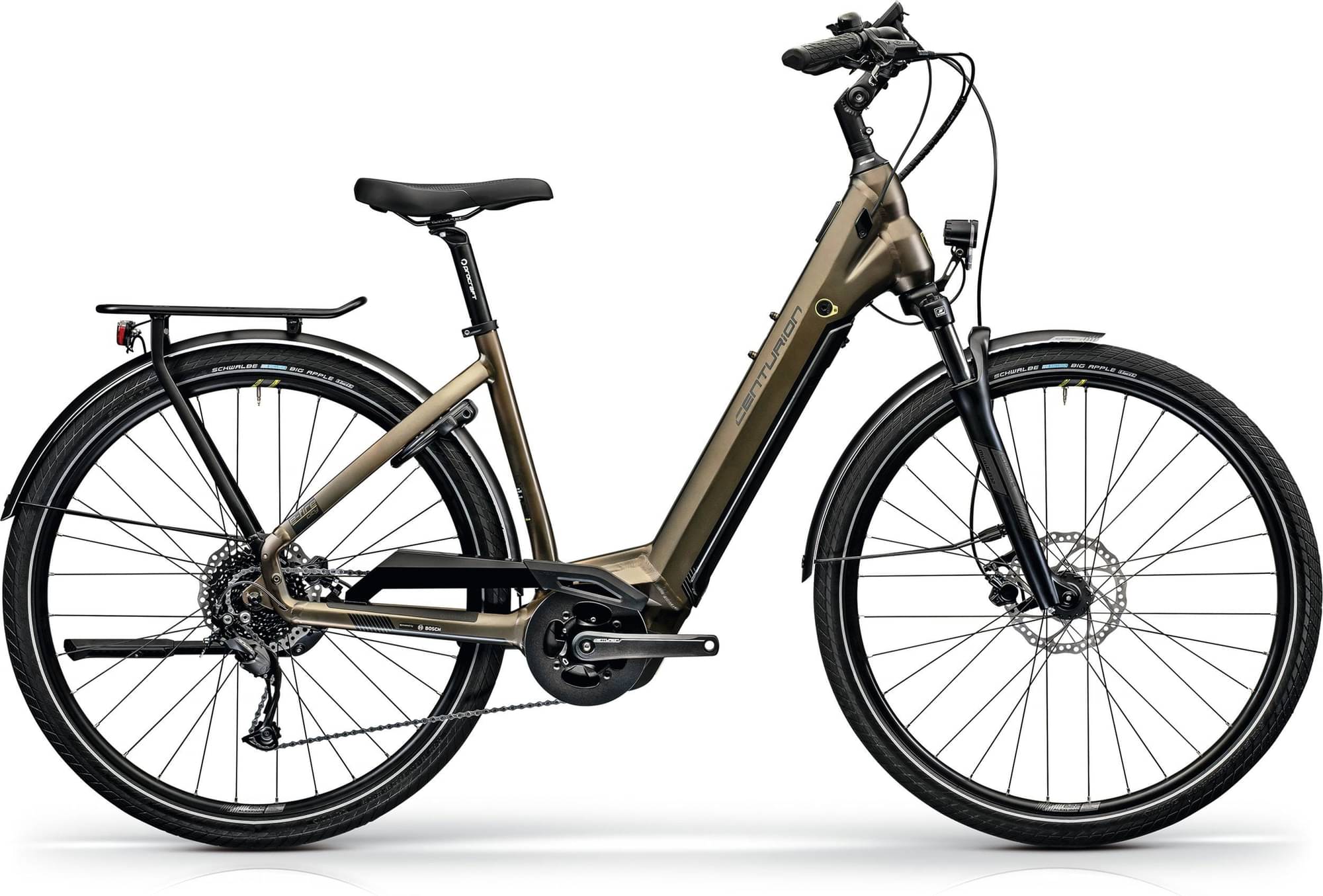

centurion E-Fire City R760i 2022
2022 E-bike
Weight | 27.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube 625 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire City R G3 intube, Material: Aluminium, Steuerrohr: 1.5" straight, Ausfallende: 10x135 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: 27.5": CBP041B, 28": ABP077B
Suspension Fork
SR Suntour MOBIEA32-COIL, Federweg: 63 mm, 1.5" tapered
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100-SGS, 1x9
Shift Levers
Shimano Alivio, SL-M3100-R, mit Ganganzeige
Cassette
Shimano CS-HG200-9, 11-36T
Crank
CENTURION R Comp Gen3, mattschwarz, Länge: 170 mm (XS, S), 175 mm (M, L), TCK10
Chain
KMC E9 silber/schwarz, Kettenlänge: 28": 118 Links, 27.5": 116 Links
Chain Guide
Curana FLY
Pedals
VPE-891
Wheels
Front Hub
PROCRAFT 6-Bolt 15 light * 15x100 mm * 32H / Shimano FH-TX506, 10x135 mm, 32H
Rear Hub
PROCRAFT 6-Bolt 15 light * 15x100 mm * 32H / Shimano FH-TX506, 10x135 mm, 32H
Rims
PROCRAFT MD23, IW 23 mm
Spokes
PROCRAFT stainless 2.0
Tires
Schwalbe Big Apple/Big Ben, 28/27.5x2.0", Active Line mit Reflex
Brakes
Brakes
Tektro HD-T275, organic pad
Brake Levers
Tektro HD-T275
Cockpit
Stem
PROCRAFT Adjustable Pro, Winkel: -10-60°, Länge: 100 mm
Handlebar
PROCRAFT City Comp, Durchmesser: 31.8 mm, Breite: 640 mm, Backsweep 35°
Seat
Saddle
PROCRAFT City II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9 mm, Länge: 350 mm
Motor & Battery
Motor
Bosch Performance Line Gen3, max. 65 Nm, 250 W
Battery
Bosch PowerTube 625 Wh
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.62 mm | 1.58 mm |
| Front Center | 662 mm | 689 mm | 715 mm |
| Rake | 43 mm | 42 mm | 42 mm |
| Trail | 85 mm | 86 mm | 86 mm |
| Stack | 655 mm | 664 mm | 683 mm |
| Reach | 387 mm | 411 mm | 431 mm |
| Top Tube Length | 589 mm | 615 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 170 mm | 180 mm | 200 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1125 mm | 1152 mm | 1179 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
E-Fire City R760i is a Centurion E E Fire model. 83 e-bikes variations carry this model name so far. Take a sneak peek at all Centurion E E Fire e-bikes models from 2022, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 27.6 kg (60.85 lbs), the E-Fire City R760i model is a bit heavier than average. In other words, this model is 9.52% heavier than the average Commuter e-bike.
E-Fire City R760i components
Fork
Centurion E-Fire City R760i 2022 e-bike is equipped with the Suntour MOBIE fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on E-Fire City R760i are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Centurion E-Fire City R760i has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
