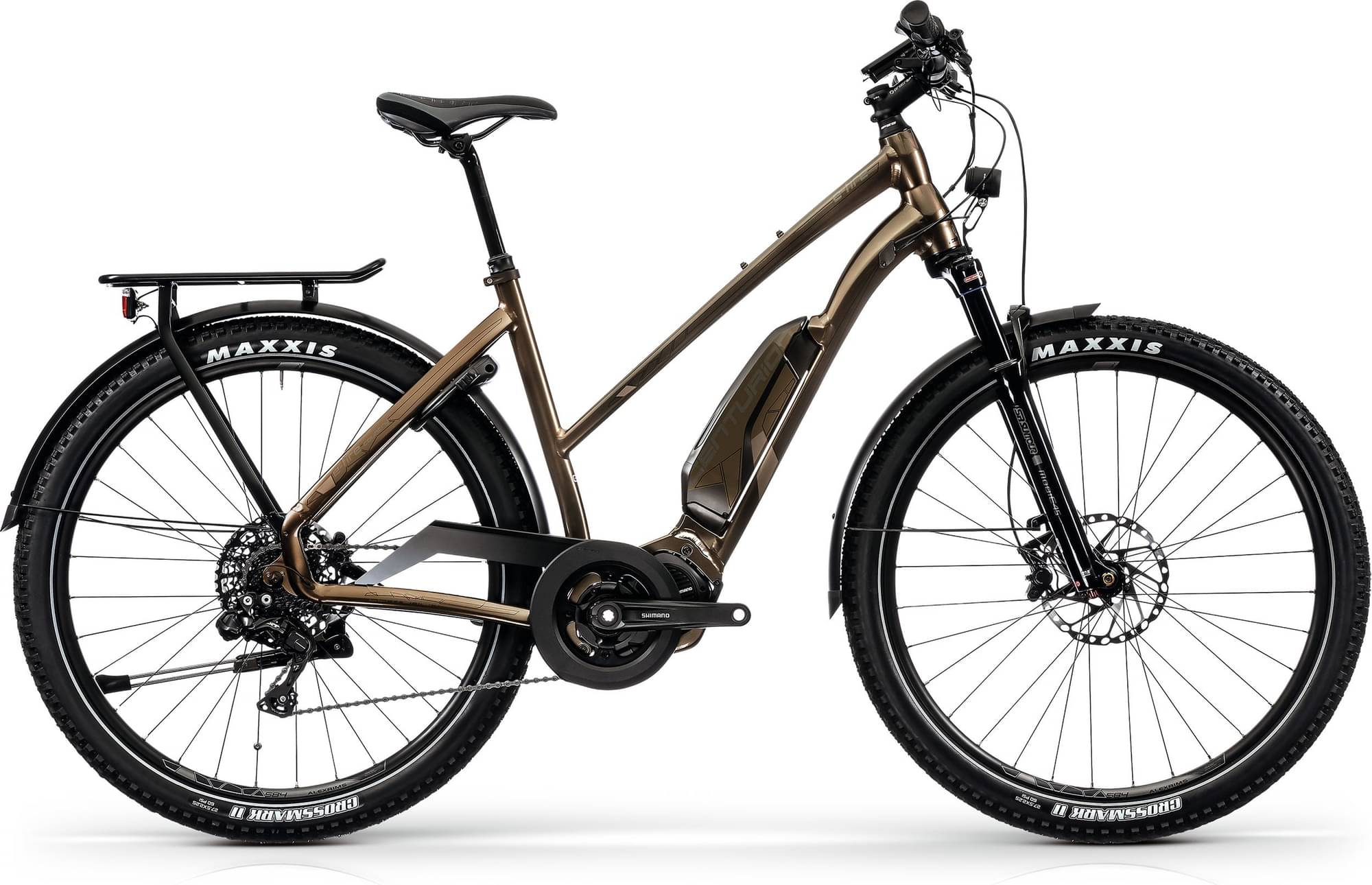

centurion E-Fire Country Tour F3500 2020
2020 E-bike
Weight | 22.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour MOBIE -
Groupset XT Di2, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8010 500Wh -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Country Tour F
Suspension Fork
SR Suntour Mobie45 Air LOR
Drivetrain
Rear Derailleur
Shimano RD-M8050-GS, 1 x 11
Shift Levers
Shimano SW-E6010-R
Cassette
SRAM CS-PG 1130 11-42T
Crank
Shimano FC-E8000, 175L
Chain
SRAM PC 1110
Chain Guide
Curana
Pedals
VPE-461
Wheels
Front Hub
Shimano HB-M7010, 32H CL / Shimano FH-M7000, 32H CL
Rear Hub
Shimano HB-M7010, 32H CL / Shimano FH-M7000, 32H CL
Rims
PROCRAFT by Alexrims MPD23, IW23
Spokes
DT Industrie 2.0
Tires
Maxxis Crossmark II, 57-584, 60 TPI wire Reflex
Brakes
Brakes
Shimano BR-M6000
Brake Levers
Shimano BL-M6000
Cockpit
Stem
PROCRAFT AL COMP II, dia: 31.8 17°
Handlebar
PROCRAFT RISER PRO, dia: 31,8 rise: 22 bend: 9° width: 680
Seat
Saddle
PROCRAFT TOUR
Seatpost
PROCRAFT AL PRO DROP-SUSPENSION, dia: 30.9, 80L
Motor & Battery
Motor
Shimano DU-E8000
Battery
Shimano BT-E8010 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.64 mm | 1.64 mm | 1.64 mm |
| Front Center | 657 mm | 675 mm | 695 mm | 715 mm |
| Rake | 44 mm | 43 mm | 44 mm | 44 mm |
| Trail | 83 mm | 84 mm | 83 mm | 83 mm |
| Stack | 620 mm | 638 mm | 657 mm | 676 mm |
| Reach | 377 mm | 389 mm | 401 mm | 413 mm |
| Top Tube Length | 568 mm | 585 mm | 603 mm | 621 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1093 mm | 1111 mm | 1131 mm | 1151 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
E-Fire Country Tour F3500 completes the Centurion E E Fire model. 83 e-bikes variations carry this model name so far. Take a sneak peek at all Centurion E E Fire e-bikes models from 2020, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 22.6 kg (49.82 lbs), Centurion e-bike is considerably lighter than average. To sum up, it’s 11.5% lighter than the average weight of Commuter e-bikes.
E-Fire Country Tour F3500 components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The E-Fire Country Tour F3500 2020 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Centurion E-Fire Country Tour F3500 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
E-Fire Country Tour F3500 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
